X269

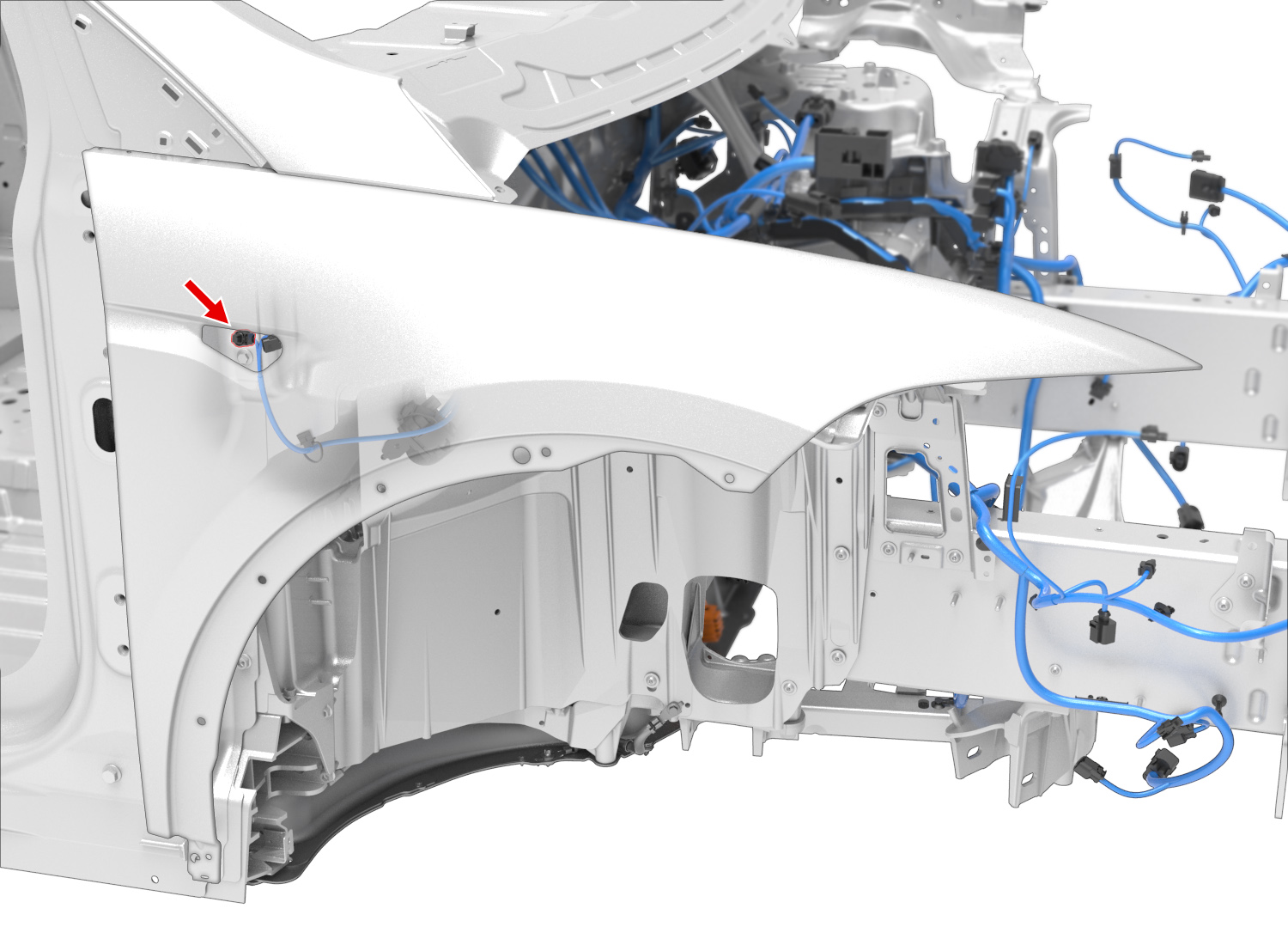

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13959141 | 1.2x0.6FS | GY | 0.50 | DELPHI | 15327918 | X011 | 28 |
| 2 | DELPHI | 13959141 | 1.2x0.6FS | BK | 0.50 | DELPHI | 15327918 | G160 | 8 |
