X022

Tesla Part Number
1559062-01-A
Connector
AMP 2-1564330-1
Color
GY

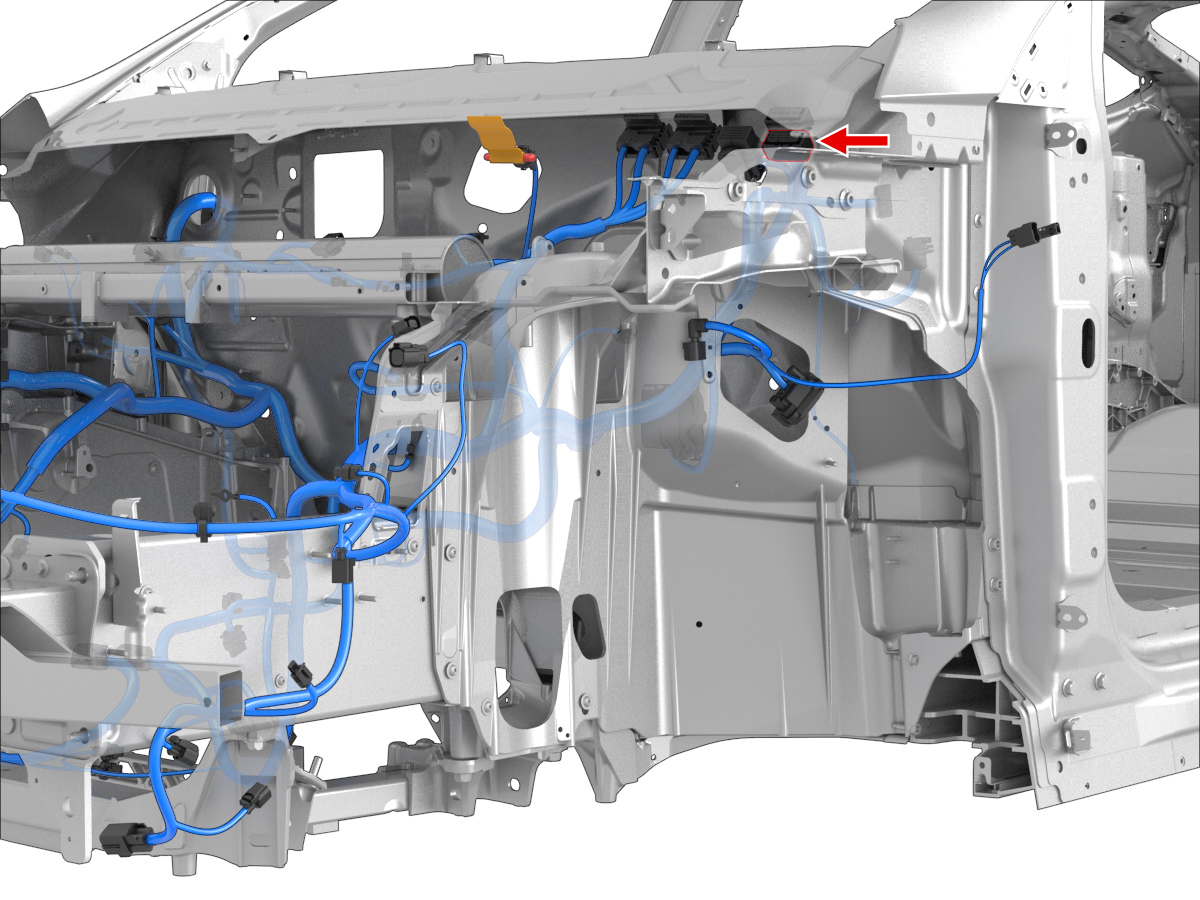

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1
2DELPHI139761176.3FSYE4.00DELPHI15327864X0881
3DELPHI139761176.3FSRD4DELPHI15327864X1511
4DELPHI139761176.3FSWH4.00DELPHI15327864X1709
