X913F

Tesla Part Number

1486226-01-A

Connector

DELPHI 33239500

Color

NA

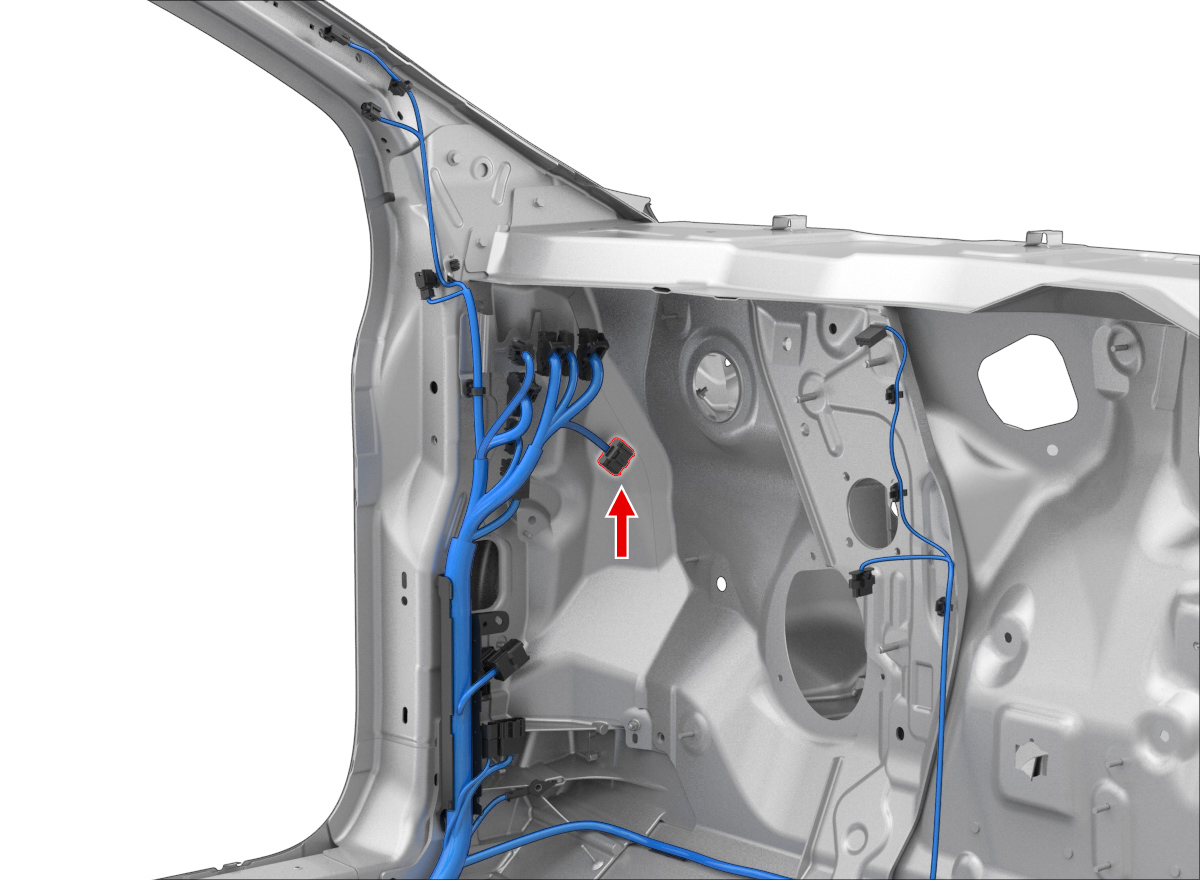

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	DELPHI	35410019	1.2x0.6F	GN/WH	0.35			X988M	5
3	DELPHI	35410019	1.2x0.6F	GN	0.35			X988M	6
4	unused
5	DELPHI	35410019	1.2x0.6F	VT	0.35
6	DELPHI	35410019	1.2x0.6F	WH	0.35
7	DELPHI	35410019	1.2x0.6F	RD	0.35			X049	5
8	DELPHI	35410019	1.2x0.6F	GY	0.35			X049	6
9	DELPHI	35410019	1.2x0.6F	BU	0.35			X201	56
10	unused
11	unused
12	DELPHI	35410019	1.2x0.6F	YE	0.35			X910F	10
13	DELPHI	35410019	1.2x0.6F	GY	0.35			X910F	9
14	DELPHI	35410019	1.2x0.6F	RD	0.35			X200	27
15	DELPHI	35410019	1.2x0.6F	GN/WH	0.35			X201	54
16	DELPHI	35410019	1.2x0.6F	GN	0.35			X201	53
17	unused
18	unused
19	unused
20	unused
