X293

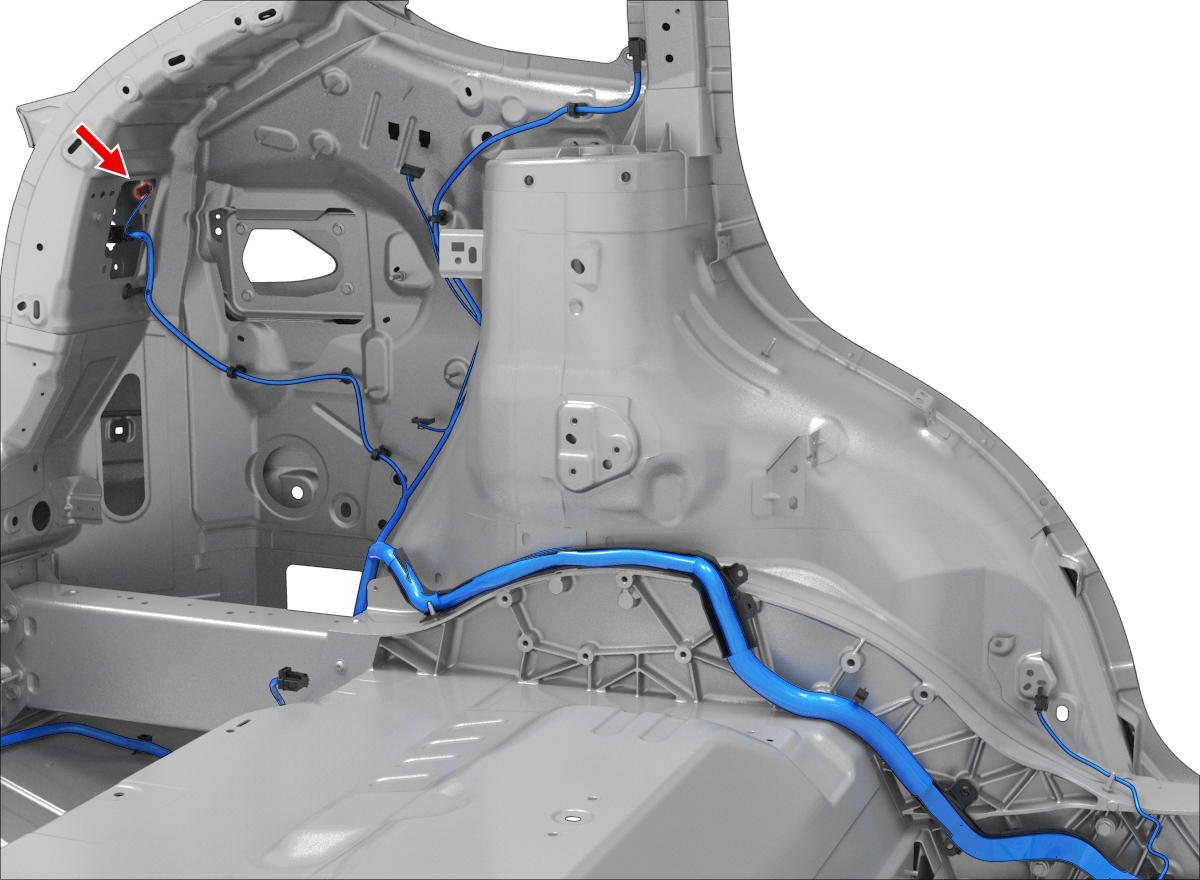

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13580633 | 0.64x0.64F | RD | 0.35 | X032 | 36 | ||
| 2 | DELPHI | 13580633 | 0.64x0.64F | BK | 0.35 | G290 | 1 |
