G160

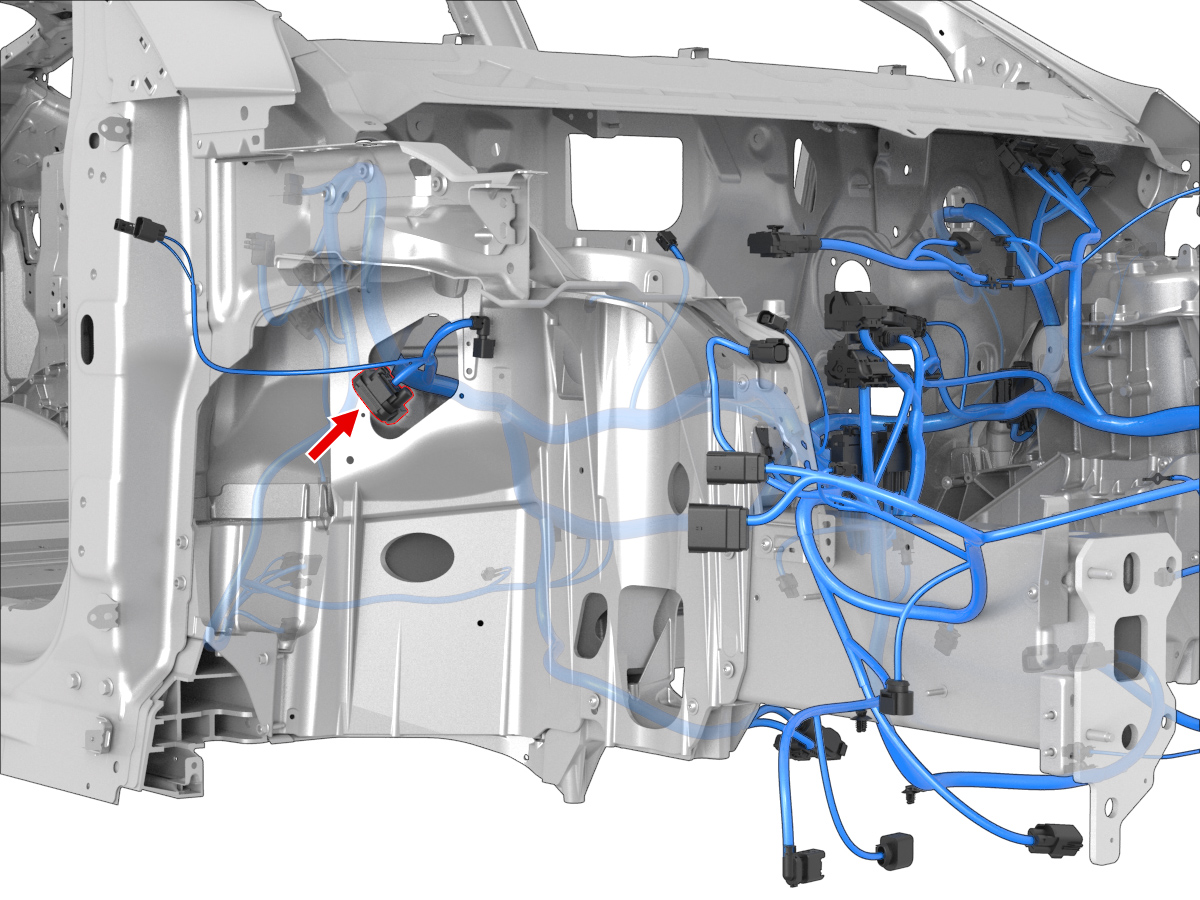

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 10780234 | 9.5FS | BK | 8.00 | DELPHI | 15327788 | G140 | 1 |
| 2 | |||||||||
| 3 | DELPHI | 35138798 | 1.5 | BK | 1.50 | DELPHI | 13582732 | X964M | 1 |
| 4 | DELPHI | 35138800 | 1.5 | BK | 0.35 | DELPHI | 13582731 | X543 | 2 |
| 5 | DELPHI | 35138799 | 1.5 | BK | 0.75 | DELPHI | 13582730 | X990F | 10 |
| 6 | DELPHI | 13976117 | 6.3FS | BK | 4.00 | DELPHI | 15327864 | X150 | 9 |
| 7 | |||||||||
| 8 | DELPHI | 35138800 | 1.5 | BK | 0.50 | DELPHI | 13582731 | X269 | 2 |
| 9 | DELPHI | 35138799 | 1.5 | BK | 1.00 | DELPHI | 13582730 | X261A | 3 |
| 10 | |||||||||
| 11 | |||||||||
| 12 | |||||||||
| 13 | |||||||||
| 14 | DELPHI | 15446675 | 2.8FS | BK | 2.00 | DELPHI | 15339838 | X066 | 1 |
| 15 | DELPHI | 13976117 | 6.3FS | BK | 4.00 | DELPHI | 15327864 | X088 | 2 |
