G150

Tesla Part Number

1787037-00-A

Connector

KSE K21F00801

Color

GY

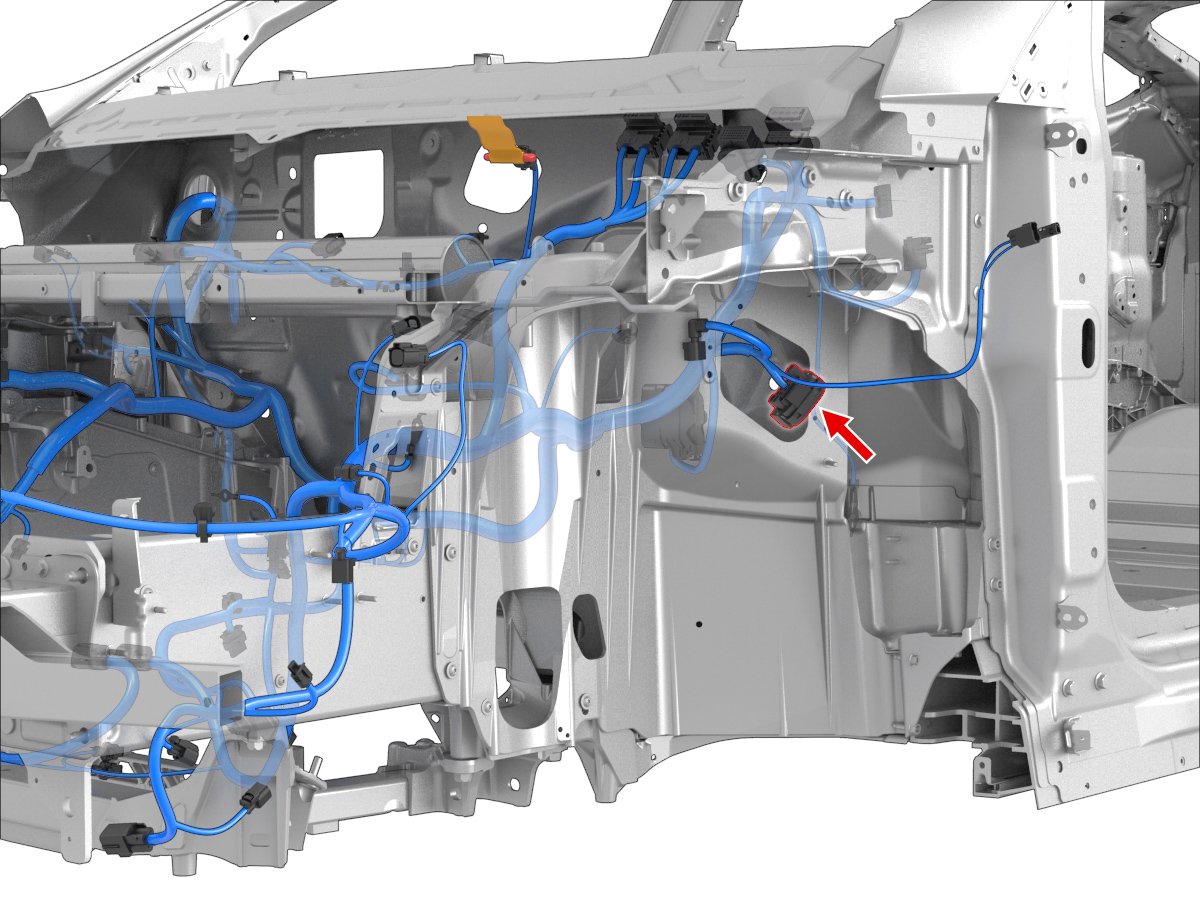

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	10780234	9.5FS	BK	8.00	DELPHI	15327788	G130	1
2	DELPHI	35138800	1.5	BK	0.50	DELPHI	13582731	X995F	10
3	DELPHI	35138800	1.5	BK	0.50	DELPHI	13582731	X907F	3
4
5	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X198	2
6	DELPHI	13976117	6.3FS	BK	4	DELPHI	15327864	X151	13
7	DELPHI	35138800	1.5	BK	0.50	DELPHI	13582731	X268	2
8	DELPHI	35138798	1.5	BK	1.50	DELPHI	13582732	X995F	17
9	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X260A	3
10	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X196	2
11	DELPHI	15446675	2.8FS	BK	2.50	DELPHI	15339838	X300	2
12	DELPHI	15446675	2.8FS	BK	2.00	DELPHI	15339838	X151	38
13
14
15	DELPHI	13976117	6.3FS	BK	4.00	DELPHI	15327864	X532	1
