X001

Tesla Part Number
1833212-00-B
Connector
JONHON EVL1-P2TJ-WA-G001
Color
BK

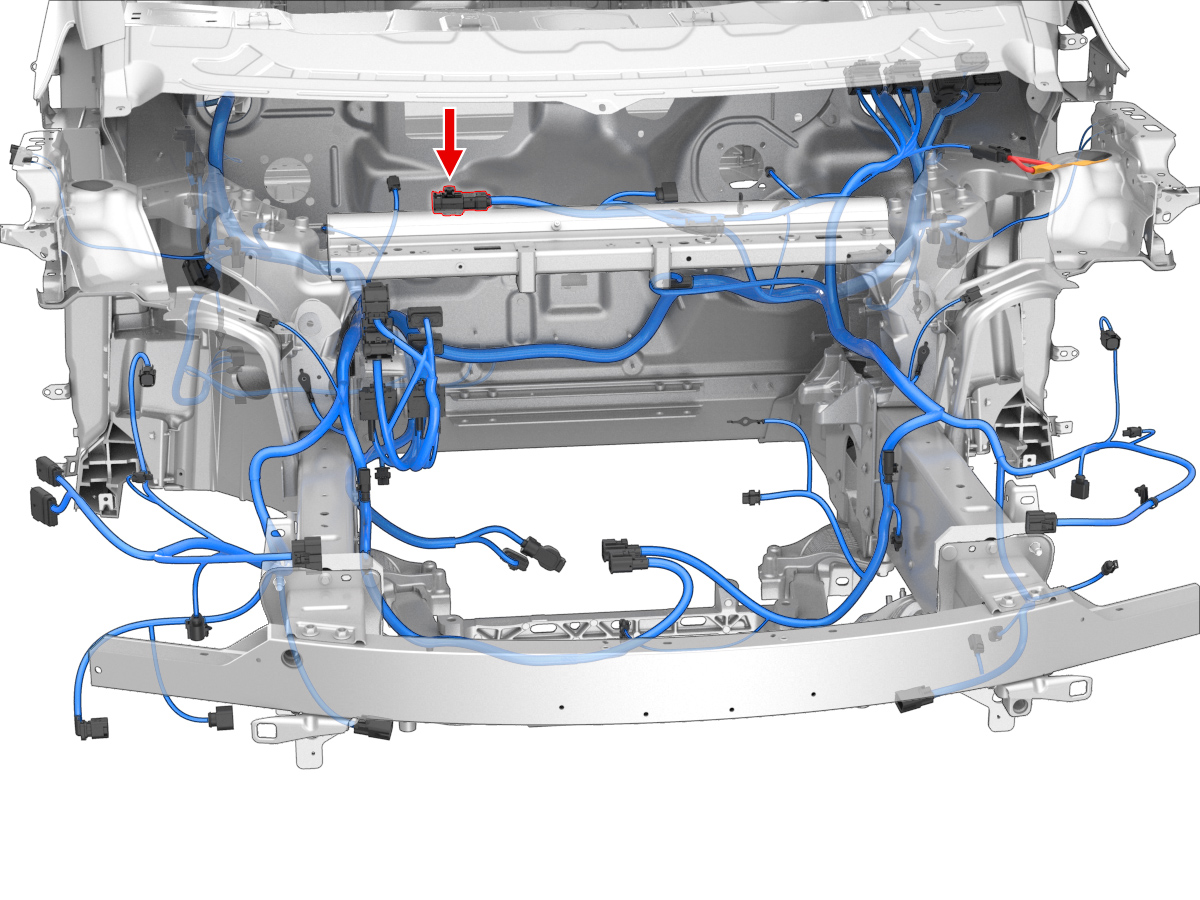

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1JONHON85563007-01PWR,MRD25PIAPIA-SEAL
2JONHON85563007-01PWR,MBK25PIAPIA-SEALG1011
3unused
4unused
5AMP1534594-31.2x0.63FVT/WH0.35PIAPIA-SEALX025E2
6AMP1534594-31.2x0.63FVT0.35PIAPIA-SEALX025F3
7AMP1534594-31.2x0.63FGN0.35PIAPIA-SEALX025J4
