X497

Tesla Part Number
1496689-00-A
Connector
DELPHI 35126375
Color
BK

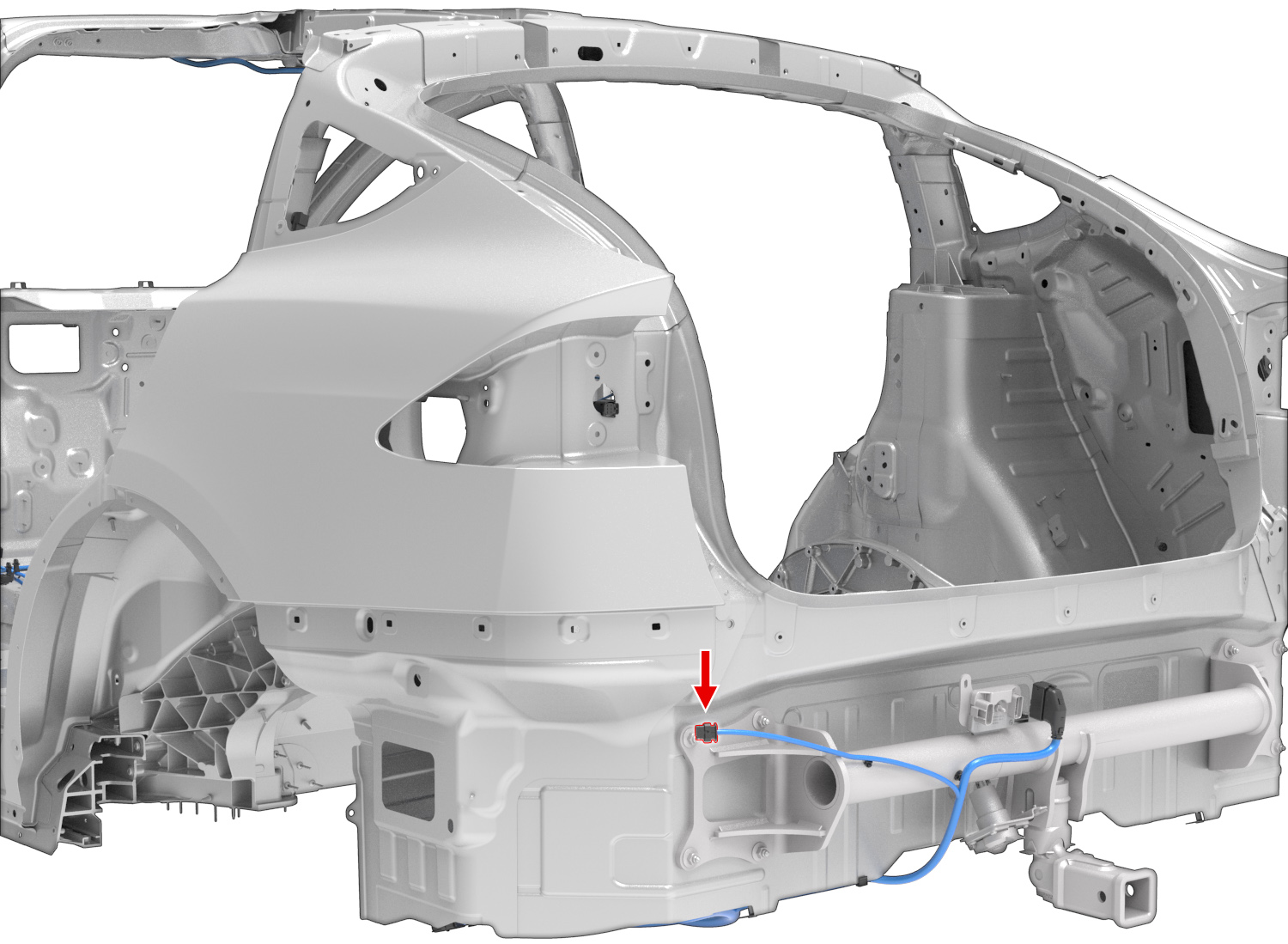

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591201.2x0.6FSGY0.35DELPHI13887349X965F3
2DELPHI139591201.2x0.6FSGN0.35DELPHI13887349X965F4
3DELPHI139591201.2x0.6FSBK0.35DELPHI13887349G2901
4DELPHI139591201.2x0.6FSVT0.35DELPHI13887349X965F6
