X301

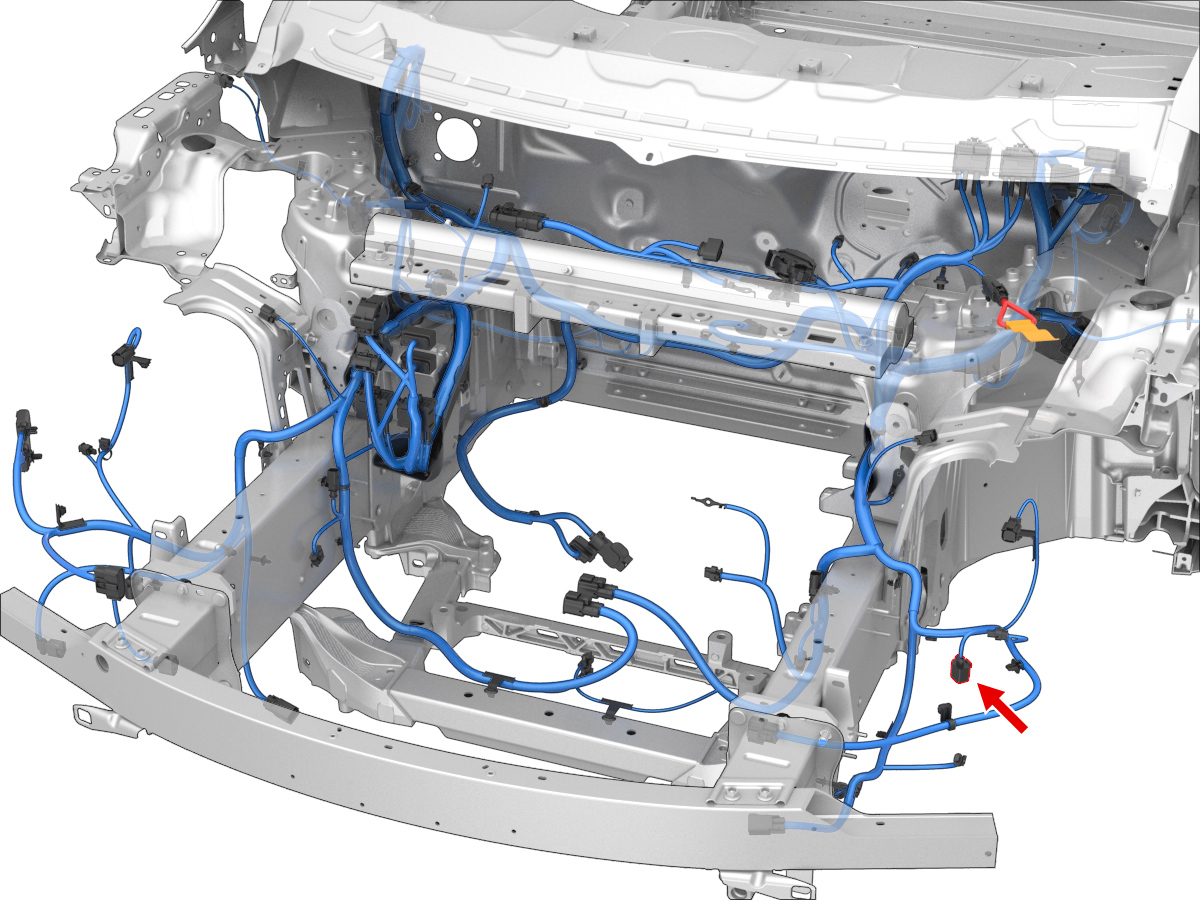

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 2-964273-1 | 2.8x0.8FS | YE | 2.00 | AMP | 963293-1 | X011 | 42 |
| 2 | AMP | 2-964273-1 | 2.8x0.8FS | GN | 2.00 | AMP | 963293-1 | X011 | 30 |
