X010

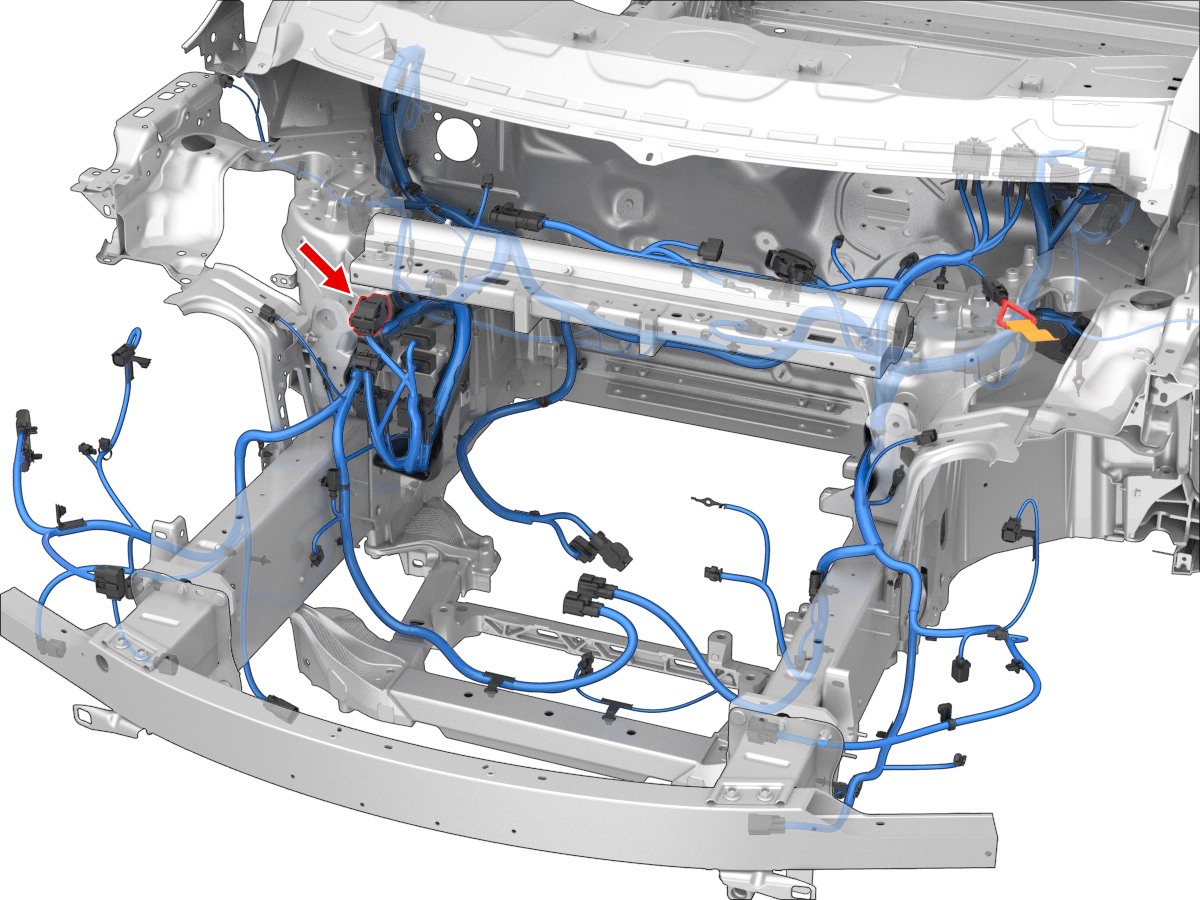

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A1 | |||||||||
| A2 | |||||||||
| A3 | MOLEX | 34805-0412 | 1.5x0.8F | RD | 1.00 | TESLA | MAT-160-280 | X964M | 11 |
| A4 | |||||||||
| A5 | |||||||||
| B1 | |||||||||
| B2 | |||||||||
| B3 | MOLEX | 34805-0412 | 1.5x0.8F | RD | 0.75 | TESLA | MAT-160-280 | X964M | 8 |
| B4 | MOLEX | 34805-0412 | 1.5x0.8F | YE | 1.00 | TESLA | MAT-160-280 | X198 | 1 |
| B5 | MOLEX | 34805-0412 | 1.5x0.8F | GY | 1.00 | TESLA | MAT-160-280 | X196 | 1 |
| C1 | MOLEX | 34803-3411 | 0.64x0.64F | GN | 0.35 | TESLA | MAT-120-190 | X906F | 13 |
| C2 | MOLEX | 34803-3411 | 0.64x0.64F | YE | 0.35 | TESLA | MAT-120-190 | X906F | 11 |
| C3 | MOLEX | 34803-3411 | 0.64x0.64F | BU | 0.35 | TESLA | MAT-120-190 | X995F | 2 |
| C4 | MOLEX | 34803-3411 | 0.64x0.64F | BN | 0.35 | TESLA | MAT-120-190 | X906F | 3 |
| C5 | MOLEX | 34803-3411 | 0.64x0.64F | VT | 0.35 | TESLA | MAT-120-190 | X517 | 2 |
| D1 | MOLEX | 34803-3411 | 0.64x0.64F | BK | 0.35 | TESLA | MAT-120-190 | ||
| D2 | MOLEX | 34803-3411 | 0.64x0.64F | GY | 0.35 | TESLA | MAT-120-190 | X906F | 12 |
| D3 | |||||||||
| D4 | MOLEX | 34803-3412 | 0.64x0.64F | GY | 0.50 | TESLA | MAT-120-190 | X964M | 18 |
| D5 | |||||||||
| E1 | MOLEX | 34803-3411 | 0.64x0.64F | BN | 0.35 | TESLA | MAT-120-190 | X166 | 1 |
| E2 | |||||||||
| E3 | MOLEX | 34803-3412 | 0.64x0.64F | GN | 0.50 | TESLA | MAT-120-190 | X964M | 2 |
| E4 | |||||||||
| E5 | MOLEX | 34803-3411 | 0.64x0.64F | GN | 0.35 | TESLA | MAT-120-190 | X520 | 4 |
| F1 | MOLEX | 34803-3411 | 0.64x0.64F | YE | 0.35 | TESLA | MAT-120-190 | X057 | 5 |
| F2 | |||||||||
| F3 | MOLEX | 34803-3411 | 0.64x0.64F | VT | 0.35 | TESLA | MAT-120-190 | X995F | 1 |
| F4 | |||||||||
| F5 | |||||||||
| G1 | MOLEX | 34803-3412 | 0.64x0.64F | WH | 0.50 | TESLA | MAT-120-190 | X057 | 9 |
| G2 | MOLEX | 34803-3411 | 0.64x0.64F | BN | 0.35 | TESLA | MAT-120-190 | X057 | 4 |
| G3 | MOLEX | 34803-3411 | 0.64x0.64F | YE | 0.35 | TESLA | MAT-120-190 | X150 | 20 |
| G4 | MOLEX | 34803-3411 | 0.64x0.64F | WH | 0.35 | TESLA | MAT-120-190 | X520 | 3 |
| G5 | MOLEX | 34803-3412 | 0.64x0.64F | BU | 0.50 | TESLA | MAT-120-190 | X302 | B |
| H1 | MOLEX | 34803-3412 | 0.64x0.64F | VT | 0.50 | TESLA | MAT-120-190 | X025 | C3 |
| H2 | |||||||||
| H3 | MOLEX | 34803-3411 | 0.64x0.64F | GY | 0.35 | TESLA | MAT-120-190 | X906F | 4 |
| H4 | |||||||||
| H5 | MOLEX | 34803-3411 | 0.64x0.64F | YE | 0.35 | TESLA | MAT-120-190 | X907F | 6 |
| J1 | |||||||||
| J2 | MOLEX | 34803-3411 | 0.64x0.64F | TN | 0.35 | TESLA | MAT-120-190 | X907F | 4 |
| J3 | MOLEX | 34803-3411 | 0.64x0.64F | WH | 0.35 | TESLA | MAT-120-190 | X907F | 7 |
| J4 | |||||||||
| J5 | MOLEX | 34803-3411 | 0.64x0.64F | VT | 0.35 | TESLA | MAT-120-190 | X517 | 1 |
| K1 | MOLEX | 34805-0413 | 1.5x0.8F | RD | 1.50 | TESLA | MAT-160-280 | X995F | 11 |
| K2 | MOLEX | 34805-0412 | 1.5x0.8F | GY | 1.00 | TESLA | MAT-160-280 | X261A | 1 |
| K3 | |||||||||
| K4 | |||||||||
| K5 | |||||||||
| L1 | |||||||||
| L2 | |||||||||
| L3 | MOLEX | 34805-0412 | 1.5x0.8F | VT | 0.75 | TESLA | MAT-160-280 | X906F | 1 |
| L4 | MOLEX | 34805-0412 | 1.5x0.8F | BU | 0.75 | TESLA | MAT-160-280 | X906F | 2 |
| L5 |
