X320A

Tesla Part Number

1077101-00-A

Connector

SUMITOMO 6189-6987

Color

GY

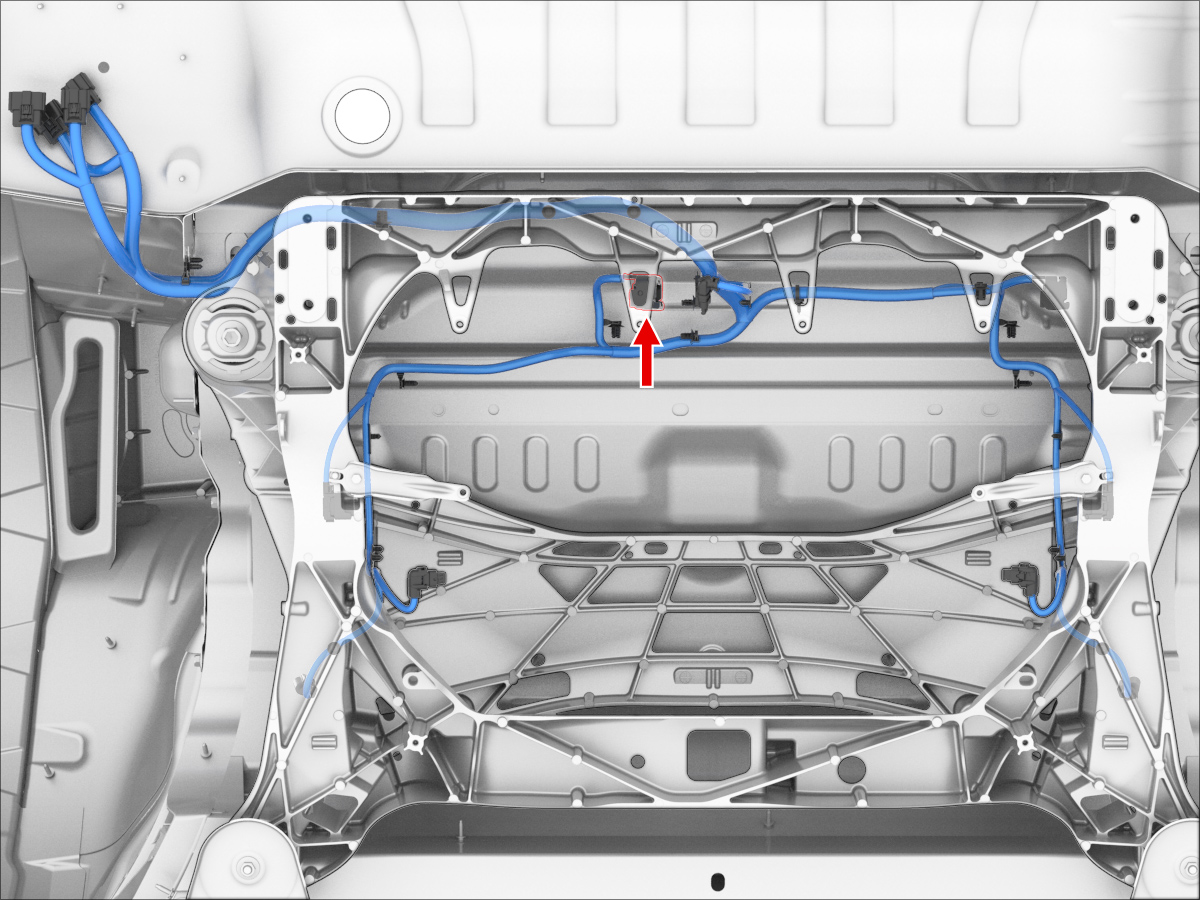

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	SUMITOMO	8100-3456	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X930F_1	5
3	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X930F_1	7
4	SUMITOMO	8240-0288	0.64x0.64FS	WH	0.50	SUMITOMO	7165-1198	X932F_1	16
5
6
7	SUMITOMO	8100-3456	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X321A	9
8	SUMITOMO	8100-3456	0.64x0.64FS	VT	0.35	SUMITOMO	7165-1312	X321A	5
9
10	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312
11
12	SUMITOMO	8100-3456	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X930F_1	4
13	SUMITOMO	8100-3456	0.64x0.64FS	BK	0.35	SUMITOMO	7165-1312	X932F_1	8
14
15
16	SUMITOMO	8100-3456	0.64x0.64FS	BK	0.35	SUMITOMO	7165-1312	X321A	8
17	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X321A	4
18	SUMITOMO	8100-3456	0.64x0.64FS	GY	0.35	SUMITOMO	7165-1312	X321A	6
19
20
21
22	SUMITOMO	8100-3456	0.64x0.64FS	TN	0.35	SUMITOMO	7165-1312	X930F_1	8
23	SUMITOMO	8240-0288	0.64x0.64FS	GN	0.50	SUMITOMO	7165-1198	X932F_1	3
24
25
26	SUMITOMO	8100-3456	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X321A	3
27	SUMITOMO	8100-3456	0.64x0.64FS	BU	0.35	SUMITOMO	7165-1312	X321A	10
28	SUMITOMO	8100-3456	0.64x0.64FS	WH	0.35	SUMITOMO	7165-1312	X321A	1
29
30
