X512

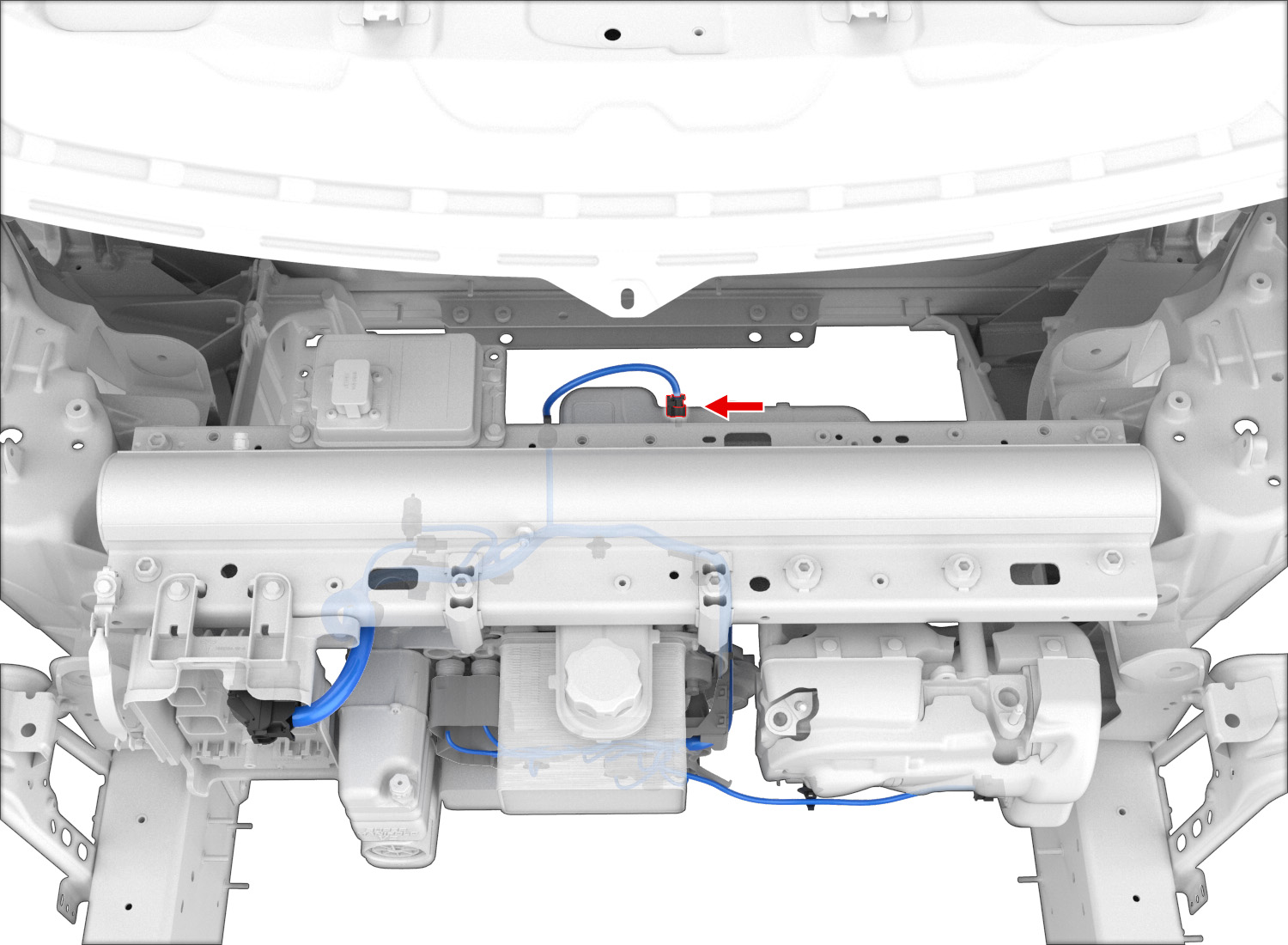

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13959141 | 1.2x0.6FS | WH | 0.50 | DELPHI | 13887350 | X021 | L1 |
| 2 | |||||||||
| 3 | |||||||||
| 4 | DELPHI | 13959141 | 1.2x0.6FS | GN | 0.50 | DELPHI | 13887350 | X021 | M1 |
