X485

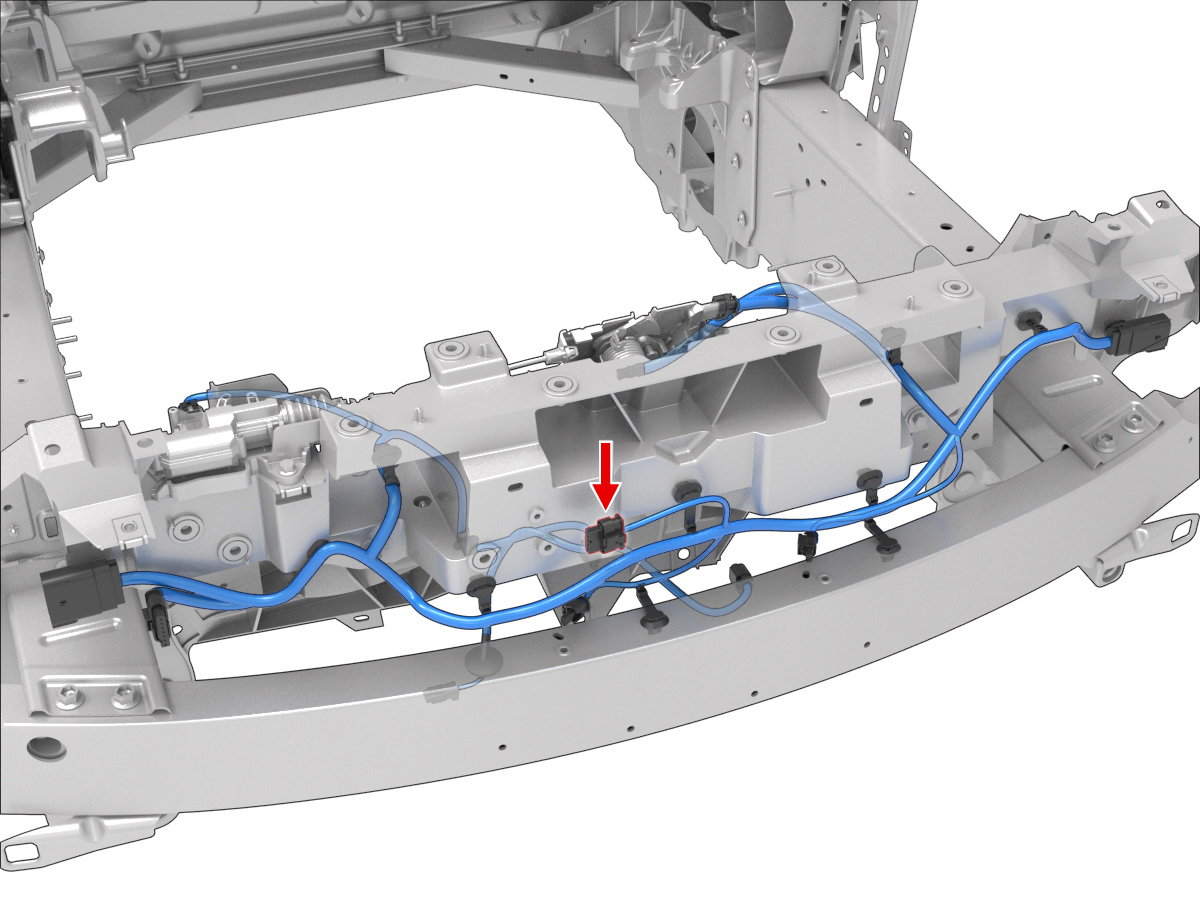

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13959120 | 1.2x0.6FS | BN | 0.35 | DELPHI | 13887349 | X906M | 3 |
| 2 | DELPHI | 13959120 | 1.2x0.6FS | BK | 0.35 | DELPHI | 13887349 | X907M | 3 |
| 3 | DELPHI | 13959120 | 1.2x0.6FS | VT | 0.35 | DELPHI | 13887349 | X906M | 7 |
| 4 | |||||||||
| 5 |
