X910F

Tesla Part Number

1486224-00-A

Connector

DELPHI 33257519

Color

BK

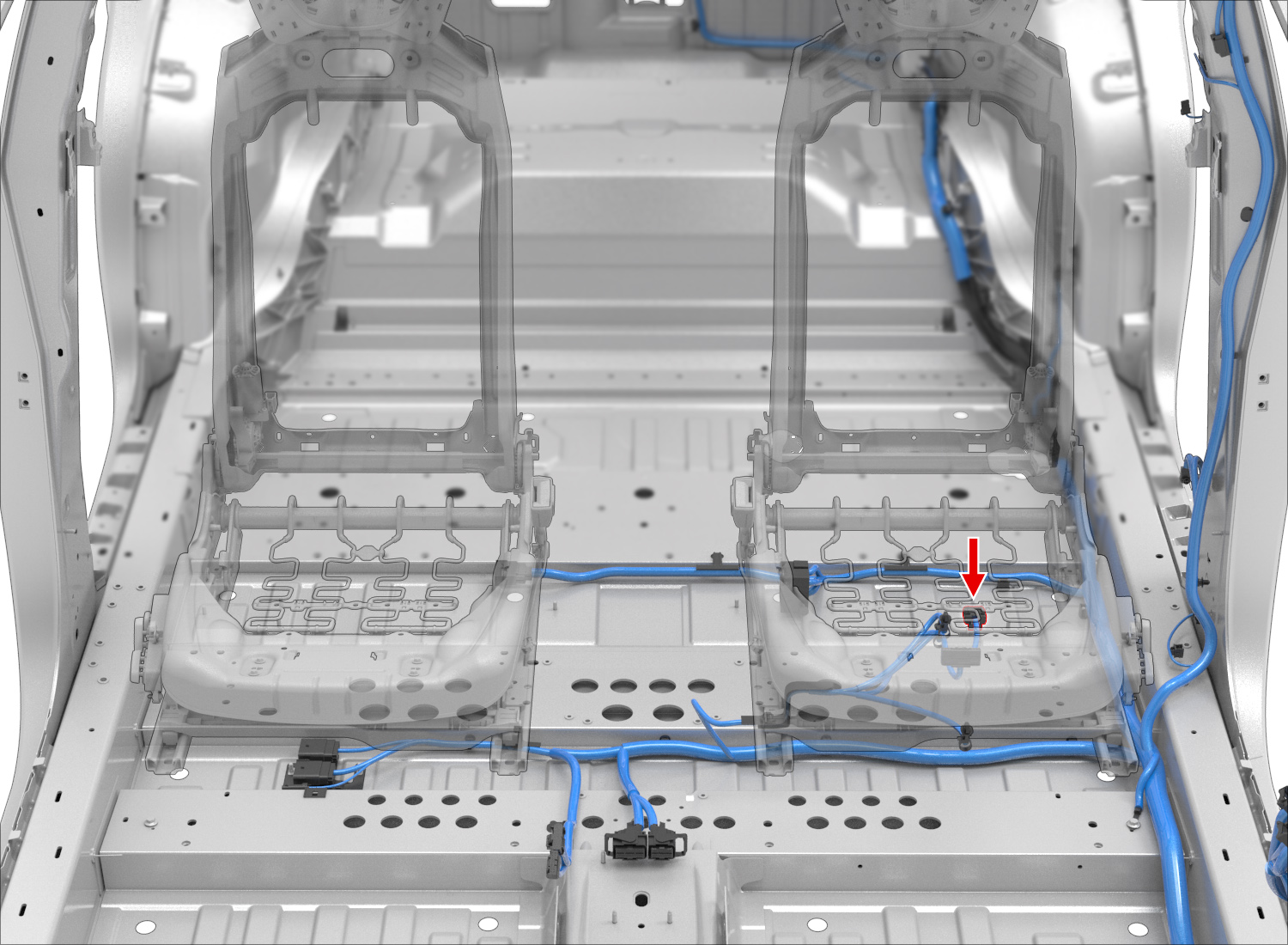

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35410019	1.2x0.6F	RD	0.35			X992M	15
2	DELPHI	35410019	1.2x0.6F	WH	0.35			X992M	14
3	unused
4	unused
5	unused
6	unused
7	unused
8	unused
9	DELPHI	35410019	1.2x0.6F	GY	0.35			X913F	13
10	DELPHI	35410019	1.2x0.6F	YE	0.35			X913F	12
11	unused
12	unused
13	DELPHI	35410019	1.2x0.6F	WH	0.35			X200	31
14	DELPHI	35410019	1.2x0.6F	BU/WH	0.35			X200	32
15	DELPHI	35410019	1.2x0.6F	BK	0.35			G250	1
16	unused
