X529

Tesla Part Number

1496689-01-A

Connector

DELPHI 35126376

Color

BK

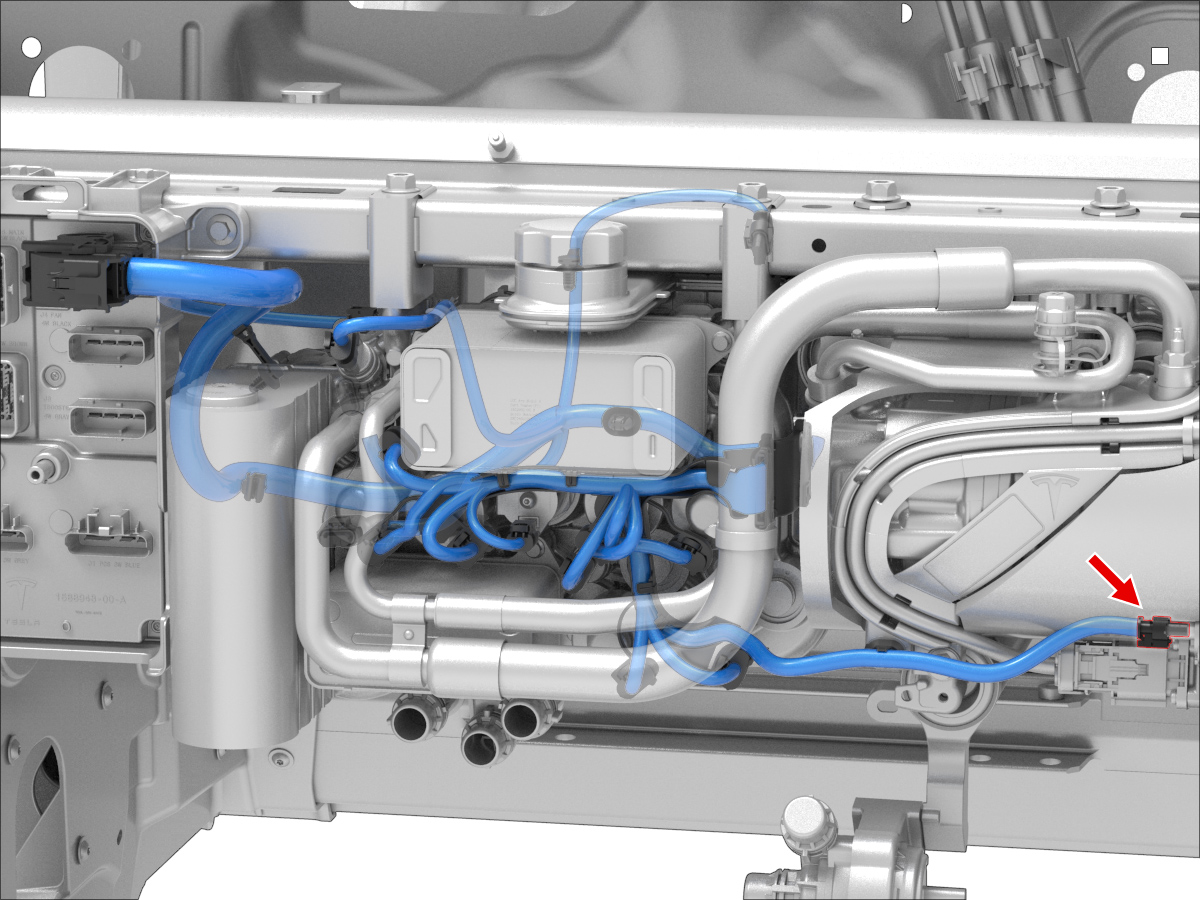

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	13959141	1.2x0.6FS	BU	0.50	DELPHI	13887350	X021	G3
2	DELPHI	13959141	1.2x0.6FS	BN/WH	0.50	DELPHI	13887350	X021	N4
3	DELPHI	13959141	1.2x0.6FS	BN	0.50	DELPHI	13887350	X021	O4
4	DELPHI	13959141	1.2x0.6FS	BK	0.50	DELPHI	13887350	X021	F2
