X013

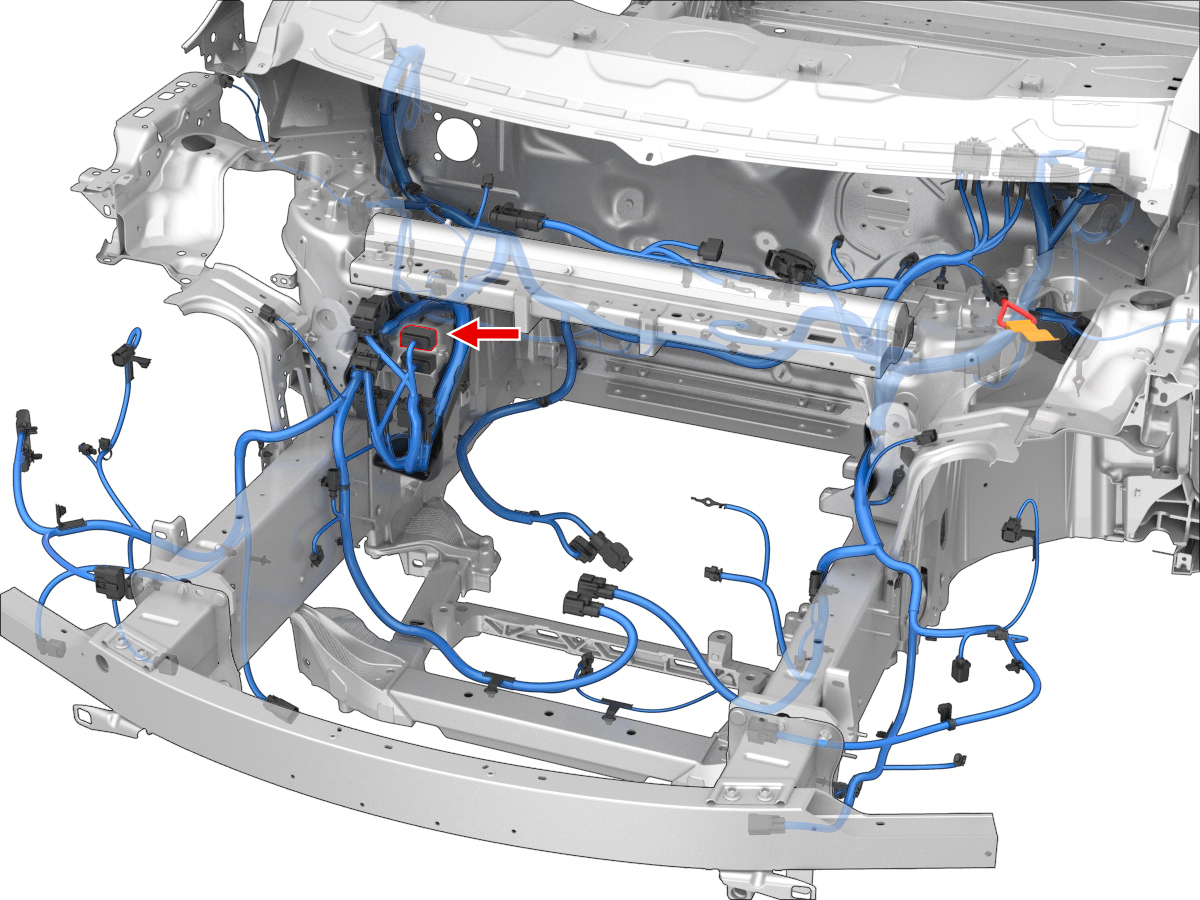

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13976115 | 6.3FS | BK | 0.50 | DELPHI | 15363779 | ||
| 2 | DELPHI | 13976118 | 6.3FS | RD | 6.00 | DELPHI | 15363605 | X611 | 3 |
| 3 | DELPHI | 13976118 | 6.3FS | GY/YE | 6.00 | DELPHI | 15363605 | X611 | 2 |
| 4 | DELPHI | 13976118 | 6.3FS | WH | 6.00 | DELPHI | 15363605 | X611 | 1 |
