X947F

Tesla Part Number

1486226-00-A

Connector

DELPHI 33239497

Color

BK

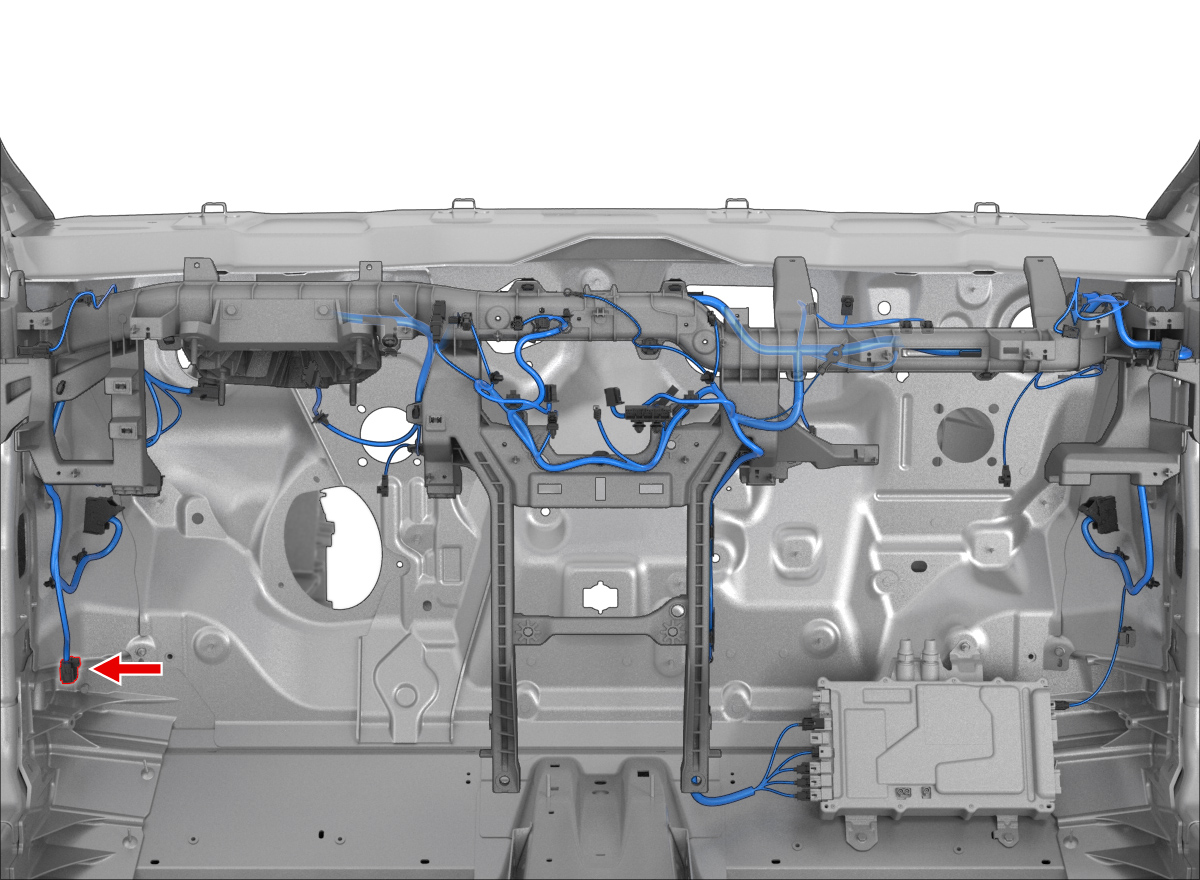

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35410019	1.2x0.6F	YE	0.35			X160	8
2	DELPHI	35410019	1.2x0.6F	BU	0.35			X160	9
3	DELPHI	35410019	1.2x0.6F	GN	0.35			X160	10
4	DELPHI	35410019	1.2x0.6F	BK	0.35			X160	11
5	unused
6	DELPHI	35410019	1.2x0.6F	BU	0.35			X178	8
7	DELPHI	35410019	1.2x0.6F	YE	0.35			X237	1
8	DELPHI	35410019	1.2x0.6F	WH	0.35			X237	2
9	DELPHI	35410019	1.2x0.6F	VT	0.35			X160	12
10	DELPHI	35410019	1.2x0.6F	RD	0.35			X160	13
11	DELPHI	35410019	1.2x0.6F	GY	0.35			X229	1
12	DELPHI	35410019	1.2x0.6F	VT	0.35			X229	2
13	DELPHI	35410019	1.2x0.6F	TN	0.35			X230	1
14	DELPHI	35410019	1.2x0.6F	GY	0.35			X230	2
15	DELPHI	35410019	1.2x0.6F	BU	0.35			X231	1
16	DELPHI	35410019	1.2x0.6F	RD	0.35			X231	2
17	DELPHI	35410019	1.2x0.6F	GY	0.35			X233	1
18	DELPHI	35410019	1.2x0.6F	BU	0.35			X233	2
19	DELPHI	35410019	1.2x0.6F	RD	0.35			X596	7
20	unused
