X915F

Tesla Part Number

1486226-01-A

Connector

DELPHI 33239500

Color

NA

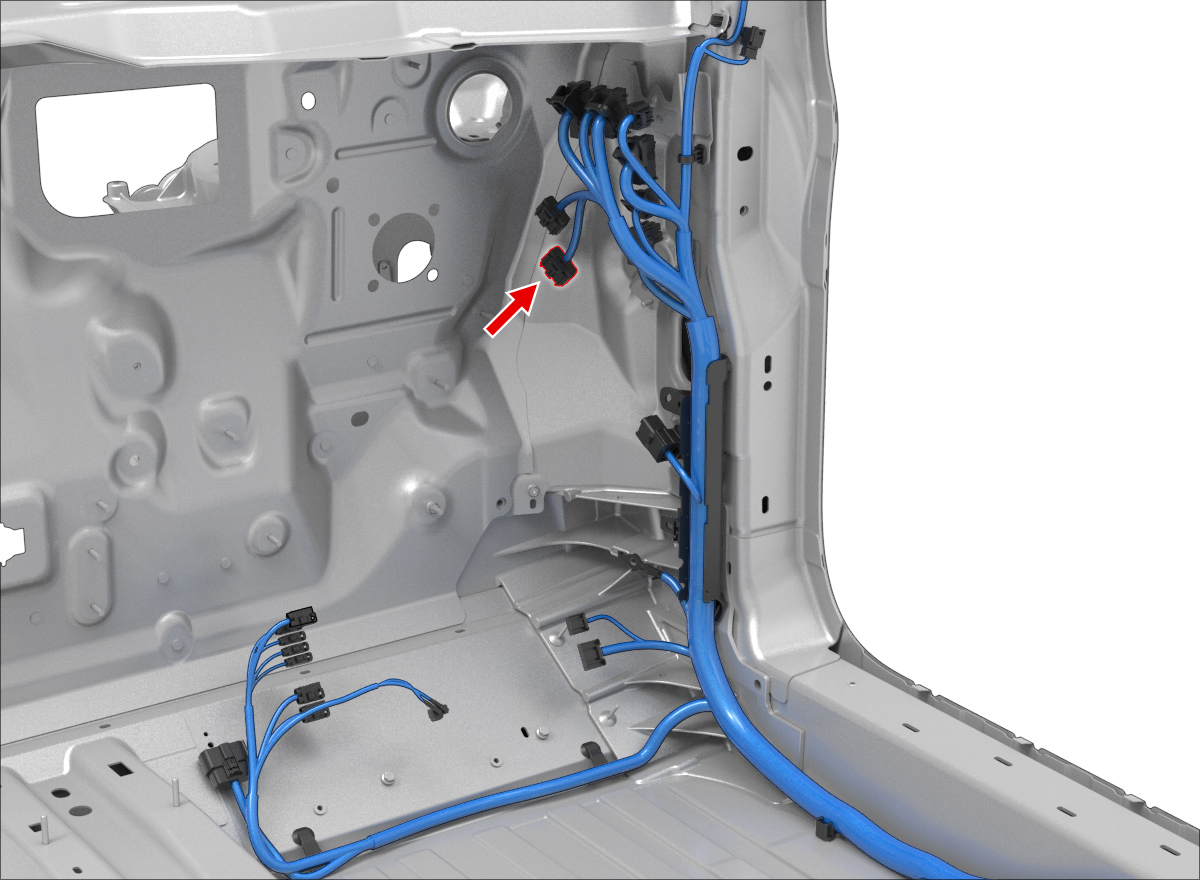

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072405	1.2x0.6F	VT	1.00			X050B	5
2	DELPHI	35410019	1.2x0.6F	GY	0.35			X488	14
3	DELPHI	35410019	1.2x0.6F	VT	0.35			X488	16
4	DELPHI	35410019	1.2x0.6F	RD	0.35			X996F	7
5	DELPHI	35410019	1.2x0.6F	GN	0.35			X996F	8
6	DELPHI	35410019	1.2x0.6F	YE	0.35			X996F	17
7	DELPHI	35410019	1.2x0.6F	BN	0.35			X996F	18
8	unused
9	unused
10	DELPHI	35072403	1.2x0.6F	PK	0.50			X174	13
11	DELPHI	35072403	1.2x0.6F	YE	0.50			X997F	15
12	DELPHI	35410019	1.2x0.6F	VT/WH	0.35
13	DELPHI	35410019	1.2x0.6F	VT	0.35
14	DELPHI	35410019	1.2x0.6F	GN/WH	0.35			X988F	5
15	DELPHI	35410019	1.2x0.6F	GN	0.35			X988F	6
16	DELPHI	35072403	1.2x0.6F	BU	0.50			X993M	10
17	DELPHI	35072403	1.2x0.6F	YE	0.50			X993M	11
18	DELPHI	35410019	1.2x0.6F	GN/WH	0.35
19	DELPHI	35410019	1.2x0.6F	WH	0.35
20	DELPHI	35072403	1.2x0.6F	WH	0.50			X174	14
