X507

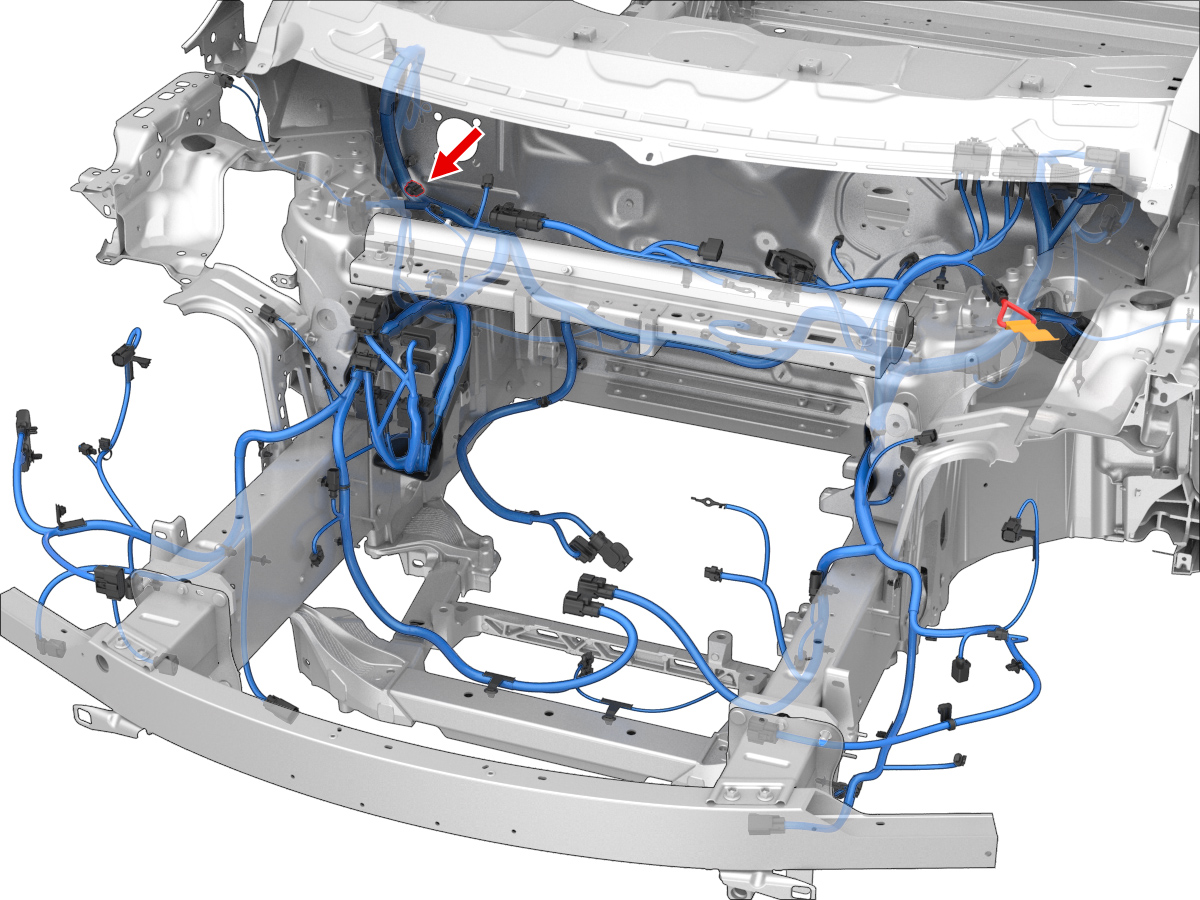

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35555156 | 1.2x0.6FS | GN | 1.00 | DELPHI | 13887350 | X025 | L3 |
| 2 | DELPHI | 35555156 | 1.2x0.6FS | WH | 1.00 | DELPHI | 13887350 | X025 | L2 |
| 3 | DELPHI | 35555156 | 1.2x0.6FS | VT | 1.00 | DELPHI | 13887350 | X025 | L1 |
| 4 | DELPHI | 13959120 | 1.2x0.6FS | BK | 0.35 | DELPHI | 13887349 |
