X178

Tesla Part Number

1473341-00-A

Connector

AMP 179631-2

Color

BK

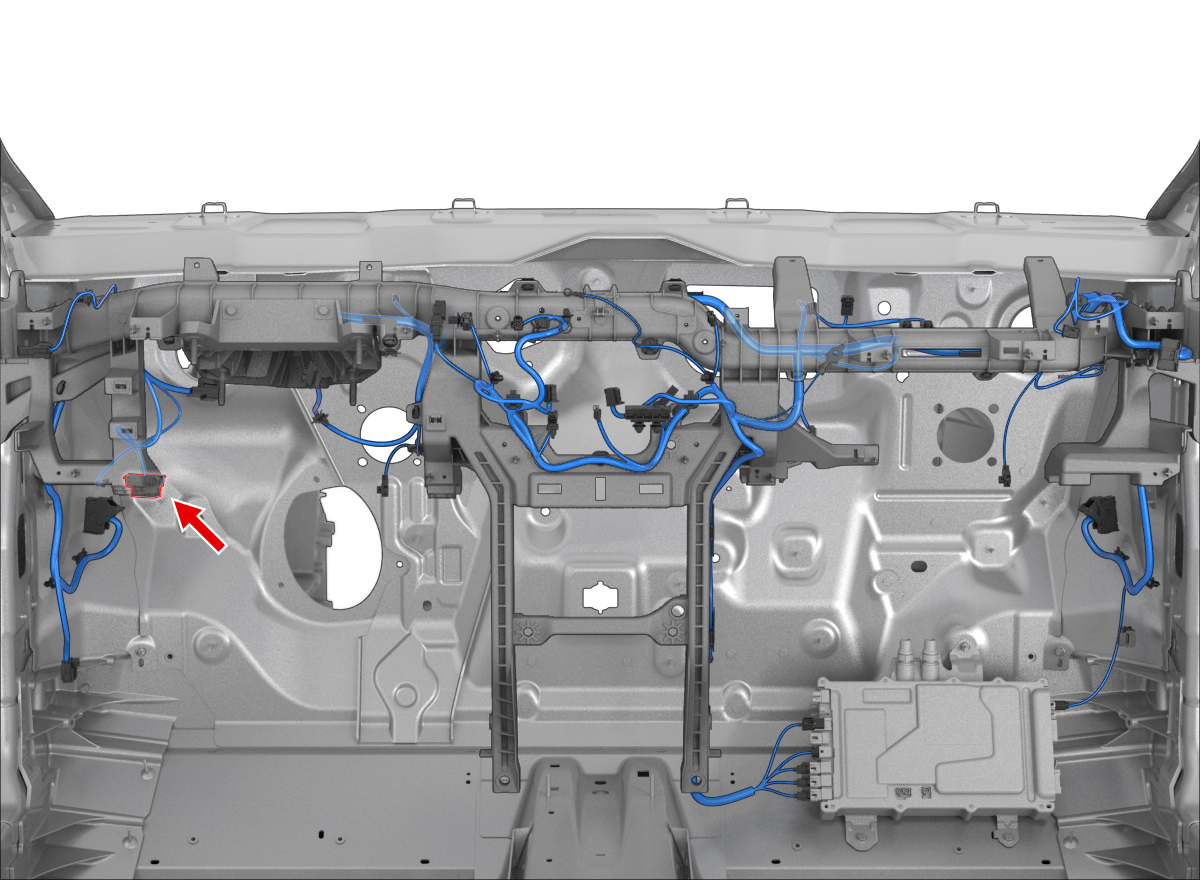

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	AMP	776001-1	1.5	GN/WH	0.35			X596	5
4	AMP	776001-1	1.5	BN	0.50
5	AMP	776001-1	1.5	BN	0.50
6	AMP	776001-1	1.5	GN	0.35			X035	23
7	unused
8	AMP	776001-1	1.5	BU	0.35			X947F	6
9	unused
10	unused
11	AMP	776001-1	1.5	GN	0.35			X596	1
12	AMP	776001-1	1.5	YE/WH	0.35			X596	2
13	AMP	776001-1	1.5	YE	0.35			X596	6
14	AMP	776001-1	1.5	WH	0.35			X035	24
15	unused
16	AMP	776001-1	1.5	YE	0.50			X035	13
