X365

Tesla Part Number
1833830-00-A
Connector
DELPHI 13623722
Color
BK

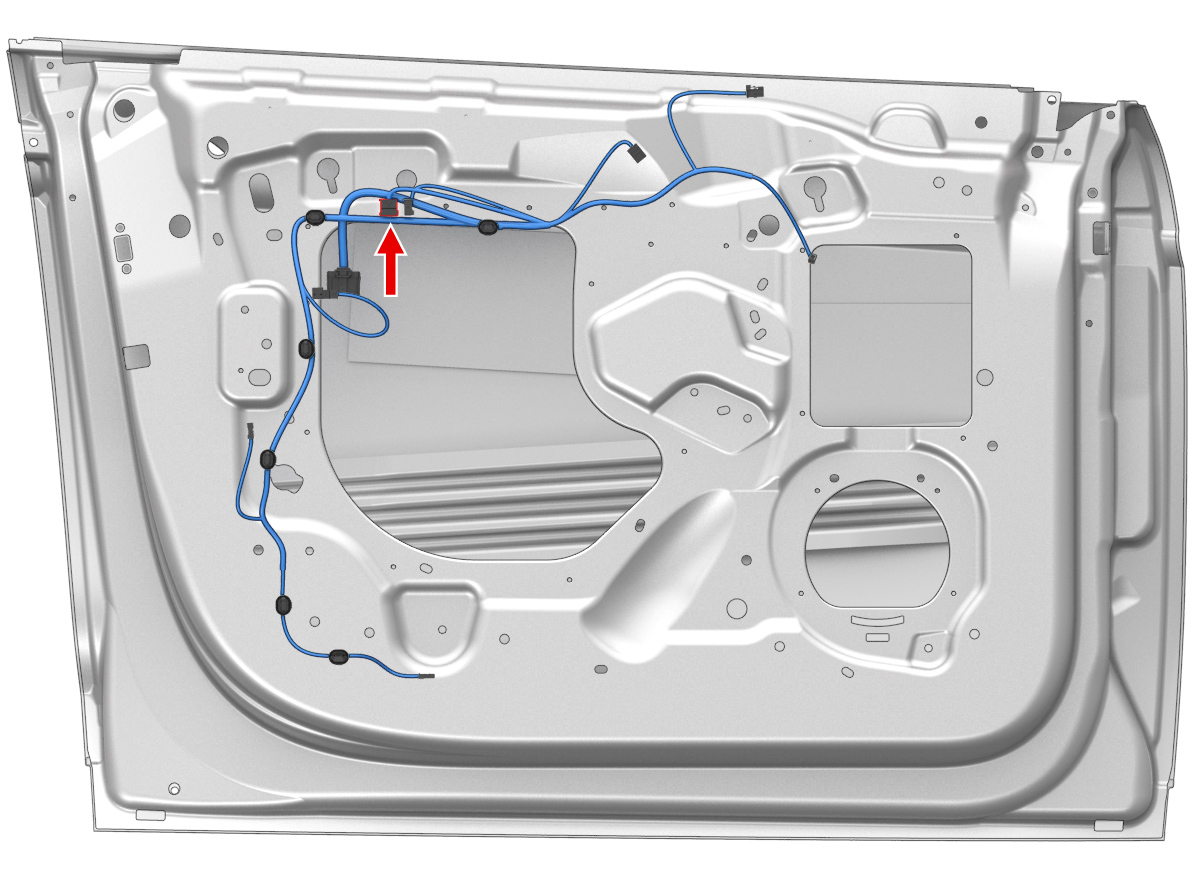

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI135806330.64x0.64FVT0.35X920M12
2DELPHI135806330.64x0.64FGY0.35X920M14
3DELPHI135806330.64x0.64FBU0.35X920M13
4DELPHI135806330.64x0.64FPK0.35X920M15
5DELPHI135806330.64x0.64FGY0.35X920M1
6DELPHI135806330.64x0.64FBN0.35
