X012

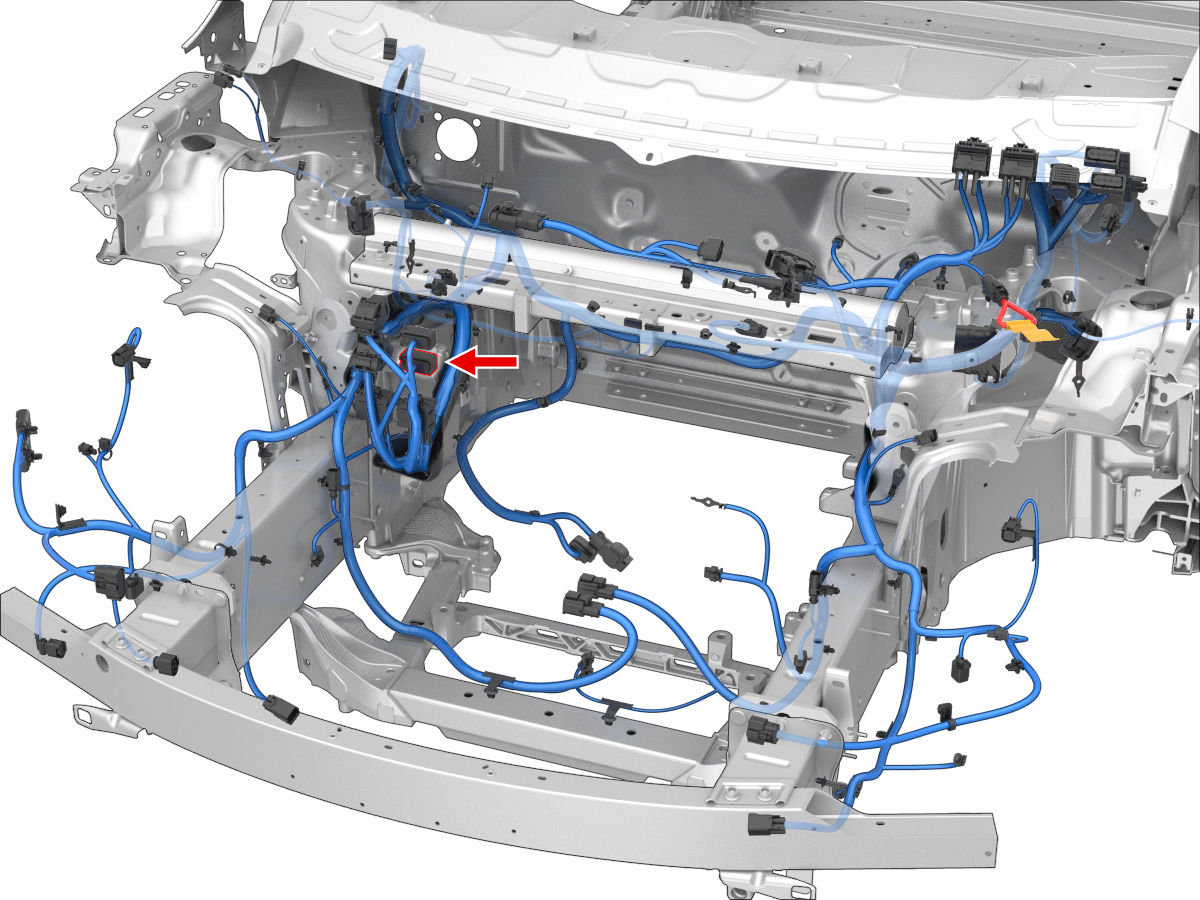

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13976117 | 6.3FS | RD | 4.00 | DELPHI | 15327864 | X150 | 1 |
| 2 | DELPHI | 13976117 | 6.3FS | BU | 4.00 | DELPHI | 15327864 | X120 | 1 |
| 3 | DELPHI | 13976116 | 6.3FS | WH | 2.50 | DELPHI | 15327864 | X300 | 1 |
| 4 | DELPHI | 13976117 | 6.3FS | YE | 4.00 | DELPHI | 15327864 | X170 | 7 |
