X011

Tesla Part Number

1607109-12-A

Connector

MOLEX 34870-2003

Color

BN

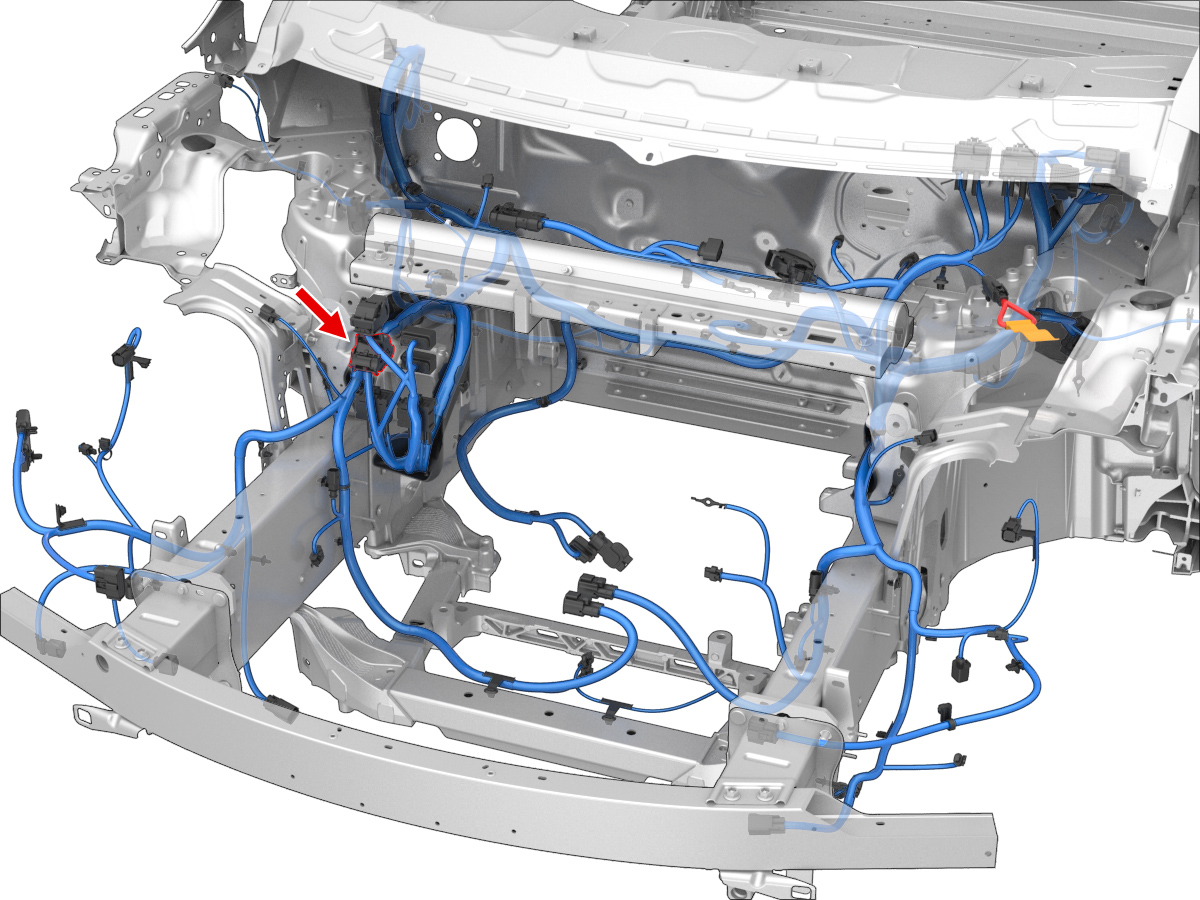

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2
3	MOLEX	34808-1042	2.8x0.8F	RD	2.00	MOLEX	64325-1345	X170	10
4	MOLEX	34808-1042	2.8x0.8F	BU	2.00	MOLEX	64325-1345	X066	11
5
6
7
8
9
10
11
12
13
14
15	MOLEX	34803-3411	0.64x0.64F	TN	0.35	TESLA	MAT-120-190	X025	D3
16
17
18
19	MOLEX	34803-3412	0.64x0.64F	BN	0.50	TESLA	MAT-120-190	X159	1
20	MOLEX	34803-3412	0.64x0.64F	BN	0.50	TESLA	MAT-120-190	X302	A
21	MOLEX	34803-3411	0.64x0.64F	YE	0.35	TESLA	MAT-120-190	X065	22
22	MOLEX	34803-3411	0.64x0.64F	YE/WH	0.35	TESLA	MAT-120-190	X065	21
23
24	MOLEX	34803-3412	0.64x0.64F	GN	0.50	TESLA	MAT-120-190	X300	4
25	MOLEX	34803-3411	0.64x0.64F	BN/YE	0.35	TESLA	MAT-120-190	X906F	17
26	MOLEX	34803-3411	0.64x0.64F	BN	0.35	TESLA	MAT-120-190	X520	2
27
28	MOLEX	34803-3412	0.64x0.64F	GY	0.50	TESLA	MAT-120-190	X269	1
29
30	MOLEX	34805-0413	1.5x0.8F	GN	2.00	TESLA	MAT-140-280	X301	2
31
32
33
34
35	MOLEX	34803-3411	0.64x0.64F	VT	0.35	TESLA	MAT-120-190	X906F	7
36	MOLEX	34803-3411	0.64x0.64F	TN	0.35	TESLA	MAT-120-190	X261A	2
37
38
39
40	MOLEX	34803-3411	0.64x0.64F	RD	0.35	TESLA	MAT-120-190	X520	1
41
42	MOLEX	34805-0413	1.5x0.8F	YE	2.00	TESLA	MAT-140-280	X301	1
43	MOLEX	34803-3411	0.64x0.64F	BN	0.35	TESLA	MAT-120-190
44	MOLEX	34803-3411	0.64x0.64F	BN/WH	0.35	TESLA	MAT-120-190
45	MOLEX	34803-3411	0.64x0.64F	YE	0.35	TESLA	MAT-120-190	X057	12
46	MOLEX	34803-3411	0.64x0.64F	YE/WH	0.35	TESLA	MAT-120-190	X057	13
47
48	MOLEX	34803-3411	0.64x0.64F	WH	0.35	TESLA	MAT-120-190	X025	E3
49	MOLEX	34803-3412	0.64x0.64F	BU	0.50	TESLA	MAT-120-190	X159	2
50	MOLEX	34803-3411	0.64x0.64F	YE	0.35	TESLA	MAT-120-190	X964M	5
51
52	MOLEX	34803-3412	0.64x0.64F	YE	0.50	TESLA	MAT-120-190	X964M	16
53
