X2008

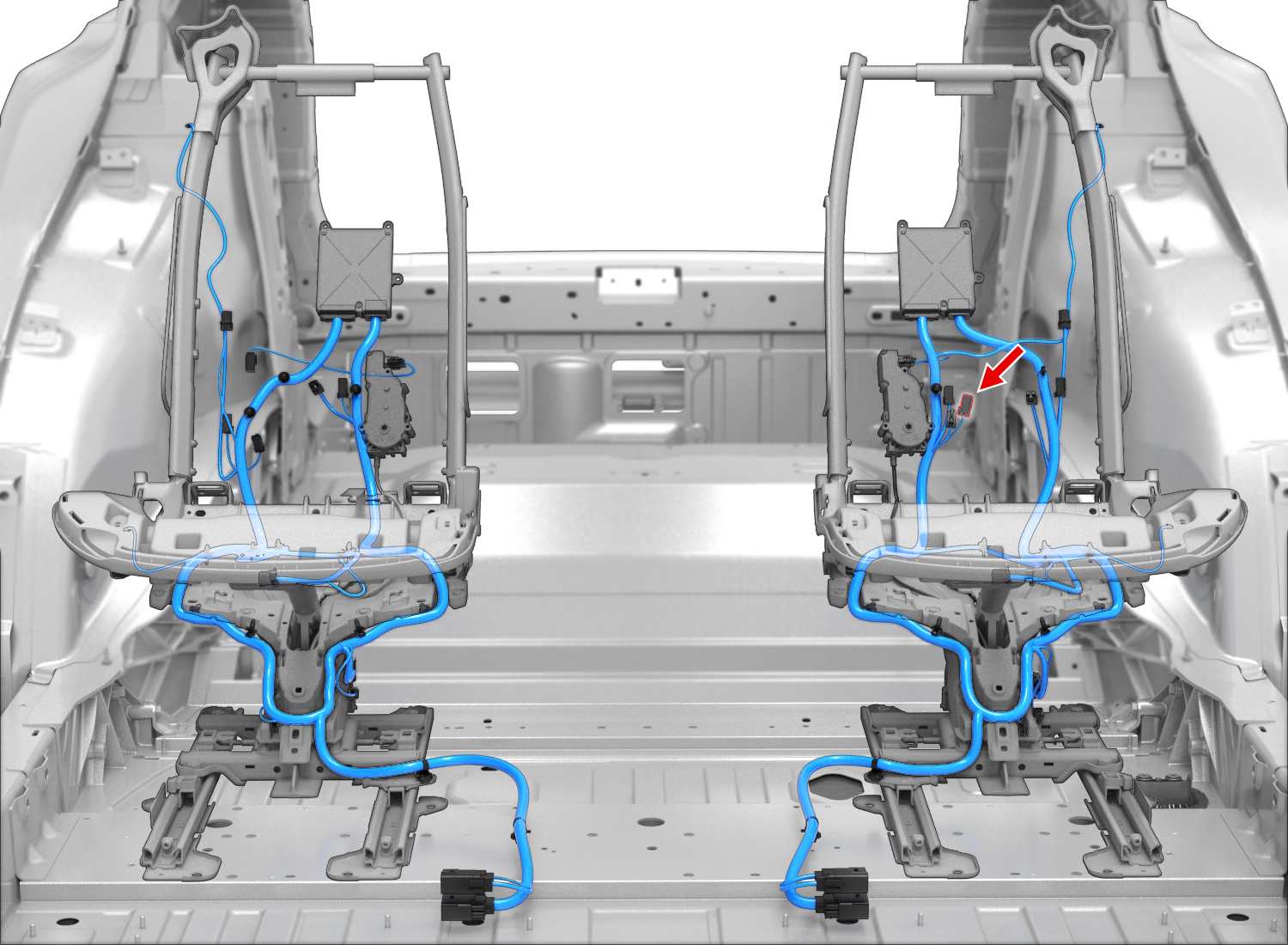

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4101-02 | 1.5x0.8F | YE | 0.75 | ||||
| 2 | YAZAKI | 7116-4101-02 | 1.5x0.8F | BK | 0.75 | ||||
| 3 | YAZAKI | 7116-4100-02 | 1.5x0.8F | VT | 0.35 | X2003 | 25 | ||
| 4 | YAZAKI | 7116-4100-02 | 1.5x0.8F | BN | 0.35 |
