X513

Tesla Part Number
1496689-05-A
Connector
DELPHI 35126380
Color
BK

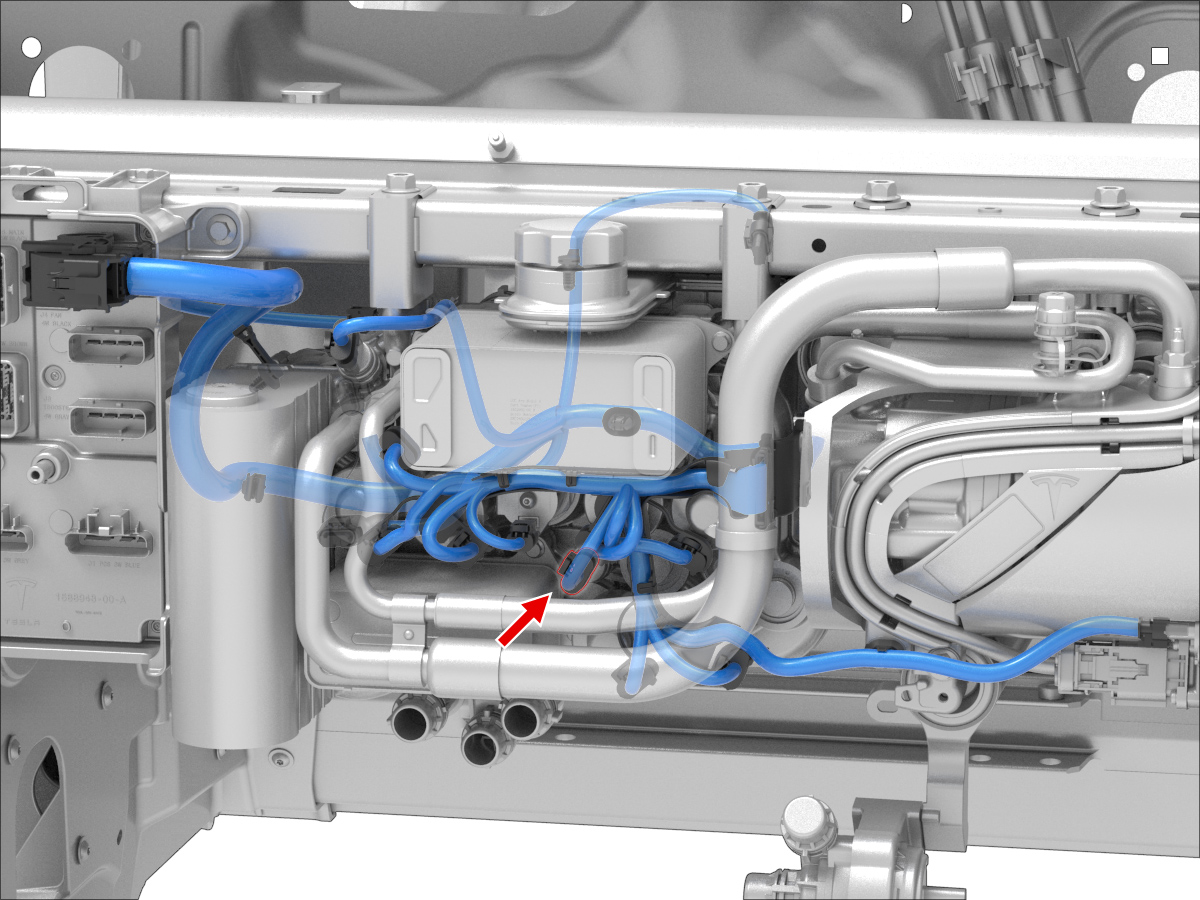

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591411.2x0.6FSBN0.50DELPHI13887350X021K1
2DELPHI139591411.2x0.6FSGN0.50DELPHI13887350X021E2
3DELPHI139591411.2x0.6FSTN0.50DELPHI13887350X021F3
4DELPHI139591411.2x0.6FSVT0.50DELPHI13887350X021J1
