X126

Tesla Part Number

1626024-00-A

Connector

SUMITOMO 6098-2557

Color

NA

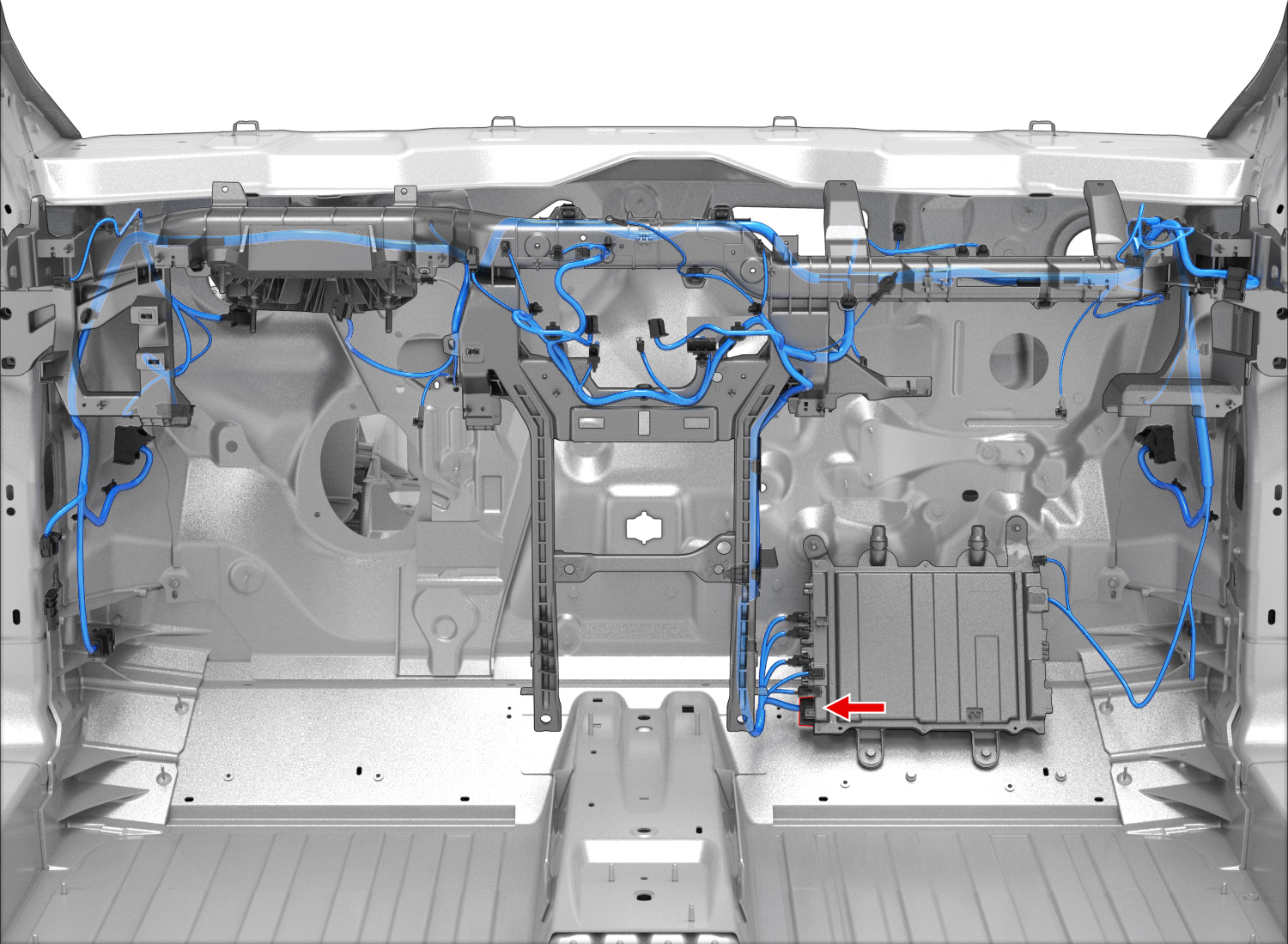

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-4932	4.8x0.8F	RD	4.00			X942F	2
2	unused
3	unused
4	unused
5	unused
6	unused
7	unused
8	unused
9	unused
10	unused
11	unused
12	unused
13	unused
14	unused
15	SUMITOMO	8100-3636	1.0x0.64F	YE/WH	0.35			X035	43
16	SUMITOMO	8100-3636	1.0x0.64F	YE	0.35			X035	42
17	SUMITOMO	8100-3636	1.0x0.64F	GN/WH	0.35			X055	28
18	SUMITOMO	8100-3636	1.0x0.64F	WH	0.35			X055	29
