X508

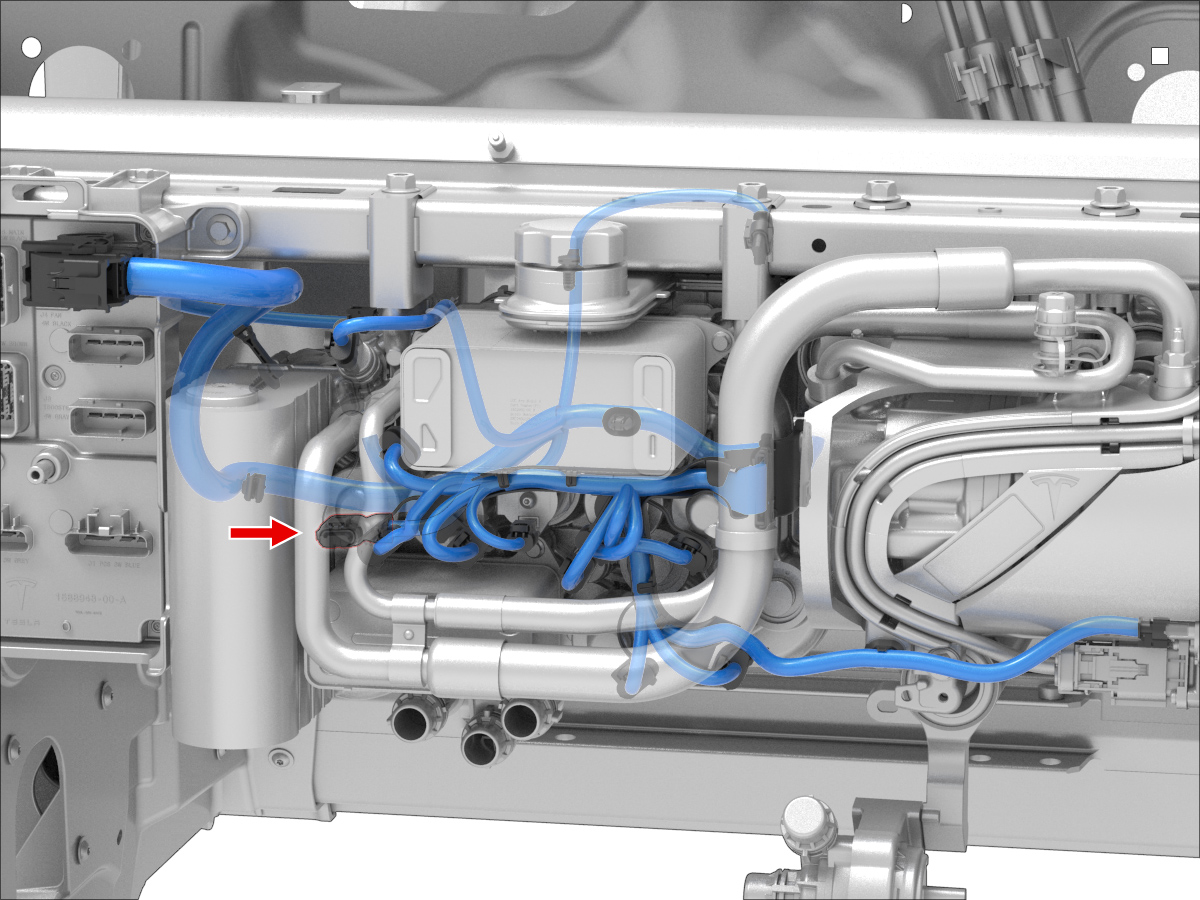

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35555156 | 1.2x0.6FS | RD | 1.00 | DELPHI | 13887350 | X021 | Q4 |
| 2 | DELPHI | 35555156 | 1.2x0.6FS | YE | 1.00 | DELPHI | 13887350 | X021 | Q3 |
| 3 | DELPHI | 35555156 | 1.2x0.6FS | BU | 1.00 | DELPHI | 13887350 | X021 | Q2 |
| 4 | DELPHI | 13959141 | 1.2x0.6FS | BK | 0.50 | DELPHI | 13887350 |
