X014

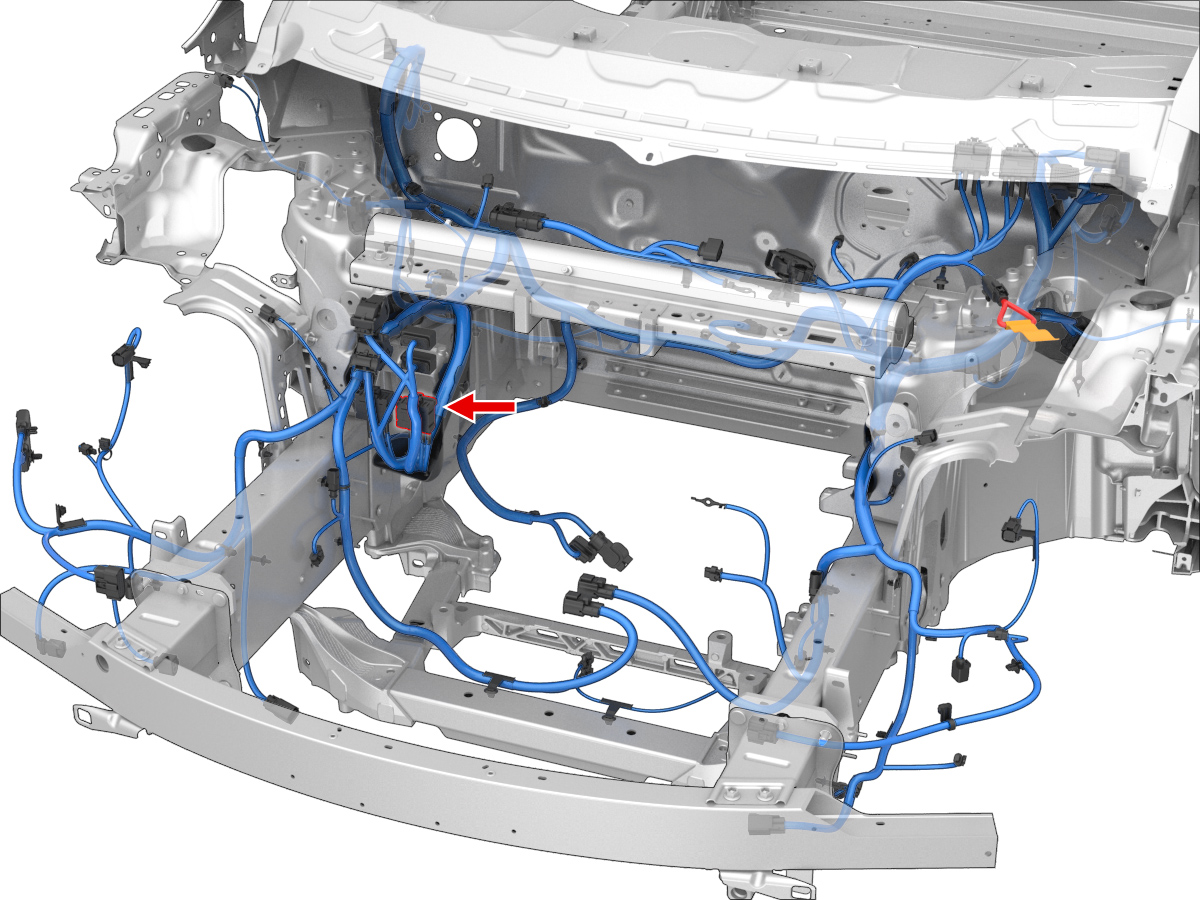

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | KSE | K80F90301 | 6.3x0.8F | RD | 16 | PIA | PIA-SEAL | X153 | 1 |
| 2 | |||||||||
| 3 | KSE | K80F90401 | 14.5x0.8F | RD | 40 | KSE | K60F00911 | X006F | 1 |
