X942F

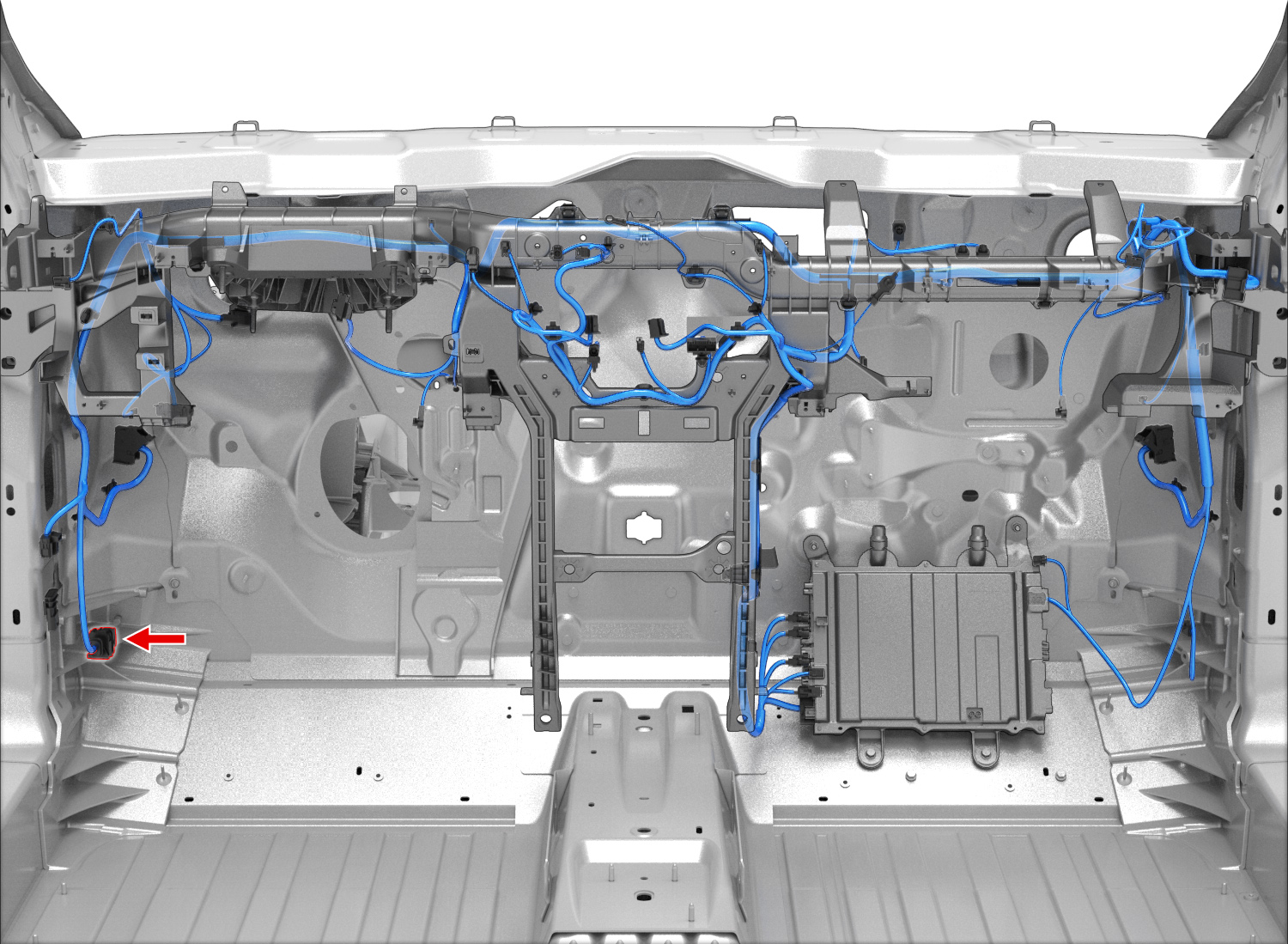

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | DELPHI | 13976117 | 6.3FS | RD | 4.00 | DELPHI | 15327864 | X126 | 1 |
