X1100

Tesla Part Number
1606846-02-A
Connector
AMP 953697-3
Color
BU

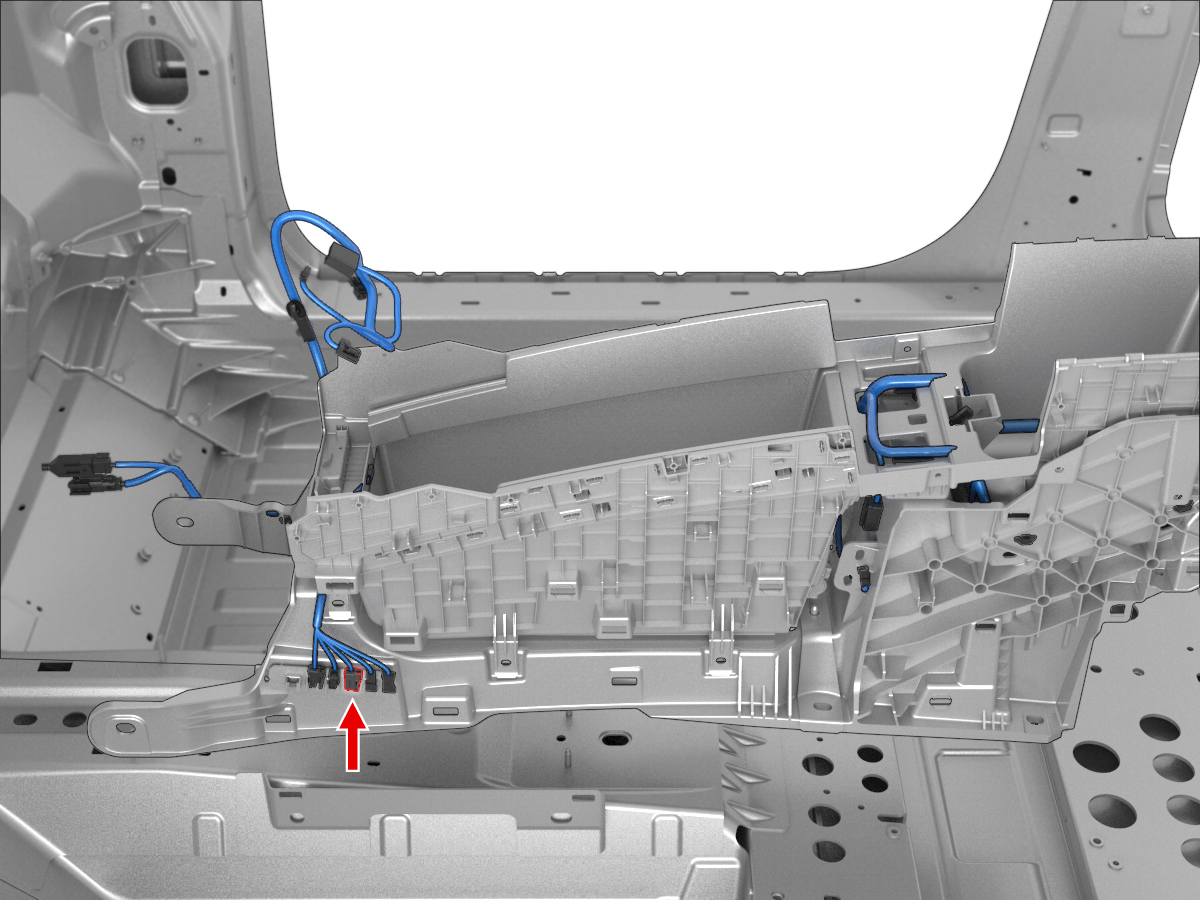

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-928999-10.63x0.63FTN0.35X982M2
2AMP5-928999-10.63x0.63FYE0.35
3AMP5-928999-10.63x0.63FBK0.35
