X159

Tesla Part Number
1496687-00-A
Connector
DELPHI 35126363
Color
BK

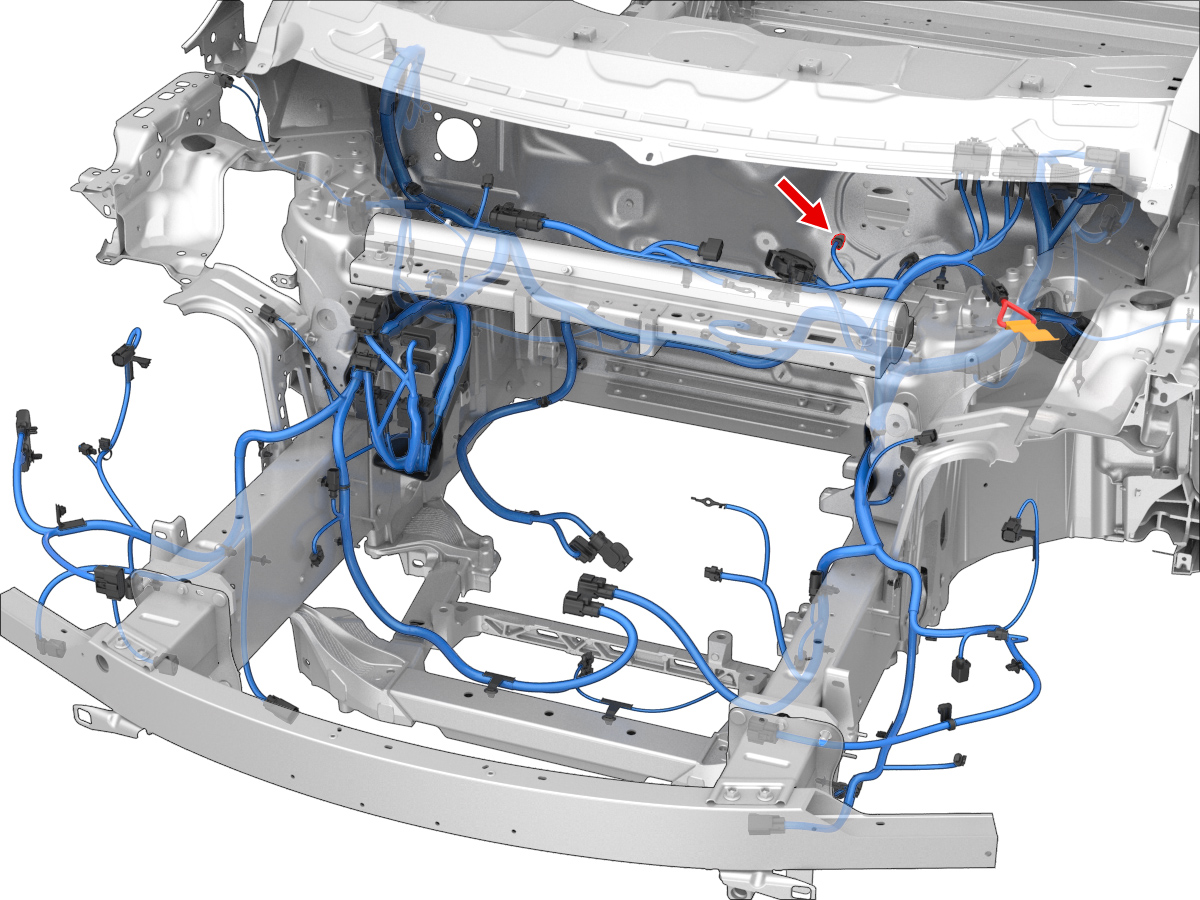

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591411.2x0.6FSBN0.50DELPHI15327918X01119
2DELPHI139591411.2x0.6FSBU0.50DELPHI15327918X01149
