X504

Tesla Part Number
1496689-00-A
Connector
DELPHI 35126375
Color
BK

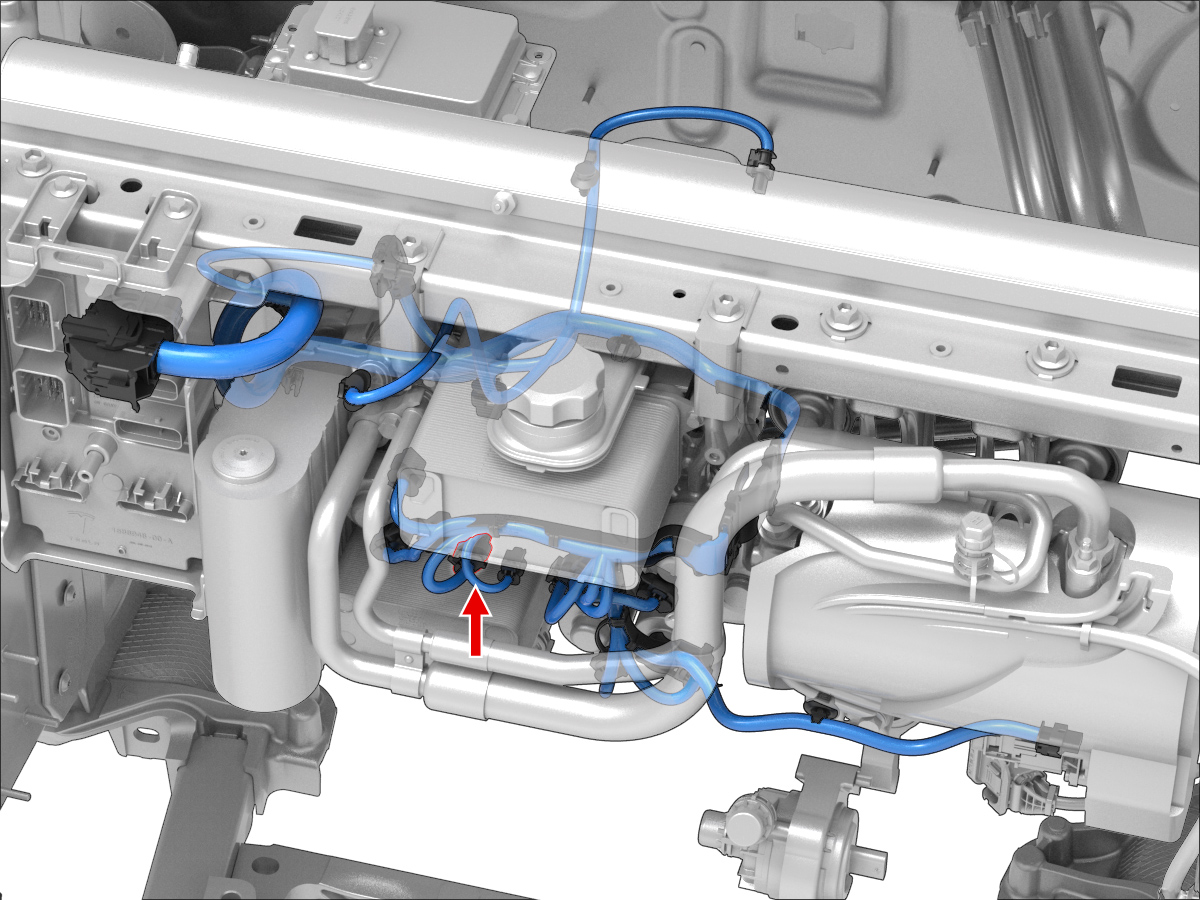

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591411.2x0.6FSVT0.50DELPHI13887350X021C3
2DELPHI139591411.2x0.6FSGY0.50DELPHI13887350X021B3
3DELPHI139591411.2x0.6FSRD0.50DELPHI13887350X021D3
4DELPHI139591411.2x0.6FSYE0.50DELPHI13887350X021A3
