X958F

Tesla Part Number

1486224-00-A

Connector

DELPHI 33257519

Color

BK

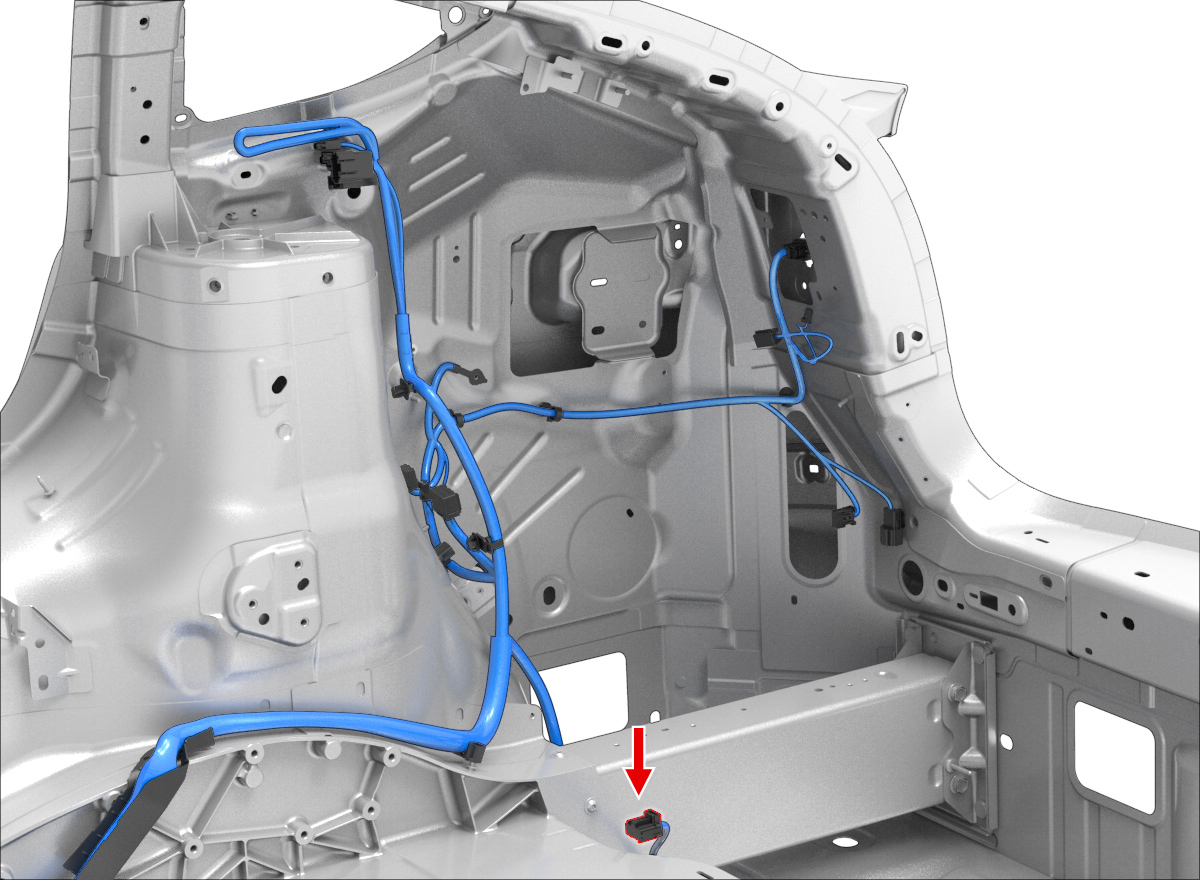

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072404	1.2x0.6F	GN	0.75			X936F	14
2	DELPHI	35072404	1.2x0.6F	TN	0.75			X936F	6
3	unused
4	DELPHI	35410019	1.2x0.6F	RD	0.35			X936F	10
5	DELPHI	35410019	1.2x0.6F	VT	0.35			X936F	4
6	unused
7	unused
8	DELPHI	35072404	1.2x0.6F	BK	0.75			G390	1
9	DELPHI	35072404	1.2x0.6F	WH	0.75			X936F	9
10	unused
11	unused
12	DELPHI	35410019	1.2x0.6F	YE	0.35			X936F	11
13	DELPHI	35410019	1.2x0.6F	GY	0.35			X936F	12
14	unused
15	DELPHI	35410019	1.2x0.6F	BN/YE	0.35			X936F	13
16	unused
