X2019

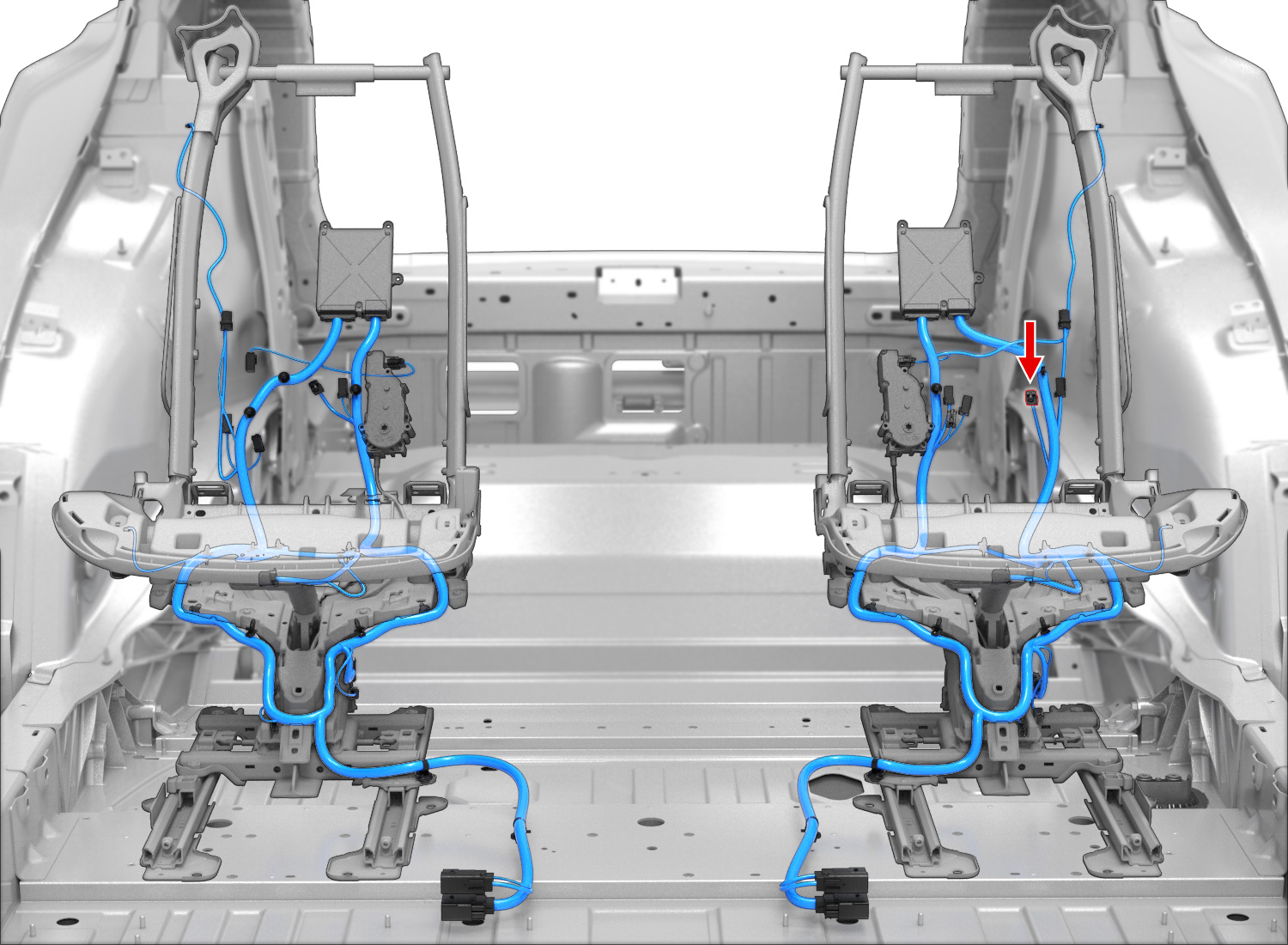

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | GEN | PIA-SRS-Y | BN | 0.50 | X2020 | 1 | |||
| 2 | GEN | PIA-SRS-Y | WH | 0.50 | X2020 | 2 | |||
| 3 | GEN | PIA-SRS-Y | BK | 0.50 | X2020 | 3 |
