X021

Tesla Part Number

1504799-01-A

Connector

DELPHI 13648596

Color

BK

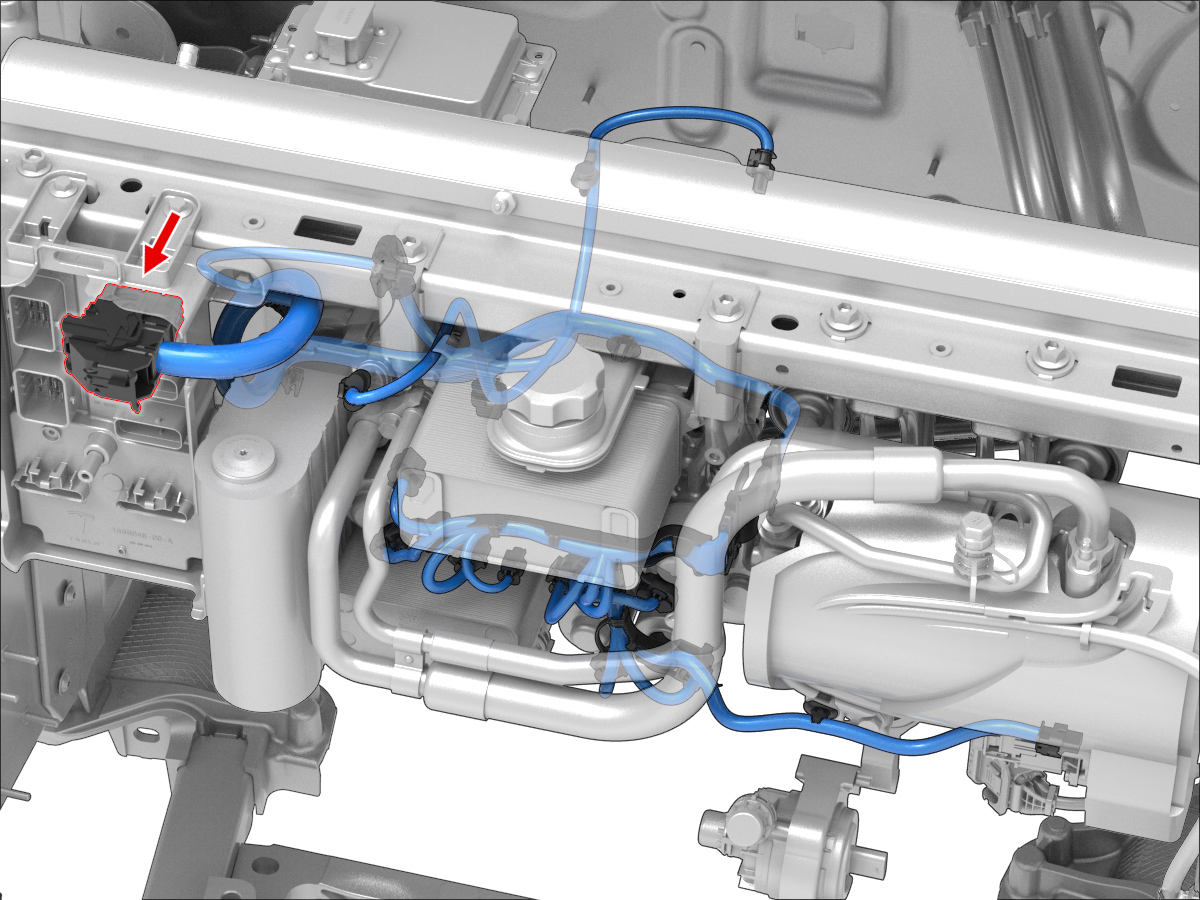

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
A1	DELPHI	13648598	0.64x0.64F	RD	0.50	TESLA	MAT-130-170	X500	2
A2	DELPHI	13648598	0.64x0.64F	WH	0.50	TESLA	MAT-130-170	X499	2
A3	DELPHI	13648598	0.64x0.64F	YE	0.50	TESLA	MAT-130-170	X504	4
A4	DELPHI	13648598	0.64x0.64F	VT	0.50	TESLA	MAT-130-170	X505	2
B1	DELPHI	13648598	0.64x0.64F	YE	0.50	TESLA	MAT-130-170	X500	4
B2	DELPHI	13648598	0.64x0.64F	GN	0.50	TESLA	MAT-130-170	X499	4
B3	DELPHI	13648598	0.64x0.64F	GY	0.50	TESLA	MAT-130-170	X504	2
B4	DELPHI	13648598	0.64x0.64F	RD	0.50	TESLA	MAT-130-170	X505	4
C1	DELPHI	13648598	0.64x0.64F	BU	0.50	TESLA	MAT-130-170	X500	1
C2	DELPHI	13648598	0.64x0.64F	TN	0.50	TESLA	MAT-130-170	X499	1
C3	DELPHI	13648598	0.64x0.64F	VT	0.50	TESLA	MAT-130-170	X504	1
C4	DELPHI	13648598	0.64x0.64F	WH	0.50	TESLA	MAT-130-170	X505	1
D1	DELPHI	13648598	0.64x0.64F	BK	0.50	TESLA	MAT-130-170	X500	3
D2	DELPHI	13648598	0.64x0.64F	GY	0.50	TESLA	MAT-130-170	X499	3
D3	DELPHI	13648598	0.64x0.64F	RD	0.50	TESLA	MAT-130-170	X504	3
D4	DELPHI	13648598	0.64x0.64F	BN	0.50	TESLA	MAT-130-170	X505	3
E1
E2	DELPHI	13648598	0.64x0.64F	GN	0.50	TESLA	MAT-130-170	X513	2
E3
E4	DELPHI	13648598	0.64x0.64F	WH	0.50	TESLA	MAT-130-170	X582	2
F1
F2	DELPHI	13648598	0.64x0.64F	BK	0.50	TESLA	MAT-130-170	X529	4
F3	DELPHI	13648598	0.64x0.64F	TN	0.50	TESLA	MAT-130-170	X513	3
F4	DELPHI	13648598	0.64x0.64F	RD	0.50	TESLA	MAT-130-170	X582	4
G1	DELPHI	13648598	0.64x0.64F	YE	0.50	TESLA	MAT-130-170	X518	1
G2	DELPHI	13648598	0.64x0.64F	GN	0.50	TESLA	MAT-130-170	X533	2
G3	DELPHI	13648598	0.64x0.64F	BU	0.50	TESLA	MAT-130-170	X529	1
G4	DELPHI	13648598	0.64x0.64F	BU	0.50	TESLA	MAT-130-170	X582	1
H1	DELPHI	13648598	0.64x0.64F	GY	0.50	TESLA	MAT-130-170	X518	2
H2	DELPHI	13648598	0.64x0.64F	RD	0.50	TESLA	MAT-130-170	X533	3
H3
H4	DELPHI	13648598	0.64x0.64F	YE	0.50	TESLA	MAT-130-170	X582	3
J1	DELPHI	13648598	0.64x0.64F	VT	0.50	TESLA	MAT-130-170	X513	4
J2	DELPHI	13648598	0.64x0.64F	BU	0.50	TESLA	MAT-130-170	X533	4
J3	DELPHI	13648598	0.64x0.64F	WH	0.50	TESLA	MAT-130-170	X519	4
J4	DELPHI	13648598	0.64x0.64F	GN	0.50	TESLA	MAT-130-170	X583	2
K1	DELPHI	13648598	0.64x0.64F	BN	0.50	TESLA	MAT-130-170	X513	1
K2	DELPHI	13648598	0.64x0.64F	BK	0.50	TESLA	MAT-130-170	X533	1
K3	DELPHI	13648598	0.64x0.64F	RD	0.50	TESLA	MAT-130-170	X519	3
K4	DELPHI	13648598	0.64x0.64F	RD	0.50	TESLA	MAT-130-170	X583	4
L1	DELPHI	13648598	0.64x0.64F	WH	0.50	TESLA	MAT-130-170	X512	1
L2	DELPHI	13648598	0.64x0.64F	VT	0.50	TESLA	MAT-130-170	X534	2
L3
L4	DELPHI	13648598	0.64x0.64F	BU	0.50	TESLA	MAT-130-170	X583	1
M1	DELPHI	13648598	0.64x0.64F	GN	0.50	TESLA	MAT-130-170	X512	4
M2	DELPHI	13648598	0.64x0.64F	RD	0.50	TESLA	MAT-130-170	X534	3
M3
M4	DELPHI	13648598	0.64x0.64F	GY	0.50	TESLA	MAT-130-170	X583	3
N1	DELPHI	13648598	0.64x0.64F	YE	0.50	TESLA	MAT-130-170	X534	4
N2
N3	DELPHI	13648598	0.64x0.64F	BU	0.50	TESLA	MAT-130-170	X519	1
N4	DELPHI	13648598	0.64x0.64F	BN/WH	0.50	TESLA	MAT-130-170	X529	2
O1	DELPHI	13648598	0.64x0.64F	BN	0.50	TESLA	MAT-130-170	X534	1
O2
O3	DELPHI	13648598	0.64x0.64F	GN	0.50	TESLA	MAT-130-170	X519	2
O4	DELPHI	13648598	0.64x0.64F	BN	0.50	TESLA	MAT-130-170	X529	3
P1	DELPHI	13741954	1.5x0.8F	WH	1.00	TESLA	MAT-120-260	X510	2
P2	DELPHI	13741954	1.5x0.8F	VT	1.00	TESLA	MAT-120-260	X510	3
P3	DELPHI	13741954	1.5x0.8F	BK	1.00	TESLA	MAT-120-260
P4	DELPHI	13741954	1.5x0.8F	BK	1.00	TESLA	MAT-120-260
Q1	DELPHI	13741954	1.5x0.8F	GN	1.00	TESLA	MAT-120-260	X510	1
Q2	DELPHI	13741954	1.5x0.8F	BU	1.00	TESLA	MAT-120-260	X508	3
Q3	DELPHI	13741954	1.5x0.8F	YE	1.00	TESLA	MAT-120-260	X508	2
Q4	DELPHI	13741954	1.5x0.8F	RD	1.00	TESLA	MAT-120-260	X508	1
