前减震塔密封件

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes

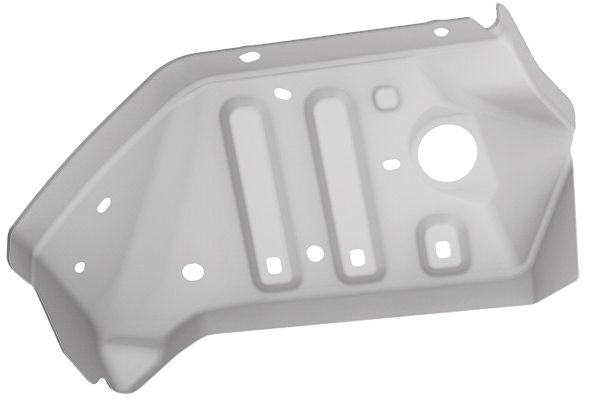

1	前减震塔密封件
12	Structural Bulb Rivet, 6.5 mm
1	Structural Rivet, 6.5 mm Medium

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

拆卸扭矩盒盖总成。
Remove the original component.

Factory Spot Weld

注
第一张图从下方显示减震塔密封件，第二张则从上方显示。
Prepare for installation.

Structural Bulb Rivet, 6.5 mm

Structural Rivet, 6.5 mm Medium
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
安装扭矩盒盖总成。
Perform any necessary post-repair operations.
