后车架纵梁（下部）
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- Properly mount the vehicle on a frame bench when performing this procedure.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|
| 1 | REAR RAIL LOWER（后车架纵梁 – 下部） |
|
| 35 |
High Strength Structural Rivet, 6.5 mm
|
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-
拆下后车架纵梁手套箱（下部）。
-
拆下行李箱底板总成（整体）。
-
拆下后车架纵梁端板。
-

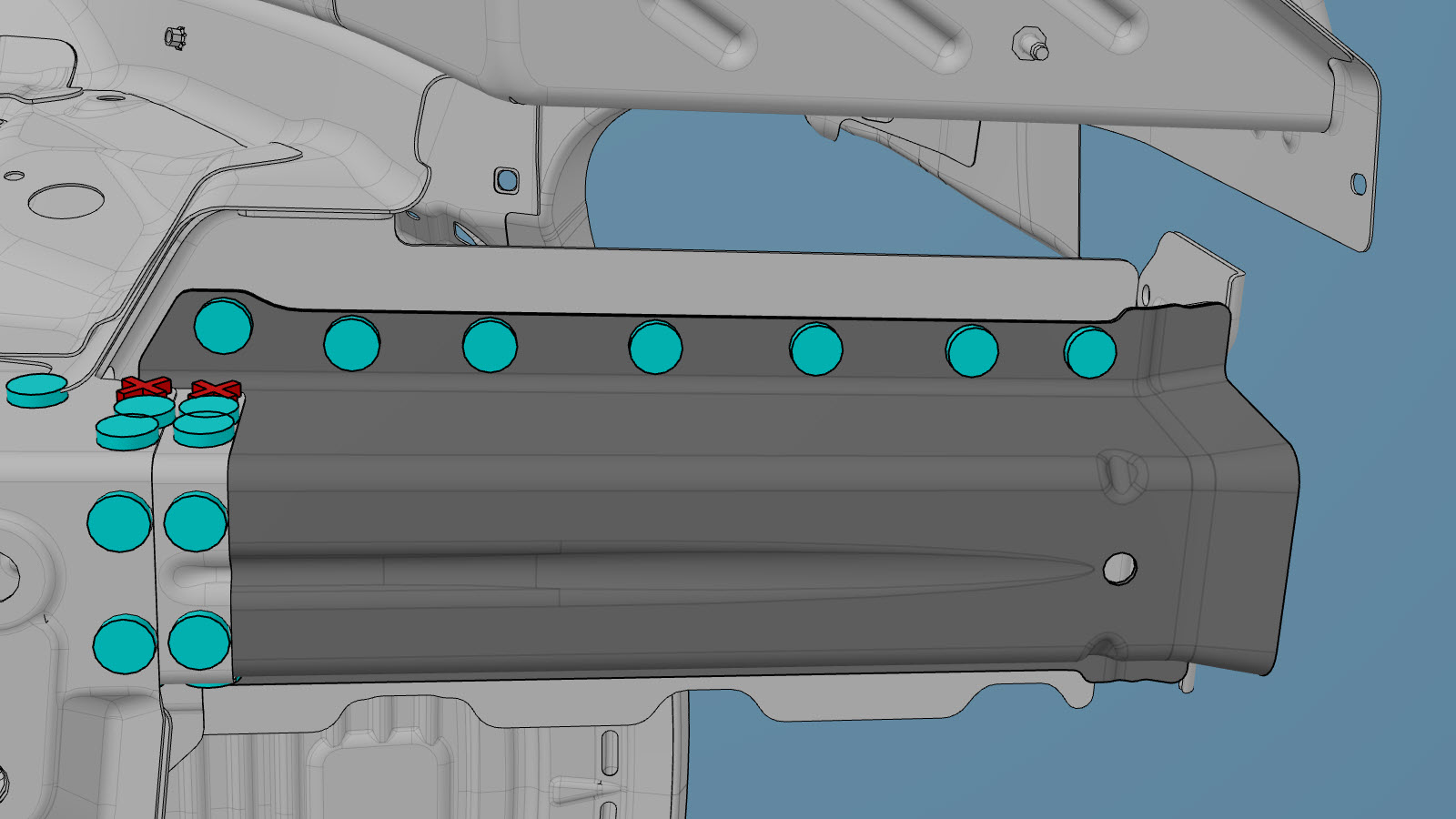

Remove the original component.
or
Factory Spot Welds
or
Factory SPRs
-
Prepare for installation.
注A red X indicates a location where a factory-installed fastener is not being replaced.
or High Strength Structural Rivets, 6.5 mm
- A = 38 毫米。
- B = 10 毫米。
- C = 36 毫米。
- D = 31 毫米。
- E = 30 毫米。
- F = 35 毫米。
- G = 48 毫米。
- H = 15 毫米。
- I = 65 毫米。
- J = 76 毫米。
- K = 45 毫米。
- L = 10 毫米。
- M = 24 毫米。
- N = 87 毫米。
注在后轮罩内件上安装铆钉时，从后轮罩内件上去除所需的最少量材料，以便安装铆钉。
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
-
安装后车架纵梁端板。
-
安装行李箱底板总成（整体）。
-
安装后车架纵梁手套箱（下部）。
- Perform any necessary post-repair operations.
