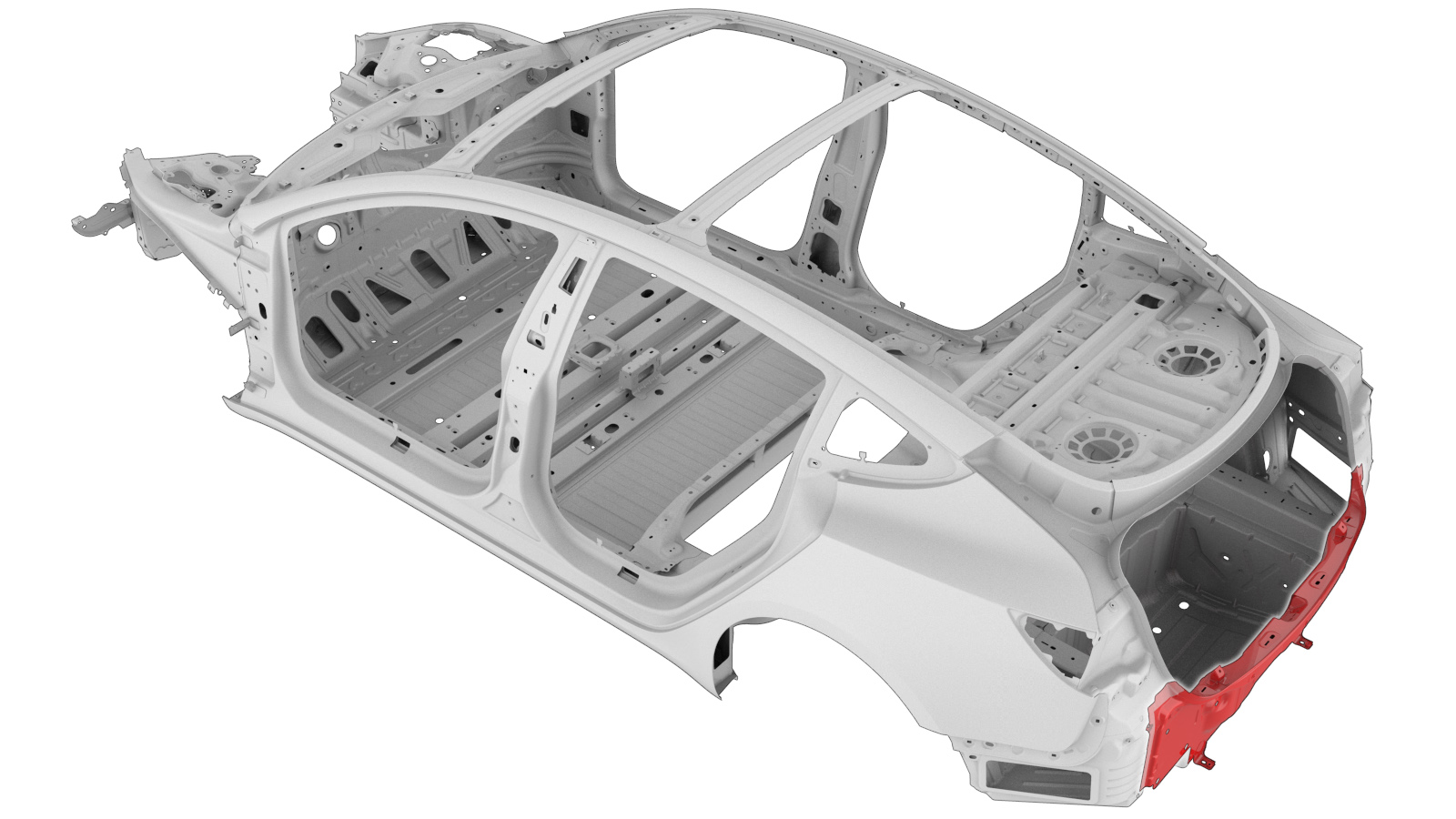

Rear Frame Rail (Upper)
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- Properly mount the vehicle on a frame bench when performing this procedure.
Parts List
Quantity | Description | Image / Notes |
---|---|---|
1 | Asy-Rail Rr Upr (Rear Frame Rail – Upper) | |
23 | High Strength Structural Rivet, 6.5 mm | |
2 | Bolt , SEMS,[FL],HX,M8x23.5 | Tesla part number 1063260-00. |
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
- Remove the Rear Body Panel.
- Remove the Rear Frame Rail End Plate.
-
Remove the original component.
or Factory Spot Weldsor Factory SPRsNoteThe factory SPRs circled in red are hidden behind the crossmember and must be ground down from inside the Frame Rail. When grinding the SPRs, grind down only enough of the SPR to remove the component; do not completely remove the SPRs from the joint. These rivets are not replaced when installing the new Rear Rail Upper, and the remaining portions of these SPRs are left in the joint to keep some mechanical connection to the inboard bulkhead.
or Bolts
-
Prepare for installation.
or High Strength Structural Rivets, 6.5 mmNoteA red X indicates a location where a factory-installed fastener is not being replaced.
- A = 150 mm.
- B = 36 mm.
- C = 68 mm.
- D = 22 mm.
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
-
Install the new component or components.
Torque the bolts to 24 Nm.
- Install the Rear Frame Rail End Plate.
- Install the Rear Body Panel.
- Perform any necessary post-repair operations.
