Body Side Outer (Vehicles Built After February 17, 2022)

Informação sobre a reparação

  • Reveja toda a documentação de segurança e práticas gerais para a reparação após uma colisão e coloque o equipamento de proteção individual (EPI) adequado antes de iniciar este procedimento.
  • Este procedimento pode ser realizado sem a utilização de uma bancada de oficina.
  • Verify that this is the correct procedure: Refer to Body Side Outer
  • The Body Side Outer can be:
    • Replaced in a single repair as a single complete component, using the Body Side Outer Complete service part and the instructions in the Procedimento de reparação section of this document.
    • Repaired using any of the pre-cut service assemblies shown in Body Side Outer Service Assemblies. If replacing a portion of the Body Side Outer (not the entire Body Side Outer Assembly) using a service assembly, use only the relevant portions of each step in the Procedimento de reparação to determine which parts and fasteners are needed and the steps required to complete the repair.
    • Repaired in sections that are larger or smaller than the service assemblies. Any individual section or any combination of sections of the Body Side Outer Assembly can be replaced so long as the guidelines from the Sectioning Guidelines are followed.

Verify This is the Correct Procedure

There are several variations of the Body Side Outer procedure. Use this procedure only if the vehicle was built after February 17, 2022. If the vehicle was built through February 17, 2022, refer to the Parte lateral exterior da carroçaria procedure.

If the build date of the vehicle is not certain, refer to Body Side Outer for more information.

Lista de peças

Quantidade Descrição Imagem/Notas
1 BODY SIDE OUTER COMPLETE (Body Side Outer Complete)
2 Rebite embutido, 4,8 mm, curto
10 Rebite de cabeça redonda estrutural, 6,5 mm
2 Rebite embutido estrutural, 6,5 mm
3 Rebite oco S08
5 Rebite oco S18
9 Rebite oco S28
15 Rebite oco S38
7 Rebite oco S48
7 Parafuso , M8x27 Tesla part number 1621820-00-A.
2 Instapak (Expanding Foam Pack) Tesla part number 1046403-00-A.

ao encomendar peças, consulte o catálogo de peças e introduza o VIN do veículo a ser reparado para detetar as peças corretas (e os números de peças) para o veículo. Em alternativa, utilize a função de pesquisa no catálogo de peças para localizar uma peça específica para o veículo.

Body Side Outer Service Assemblies

Body Side Outer Service Assemblies
ASSY - BODY SIDE OTR COMP ASSY - PNL-BODY SIDE OTR
ASSY - BODY SIDE OTR A-PILLAR ASSY - BODY SIDE OTR C-PILLAR

Sectioning Guidelines

General sectioning guidelines:
  • If a section repair requires the removal or installation of additional panels or assemblies, perform the necessary procedures using the specific repair procedure for each panel or assembly.
  • When sectioning in the area where the C-Pillar meets the Rear Quarter:
    1. Cut as described below:

      Linha de corte

      Ponto/linha de referência

      • A = 30 mm.
      • B = 25 mm.
      • C = 110 mm.
    2. Create and install a backing plate under the butt joint:

      Soldadura GMA

      ou rebites de soldadura de alumínio

  • When sectioning in the area where the upper C-Pillar meets the roof rail:

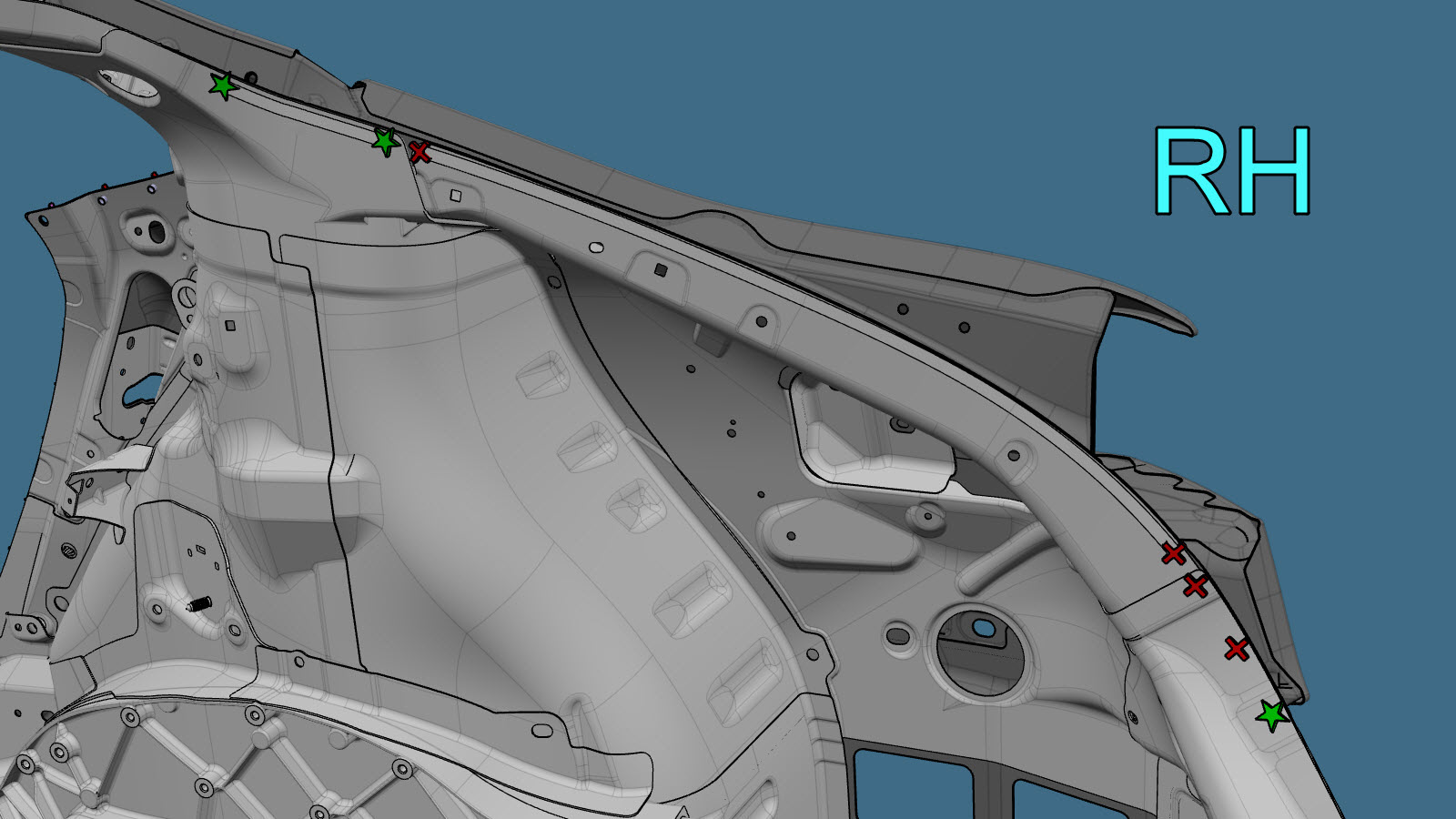

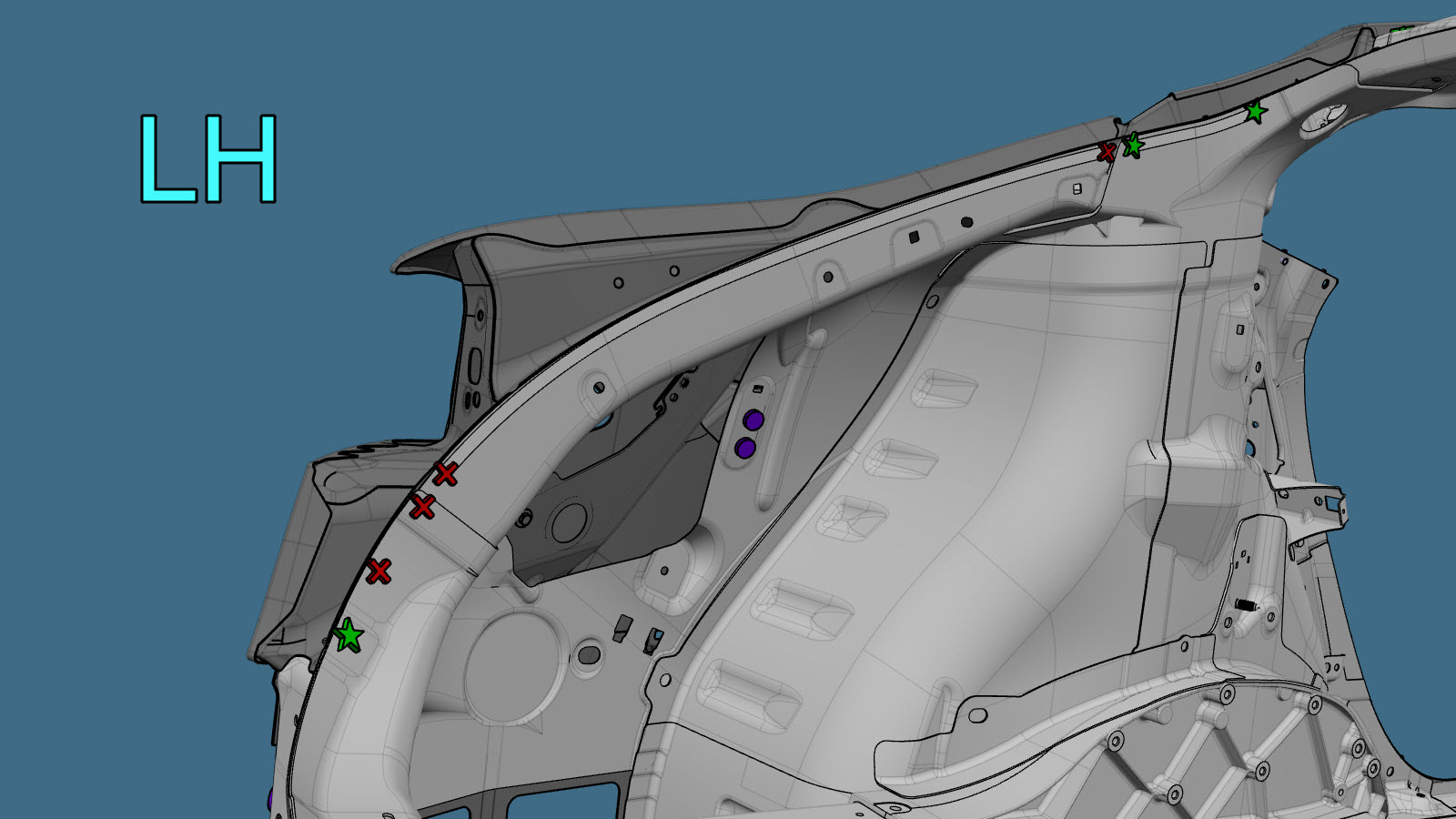

    1. Remove the spot welds in the upper area where the C-Pillar meets the Rear Quarter:

      ou soldaduras por pontos de fábrica

    2. Prepare a instalação.

      ou rebites embutidos, 4,8 mm, curtos

  • It is allowable to cut through a clearance hole or a non functional hole (exterior trim hole), as described below.
  • Do not cut within 25 mm. of the center of a bolt hole.
  • Sections do not require fasteners at butt joints unless specifically indicated.
  • A backing plate may be installed at a butt joint between sections (as described in create and install backing plates).
  • Gaps between panels of butt joints should be as small as possible to maximize joint strength.
  • GMA weld section butt joints.
  • Seal all open seams after welding.
  • If a butt joint includes a flange, do not weld on the flange (flanges are secured using only structural adhesive).

Informational PurposesAn informational icon, calling your attention
Note
Do not cut underlying panels when sectioning the Body Side Outer.
Body Side Outer Sectioning
Informational PurposesAn informational icon, calling your attention
Note
Sectioning of Body Side Outer Service Assemblies is identical to the corresponding area of the Body Side Outer (complete).

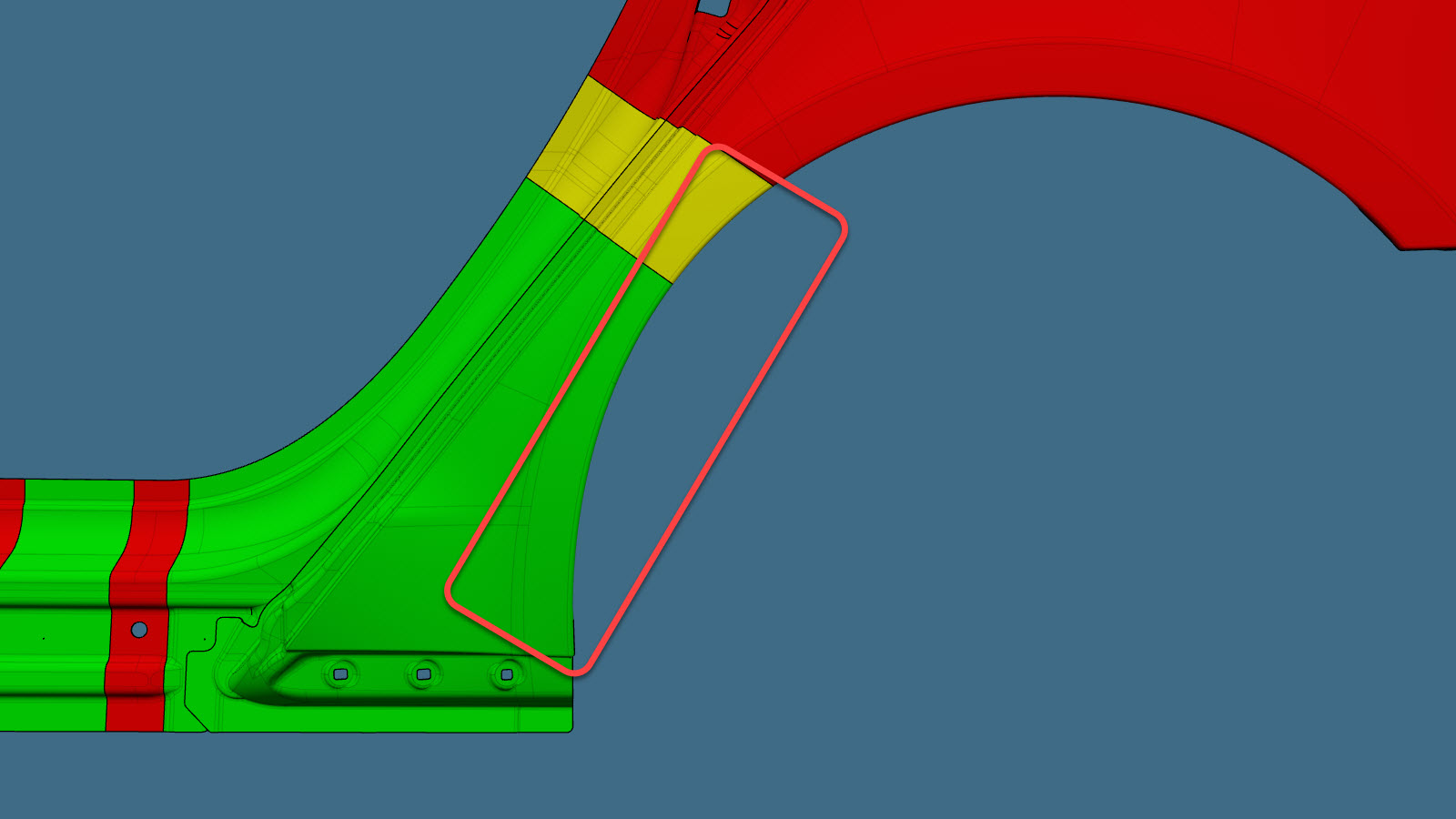

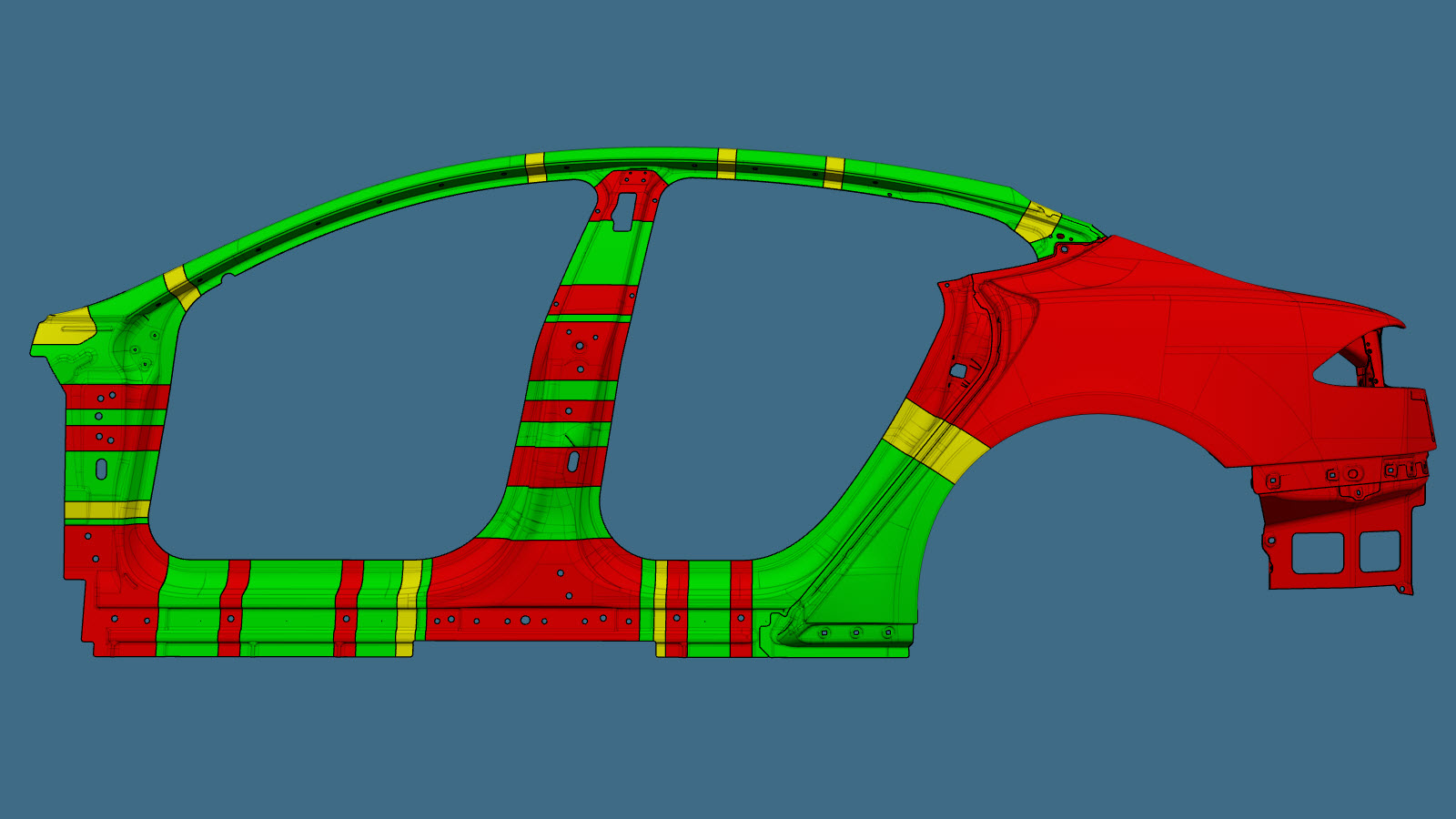

When sectioning in the area of the wheelhouse, the wheelhouse flange in the area shown in red can be welded.

Based on the colors used in the image above, the allowed repairs are as follows:

Table 1. Allowed Sectioning
Area Color Area Repairability
Green areas: Sectioning is allowed in these areas.
Yellow areas: Sectioning is allowed in these areas.

Foam may be located behind the outer panel in these areas.

Informational PurposesAn informational icon, calling your attention
Note
If sectioning in these areas, remove any foam and clean the area to avoid weld contamination.
Red areas: Sectioning is not allowed.

Procedimento de reparação

  1. If repairing the Dog Leg Section section of the Body Side Outer: Remove the Camada exterior de quarto (veículos construídos após 17 de fevereiro de 2022).

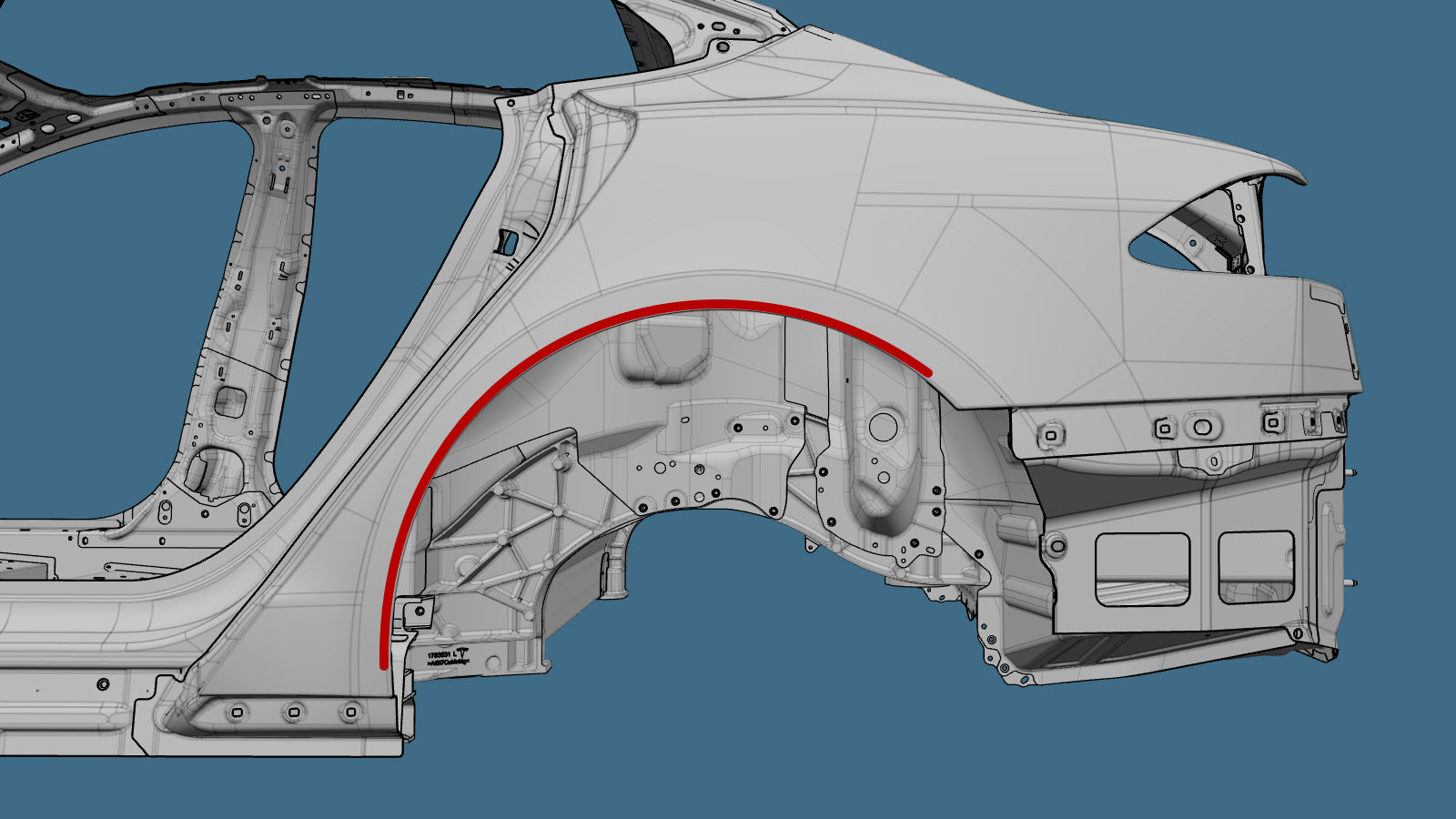

  2. Separate the rear wheel arch flange.
    Informational PurposesAn informational icon, calling your attention
    Note
    If repairing only a section of the Body Side Outer, separate only the necessary portion of the hemmed flange.

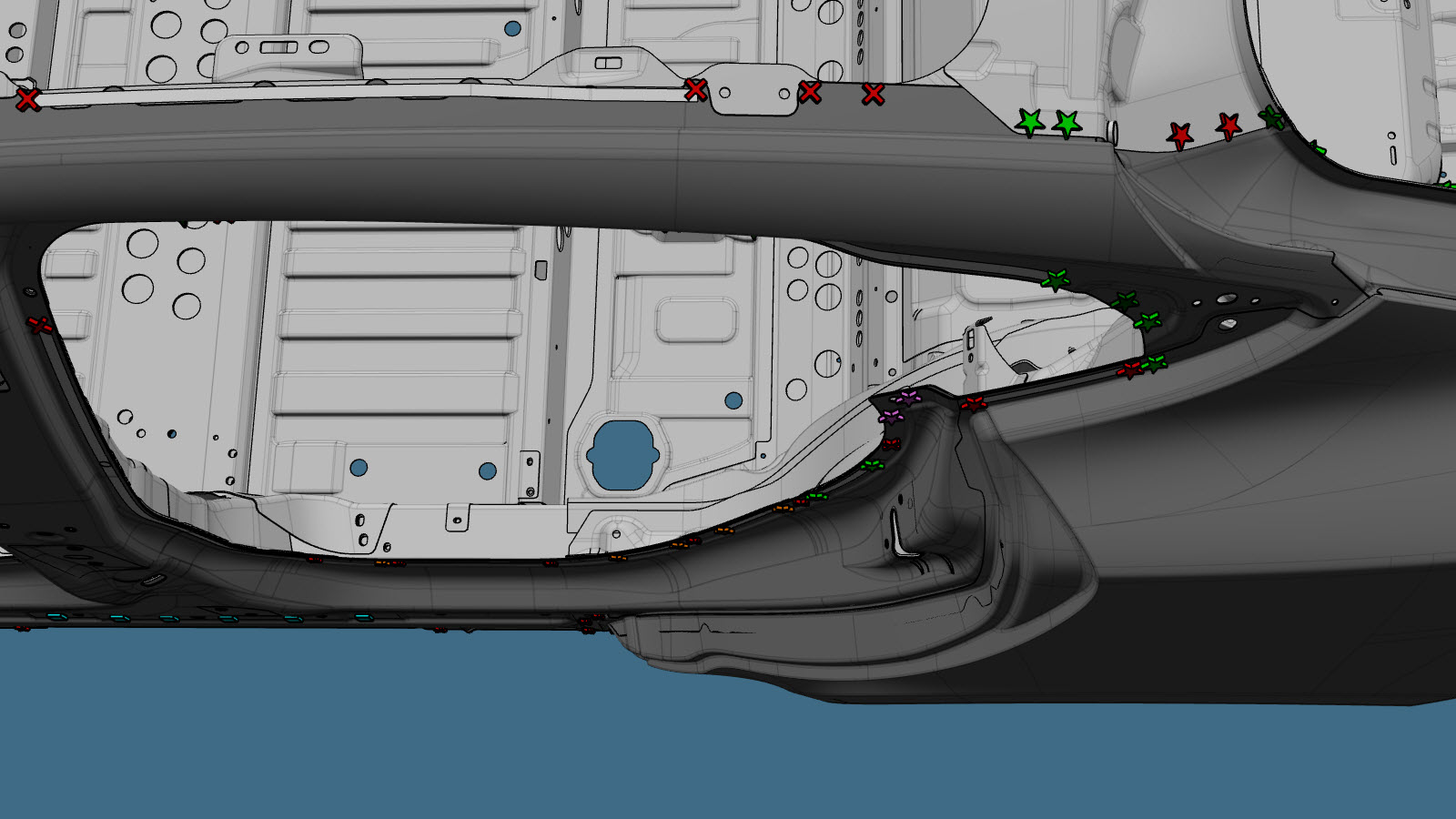

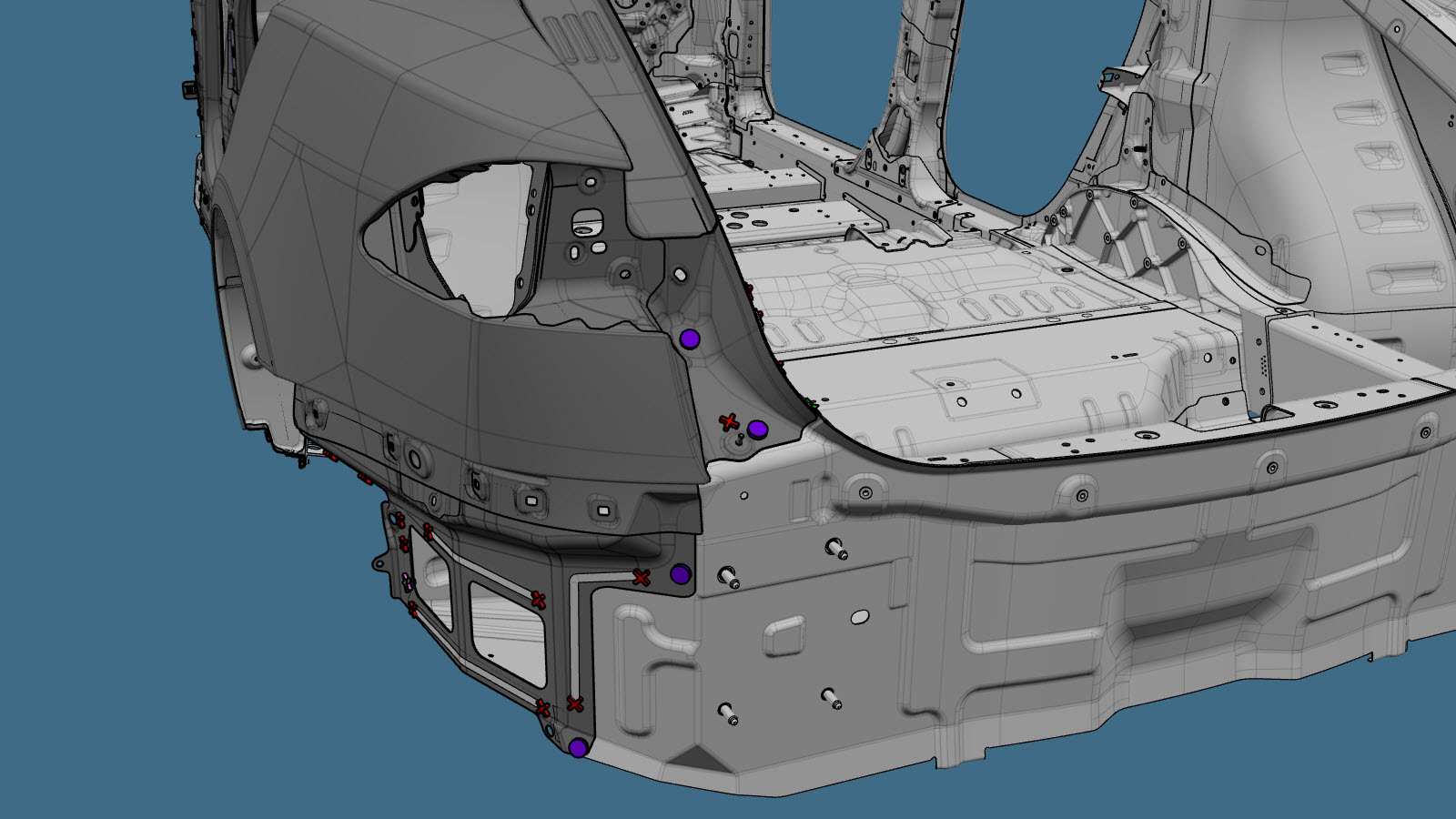

  3. Remova o componente original.

    ou soldaduras por pontos de fábrica

    ou soldaduras por pontos de fábrica de perfuração
    Informational PurposesAn informational icon, calling your attention
    Note
    Ao retirar soldaduras por pontos, utilize uma broca que crie um orifício com o tamanho correto para o fixador que substituirá a soldadura por pontos.

    ou SPR de fábrica

    ou parafusos

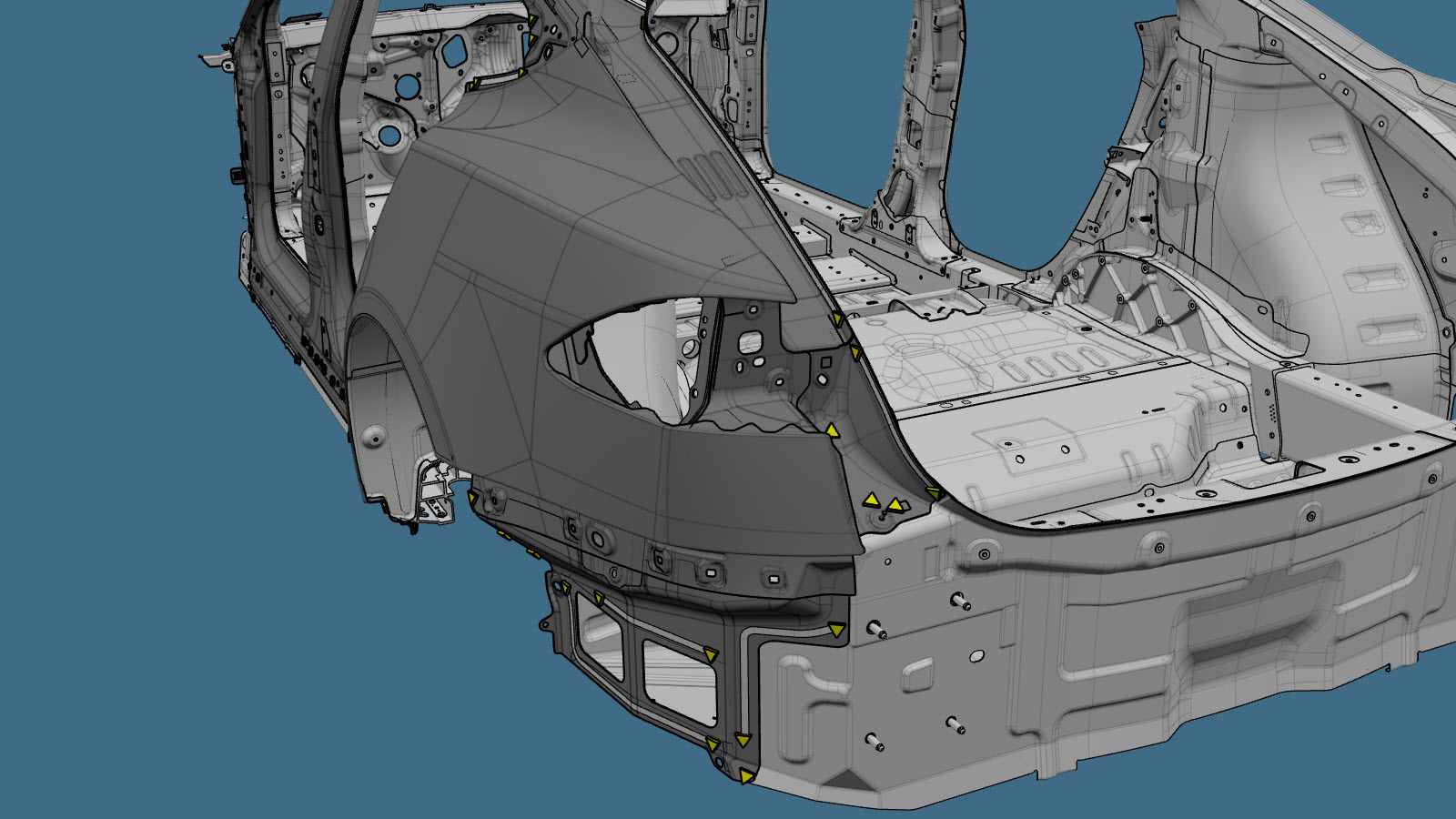

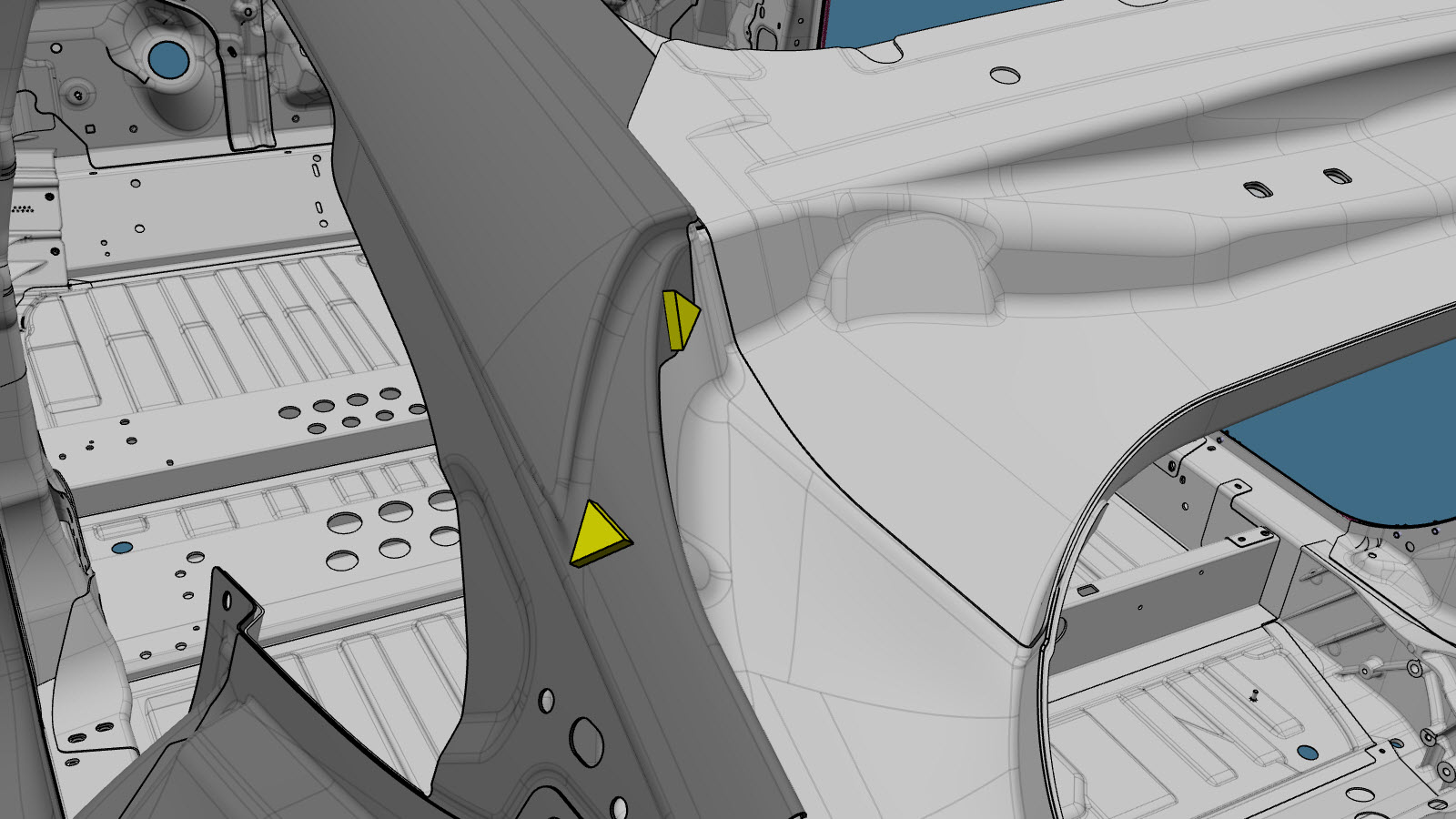

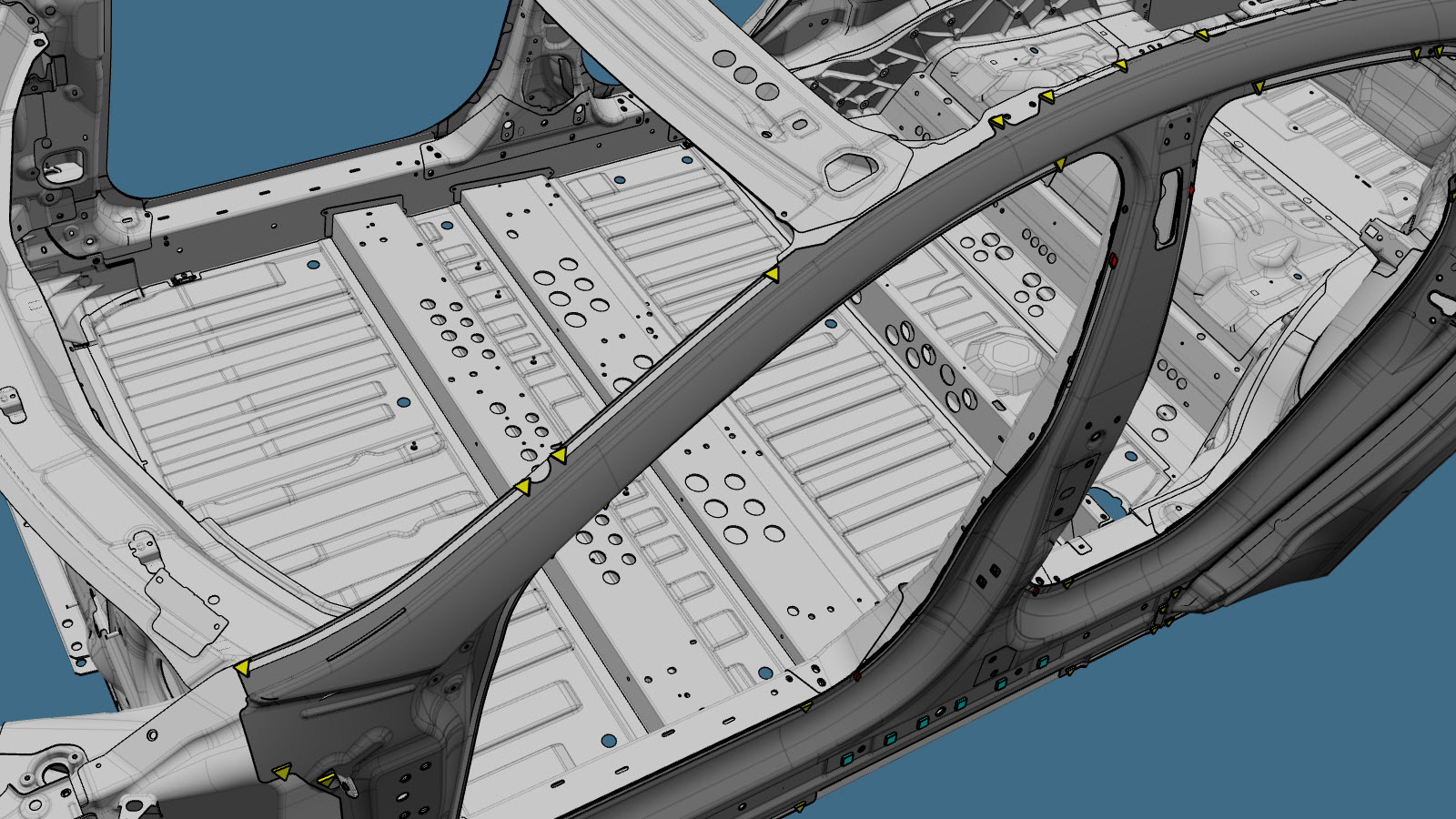

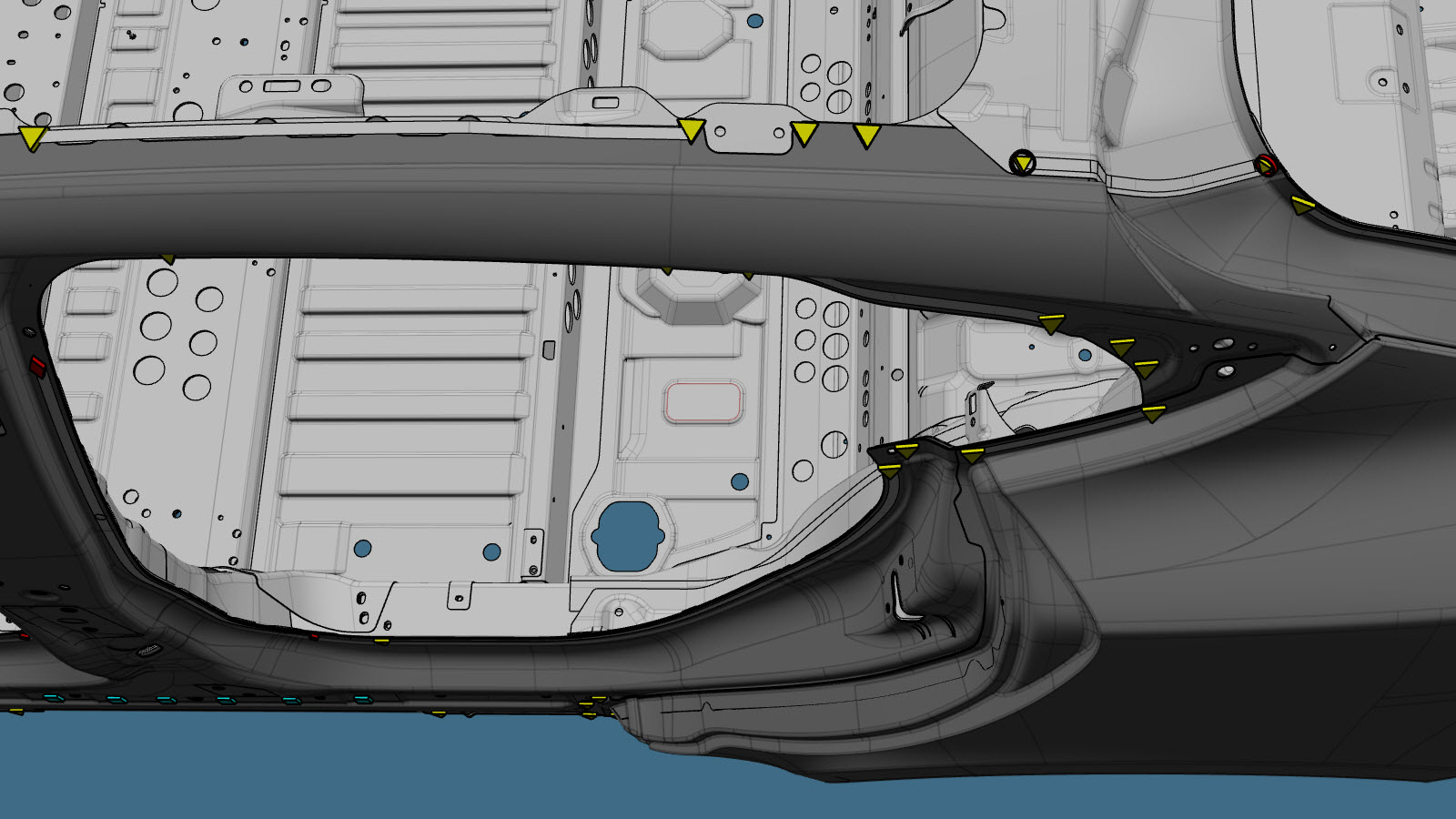

  4. Apply seam sealer to the new component.

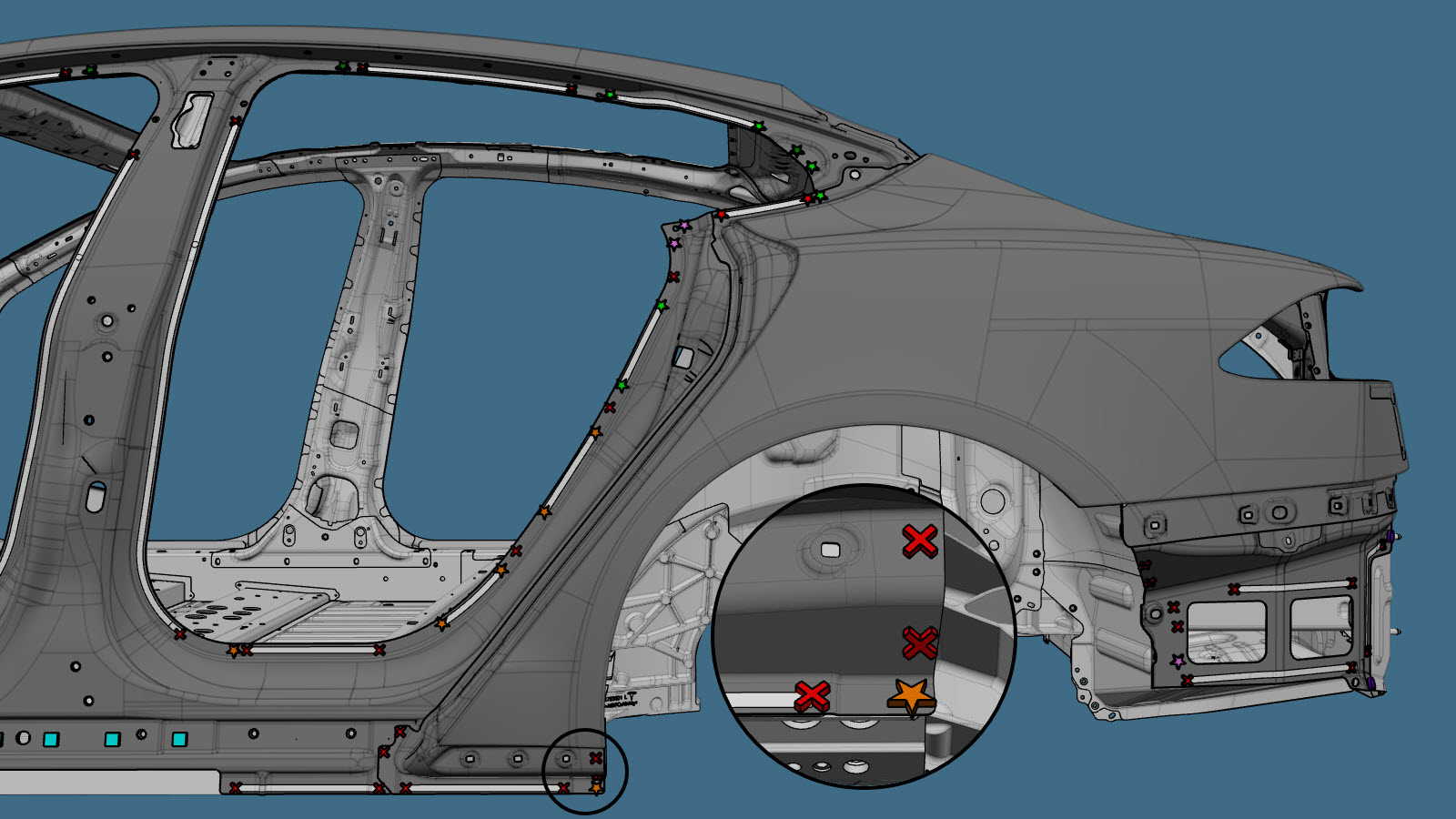

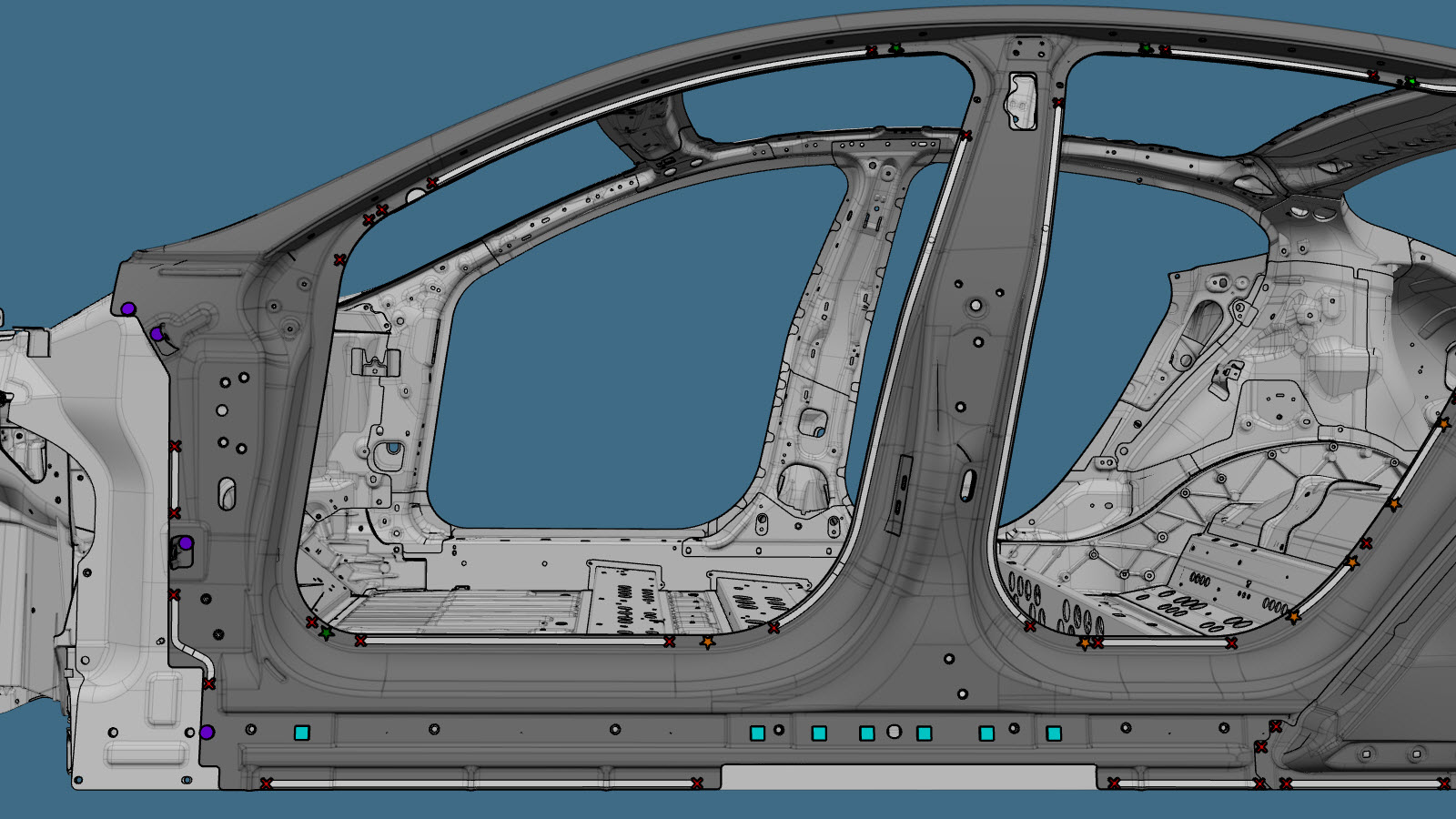

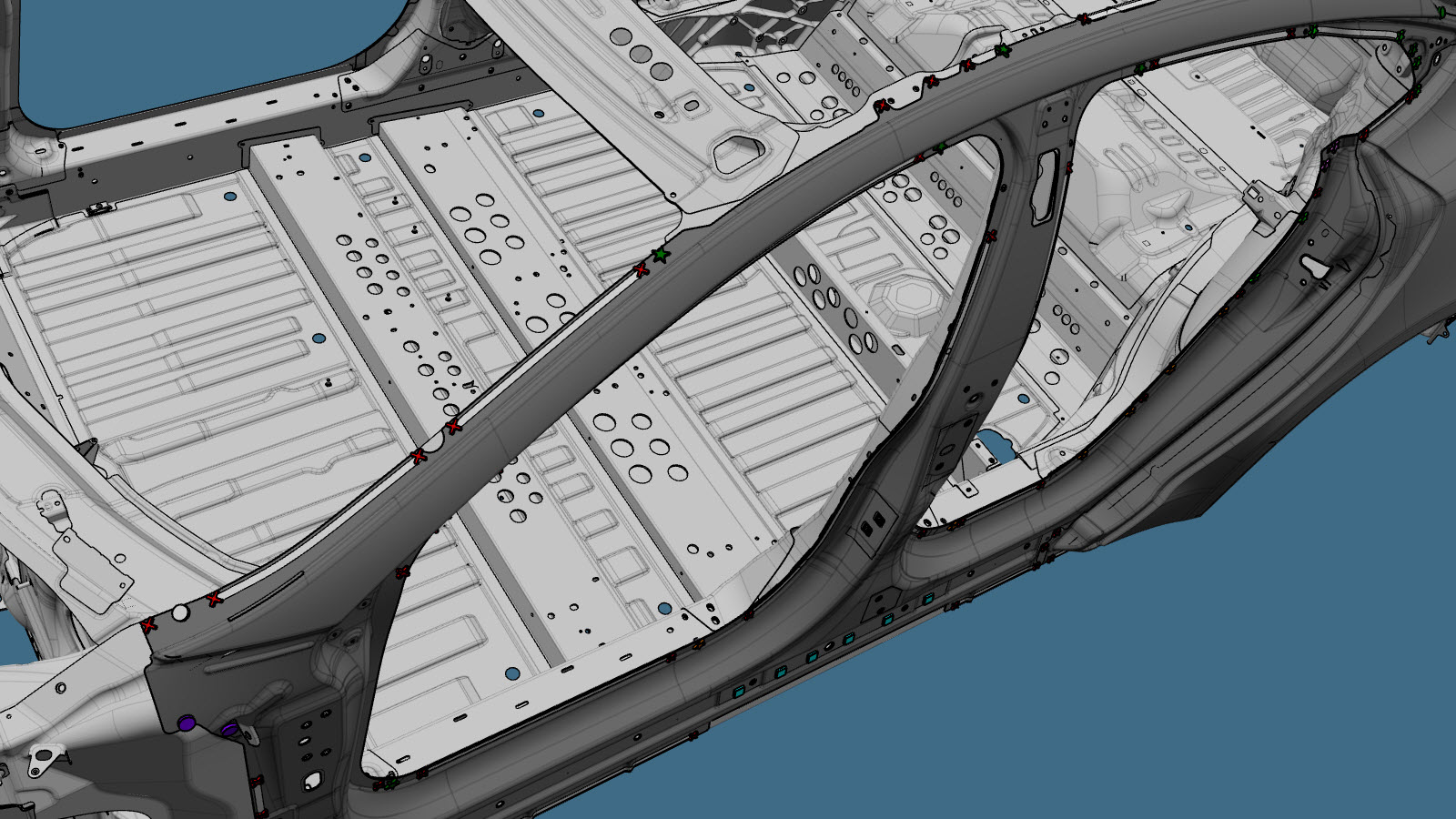

  5. Prepare a instalação.
    Informational PurposesAn informational icon, calling your attention
    Note
    Um X vermelho indica um local onde um fixador instalado de fábrica não será substituído.

    ou rebites de cabeça redonda estruturais, 6,5 mm

    ou rebites embutidos, 4,8 mm, curtos

    ou rebites embutidos estruturais, 6,5 mm

    ou rebites ocos, S08

    ou rebites ocos, S18

    ou rebites ocos, S28

    ou rebites ocos, S38

    ou rebites ocos, S48

    ou parafusos

  6. If repairing a section of the Body Side Outer: If space is available under the butt joints between sections, create and install a backing plate under each butt joint.

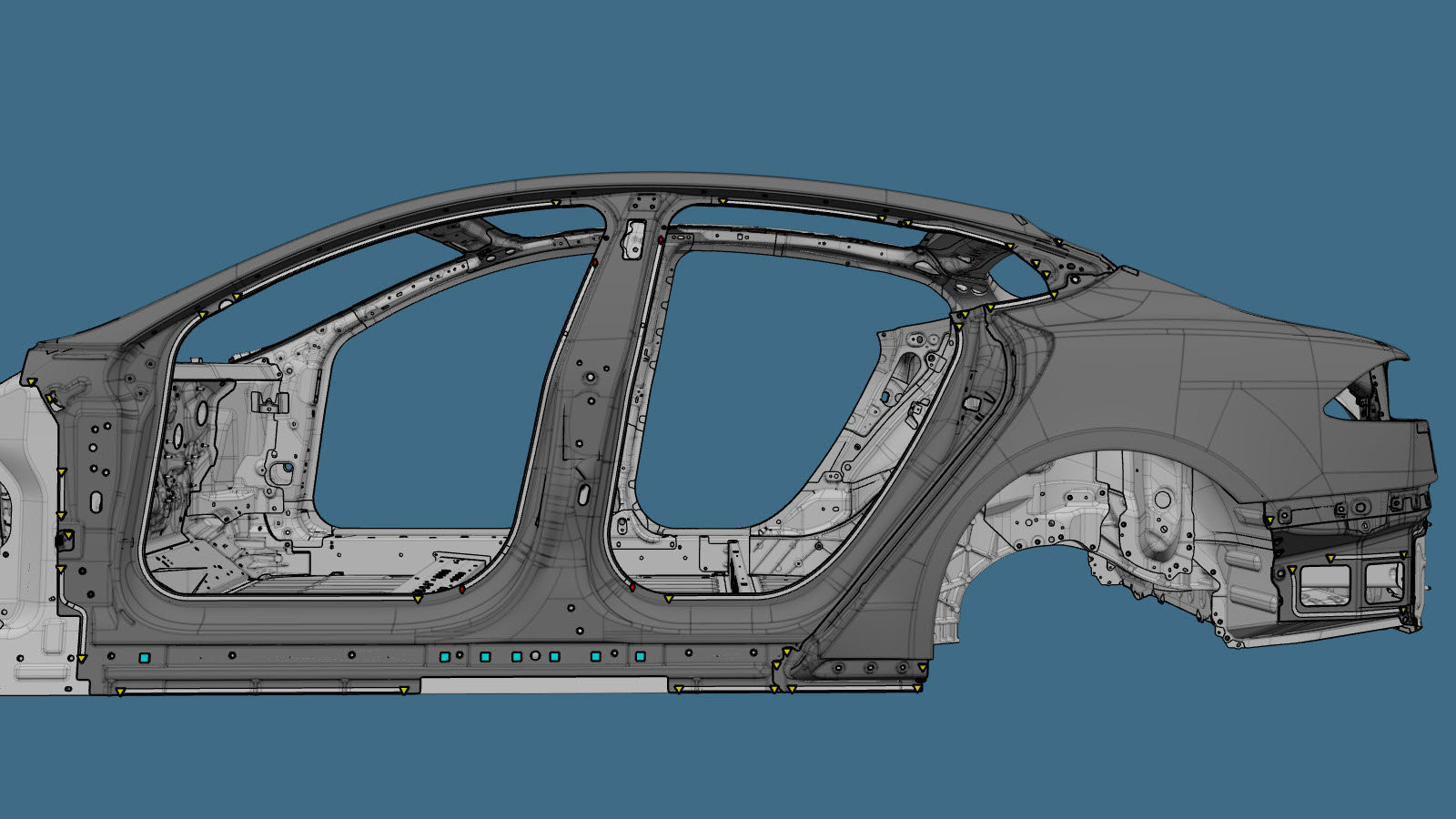

  7. Aplique adesivo estrutural nas superfícies de contacto do veículo e no novo componente ou componentes.
  8. Instale o novo componente ou componentes.
    Torque the bolts to 24 Nm.
  9. If replacing a section of the Body Side Outer, perform GMA welding on the butt joints.

    Soldadura GMA

    ou rebites de soldadura de alumínio

    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Não solde o painel onde este entrar em contacto direto com os painéis de resistência elevada que se encontram por baixo. O calor da soldadura pode enfraquecer a resistência da estrutura de aço de alta resistência subjacente.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    A não observância de todas as precauções de segurança de soldadura, incluindo a utilização de equipamento de proteção individual, pode provocar ferimentos graves ou danos materiais. Apenas os técnicos que tenham concluído a formação requerida pela Tesla em soldadura estão autorizados a soldar componentes estruturais em veículos Tesla.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Para manter a integridade contra acidentes do veículo, utilize apenas os fios de soldadura aprovados e uma máquina de soldar GMA aprovada para a realização de soldaduras GMA em veículos Tesla. Consulte Fio de soldadura e máquinas de soldar com arco metálico gasoso (GMA) aprovados para obter informações sobre fios de soldadura e máquinas de soldar GMA aprovados.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Antes da soldadura GMA, certifique-se de que o adesivo estrutural está seco ao toque. Se o adesivo estrutural não estiver seco ao toque antes da soldadura GMA, a resistência da cola do adesivo pode ficar comprometida.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Não efetue soldaduras num veículo Tesla antes de realizar o procedimento de isolamento elétrico do veículo (consulte o manual de manutenção específico do veículo para obter mais informações sobre o procedimento de isolamento elétrico do veículo). Efetuar soldaduras com um sistema de alta ou baixa tensão com corrente elétrica num veículo Tesla pode danificar componentes do veículo.
    Informational PurposesAn informational icon, calling your attention
    Note
    antes da soldadura GMA, deve ser efetuado um teste de soldadura utilizando material do mesmo calibre e do mesmo tipo para se certificar de que as configurações do equipamento de soldadura produzem uma soldadura satisfatória.
  10. If repairing the Dog Leg Section section of the Body Side Outer: Install the Camada exterior de quarto (veículos construídos após 17 de fevereiro de 2022).
  11. Fold over the wheel arch flange.

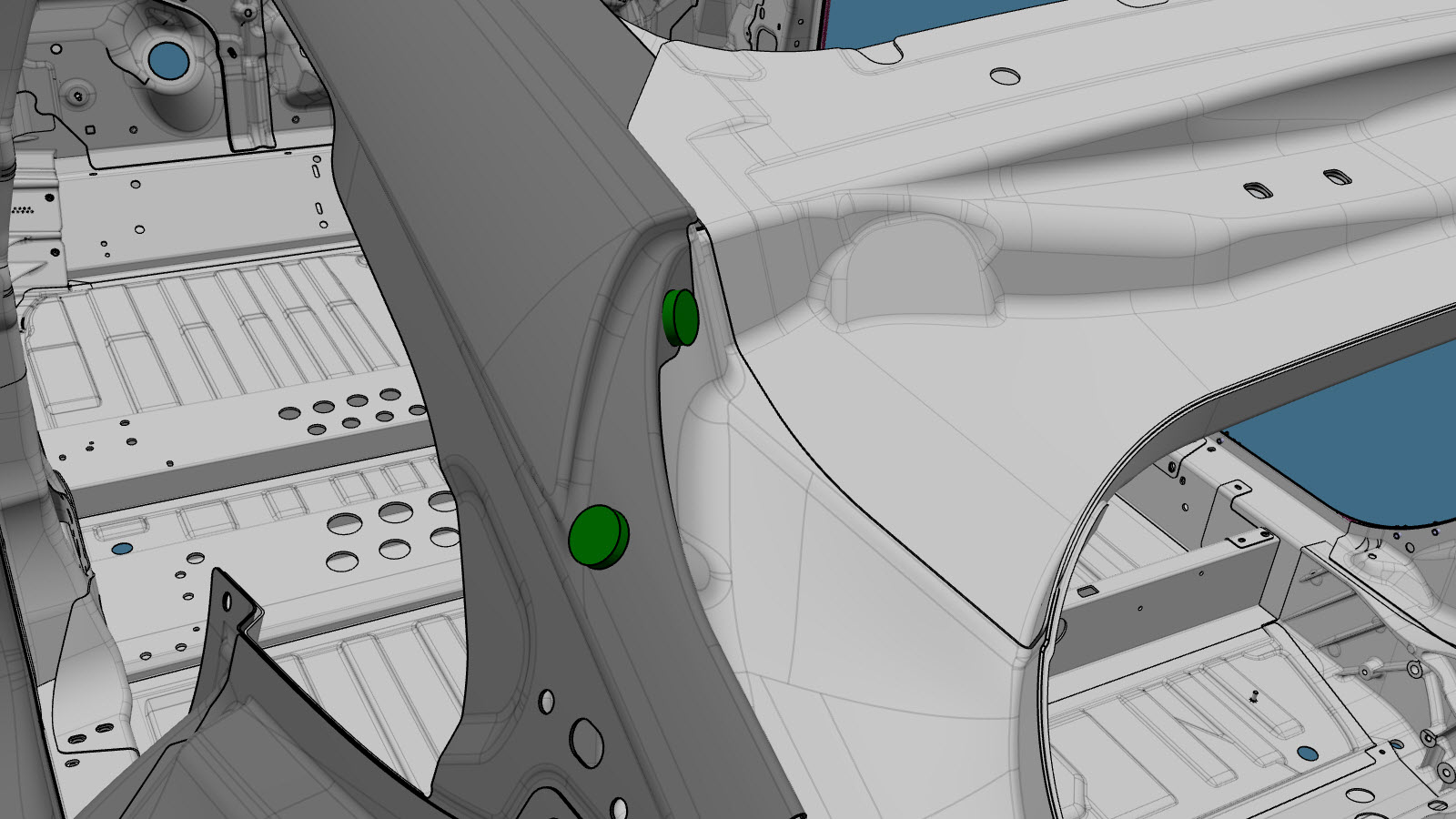

  12. Install Instapaks.

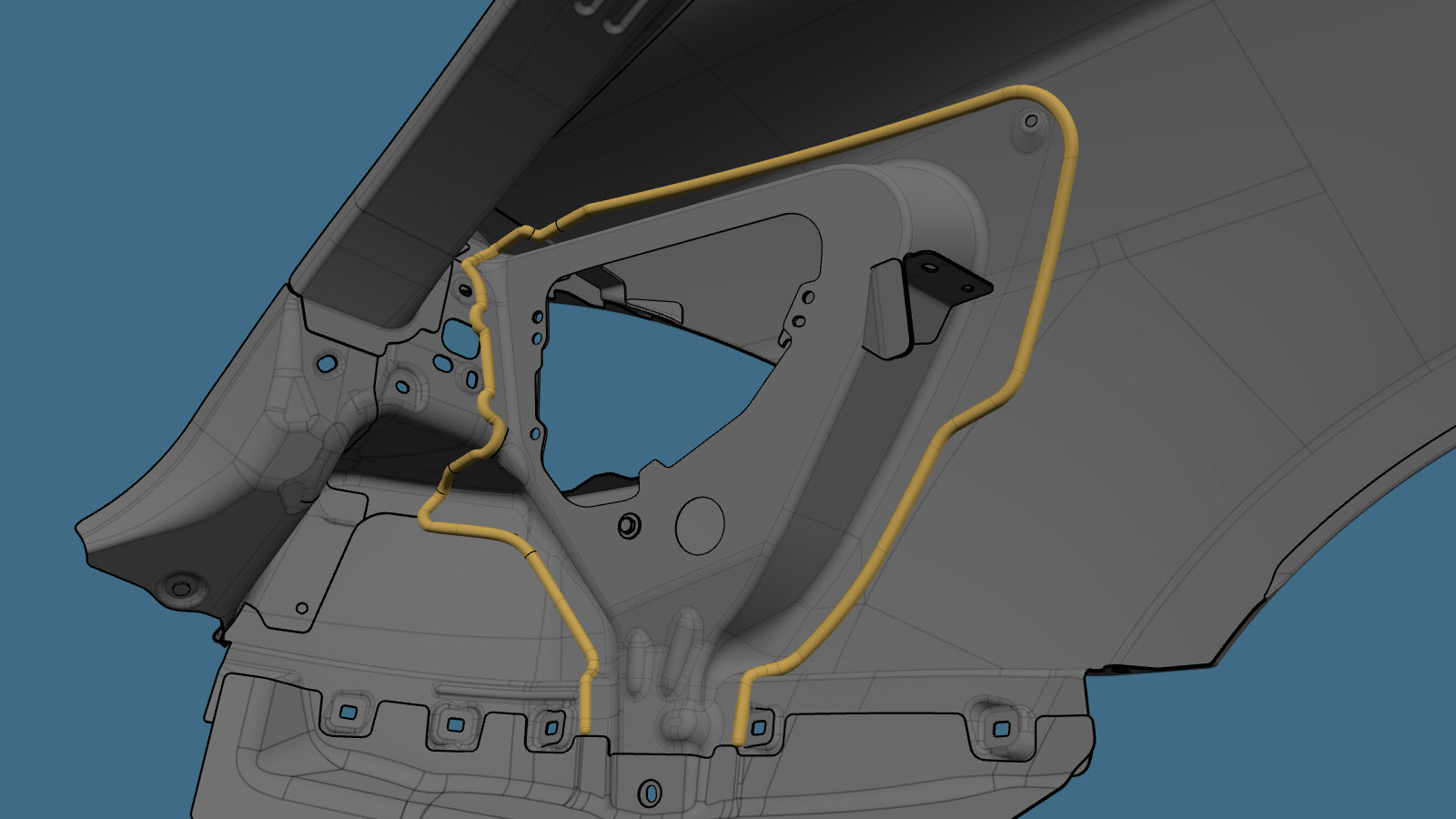

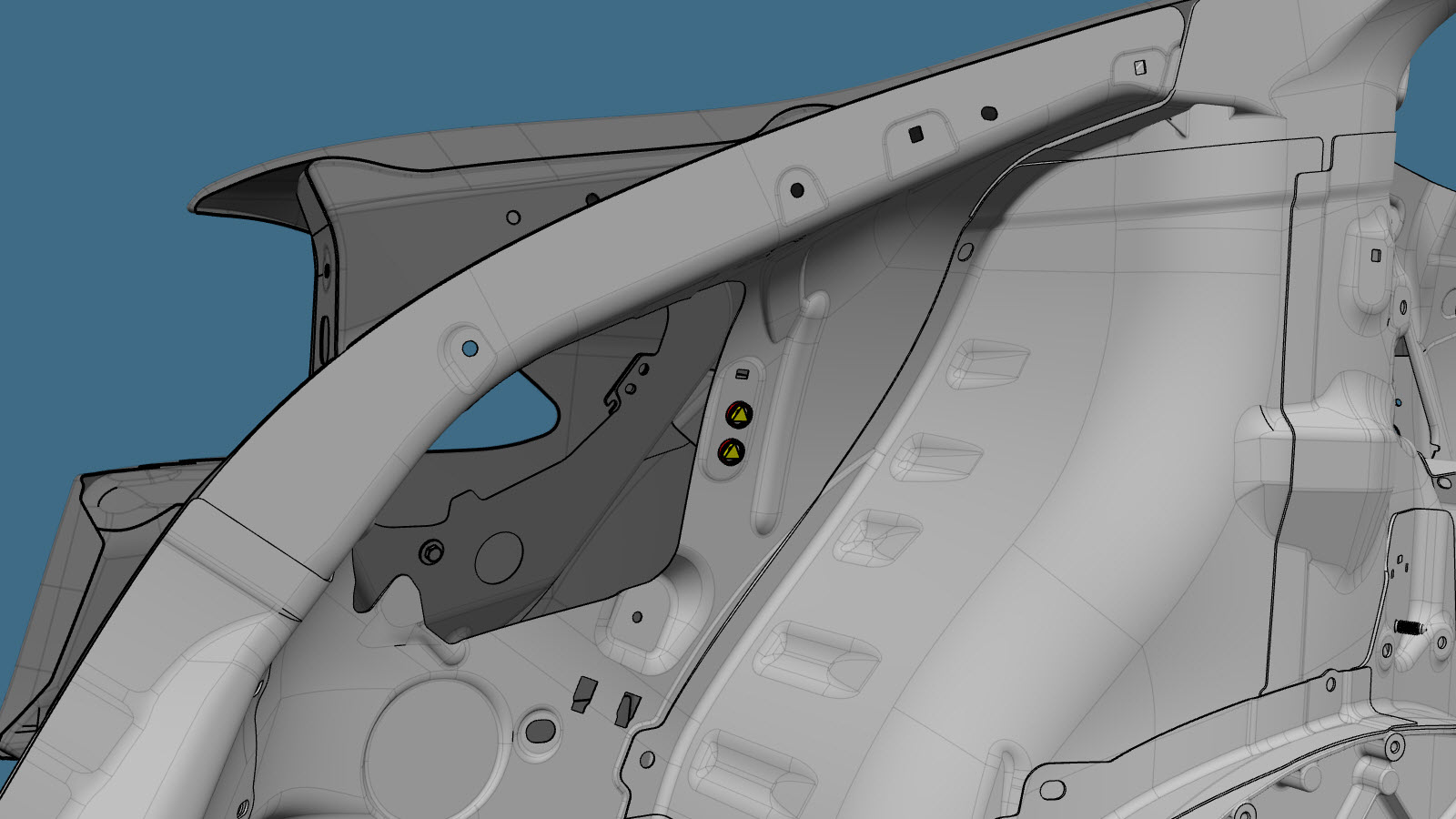

    Install Instapaks into the cavity between the Quarter Outer Skin and the C-Pillar Reinforcement.
  13. Realize quaisquer operações pós-reparação necessárias.
