Side Sill Insert (Complete)

Correction code: 10100116502 NOTE: Unless explicitly stated in the procedure, the above correction code includes all Collision Repair work required to perform this procedure, including the linked Collision Repair procedures. Do not stack Collision Repair correction codes unless explicitly told to do so. Add any associated mechanical procedures needed to perform this procedure.

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
Properly mount the vehicle on a frame bench when performing this procedure.

Parts List


Quantity	Description	Image / Notes

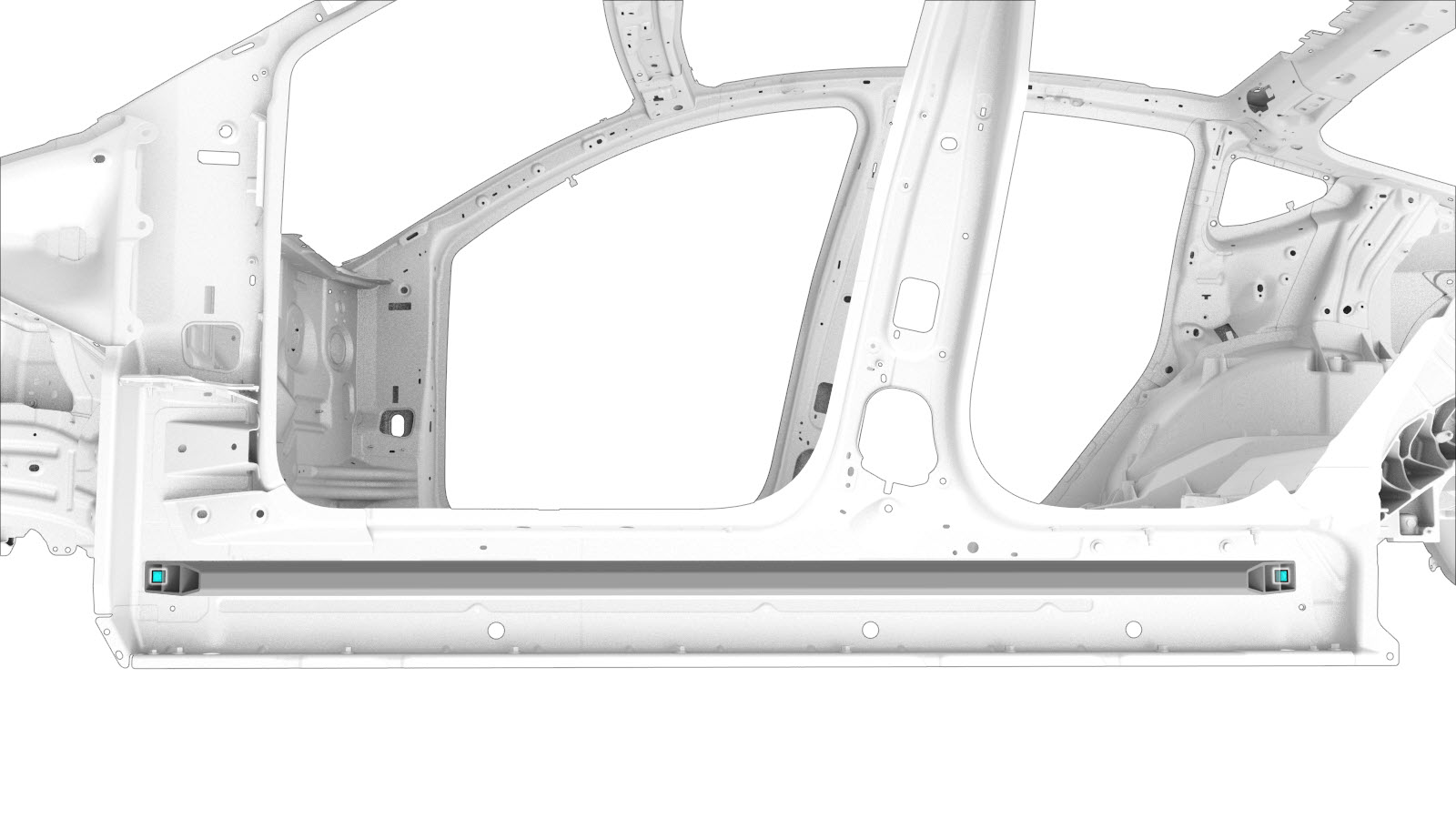

1	PANEL - SIDE SILL INSERT (Side Sill Insert)
1	Bolt , M8-1.25x37,[109],G1009,CM	Tesla part number 1629418-00-A.
1	Bolt ,M10-1.5X42,[109],G1009,PC	Tesla part number 1516228-00-B.

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

Remove the necessary portion of the Door Ring Outer.

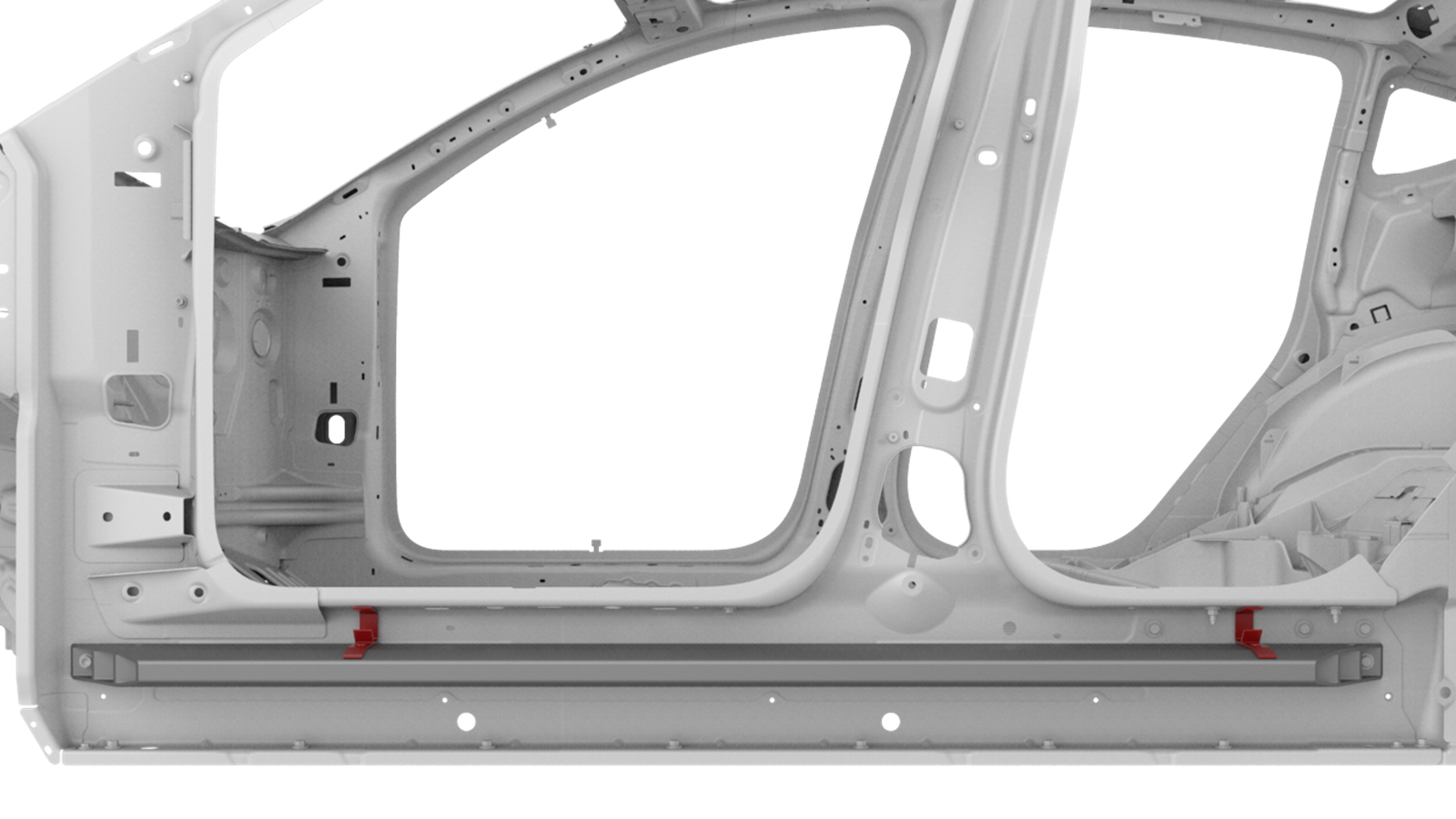

Remove foam dams.

Note
Save the foam dams for installation in a later step.
Remove the original component.
- or Bolts
Prepare for installation.
- or Bolts
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
Torque the fasteners as follows:
- Front bolt: M10-1.5x42, [109],G1009,PC, part number 1516228-00-B: 60 Nm.
- Rear bolt: M8-1.25x37, [109],G1009,CM, part number 1629418-00-A: 31 Nm.
Install the foam dams removed in an earlier step.
Install the necessary portion of the Door Ring Outer.
Perform any necessary post-repair operations.
