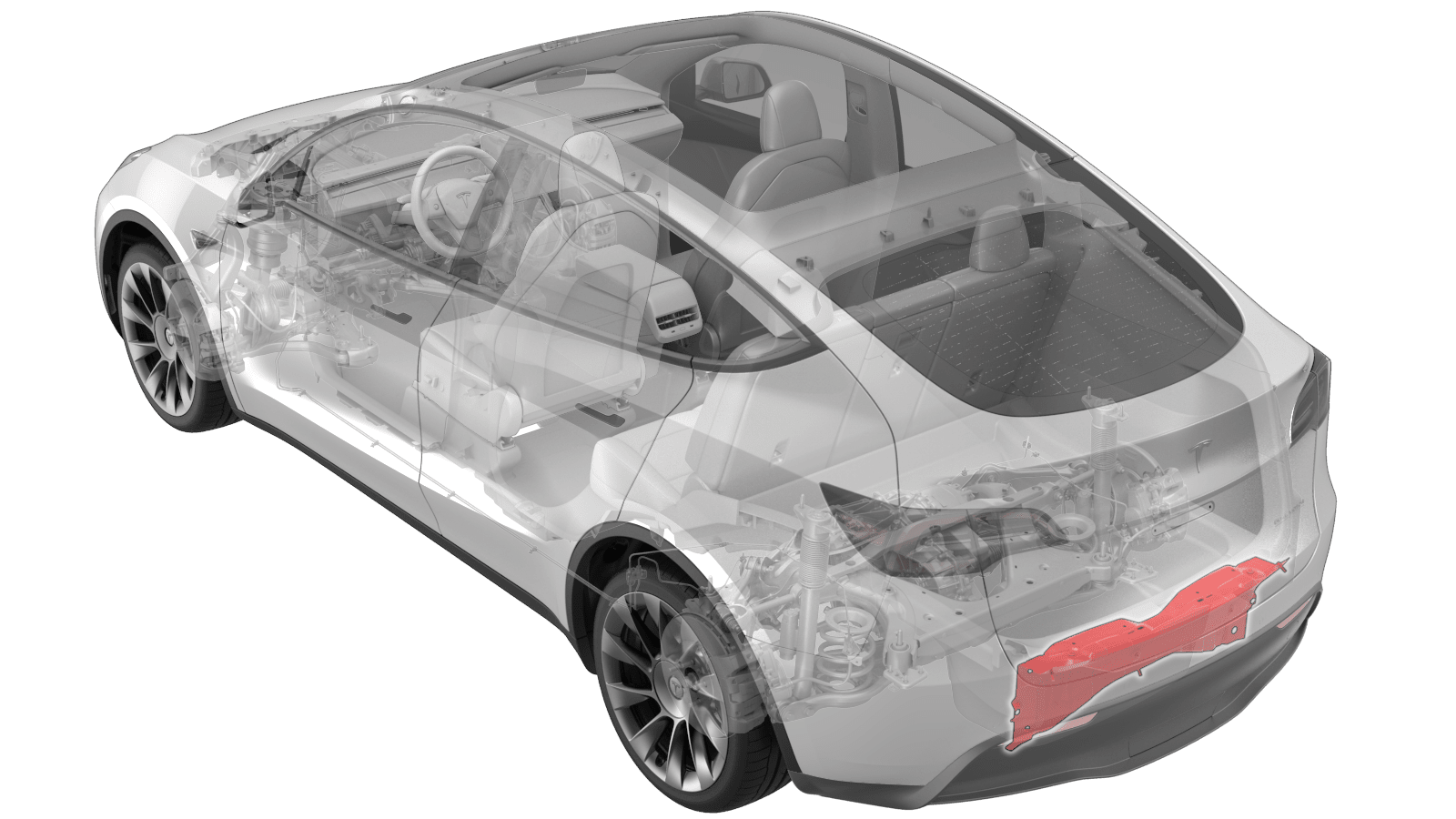

Rear Panel Side Assembly
Correction code:
10101809302
10101809402
NOTE:
Unless explicitly stated in the procedure, the above
correction code includes all Collision Repair work required
to perform this procedure, including the linked Collision
Repair procedures. Do not stack Collision Repair
correction codes unless explicitly told to do
so. Add any associated mechanical procedures
needed to perform this procedure.
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

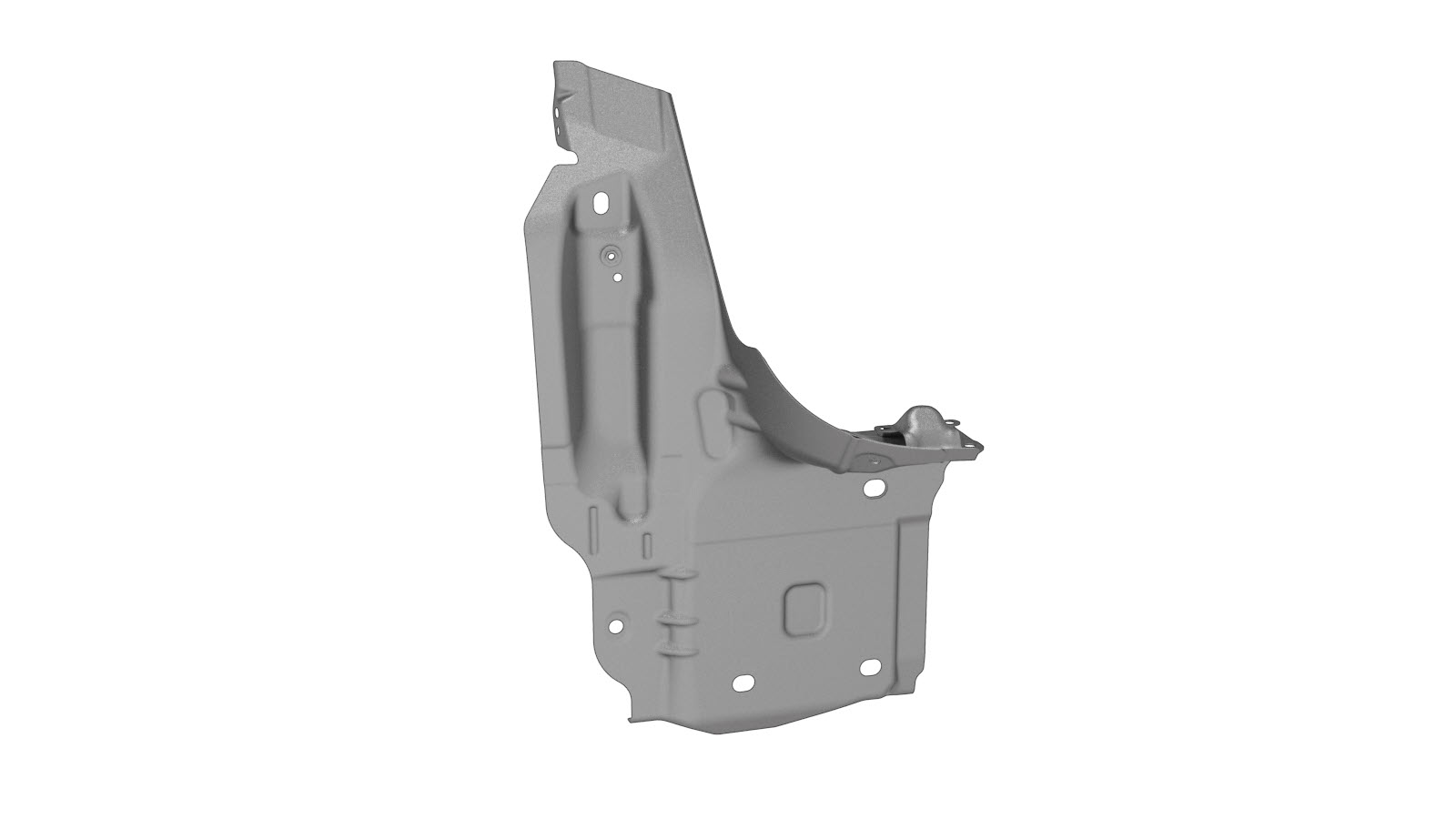

| 1 | ASSEMBLY - REAR PANEL SIDE (Rear Panel Side Assembly) |
|
| 4 |
Rivet, 4.8 mm
|
|
| 3 |
Countersunk Rivet, 4.8 mm Long
|
|
| 1 |
Structural Rivet, 6.5 mm Medium
|
|
| 2 |
Flow Form Rivet S18
|
|
| 1 |
Flow Form Rivet S38
|
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-
Remove the "Panel Assembly - Rear"
(refer to the Service Manual procedure).
-

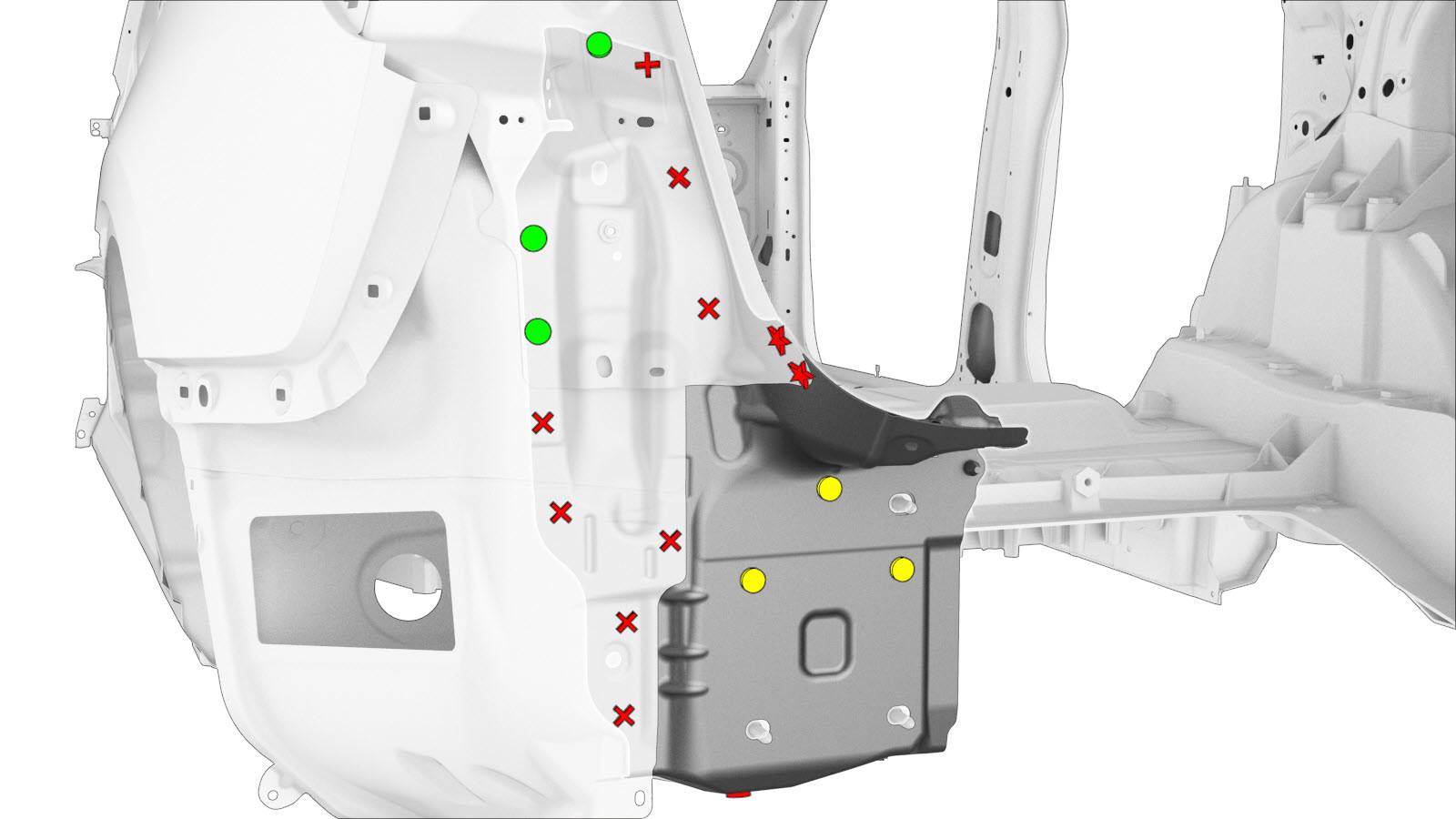

Remove the original component.
-
or
Factory SPRs
-
or
Factory Spot Welds
-
-

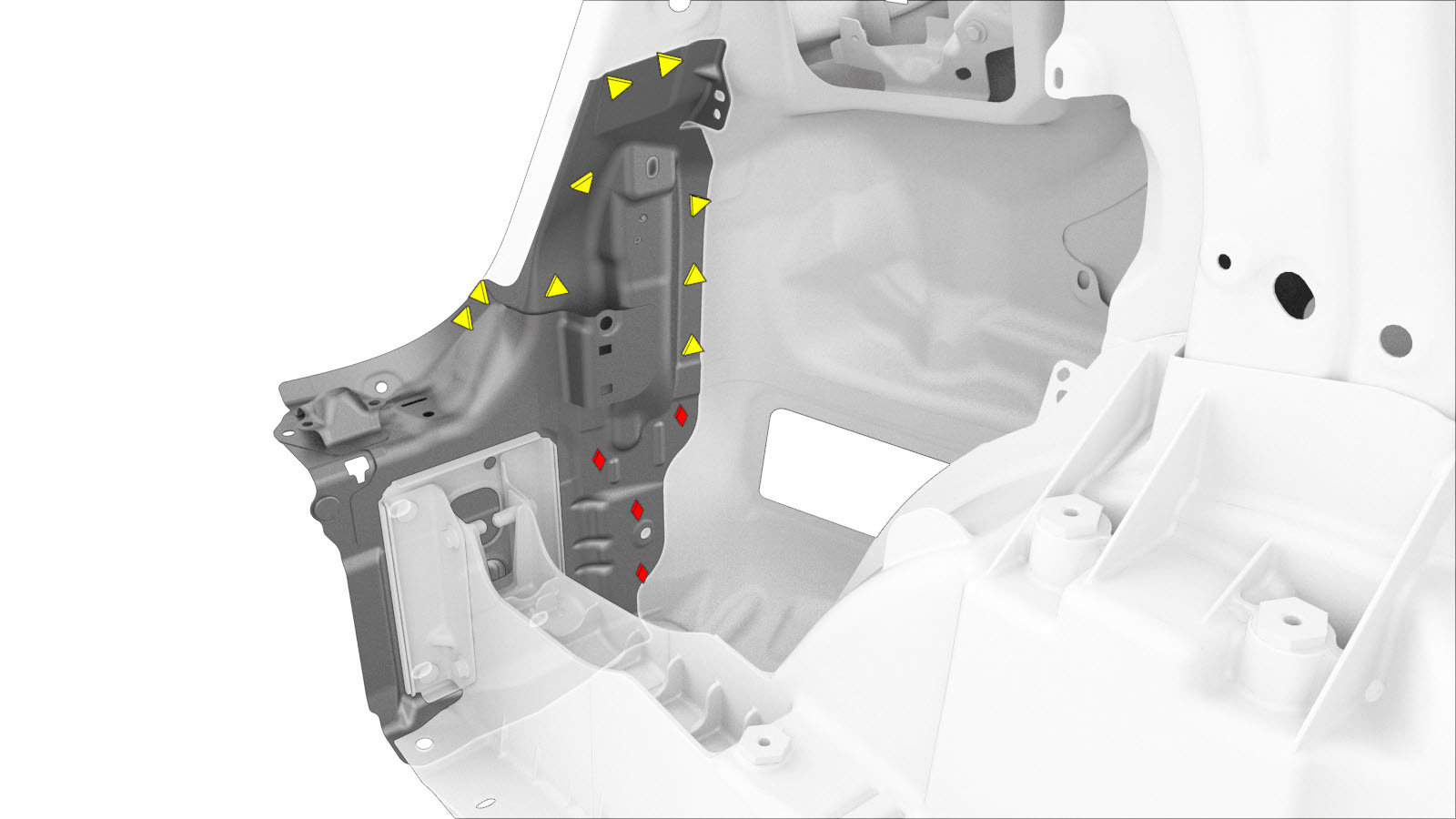

Remove the original component.
-
or Factory SPRs
-
or Factory Spot Welds
-
-

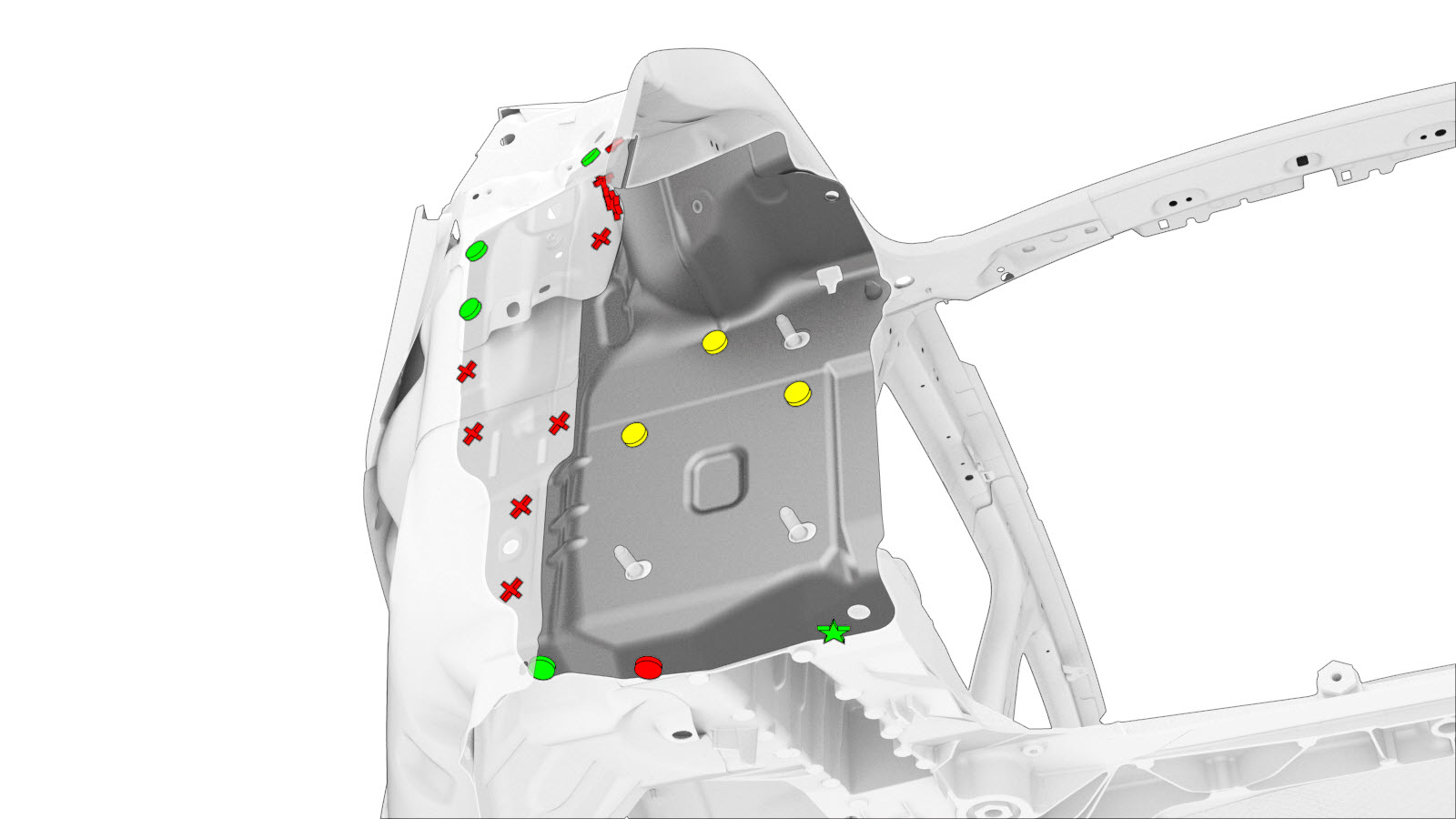

Prepare for installation.
NoteA red X indicates a location where a factory-installed fastener is not being replaced. -

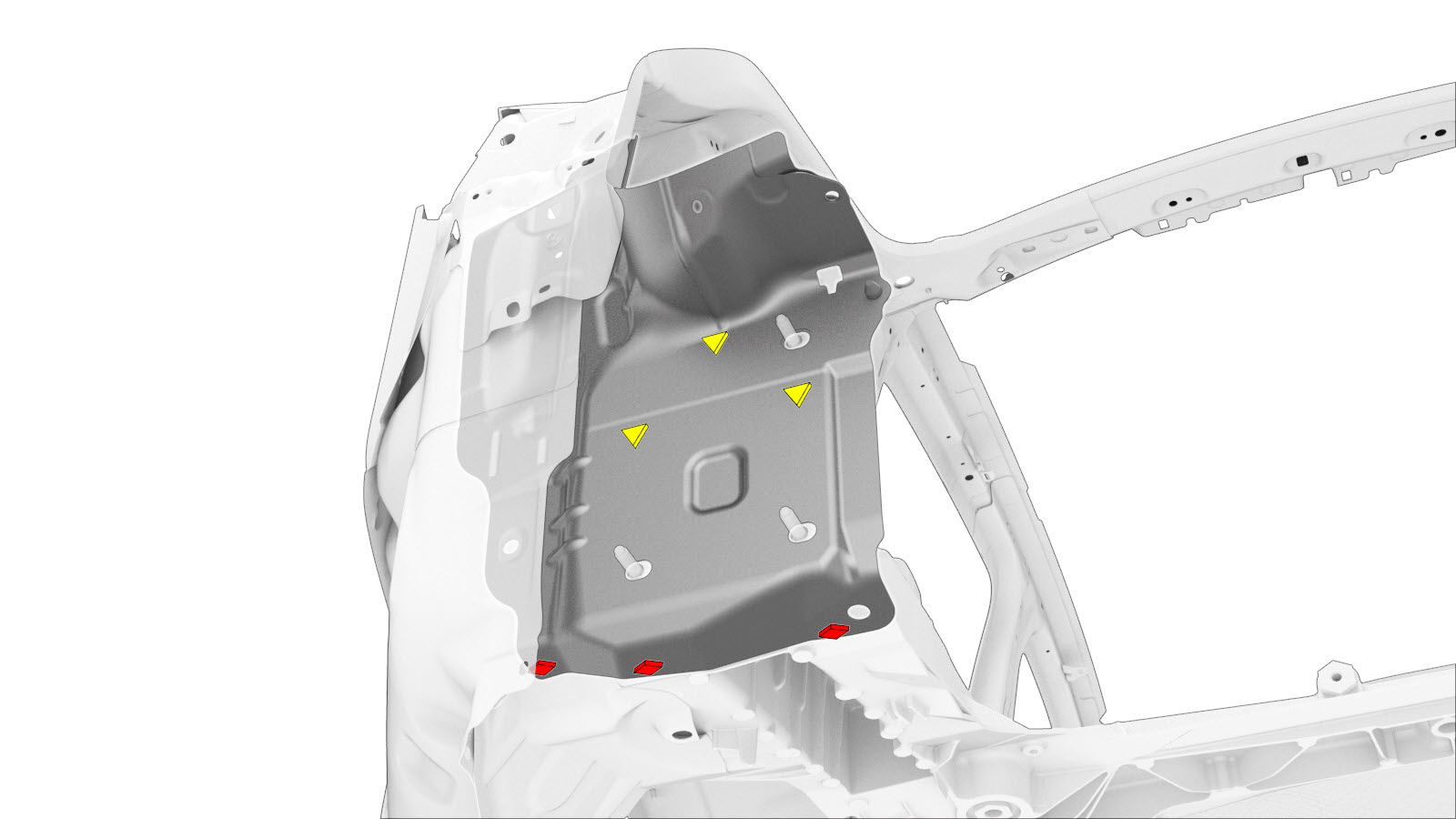

Prepare for installation.
NoteA red X indicates a location where a factory-installed fastener is not being replaced. - Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
-
Install the "Panel Assembly - Rear"
(refer to the Service Manual procedure).
- Perform any necessary post-repair operations.
