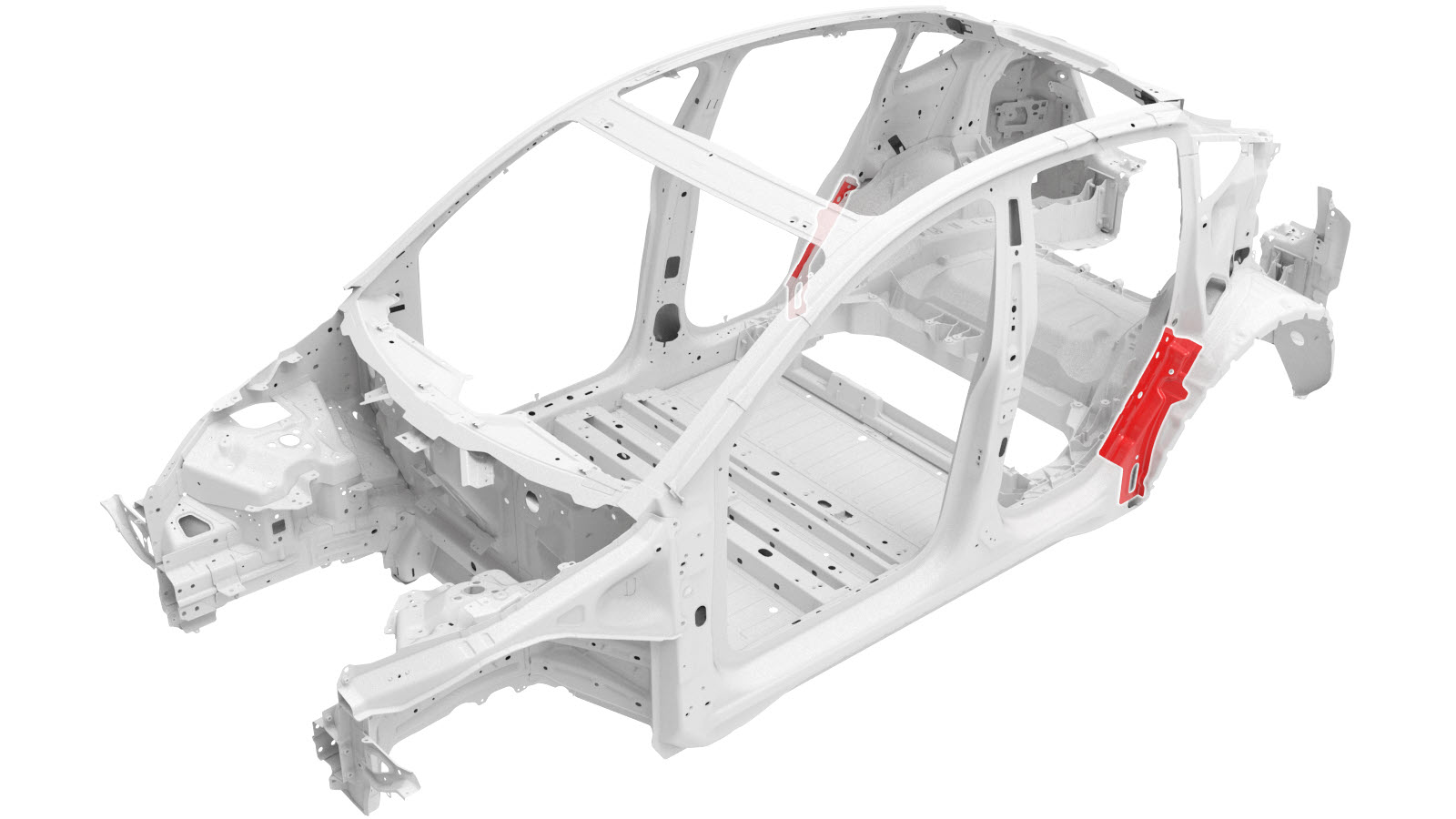

Wheelhouse Extension (Front)
Correction code:
10101904402
10101904602
NOTE:
Unless explicitly stated in the procedure, the above
correction code includes all Collision Repair work required
to perform this procedure, including the linked Collision
Repair procedures. Do not stack Collision Repair
correction codes unless explicitly told to do
so. Add any associated mechanical procedures
needed to perform this procedure.
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|
| 1 | ASSEMBLY - REAR WHEELHOUSE EXTENSION (Wheelhouse Front Extension) |
|
| 3 | ||
| 3 |
Flow Form Rivet S18
|
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-
Remove the necessary portion
of the Body Side Outer to expose the underlying component being replaced.
-
Remove the necessary portion of the
Dogleg Lower to expose the
underlying component being replaced.
-

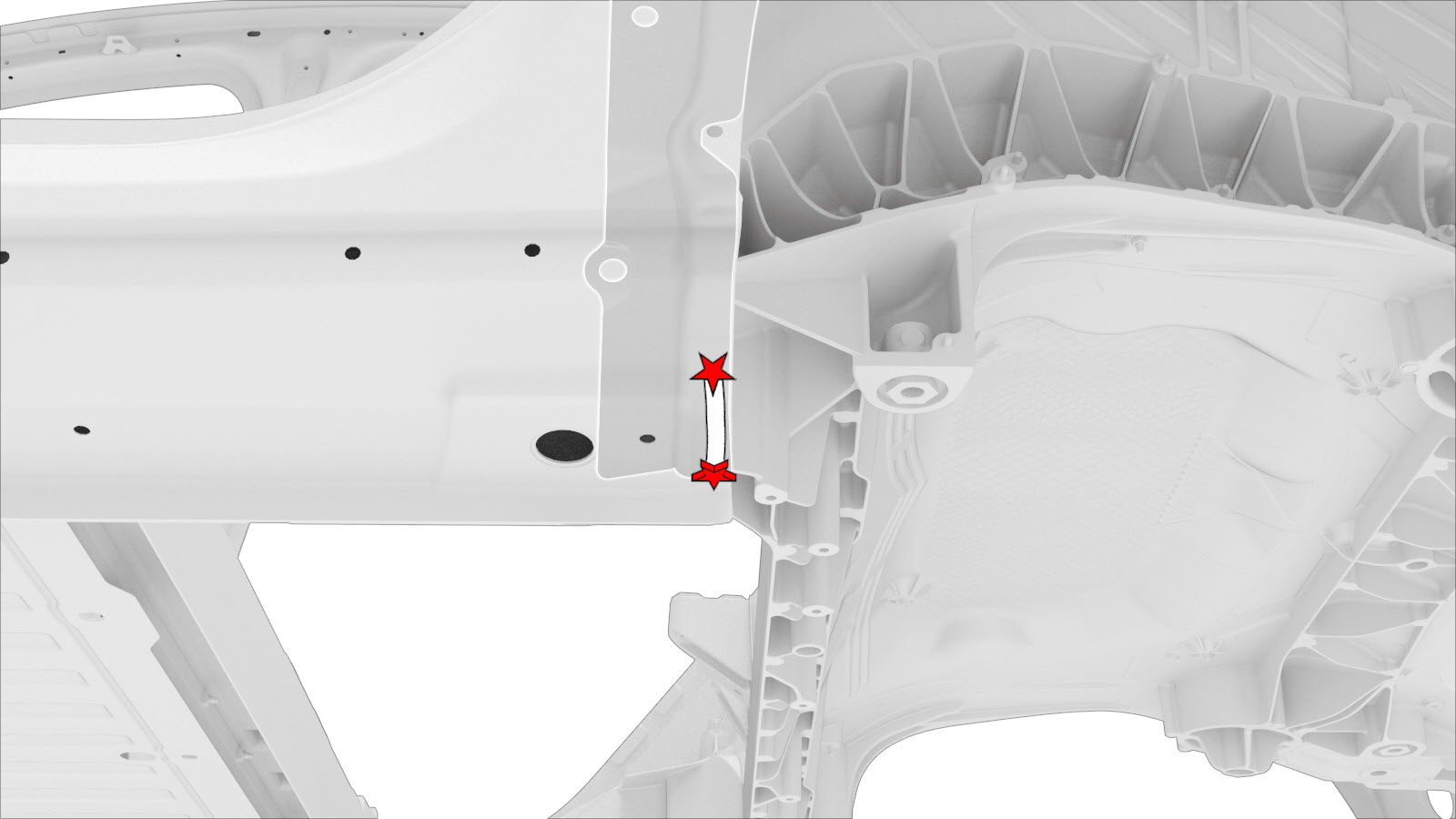

Remove the original component.
-
or
Factory SPRs
-
or
Factory Spot Welds
-
-

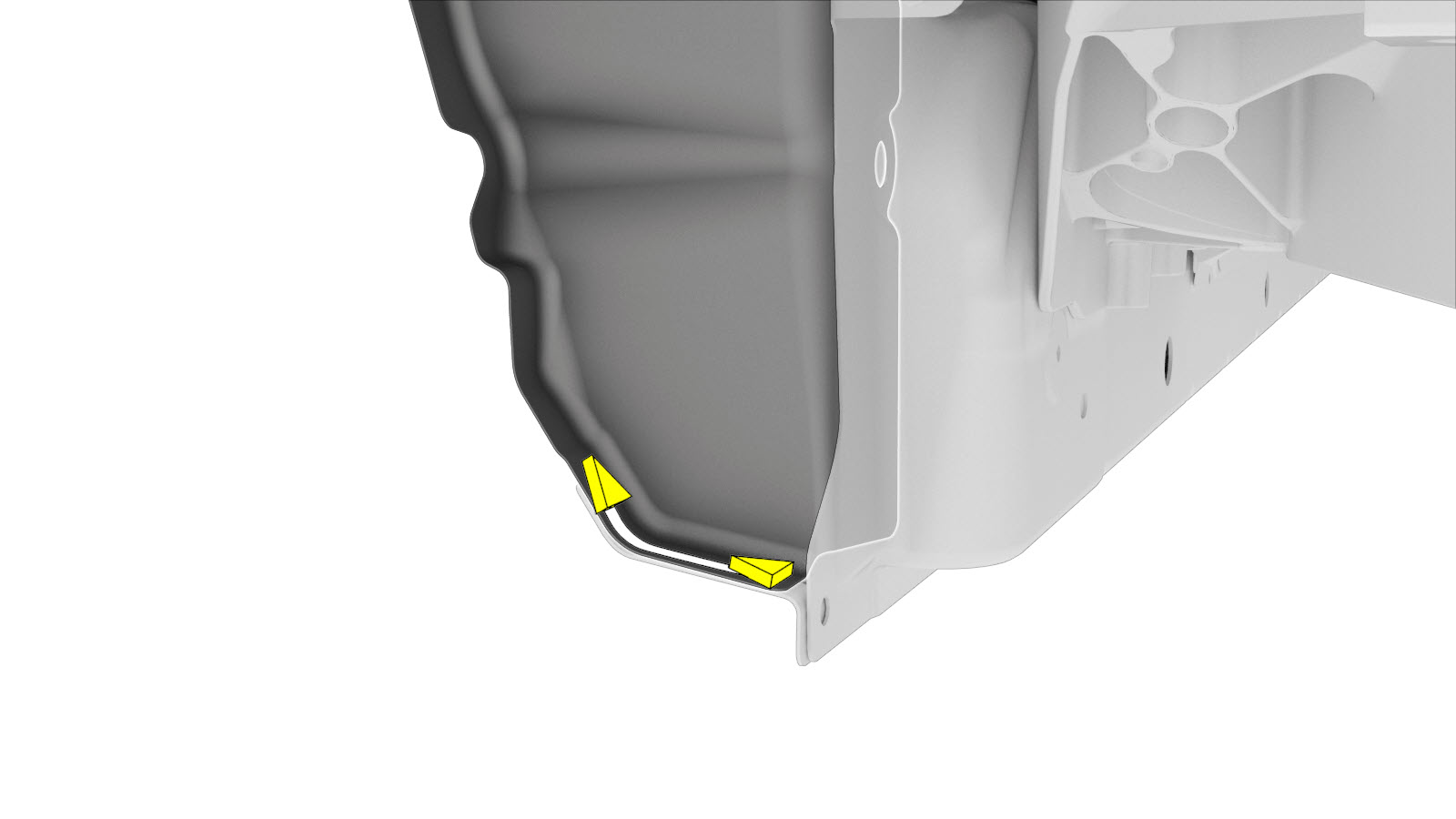

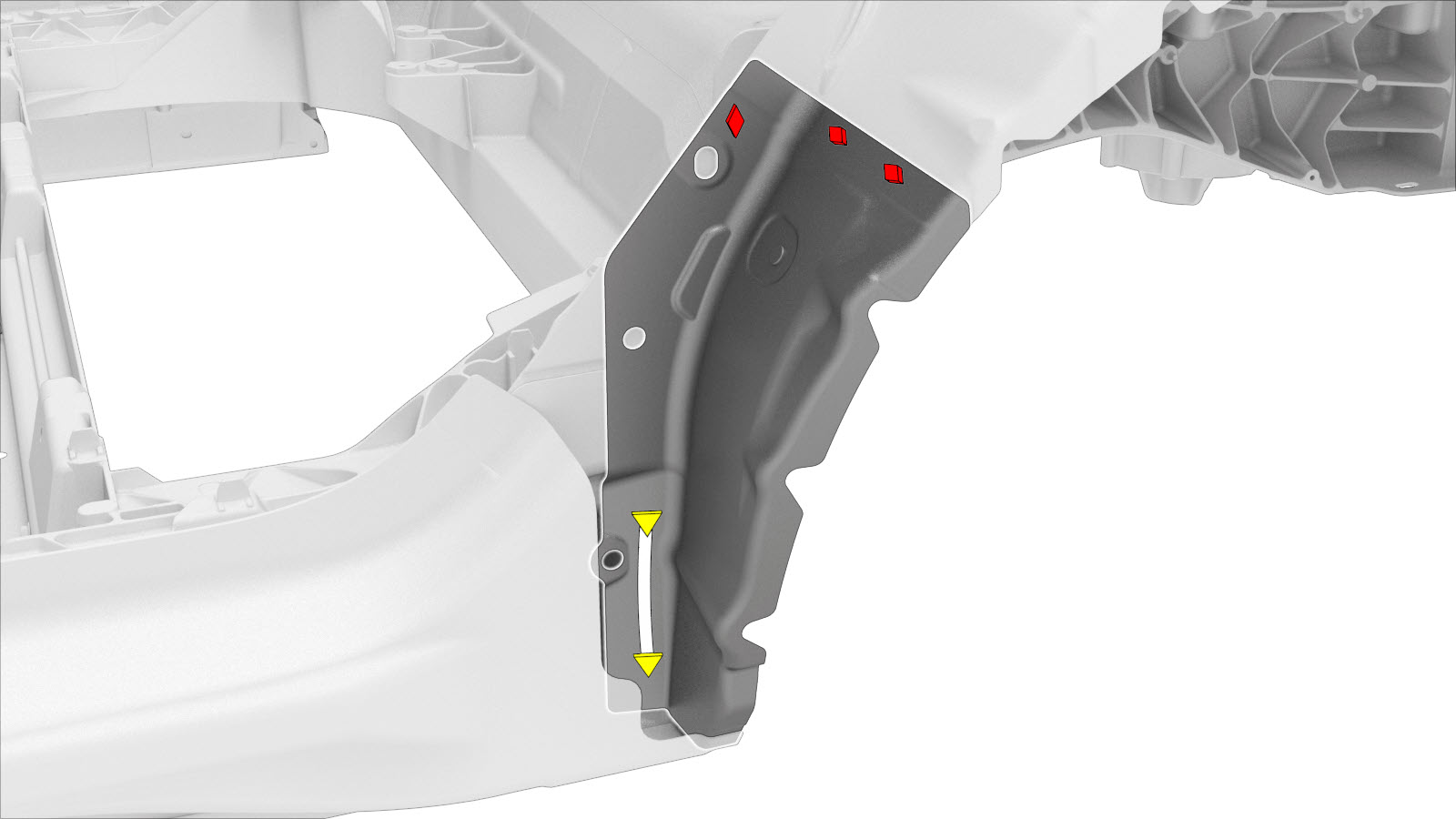

Remove the original component.
-
or Factory Spot Welds
-
- Prepare for installation.
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
-
Install the portion of the Dogleg Lower that was removed to
expose the component being replaced.
-
Install the necessary
portion of the Body Side Outer that was removed to expose the component being replaced.
- Install the fastener as indicated.
- Perform any necessary post-repair operations.
