Sill Inner Extension
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- Properly mount the vehicle on a frame bench when performing this procedure.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

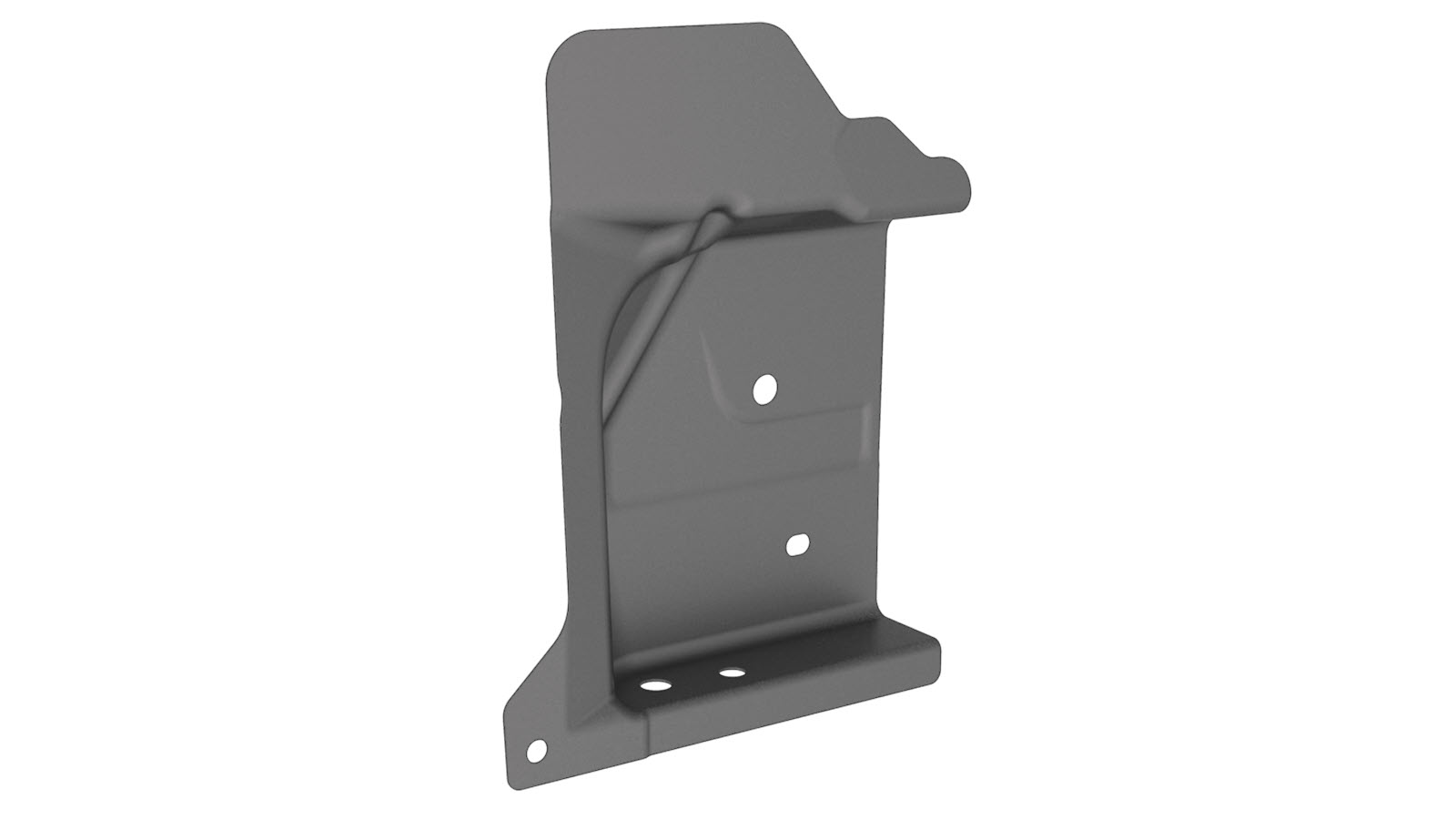

| 1 | ASSEMBLY - EXTENSION SILL INNER LOWER FOR CAST RUB - LEFT (Sill Inner Extension–LH) |
|

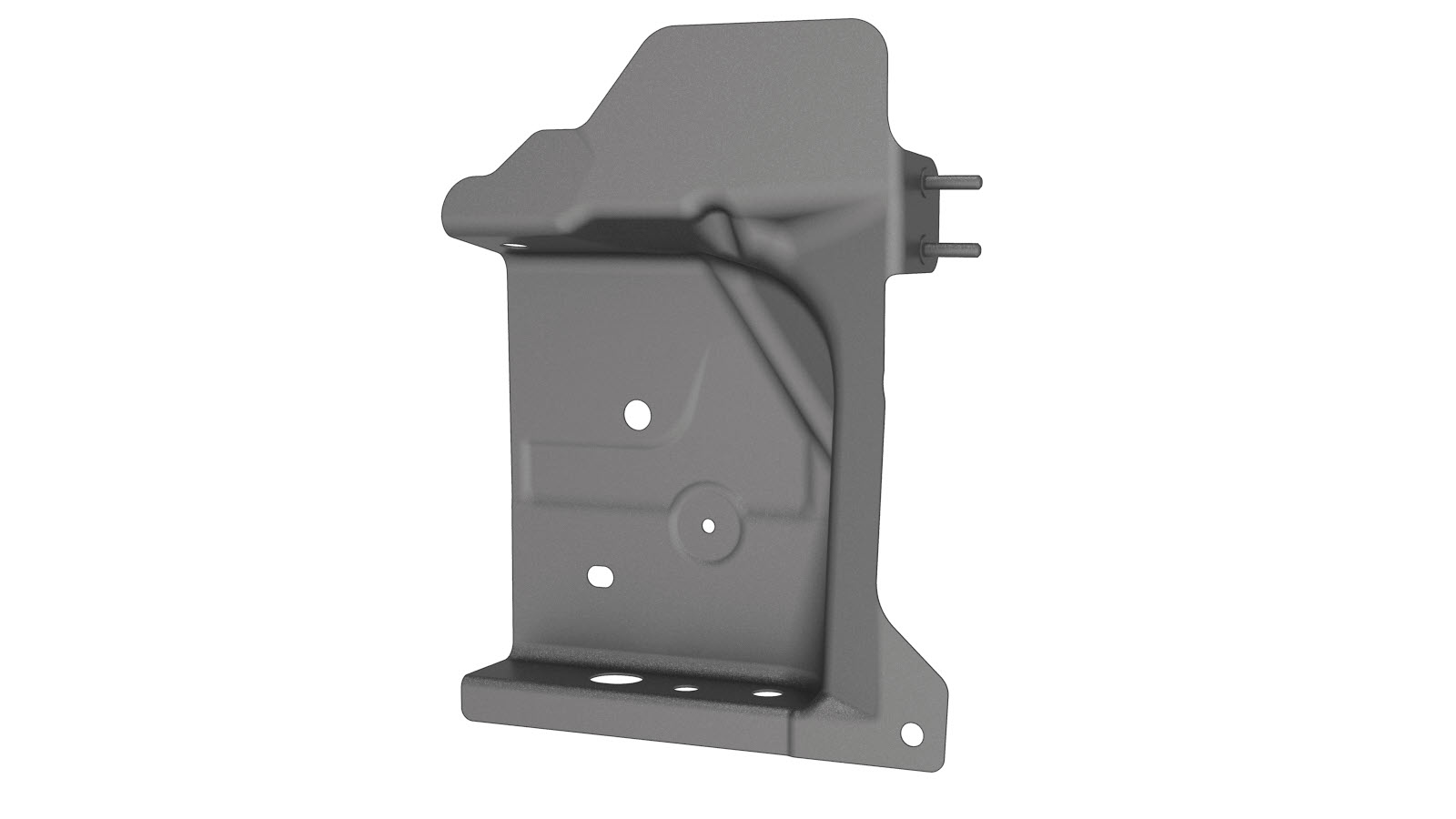

| 1 | PANEL - EXTENSION SILL INNER LOWER - RIGHT (Sill Inner Extension–RH) |
|
| 2 |
 or  Structural Countersunk Rivets, 6.5 mm
|
|
| 1 |
Flow Form Rivet S38
|
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-

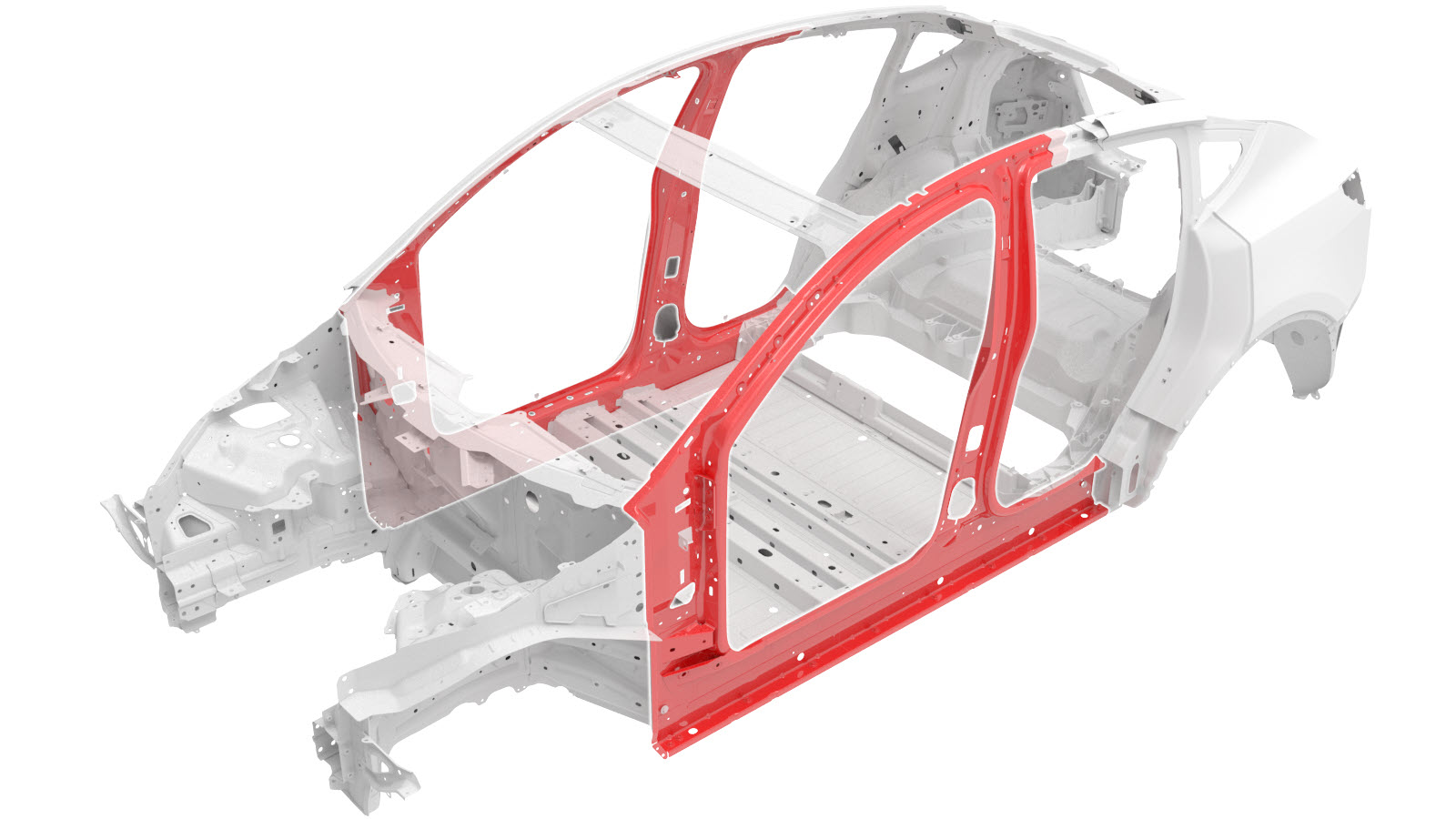

Remove the Wheelhouse Extension (Front).
-
Remove the necessary portion of the
Door Ring Inner with Header Reinforcement.
-

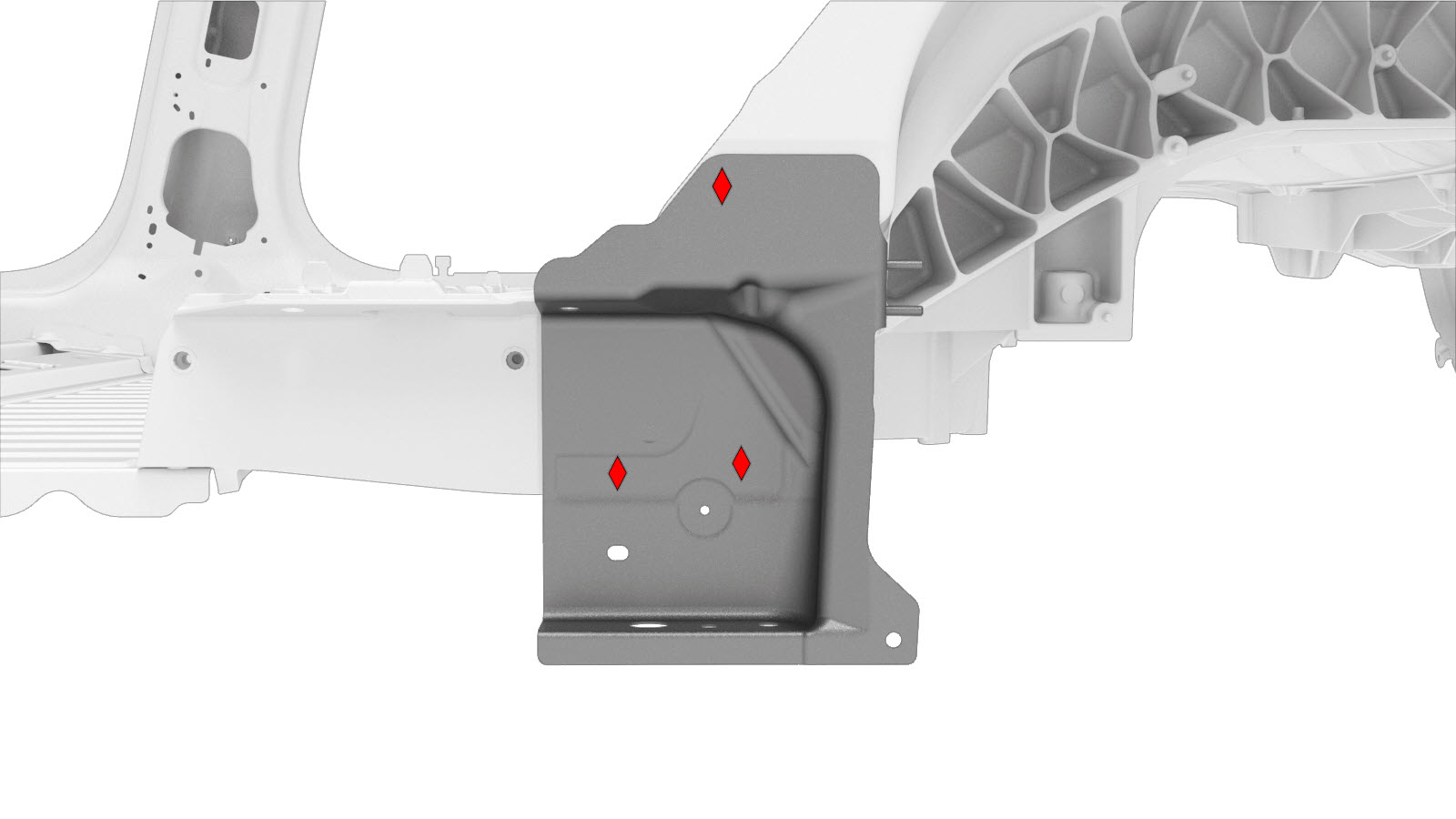

Remove the original component.
-
or
Factory SPRs
-
- Prepare for installation.
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
-

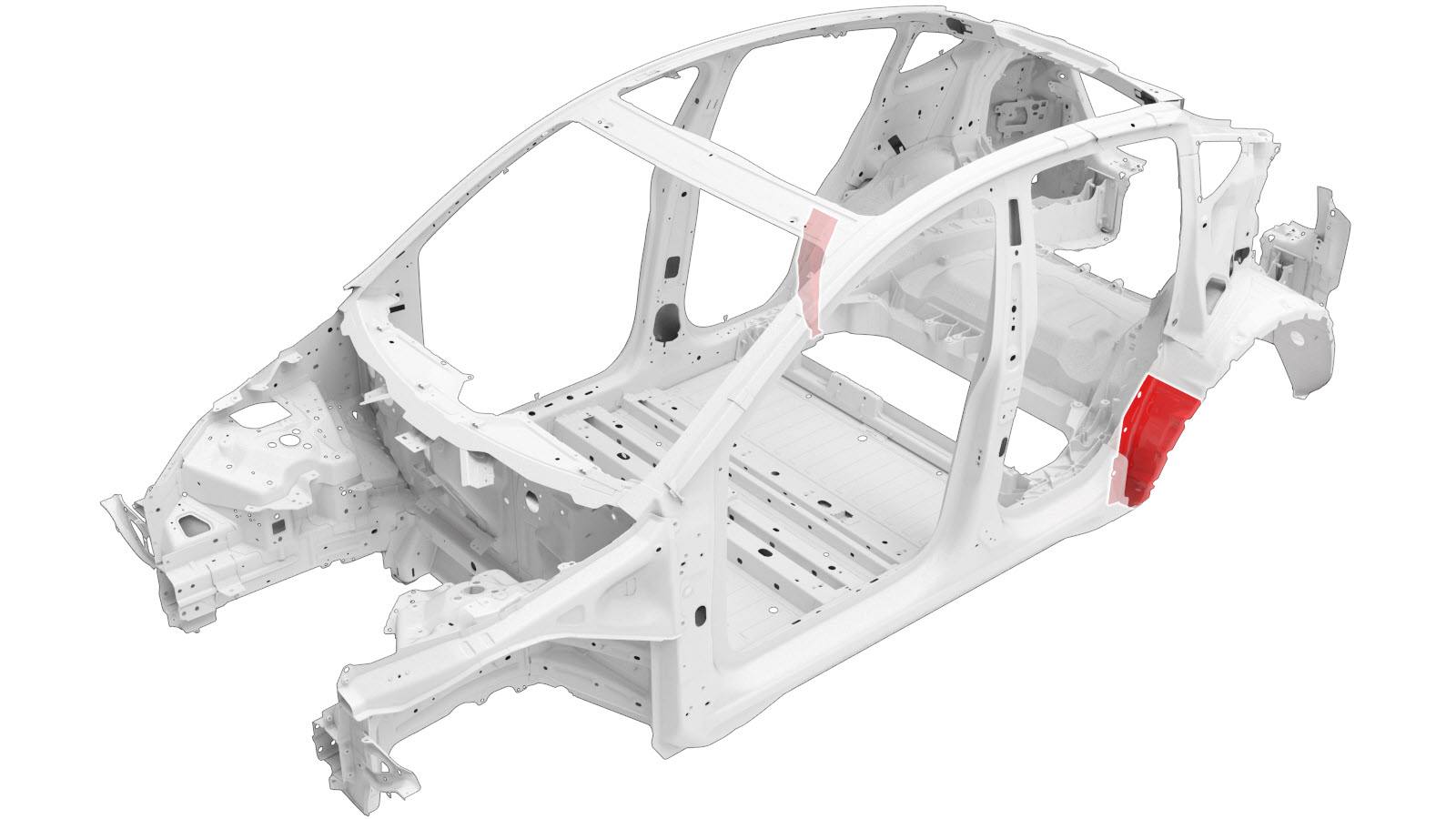

Install the necessary portion of the
Door Ring Inner with Header Reinforcement.
-

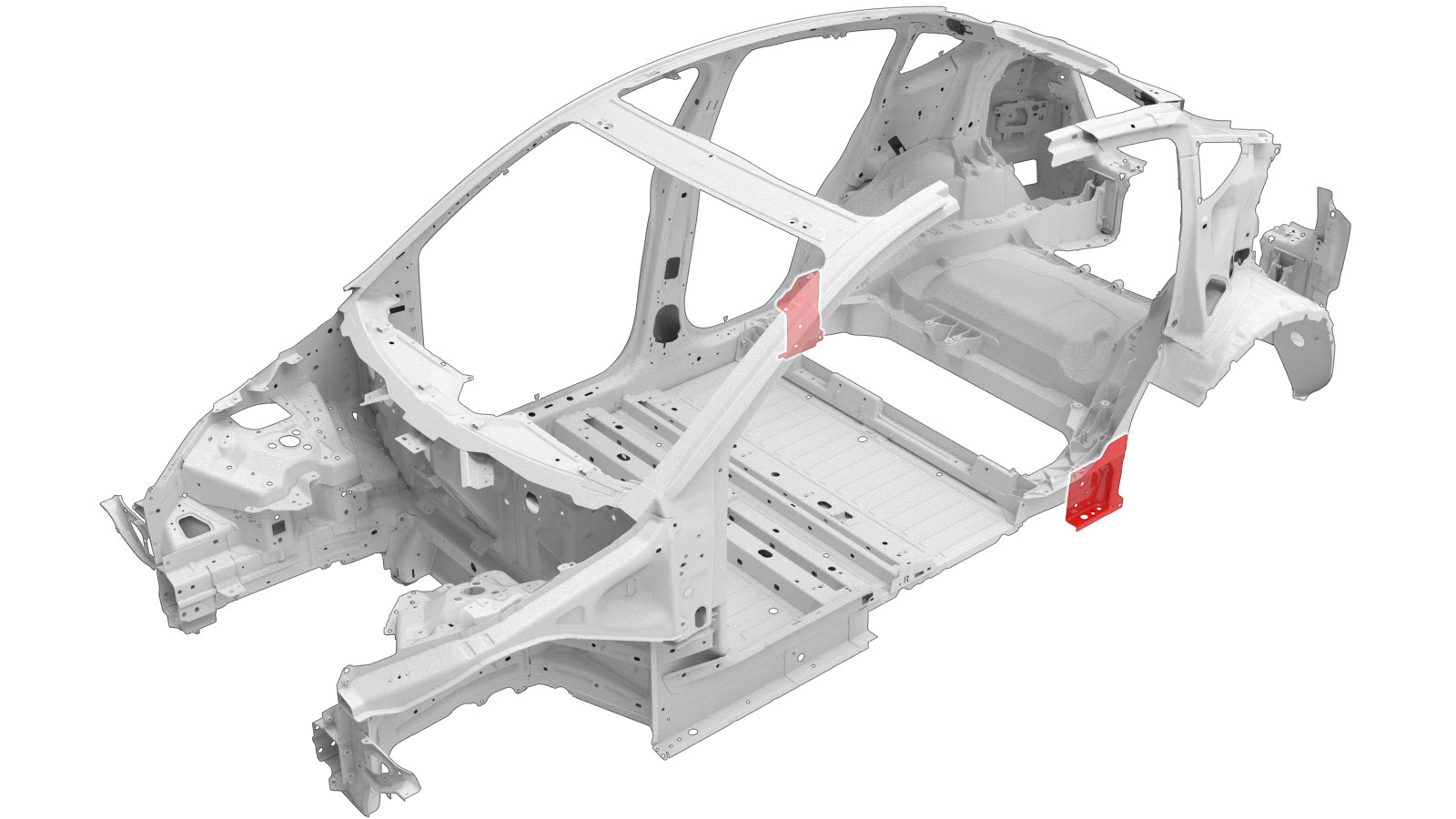

Install the Wheelhouse Extension (Front).
- Perform any necessary post-repair operations.
