• Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
• This procedure can be completed without using a frame bench.

Quantity	Description	Image / Notes

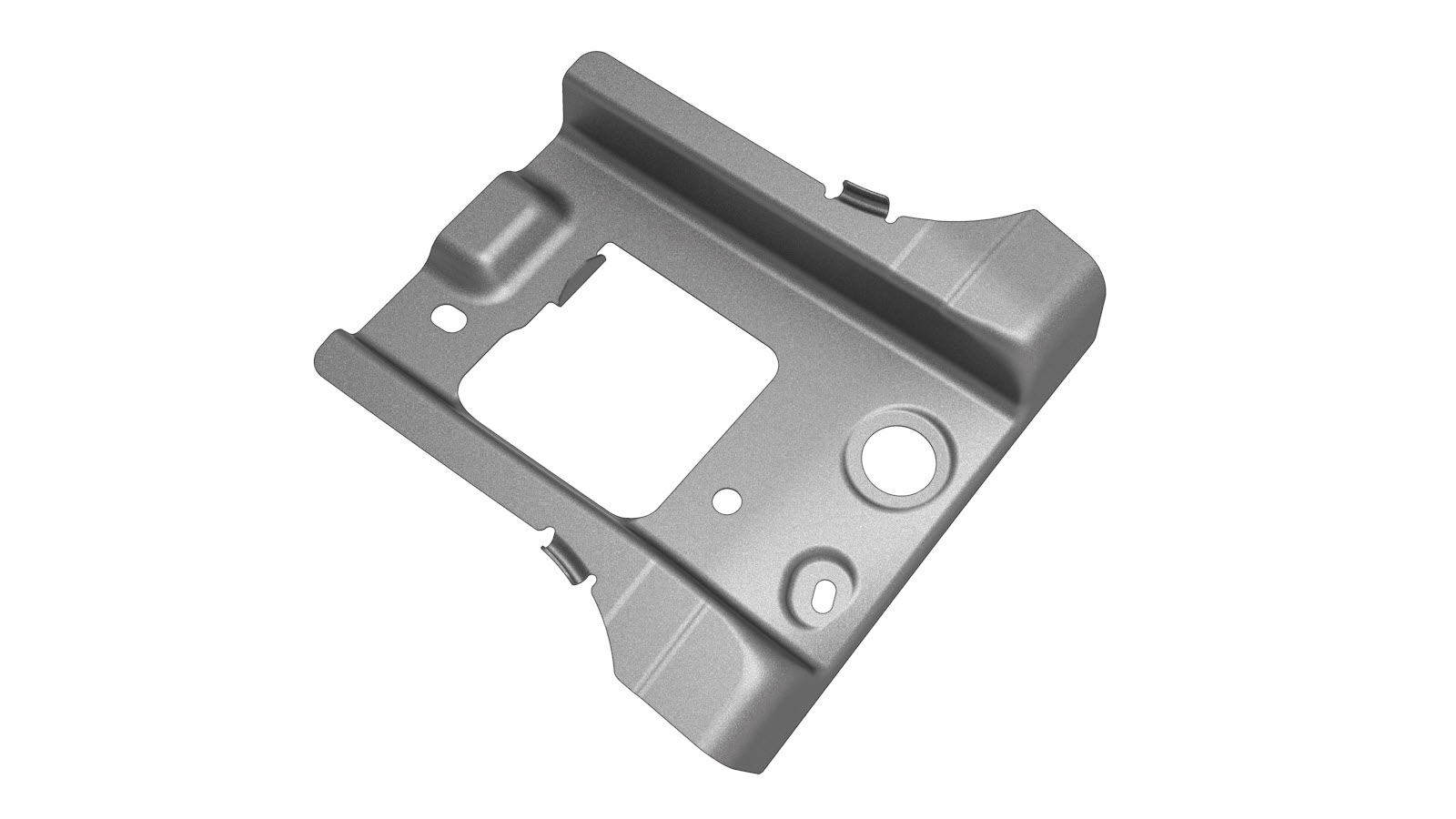

1	PANEL - FRONT HEADER EXTENSION (Front Header Extension)
11	Structural Bulb Rivet, 6.5 mm
9	Flow Form Rivet S28
2	Flow Form Rivet S58

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
