Shock Tower Cap
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- Properly mount the vehicle on a frame bench when performing this procedure.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

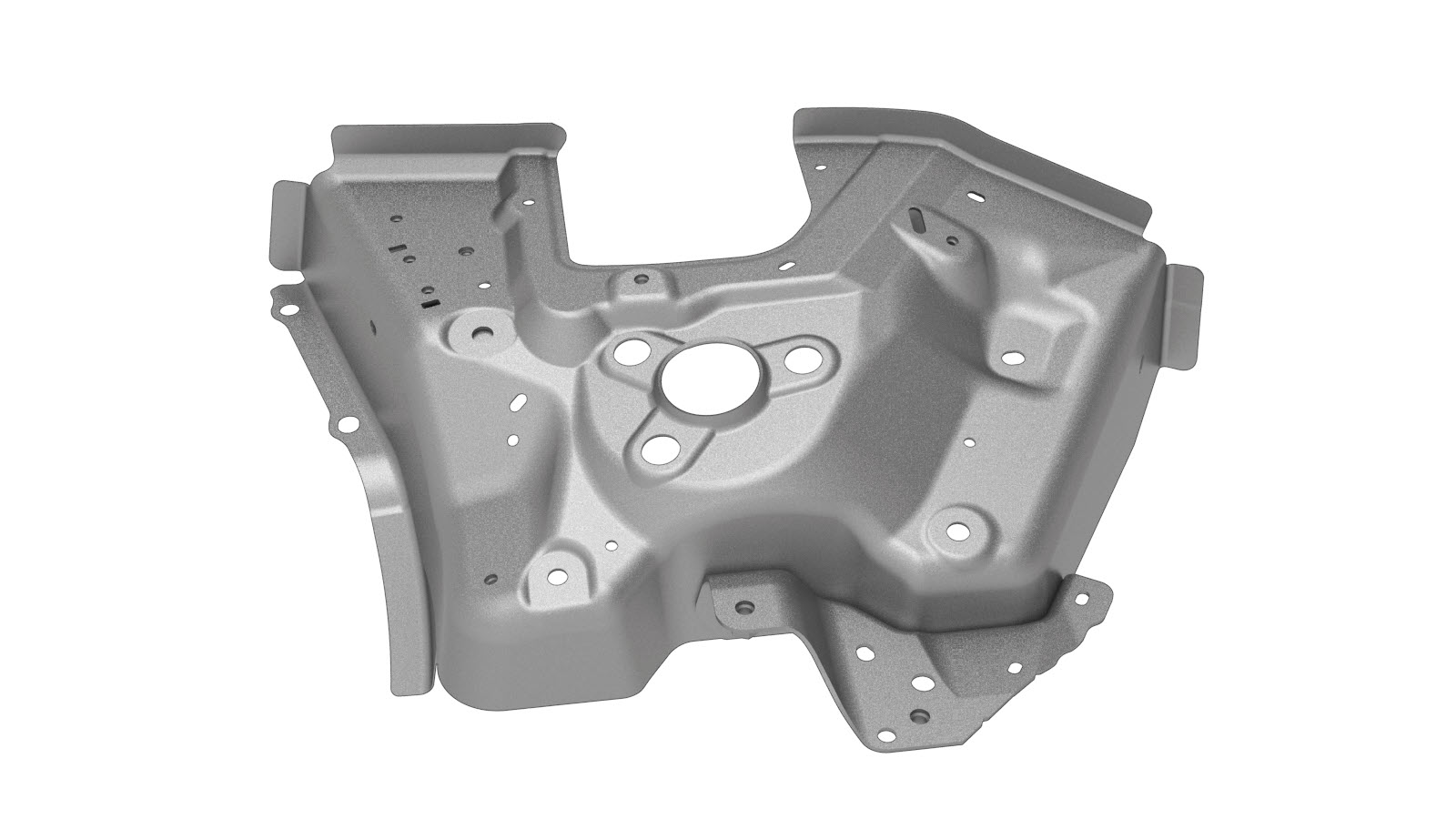

| 1 | ASSEMBLY – SHOCK TOWER CAP (Shock Tower Cap) |
|
| 12 | ||
| 25 | ||
| 3 |
Flow Form Rivet S28
|
|
| 1 |
Flow Form Rivet S38
|
|
| 4 |
|
Tesla part number 1011818-00-A. |
| 4 |
Nut
, M8X1.0 |
Tesla part number 1006628-00-A. |
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-
Remove the Shotgun Outer.
-

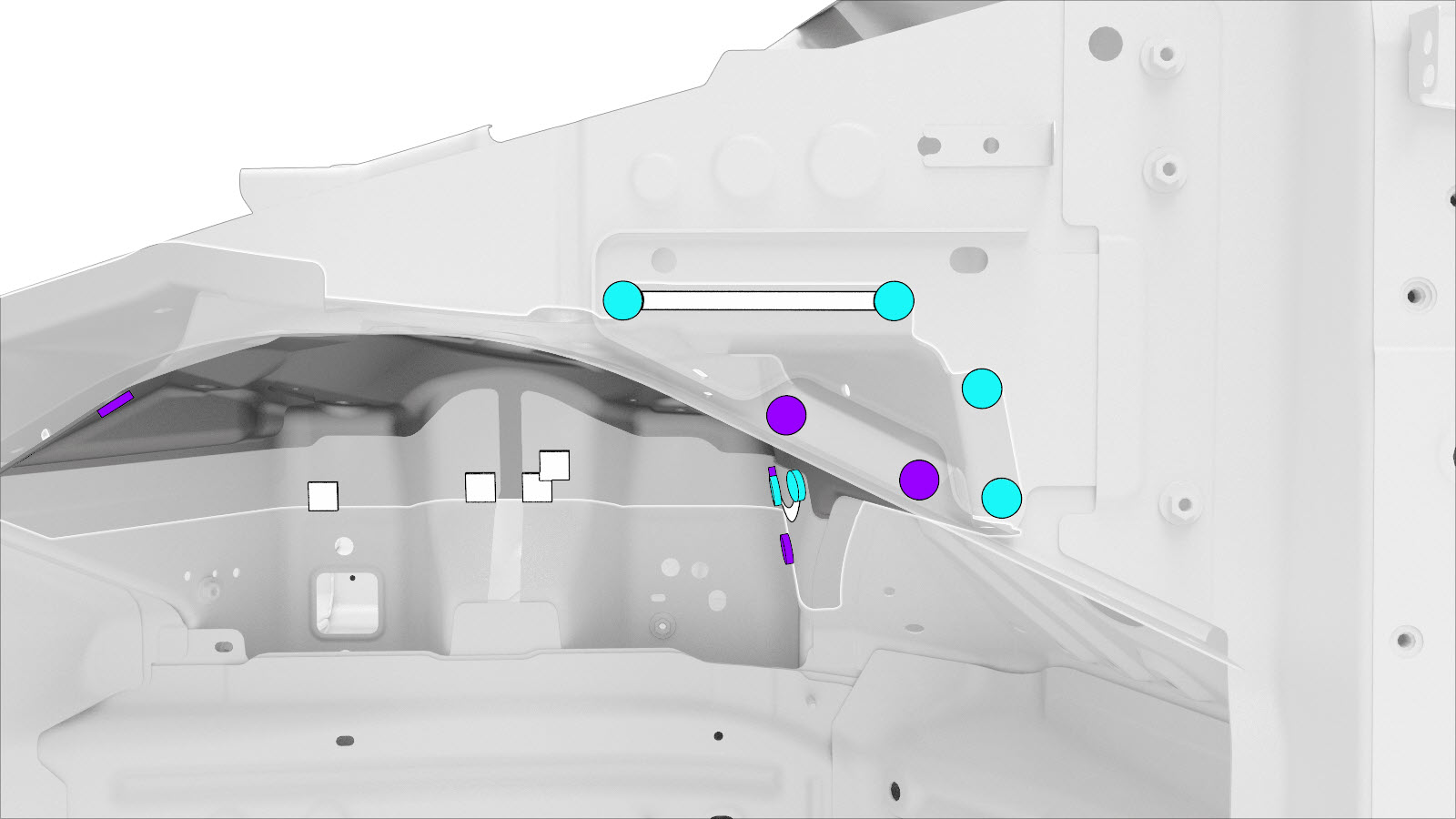

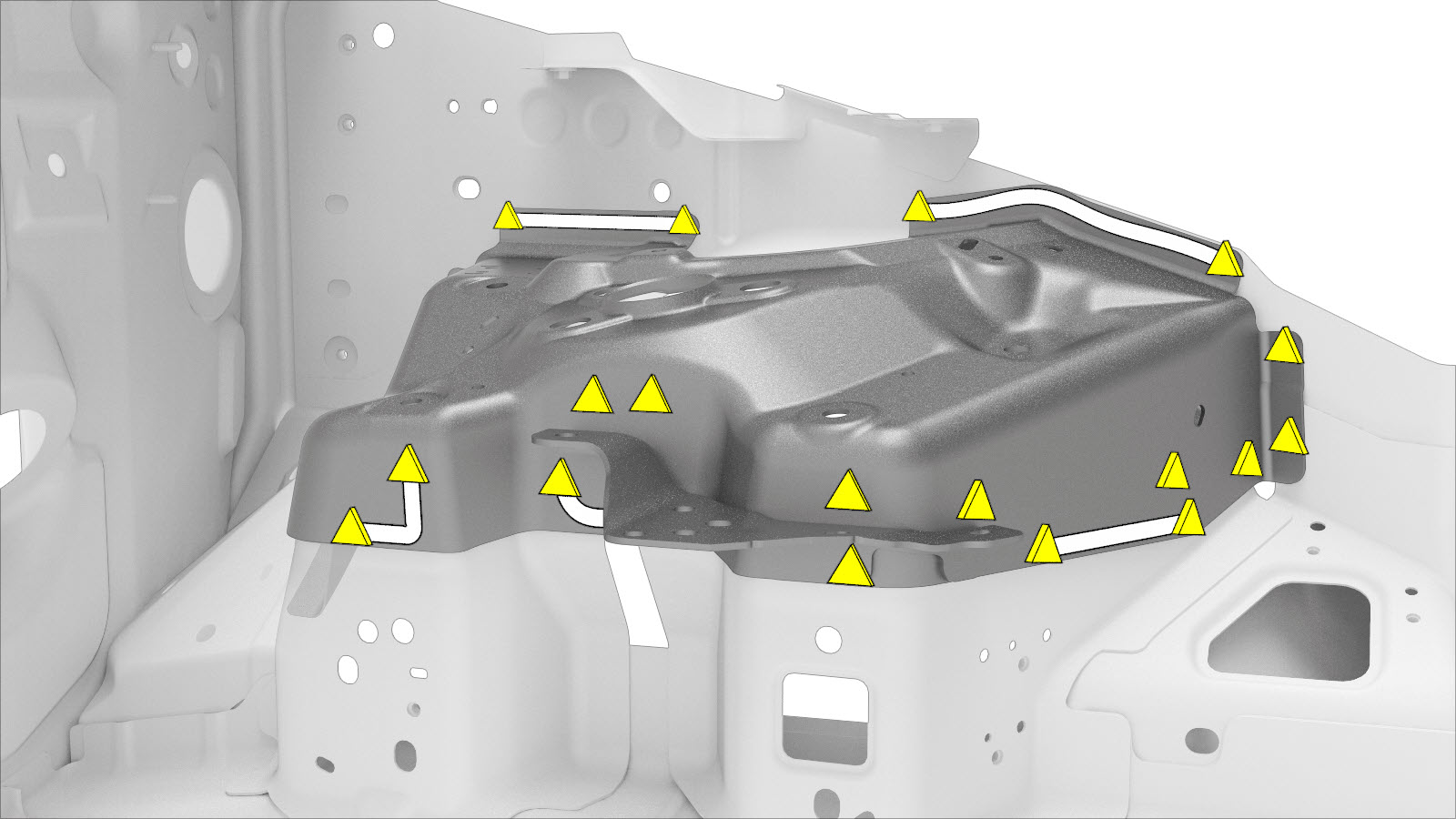

Remove the original component.
-
or
Factory Spot Welds
-
-

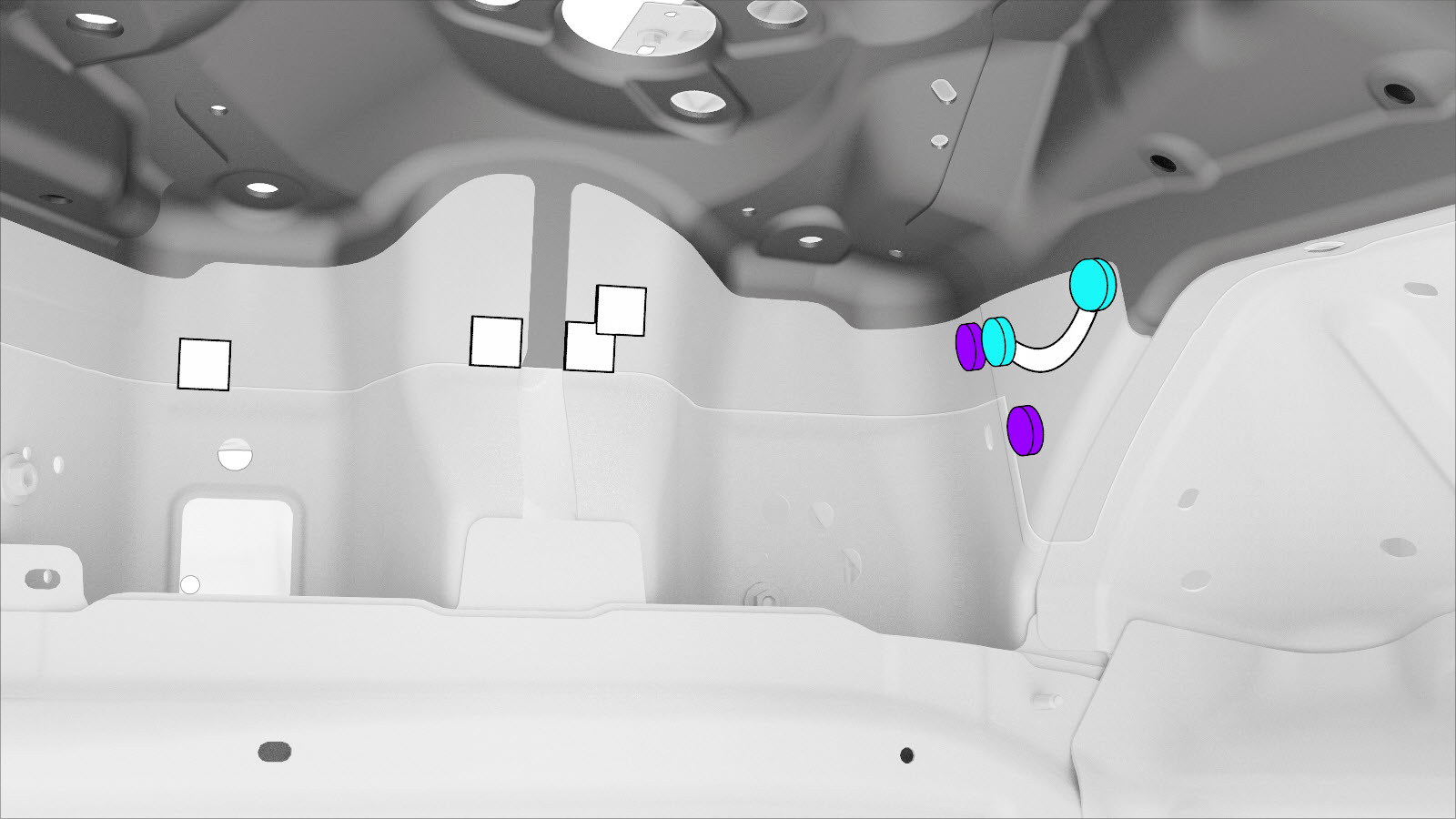

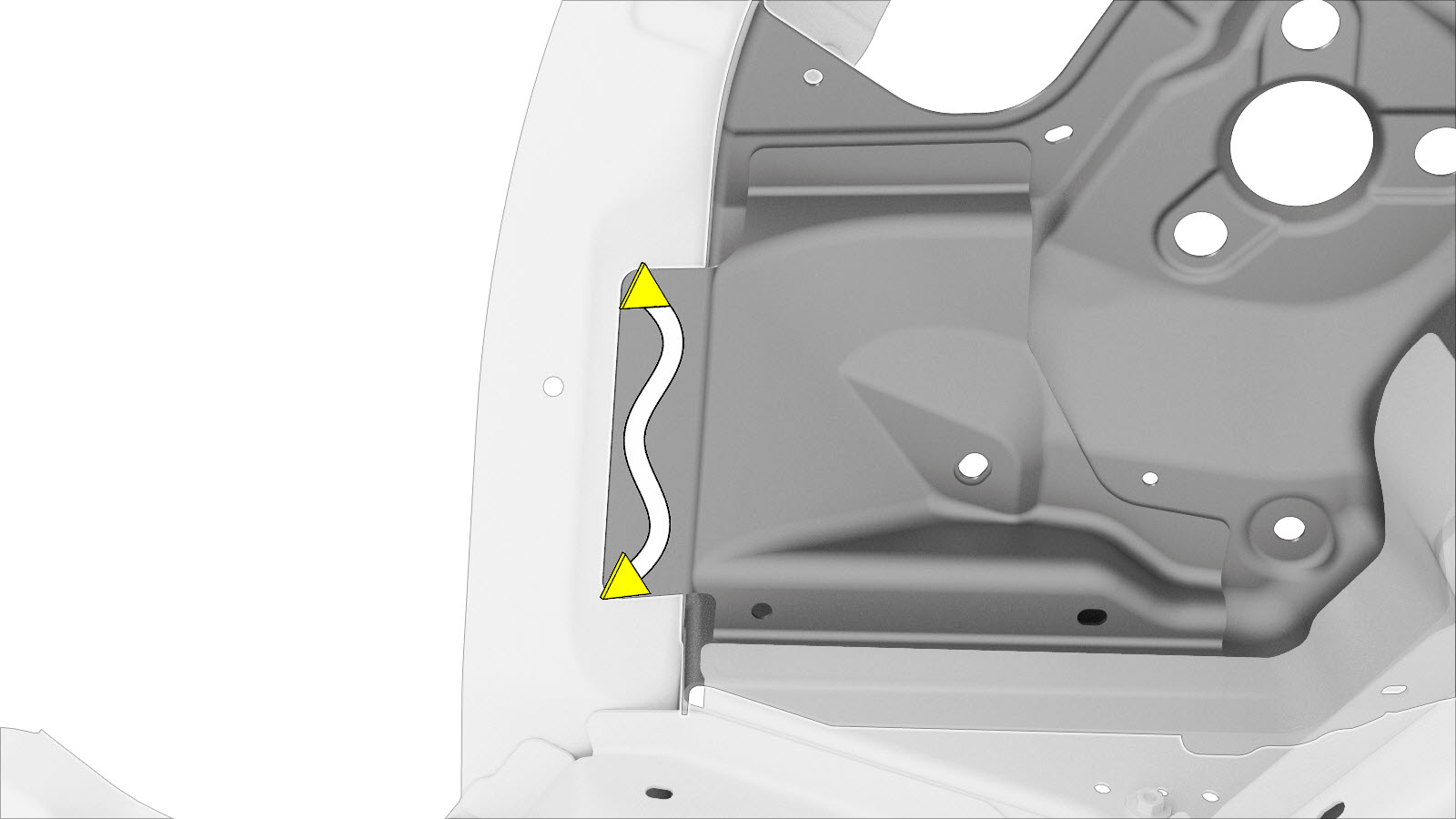

Remove the original component.
-
or Factory Spot Welds
-
-

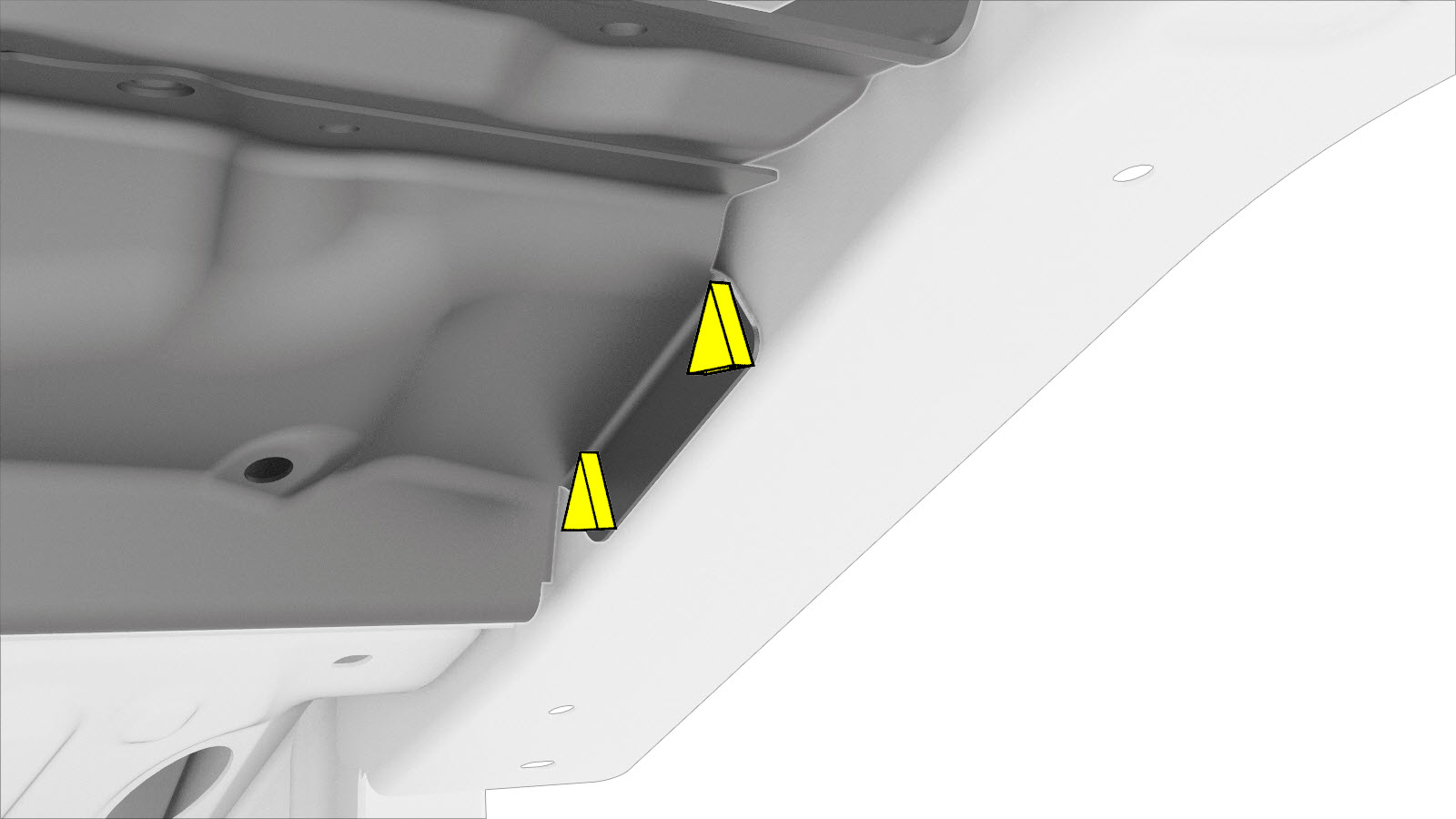

Remove the original component.
-
or Factory Spot Welds
-
-
Remove the original component.
-
or Factory Spot Welds
-
-

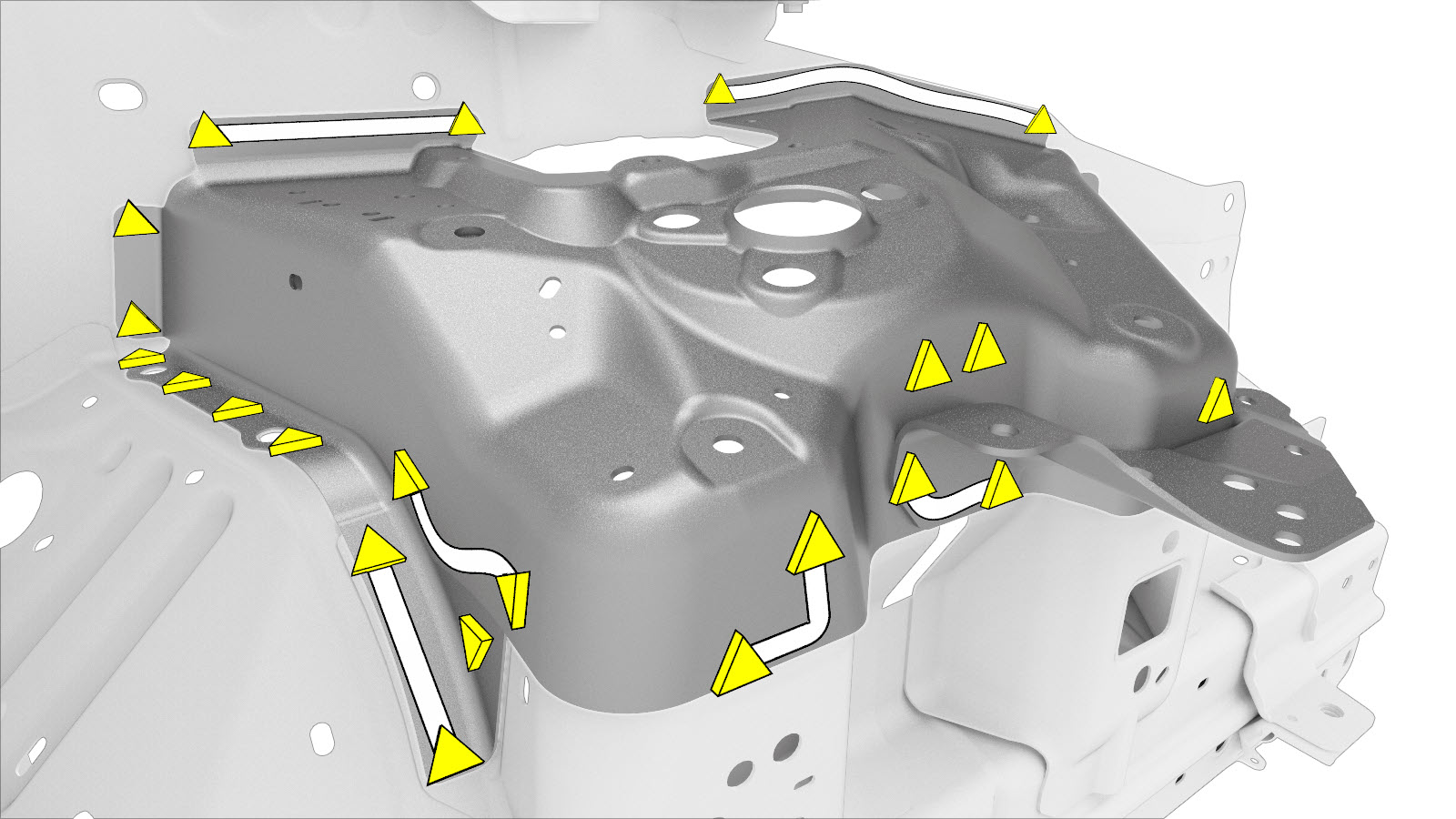

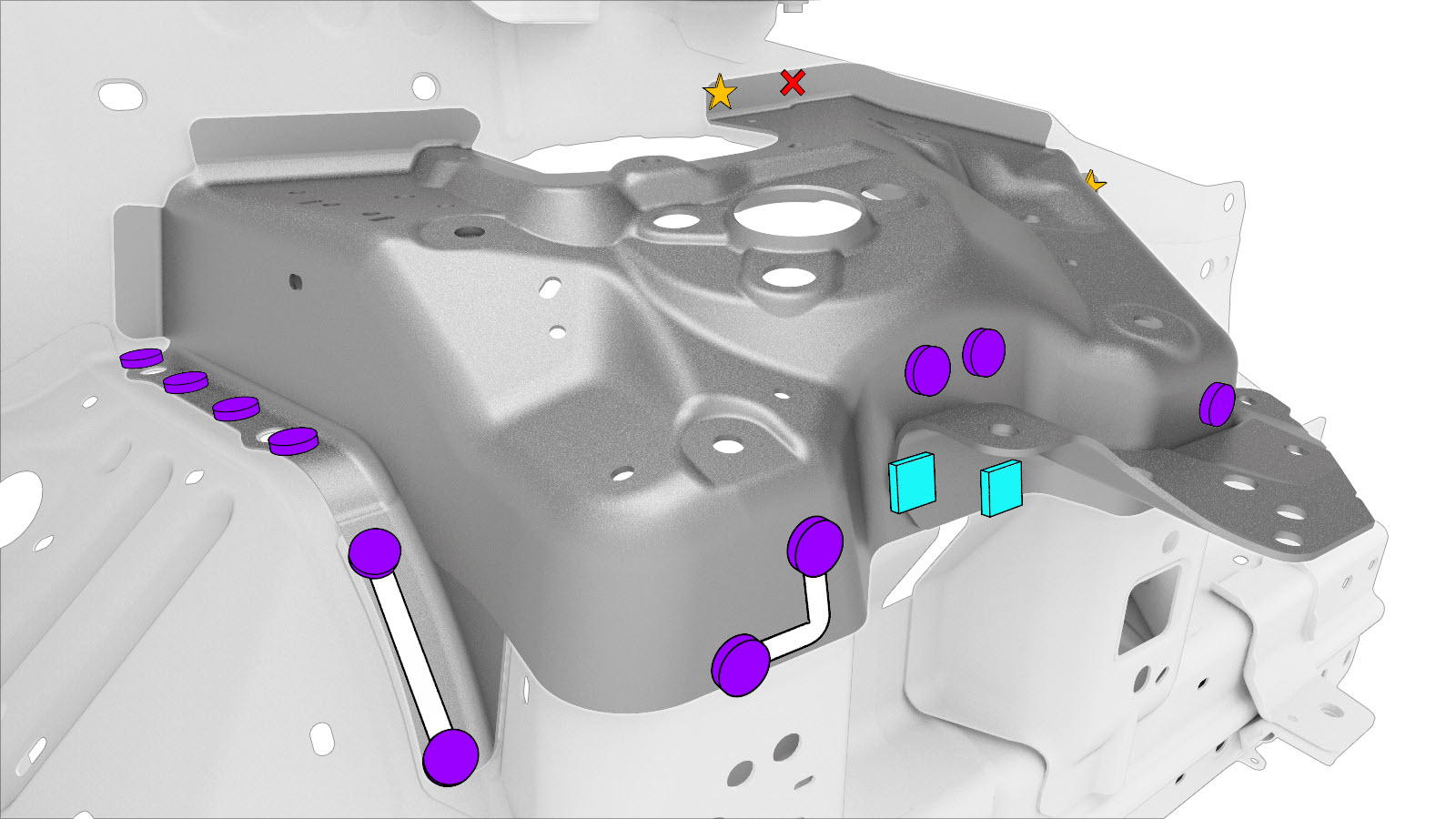

Prepare for installation.
NoteA red X indicates a location where a factory-installed fastener is not being replaced. -

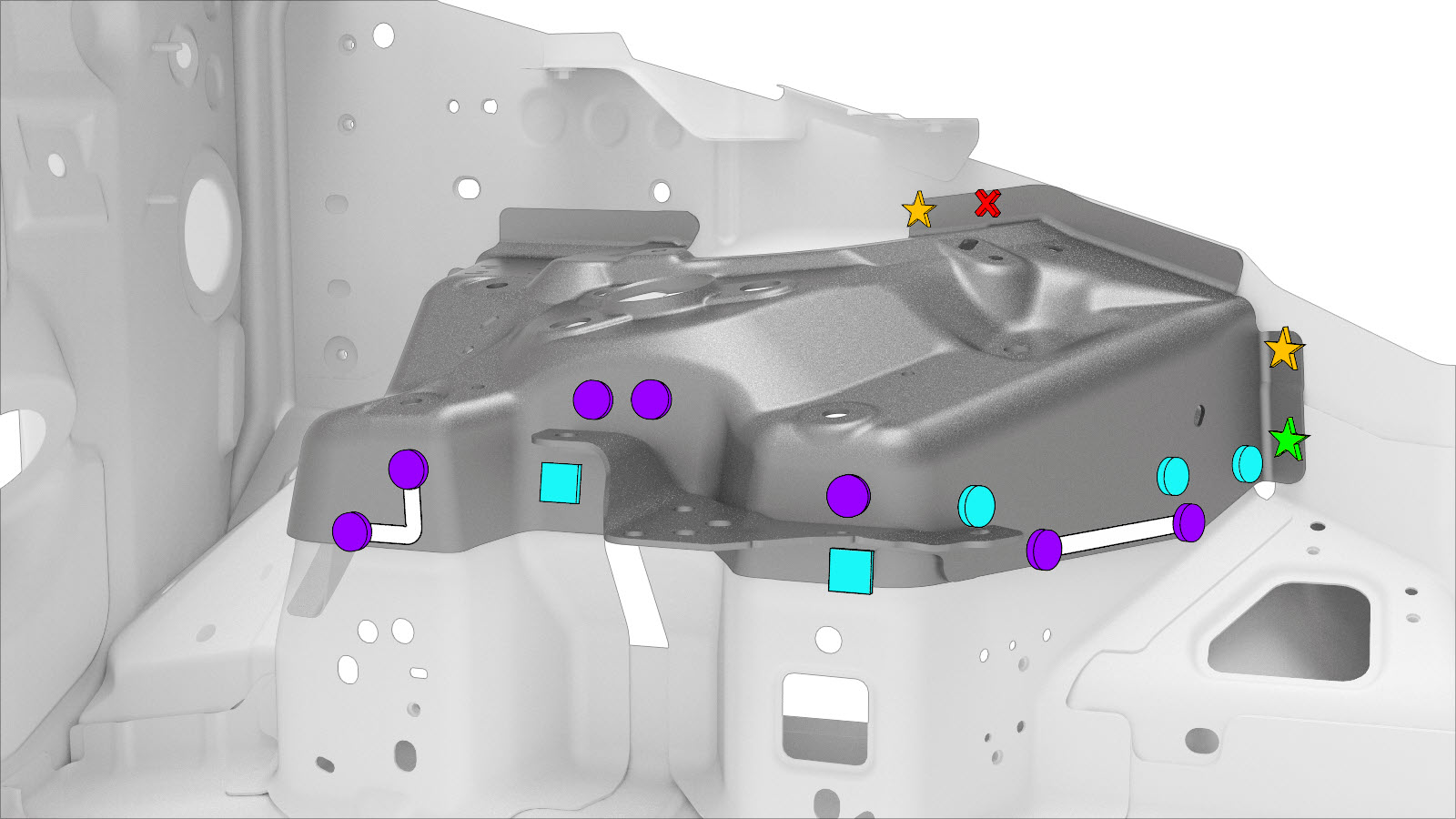

Prepare for installation.
NoteA red X indicates a location where a factory-installed fastener is not being replaced. -

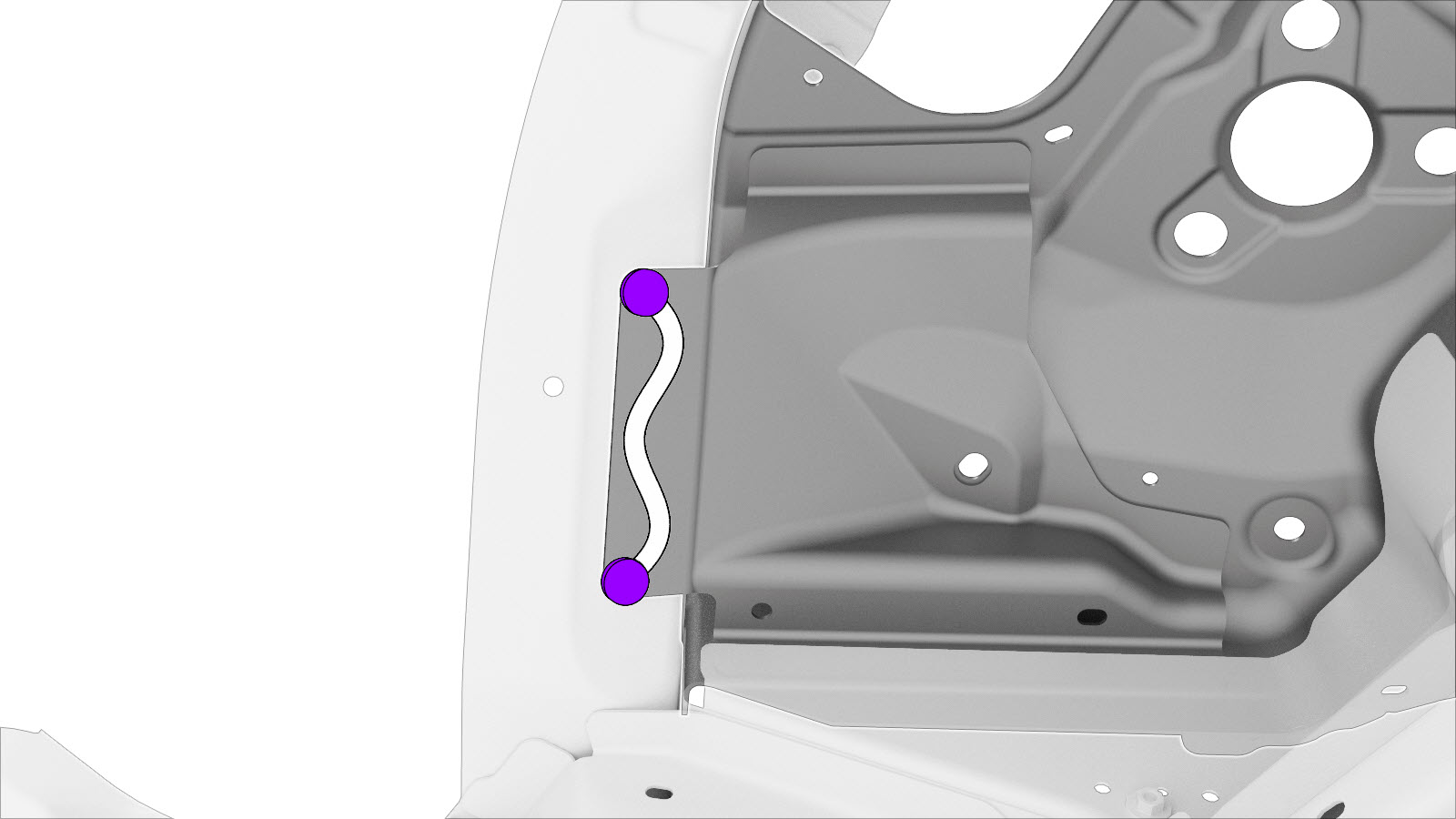

Prepare for installation.
-

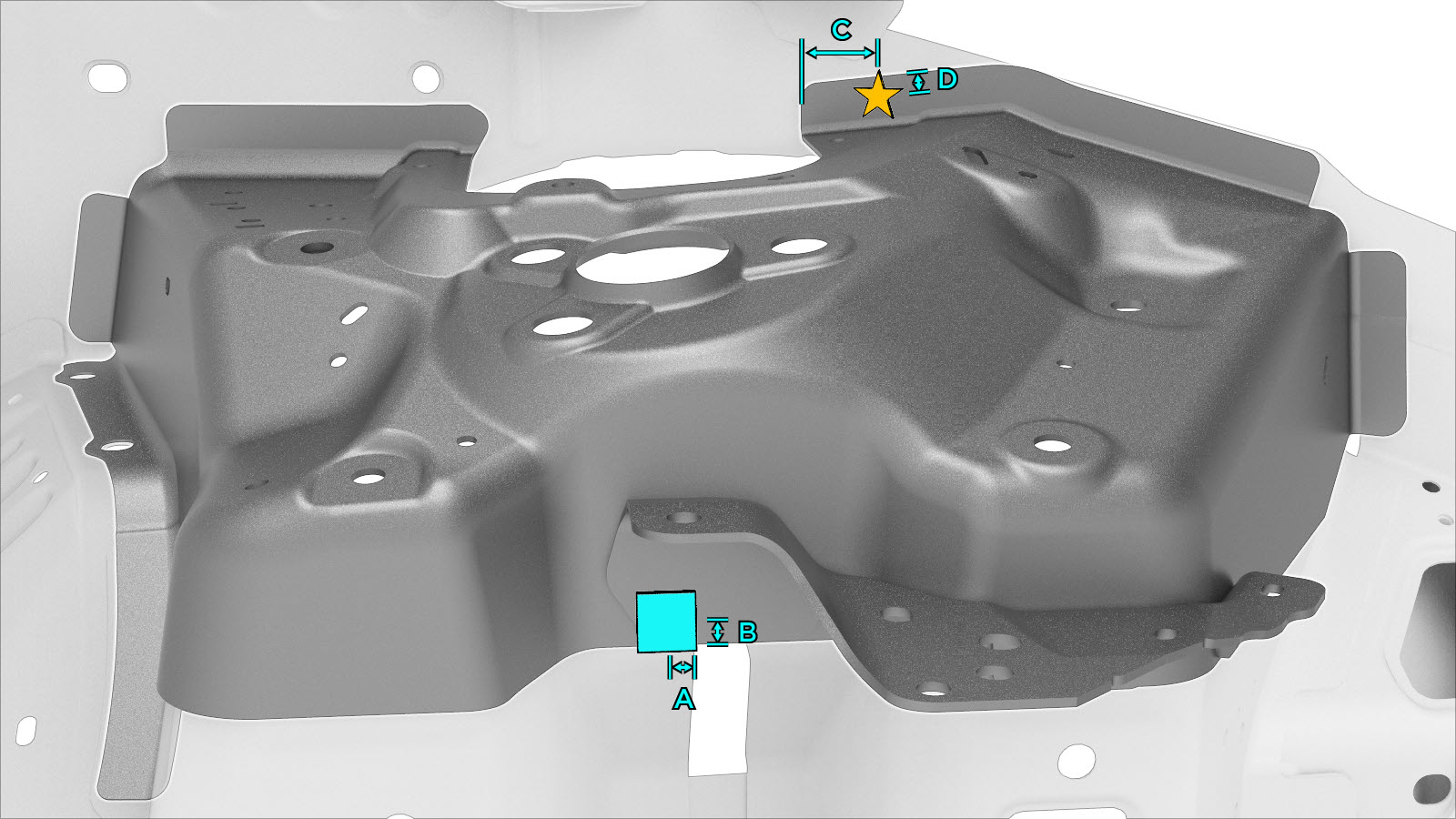

Reference
Line/Point
-
or
Bolts
A = 10 mm
B = 9 mm
-
Nut
-
or Flow Form Rivets, S28
C = 37 mm
D = 9 mm
-
- Prepare for installation.
- Prepare for installation.
- Prepare for installation.
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
-
Install the new component or components.
Torque the bolts to 22 Nm.
-
Install the Shotgun Outer.
- Perform any necessary post-repair operations.
