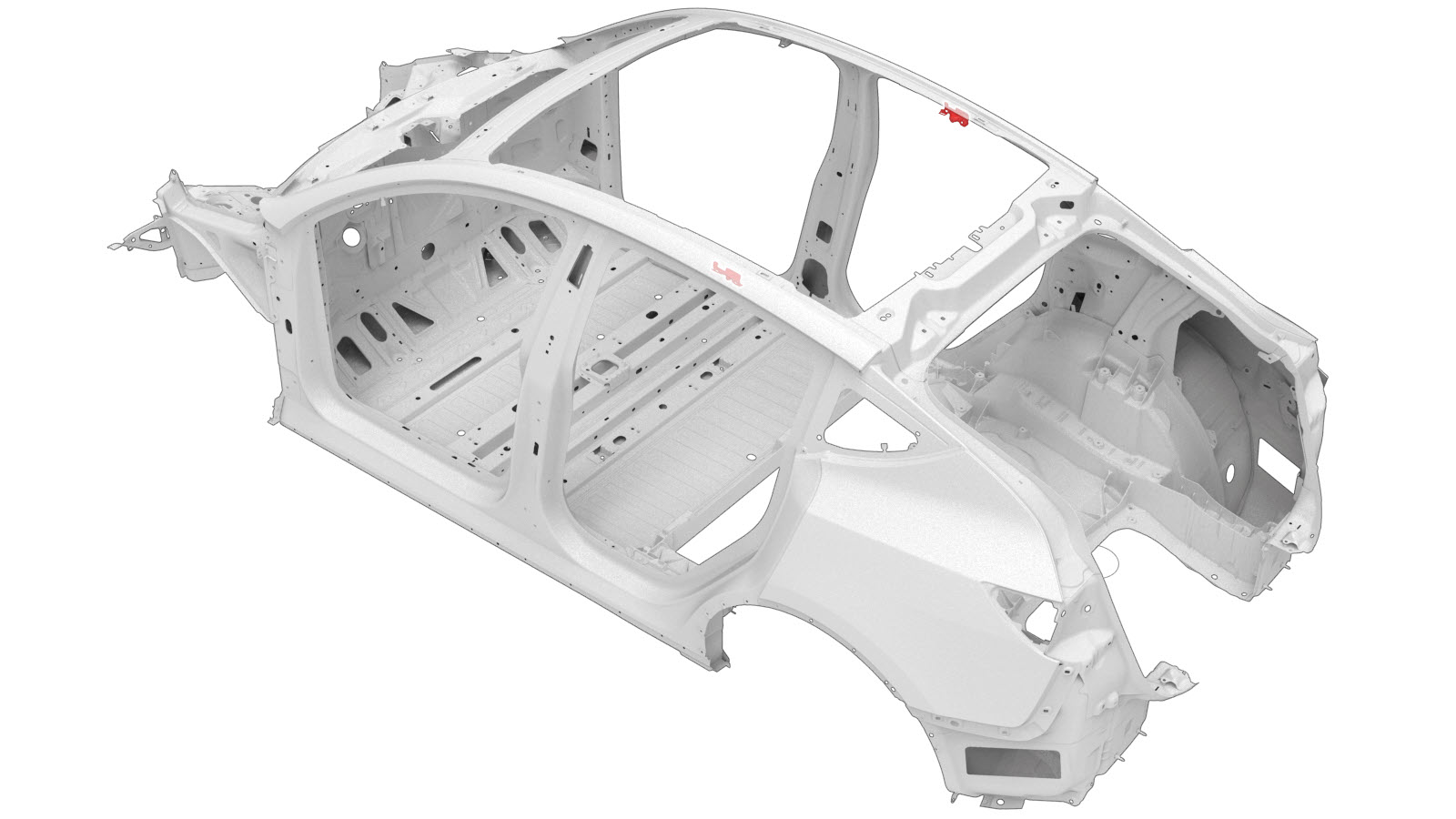

Coat Hook Clip Bracket
Correction code:
10101905002
10101905102
NOTE:
Unless explicitly stated in the procedure, the above
correction code includes all Collision Repair work required
to perform this procedure, including the linked Collision
Repair procedures. Do not stack Collision Repair
correction codes unless explicitly told to do
so. Add any associated mechanical procedures
needed to perform this procedure.
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|
|
1 |

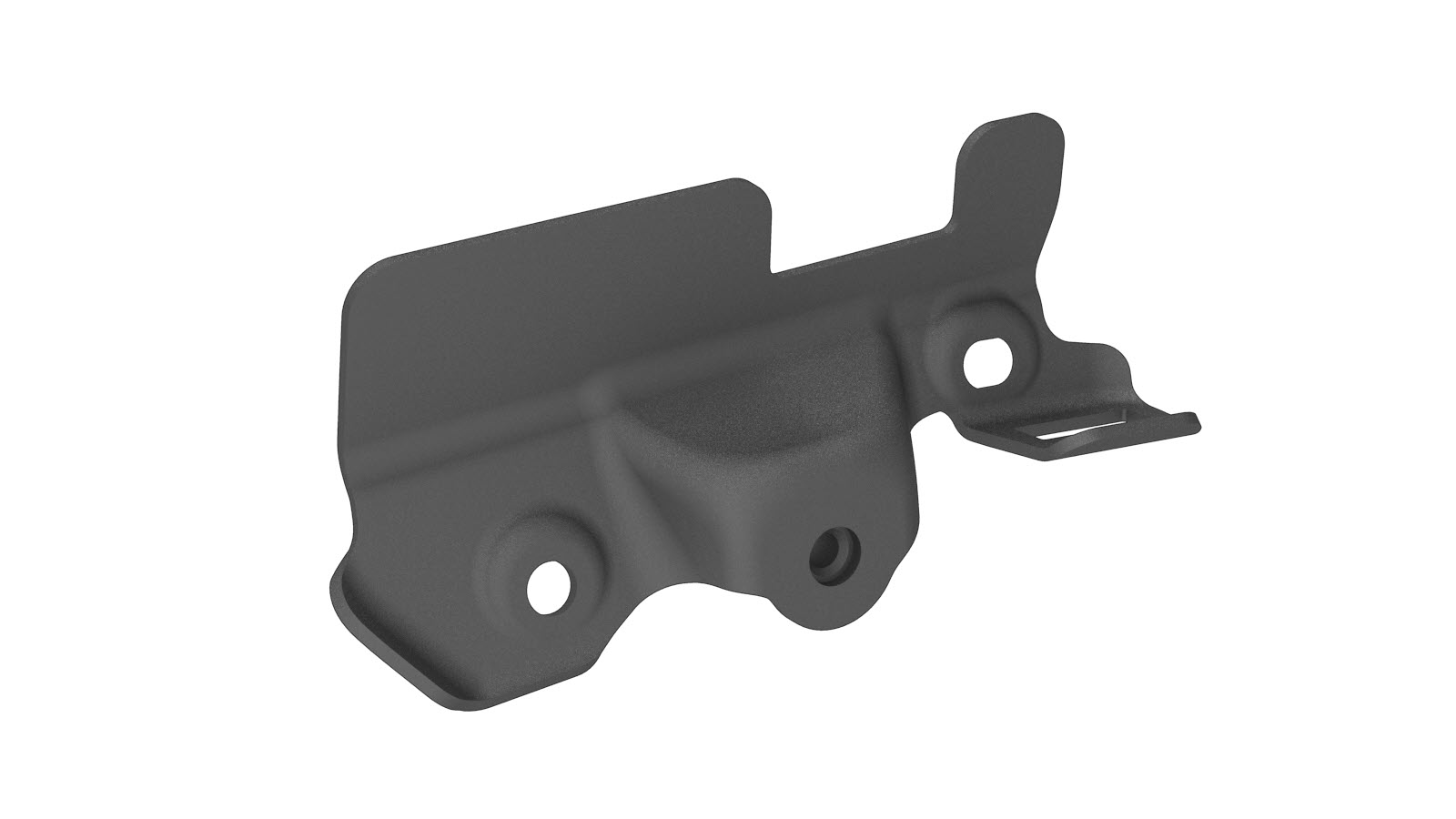

ASSEMBLY - COAT HOOK CLIP BRACKET (Coat Hook Clip Bracket) |
Note The LH and RH Coat Hook Clip
Brackets have different part numbers. Order the correct replacement bracket for
each bracket being replaced. |
| 2 |
High Strength Structural Rivet, 6.5 mm
|
|
| 1 | BUTYL PATCH | Tesla part number 1032246-00-B. |
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-

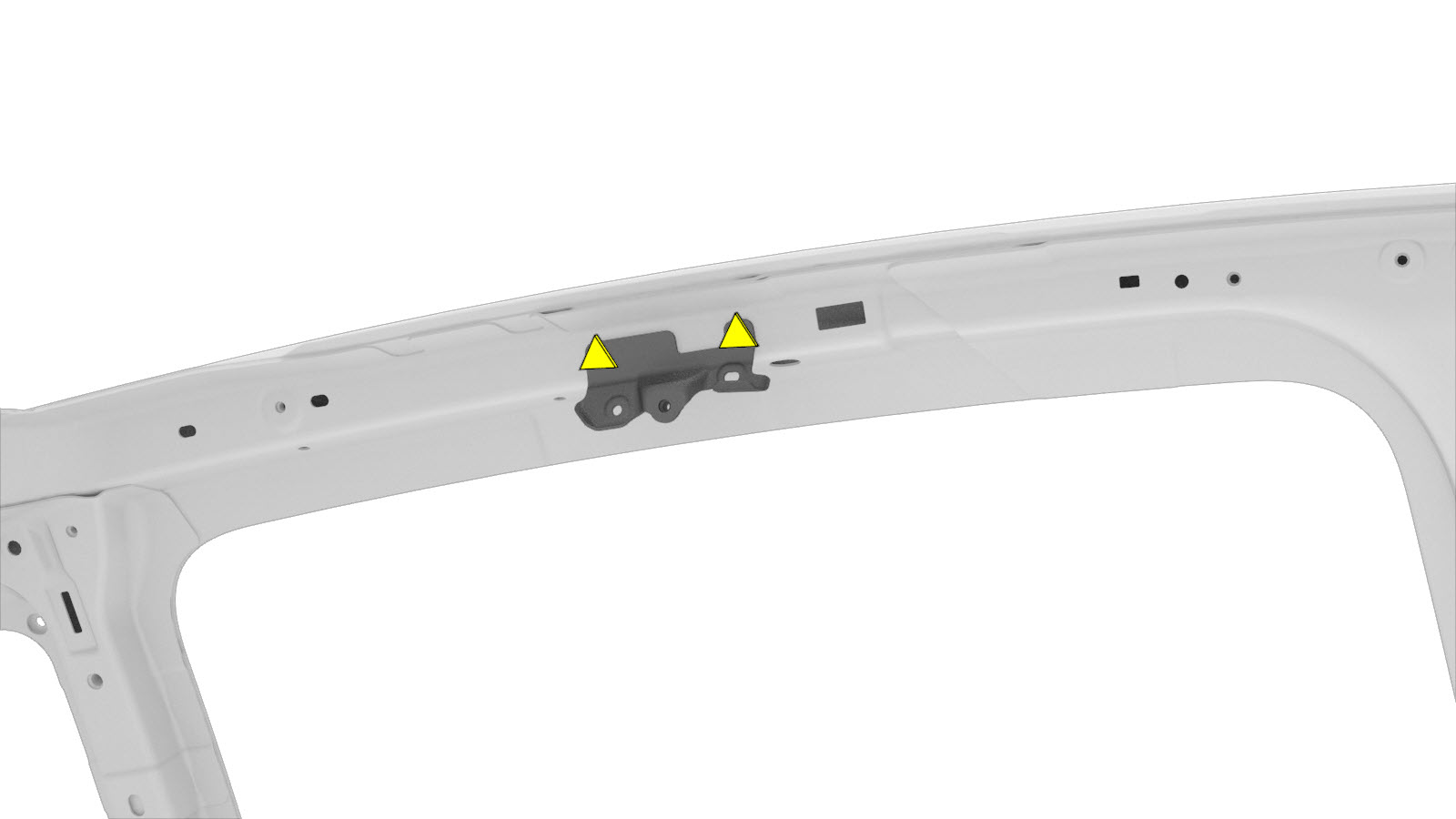

Remove the original component.
-
or
Factory Spot Welds
-
- Prepare for installation.
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
-
After painting, cover the installed
rivets with a butyl patch.
- Perform any necessary post-repair operations.
