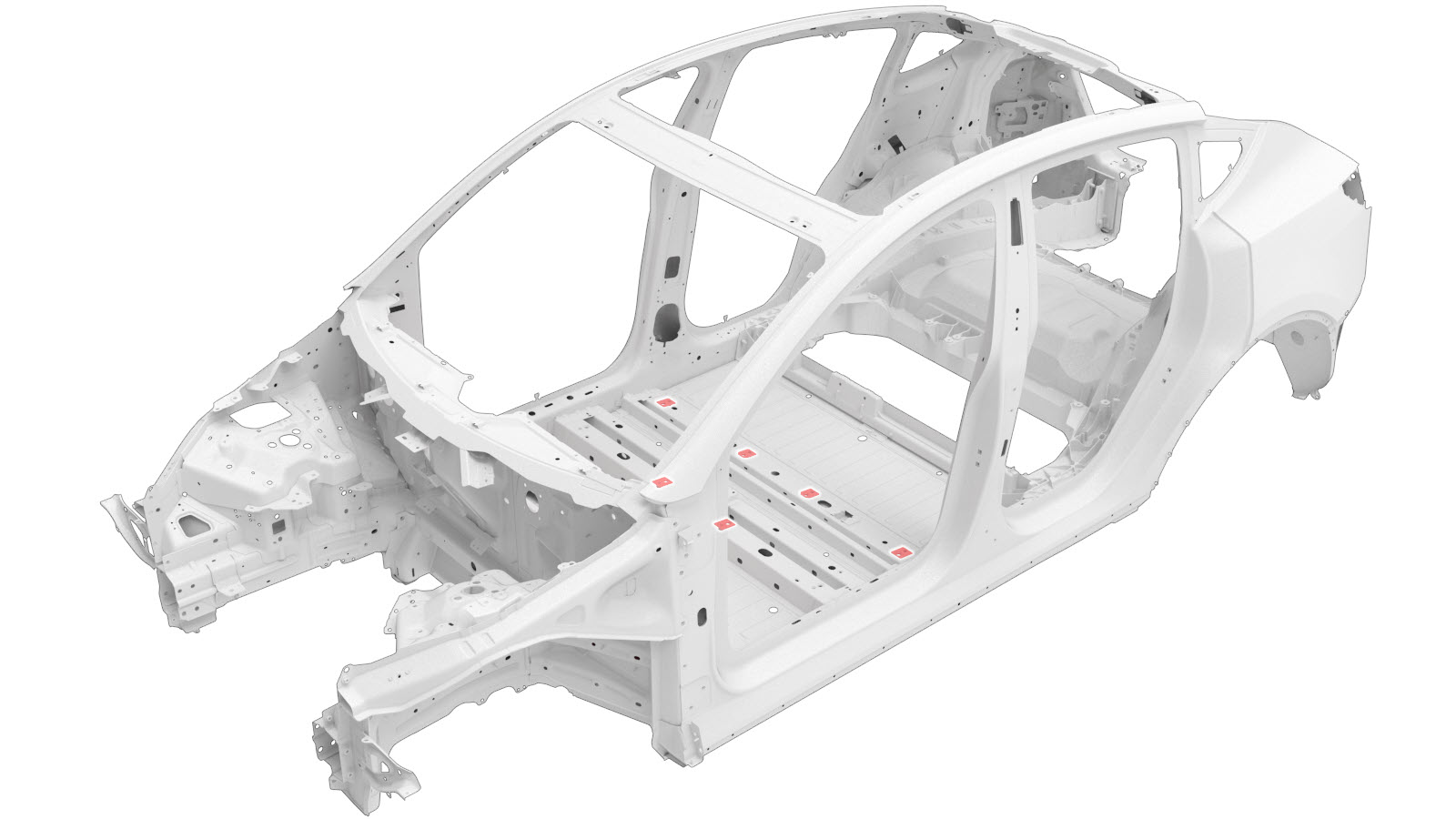

Front Seat Mount Reinforcements
Correction code:
10100302102
NOTE:
Unless explicitly stated in the procedure, the above
correction code includes all Collision Repair work required
to perform this procedure, including the linked Collision
Repair procedures. Do not stack Collision Repair
correction codes unless explicitly told to do
so. Add any associated mechanical procedures
needed to perform this procedure.
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

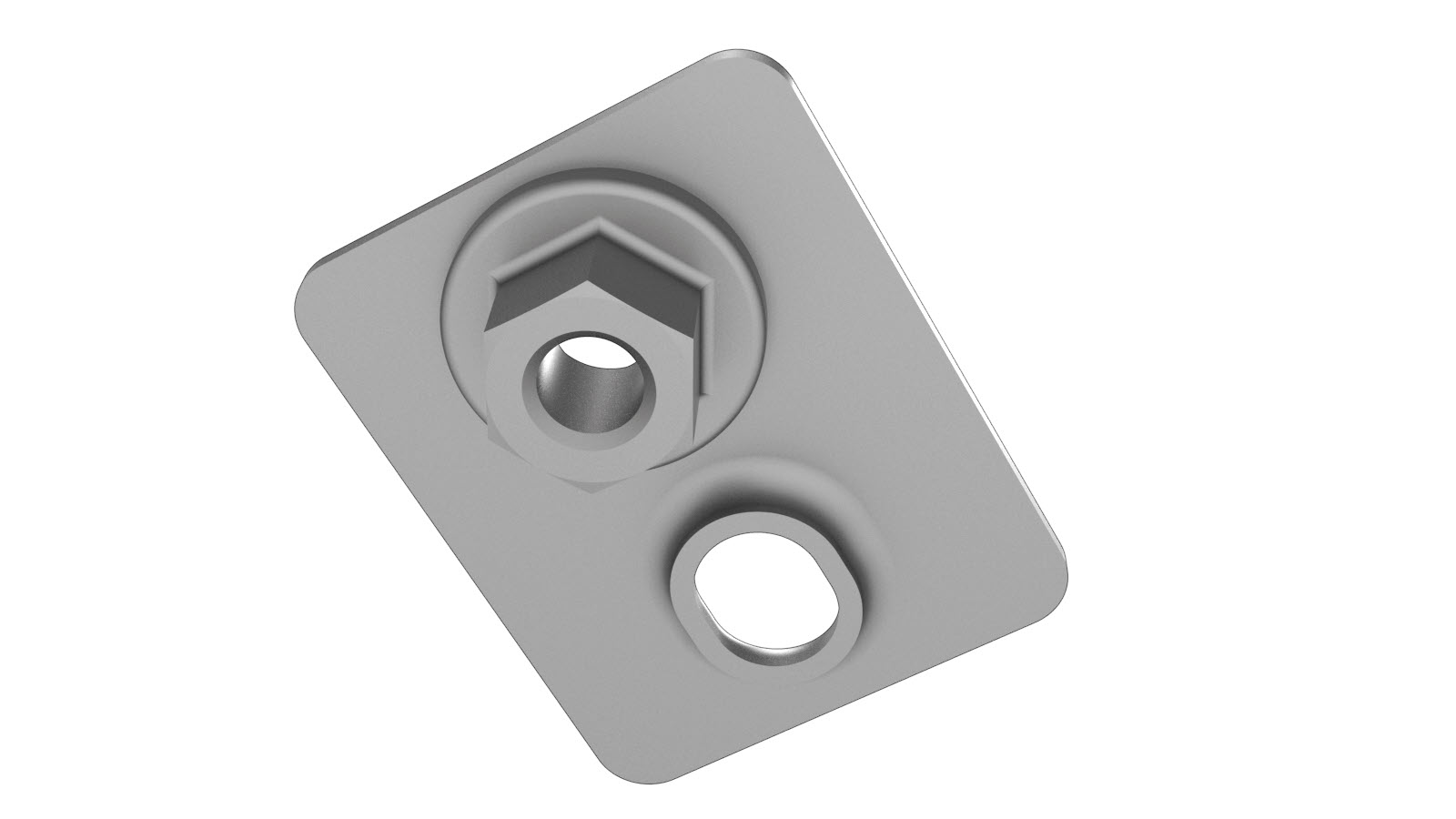

| 1 | ASSEMBLY - FSF SEAT MOUNT REINF (Front Seat Mount Reinforcement – Front Inboard and Rear Outboard) |
Note This part replaces only the
Front Seat Mount Front Inboard reinforcements and the Front Seat Mount Rear
Outboard reinforcements: it does not replace the Front Seat Mount Front Outboard
reinforcements or the Front Seat Mount Rear Inboard reinforcements. |

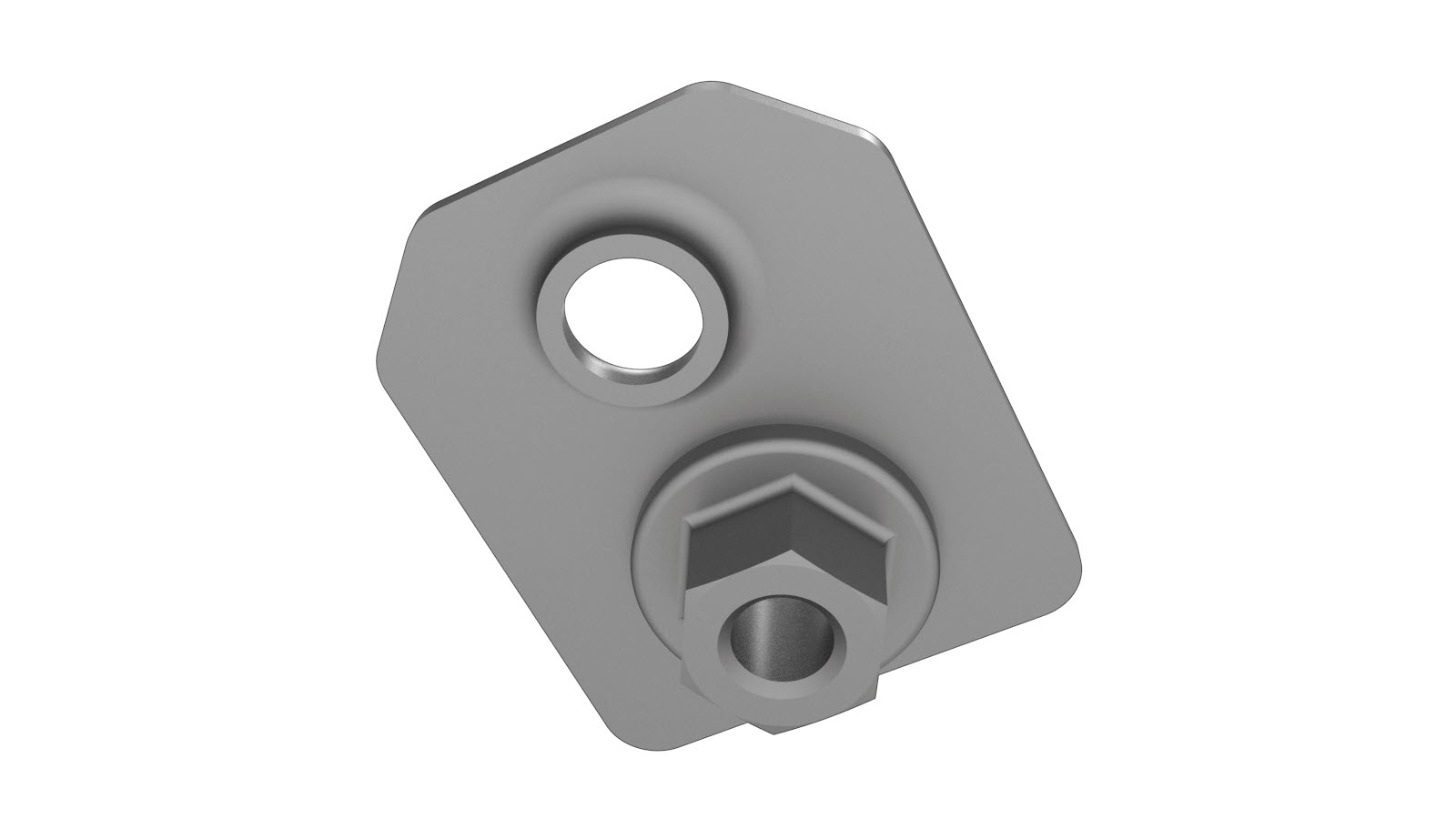

| 1 | ASSEMBLY – REINF FSR CROSSMEMBER INBOARD (Front Seat Mount Reinforcement – Rear Inboard) |
Note This part replaces the Front
Seat Mount Rear Inboard reinforcements. It does not replace the Front Seat Mount
Front reinforcements or the Front Seat Mount Rear Outboard
reinforcements. |

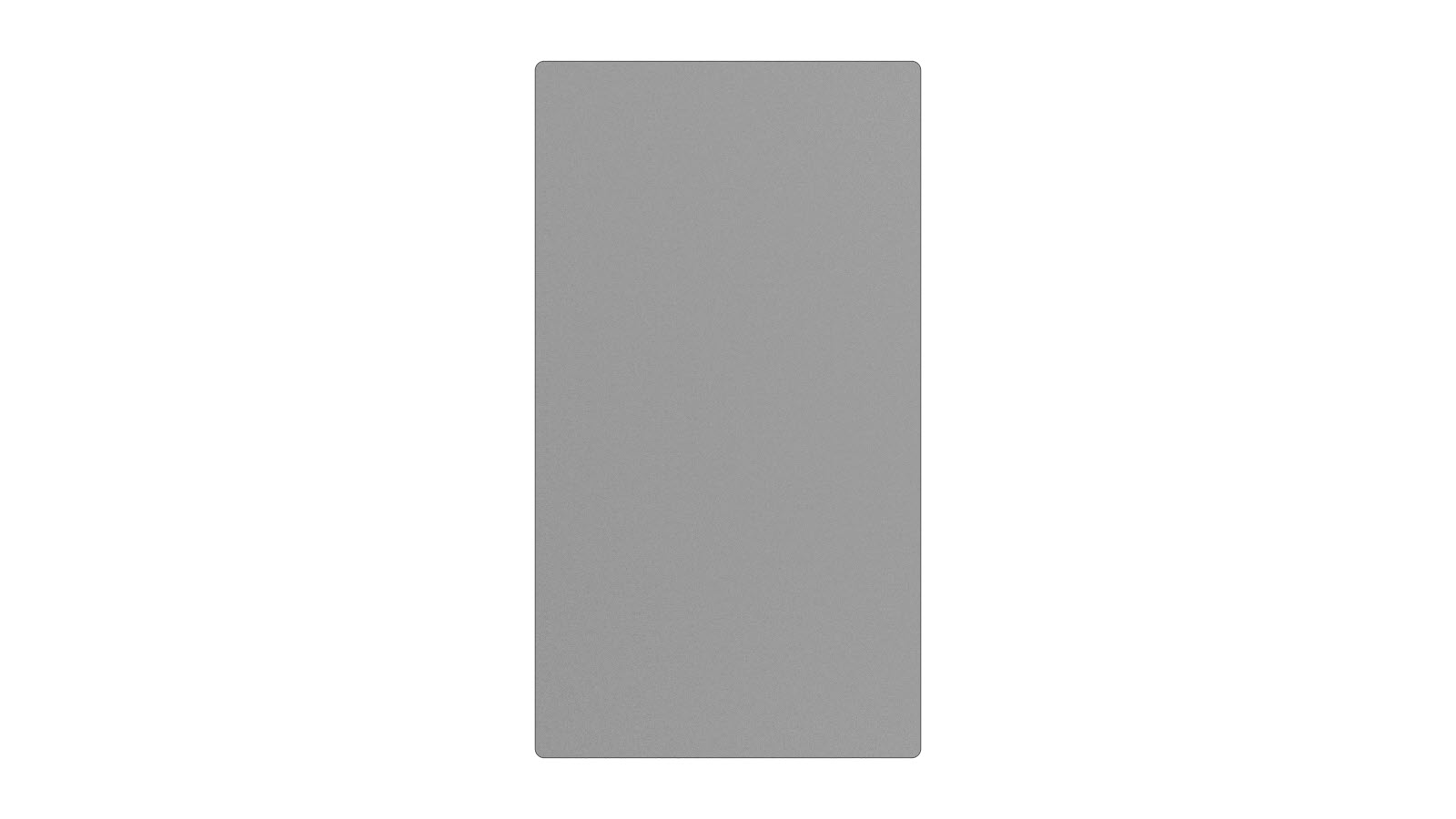

| 1 | FLOOR PANEL PATCH |
|
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-

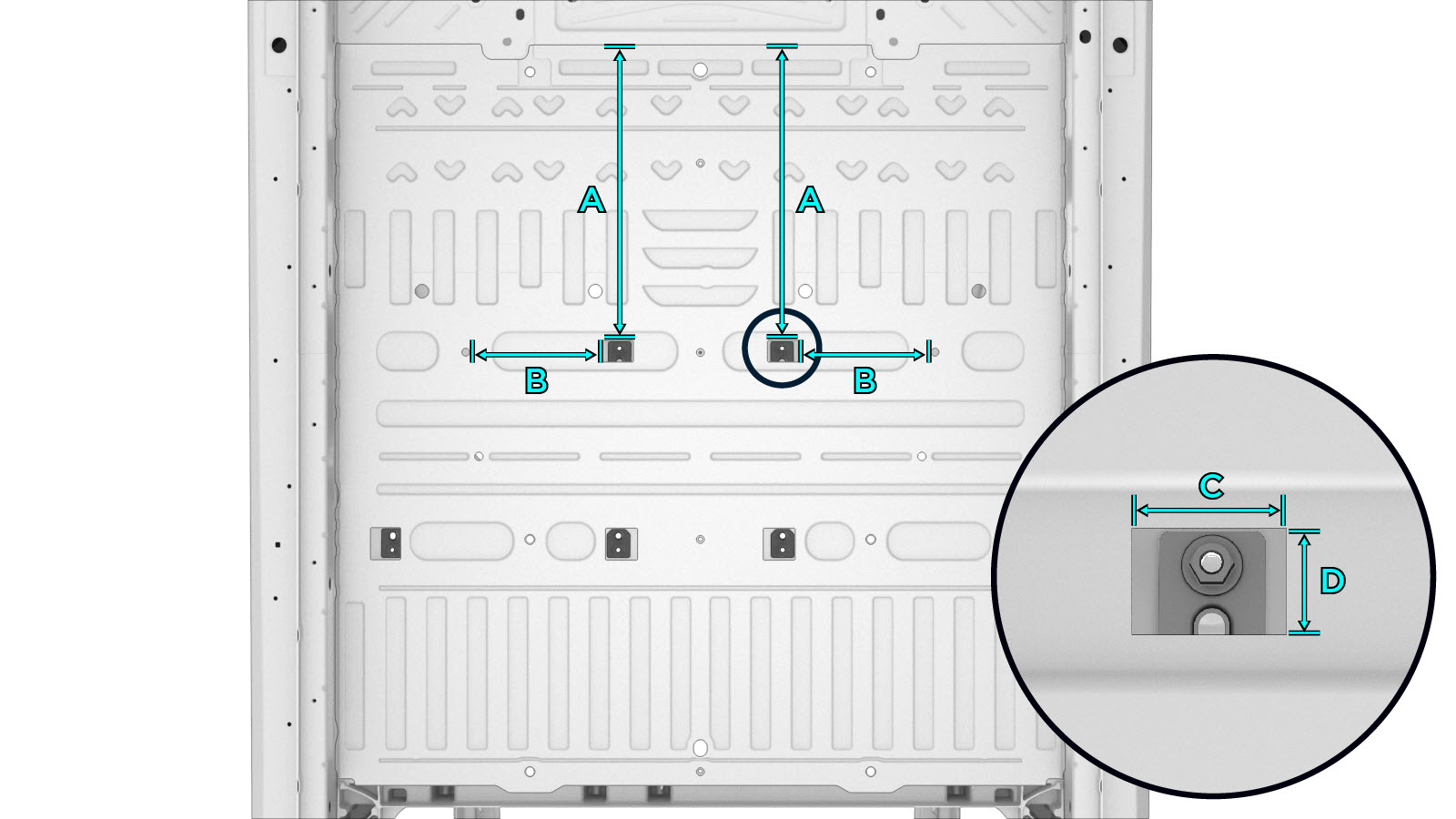

For any front inboard seat mount reinforcement being replaced, cut a hole in
the underside of the floor panel to access the damaged component.
Front Inboard mounts:-
Reference
Line/PointA = 567 mmB = 255
mmC = 60
mmD = 40
mm
NoteDo not cut the floor panel under any mount that is not being replaced.NoteDo not damage the floor cross members when cutting the floor panel. -
-

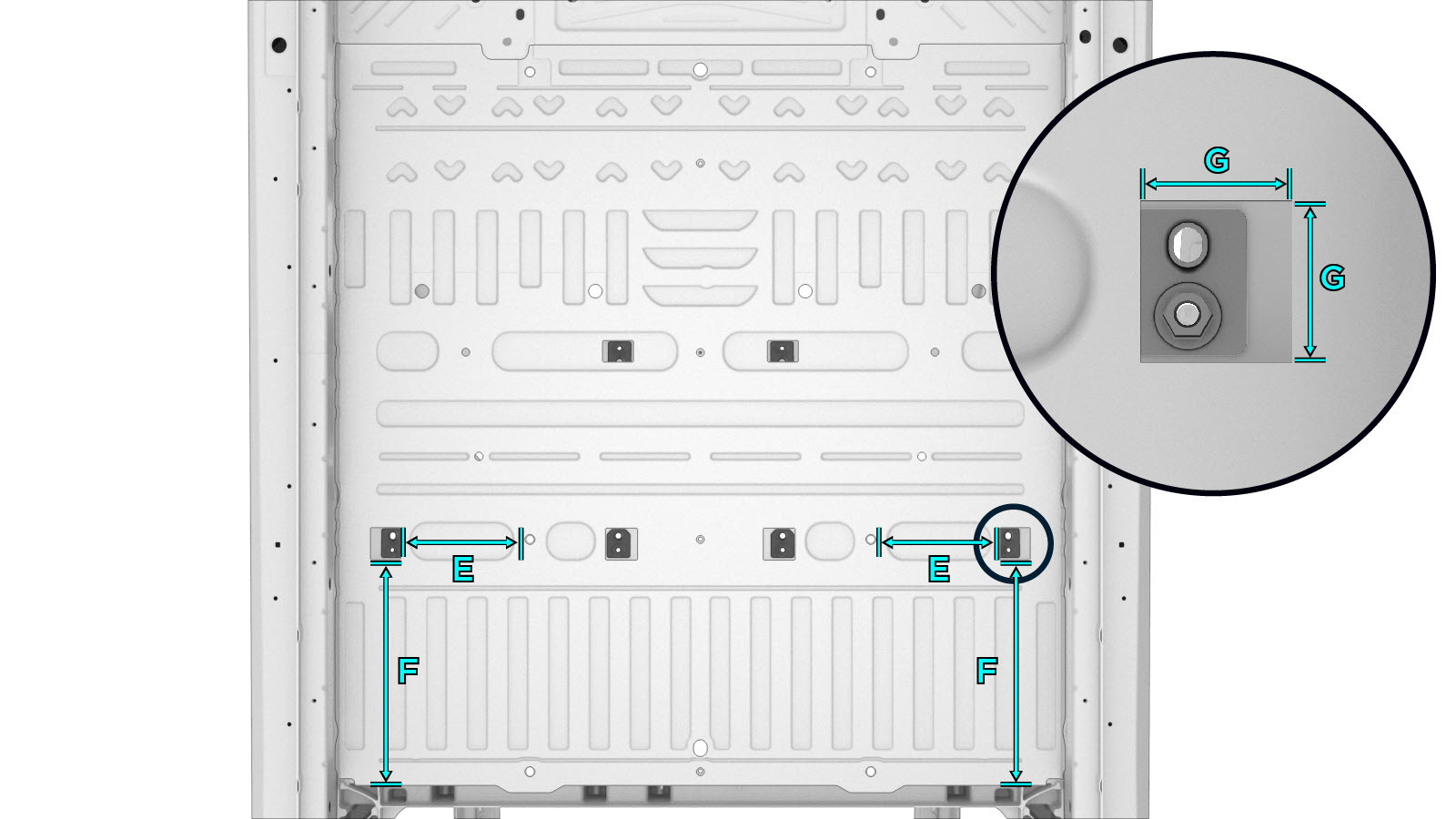

For any rear outboard seat mount reinforcement being replaced, cut a hole in
the underside of the floor panel to access the damaged component.
Rear outboard mounts:-
Reference
Line/PointE = 239 mmF = 433 mmG = 60 mm
NoteDo not cut the floor panel under any mount that is not being replaced.NoteDo not damage the floor cross members when cutting the floor panel. -
-

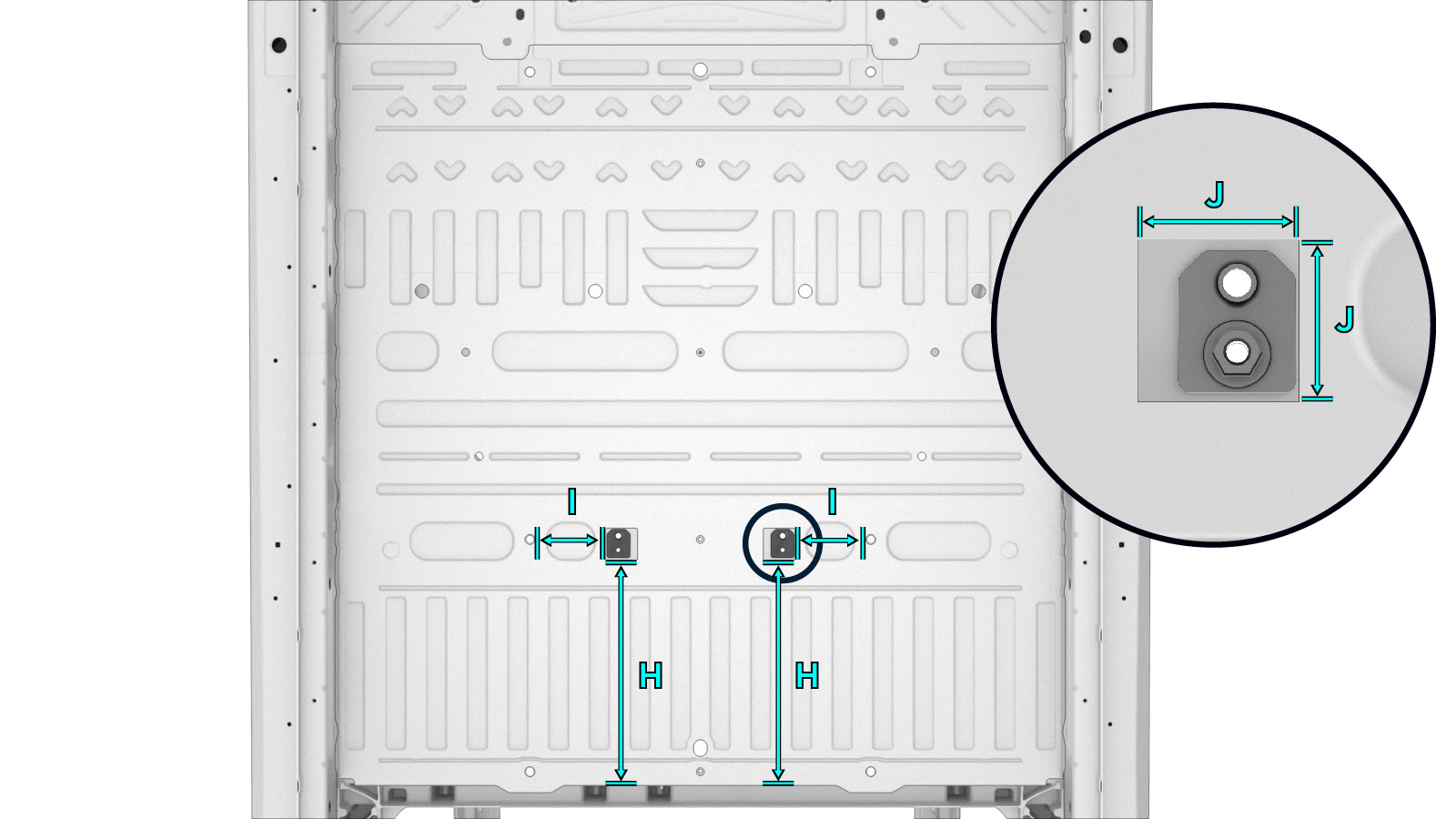

For any rear inboard seat mount reinforcement being replaced, cut a hole in
the underside of the floor panel to access the damaged component.
Rear intboard mounts:-
Reference
Line/PointH = 433 mmI = 137 mmJ = 60 mm
NoteDo not cut the floor panel under any mount that is not being replaced.NoteDo not damage the floor cross members when cutting the floor panel. -
-

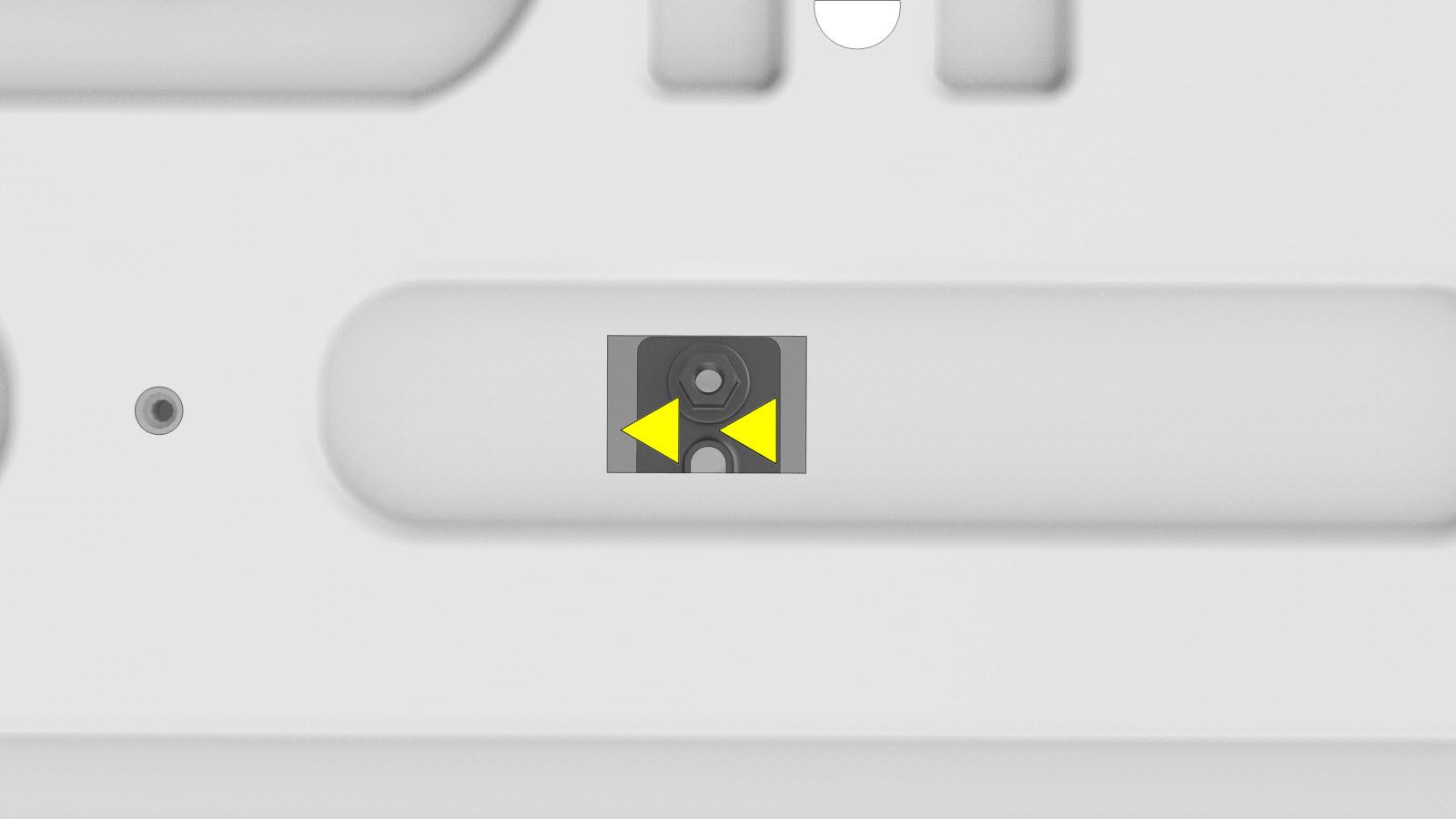

Remove the original component.
-
or
Factory Spot Welds
-
-

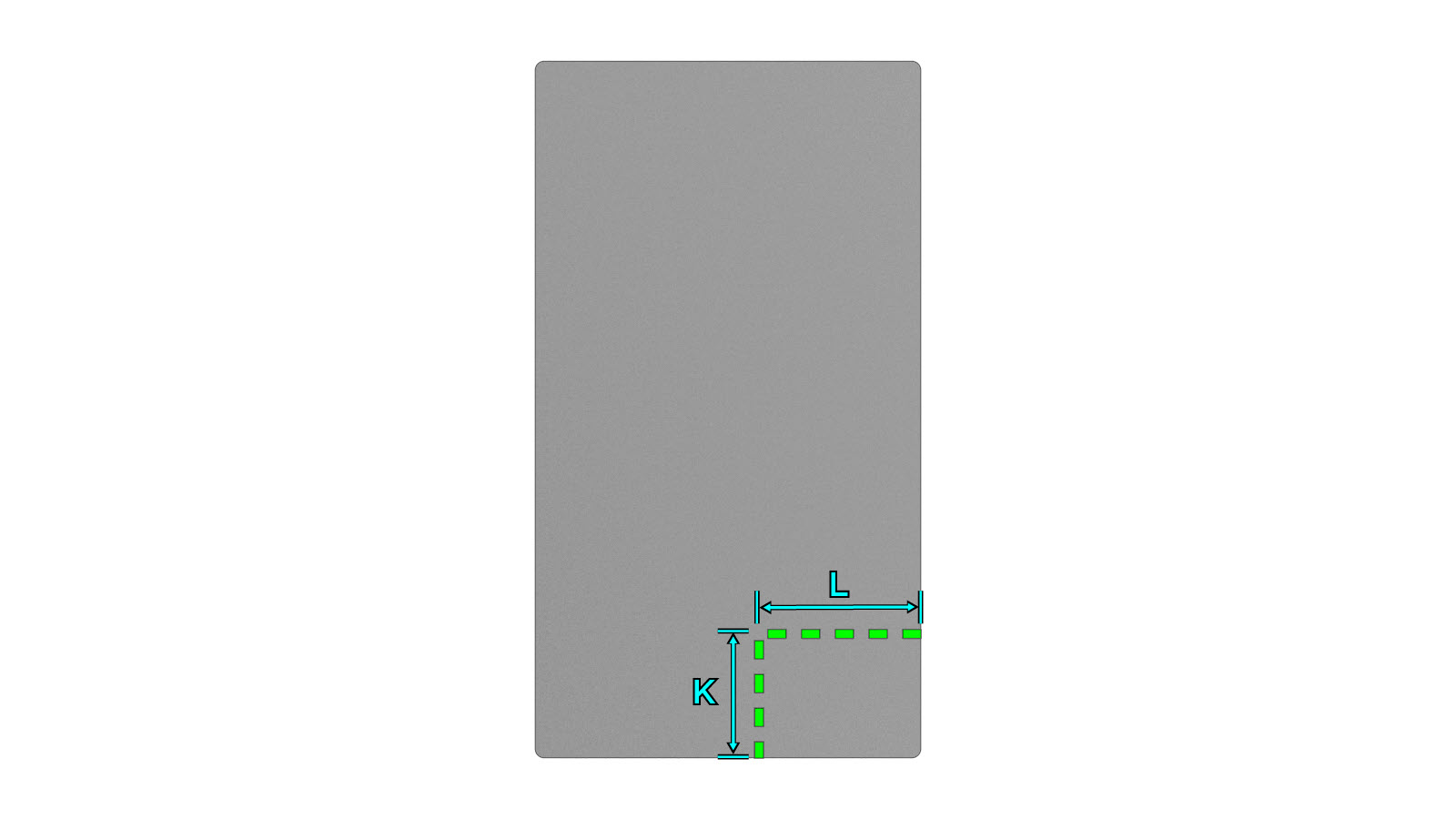

If repairing front mout reinforcements: Cut the floor panel patch as indicated
below to make a cover for the floor panel repair area.
-
Reference
Line/Point
-
Cut Line
K = 66
mm
L = 86 mm
-
-

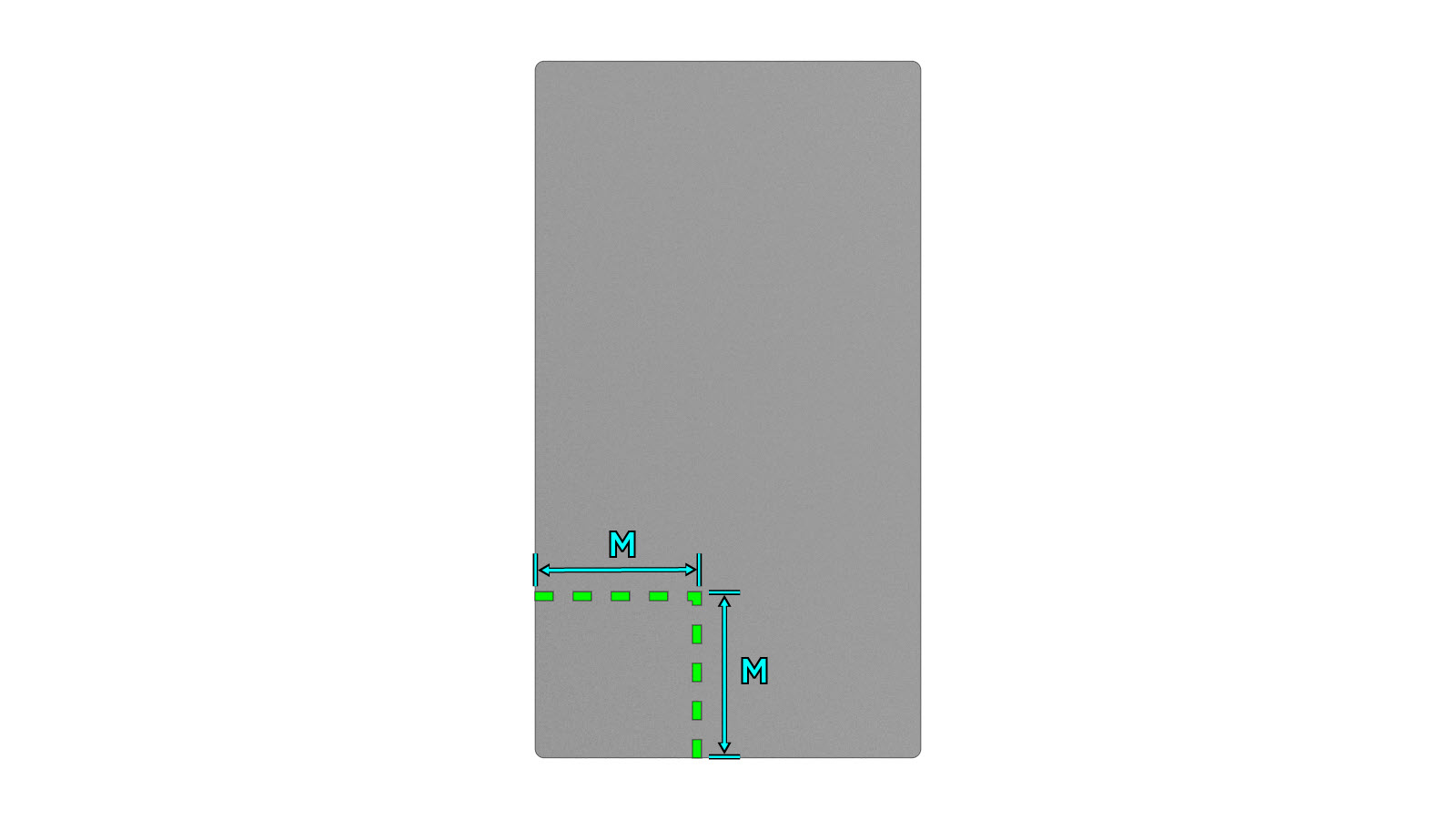

If repairing rear mout
reinforcements:Cut the floor panel patch as indicated below to make a cover for
the floor panel repair area.
-
Reference
Line/Point
-
Cut Line
M = 86 mm
-
-
Prepare for installation.

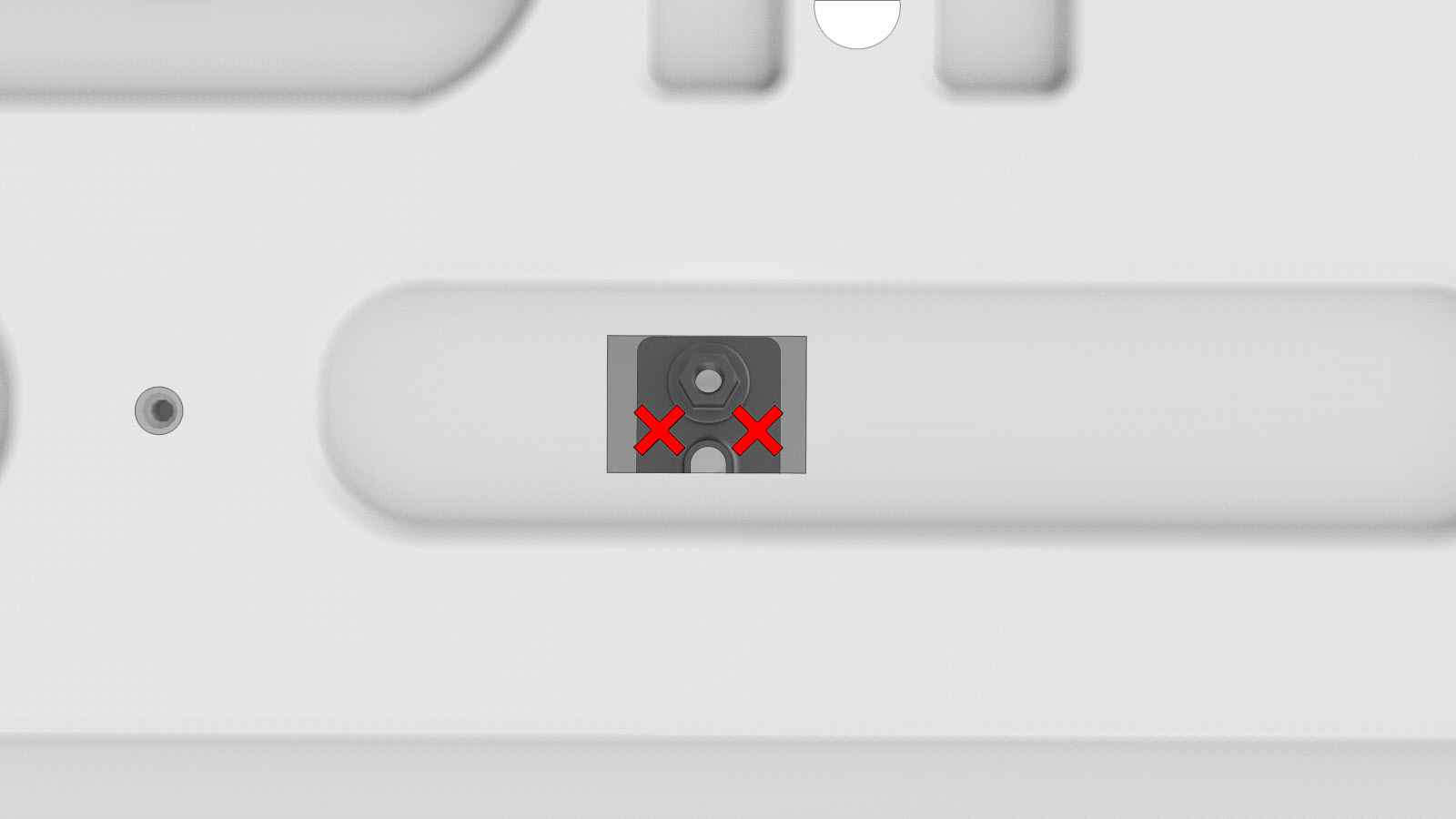

NoteA red X indicates a location where a factory-installed fastener is not being replaced.NoteNew components are installed with structural adhesive only. -
Prepare for installation.
NoteNew components are installed with structural adhesive only. - Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
-

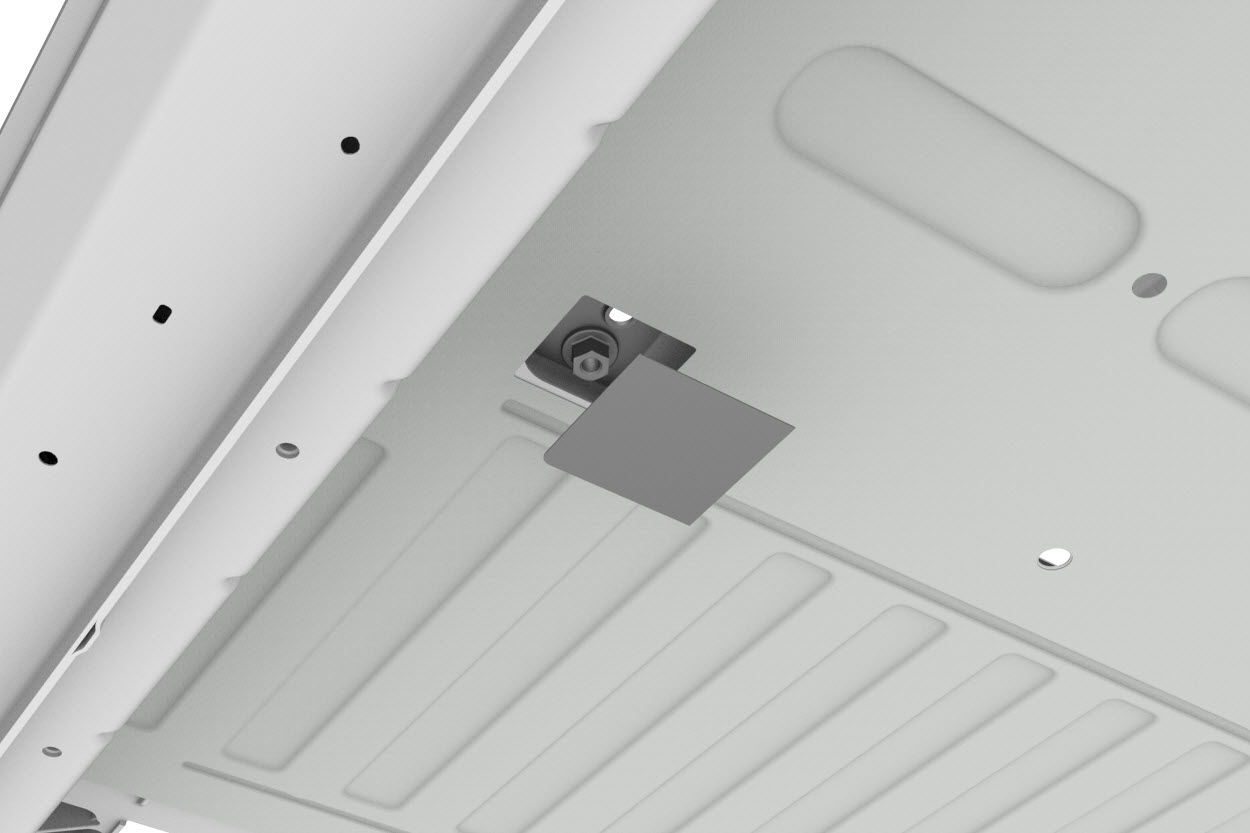

Install the new component or components.
NoteTemporarily secure the Seat Mount Reinforcement to the underside of the crossmember using a bolt or a clamp until the structural adhesive has cured.
- Perform any necessary post-repair operations.
