Front Floor Extension
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

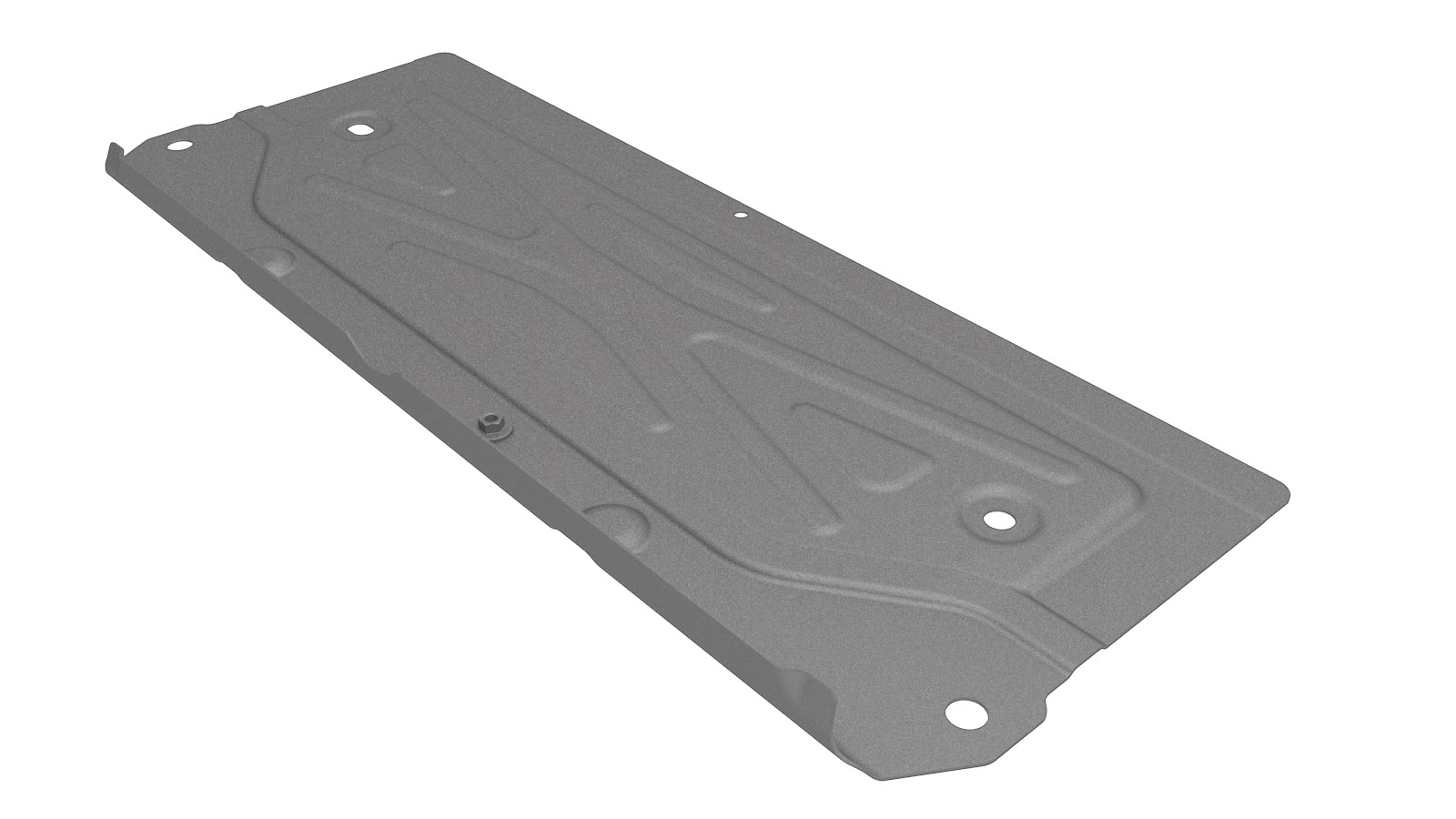

| 1 | ASY - FRT FLOOR EXTENSION (Front Floor Extension) |
|
| 11 |
Countersunk Rivet, 4.8 mm Long
|
|
| 4 |
Countersunk Rivet, 4.8 mm Short
|
|
| 8 |
High Strength Structural Rivet, 6.5 mm
|
|
| 2 |
Structural Countersunk Rivet, 6.5 mm
|
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-

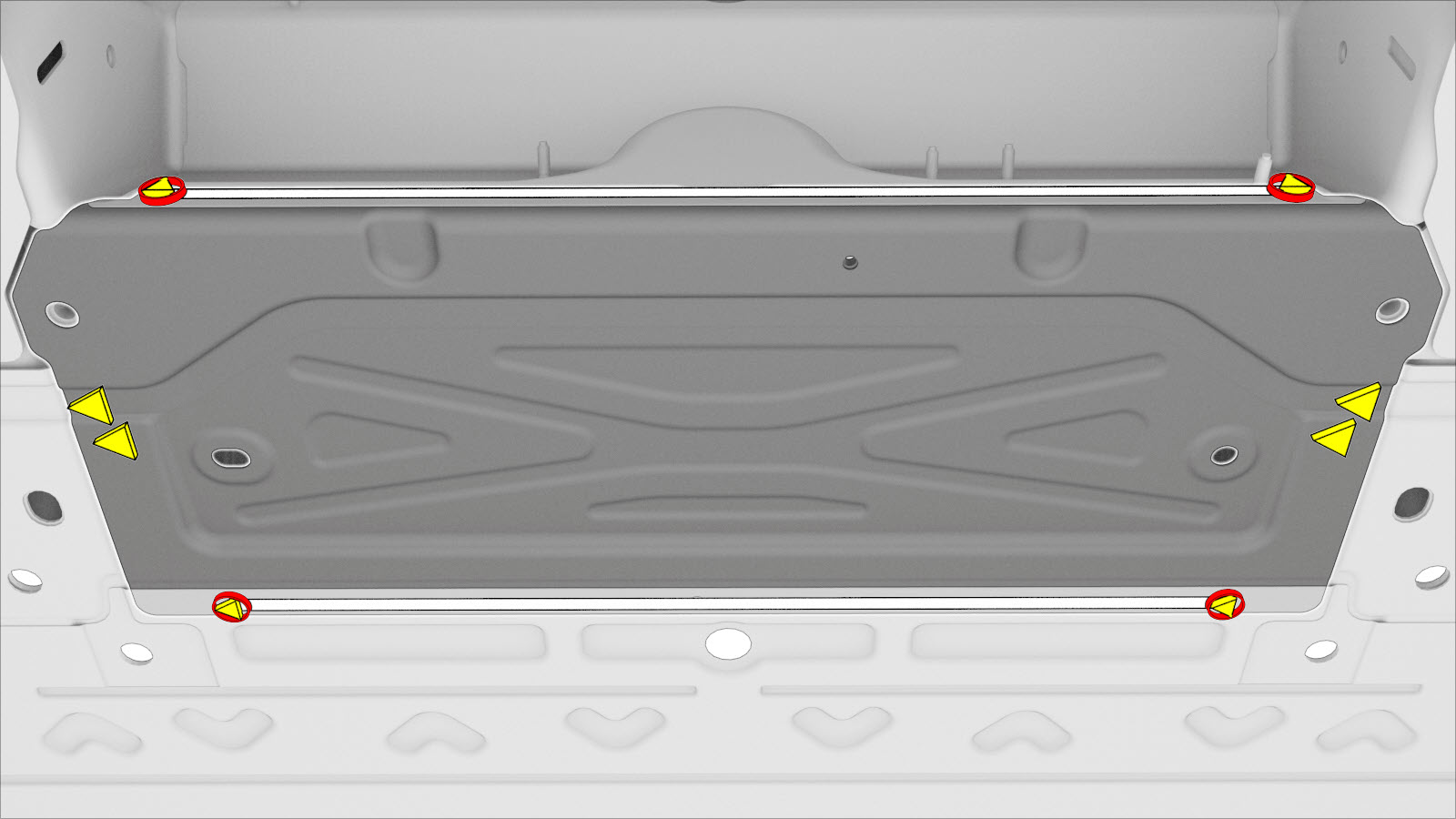

Remove the original component.
-
or
Drill through factory spot welds
NoteWhen drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.-
or
Factory Spot Welds
-
-

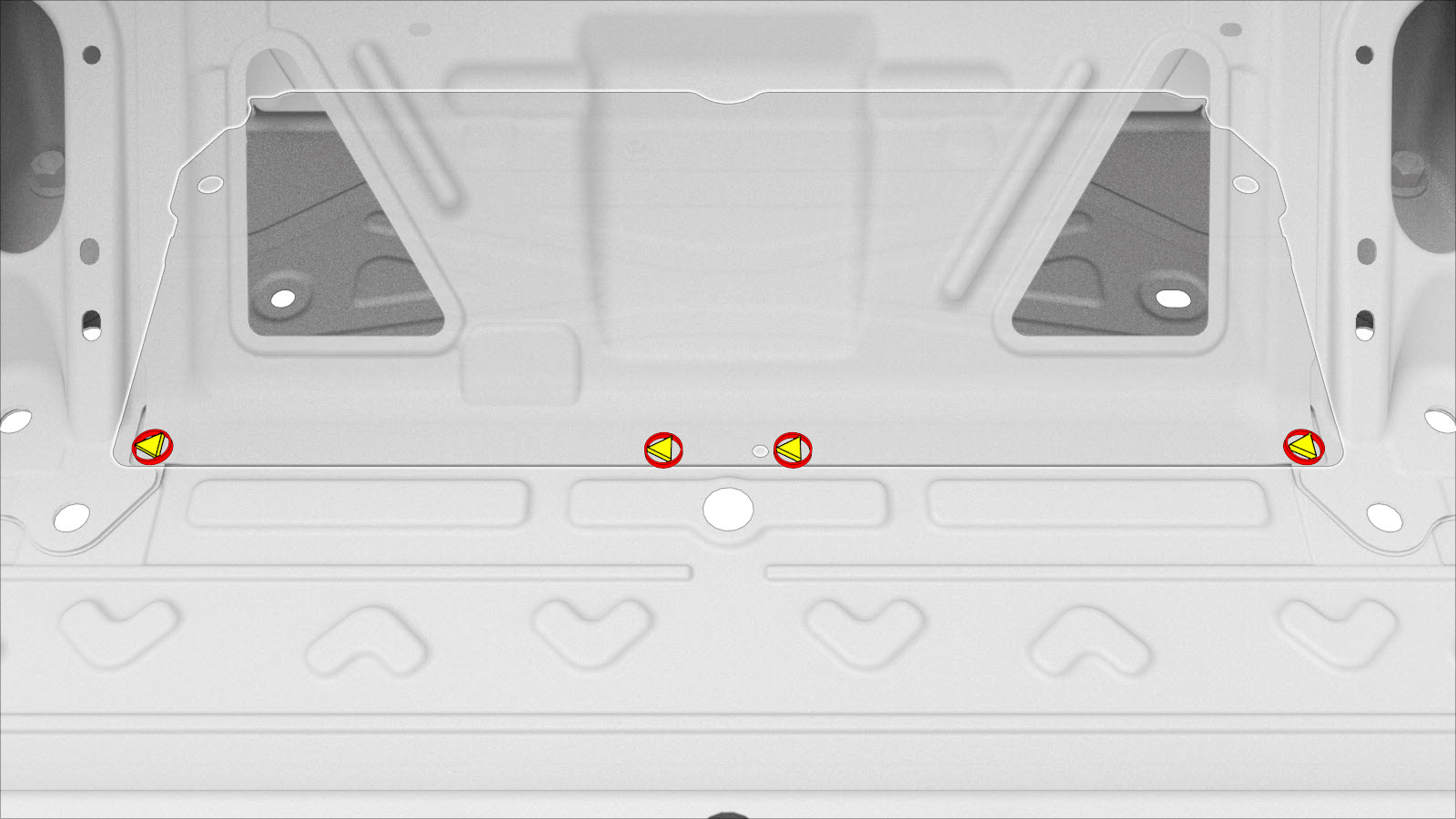

Remove the original component.
-
or
Drill through factory spot welds
NoteWhen drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld. -
-

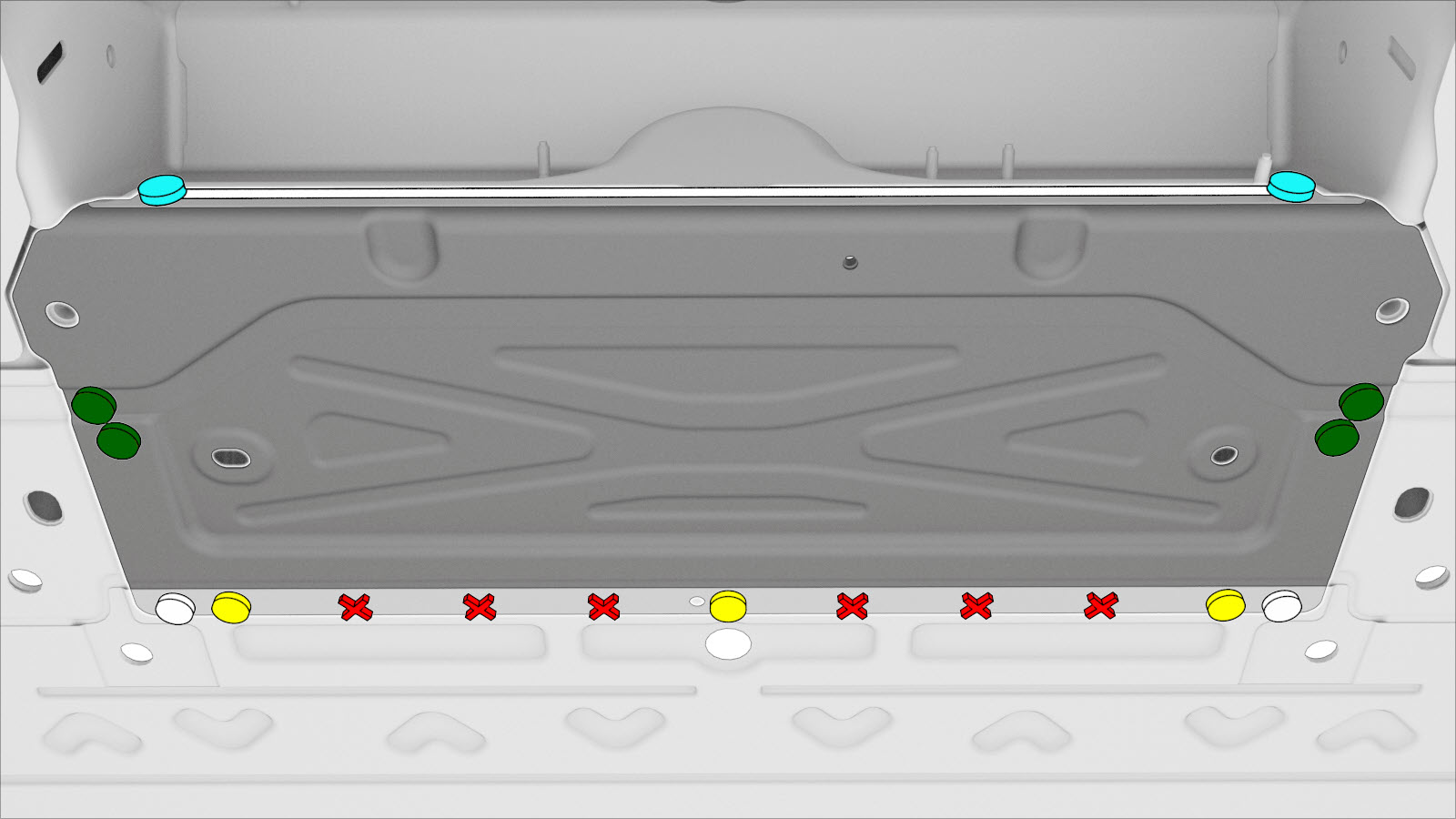

Prepare for installation.
NoteA red X indicates a location where a factory-installed fastener is not being replaced. -
Prepare for installation.
NoteA red X indicates a location where a factory-installed fastener is not being replaced.-

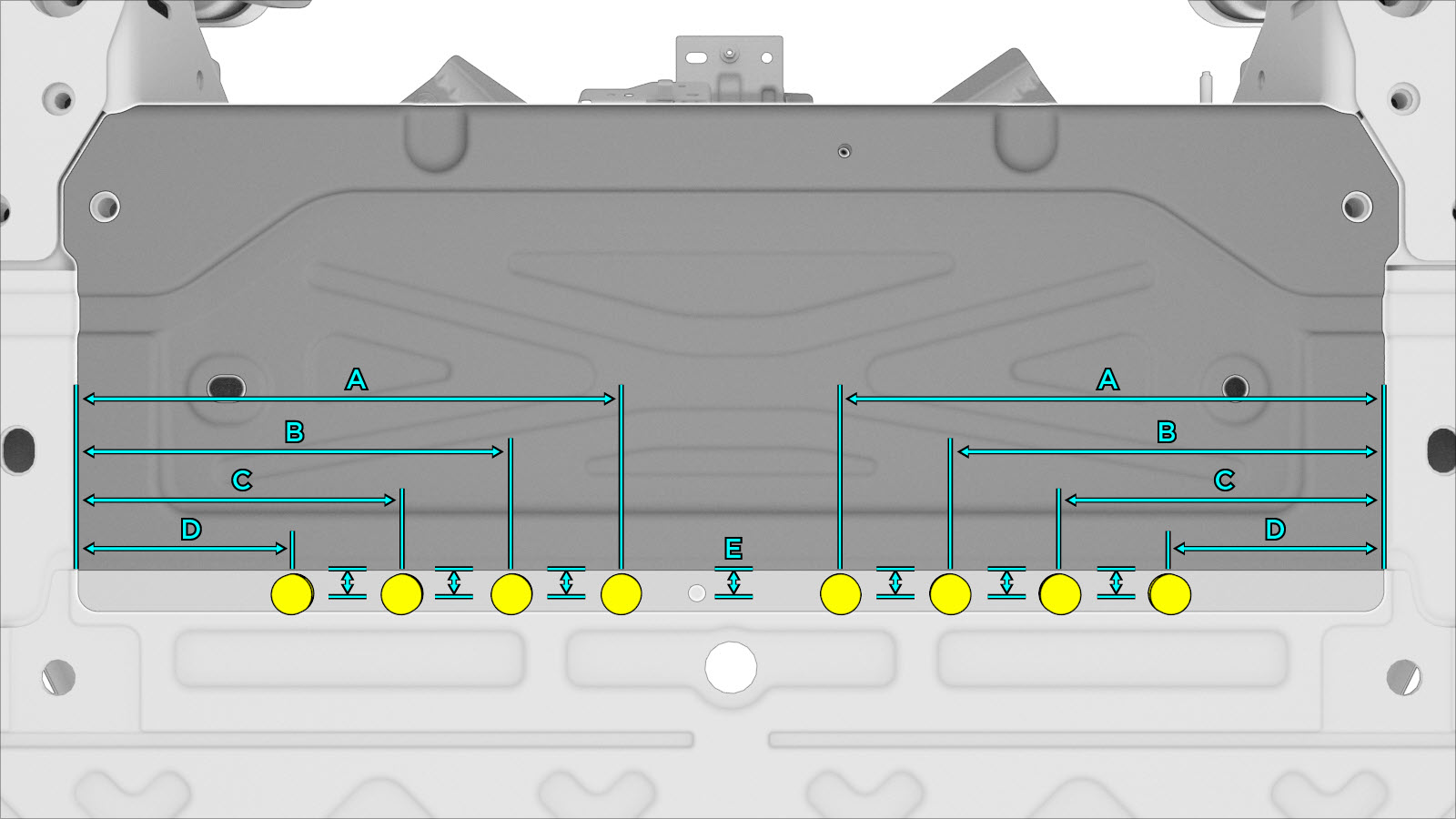

Reference
Line/Point
-
or Countersunk Rivets, 4.8 mm Long
A = 263 mm
B = 110 mm
C = 158 mm
D = 105 mm
E = 11 mm
-
-
Prepare for installation.
NoteA red X indicates a location where a factory-installed fastener is not being replaced. - Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
- Perform any necessary post-repair operations.
