Front Trunk Bracket

Correction code: 10101024602 10101024702 NOTE: Unless explicitly stated in the procedure, the above correction code includes all Collision Repair work required to perform this procedure, including the linked Collision Repair procedures. Do not stack Collision Repair correction codes unless explicitly told to do so. Add any associated mechanical procedures needed to perform this procedure.

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes

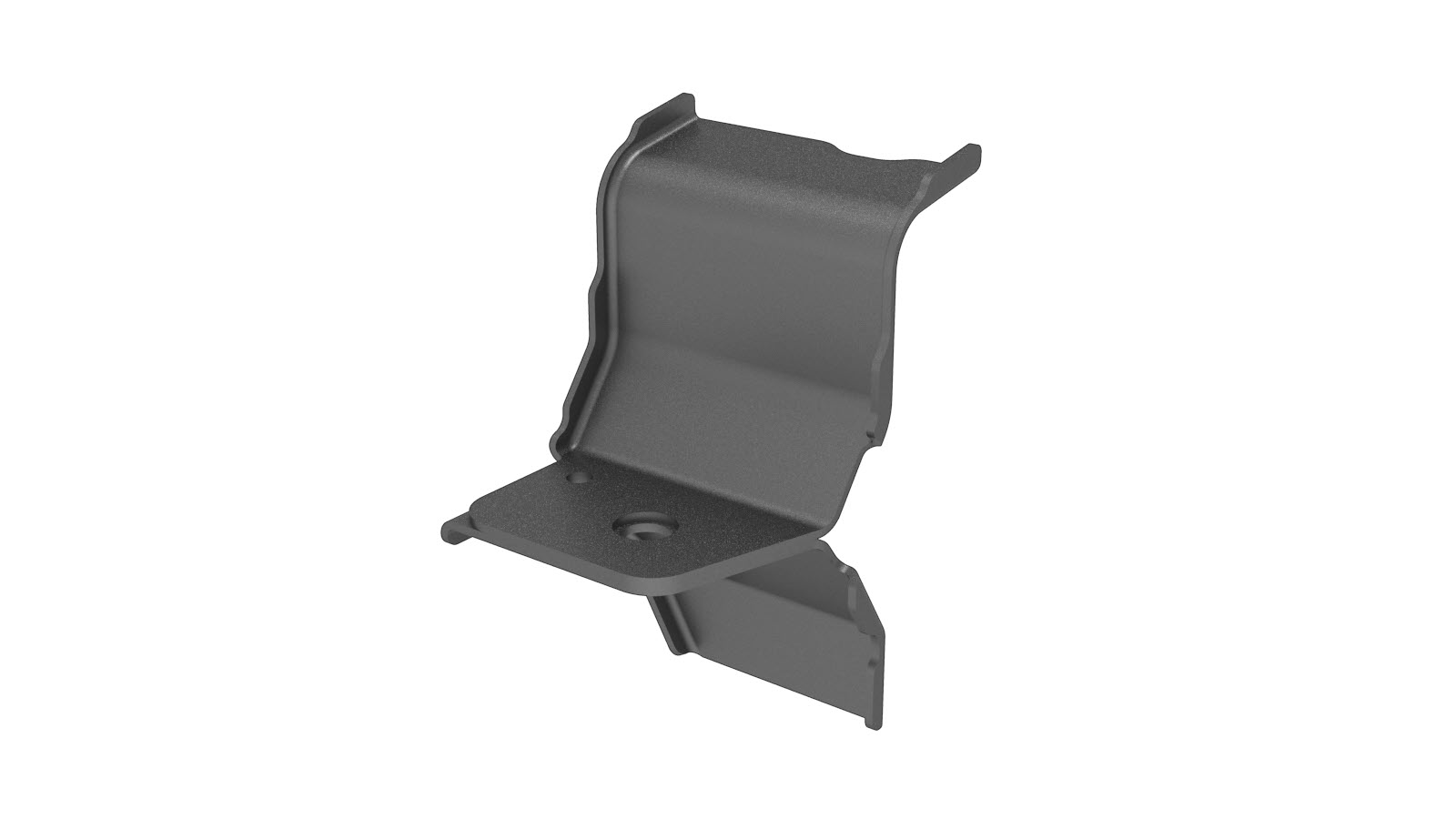

1	ASSEMBLY - FRUNK BRACKET (Front Trunk Bracket)
2	High Strength Structural Rivet, 6.5 mm
5	Structural Bulb Rivet, 6.5 mm

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

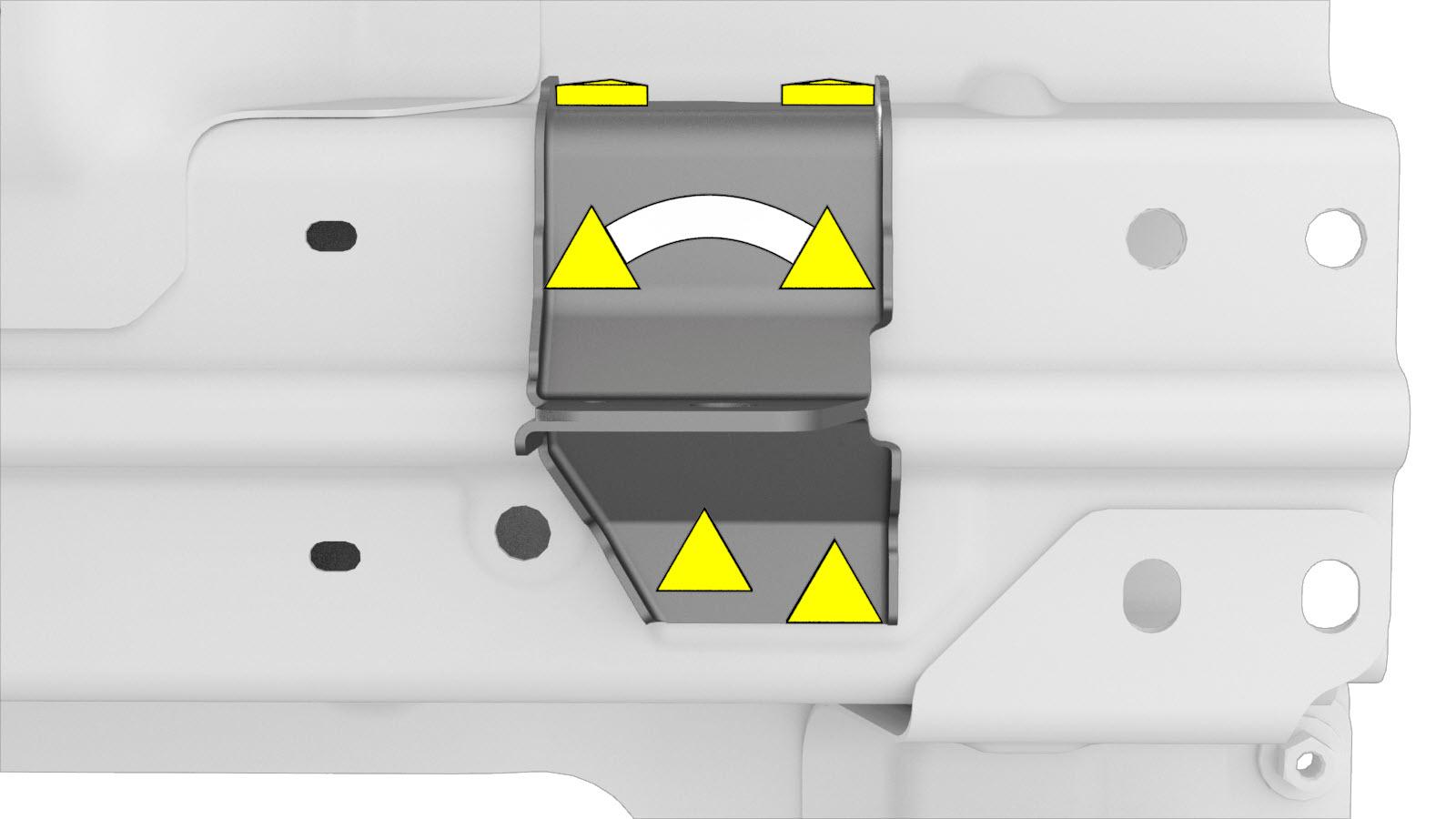

Remove the original component.
- or Factory Spot Welds
Prepare for installation.
Note

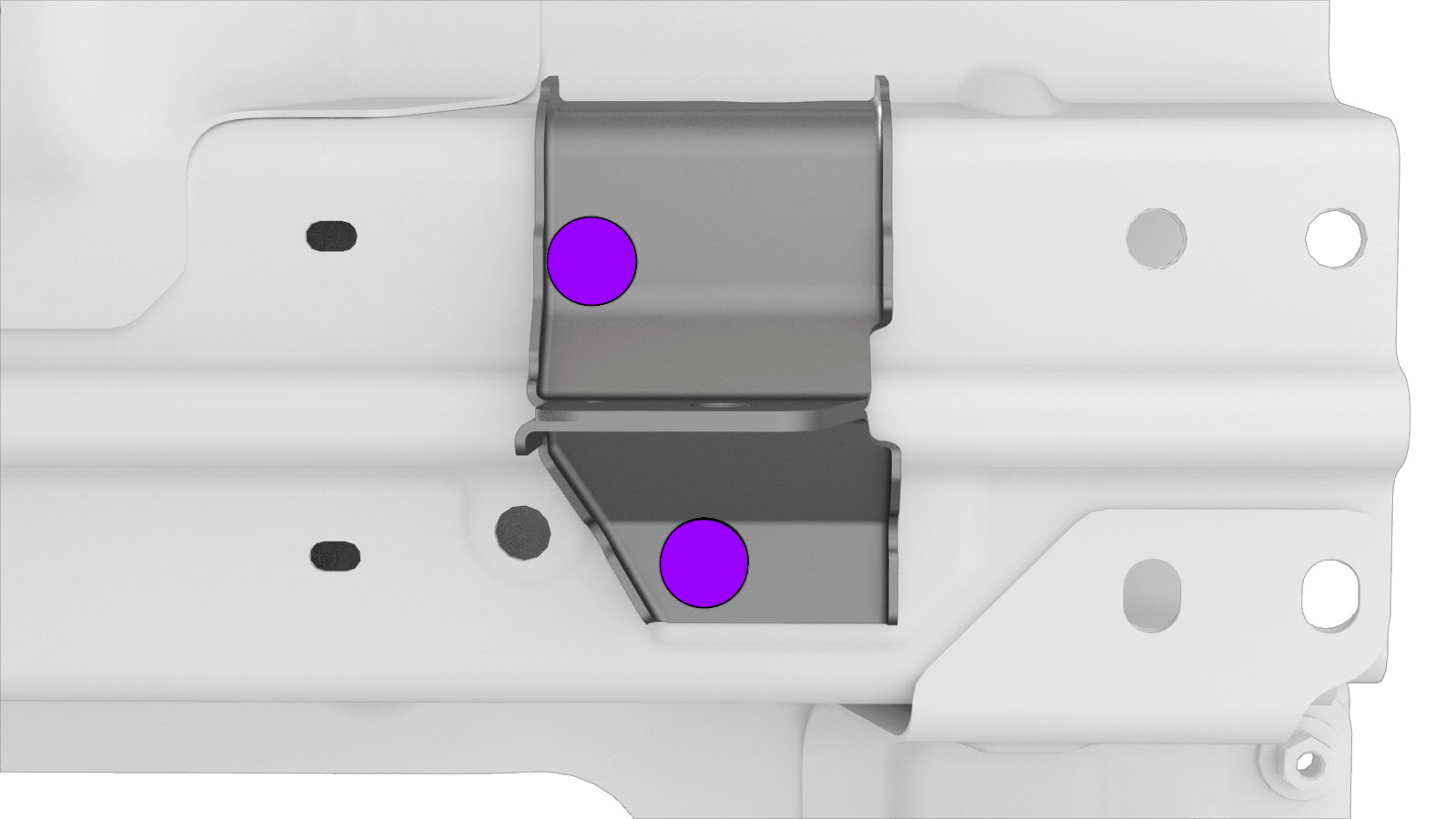

For each rivet being installed, drill a 6.7 mm hole through the Frame Rail Outer only. Do not drill through the inner Frame Rail Reinforcement.
- or Structural Bulb Rivets, 6.5 mm
Prepare for installation.
Note
For each rivet being installed, drill a 6.7 mm hole through the Frame Rail Outer only. Do not drill through the inner Frame Rail Reinforcement.
- Reference Line/Point

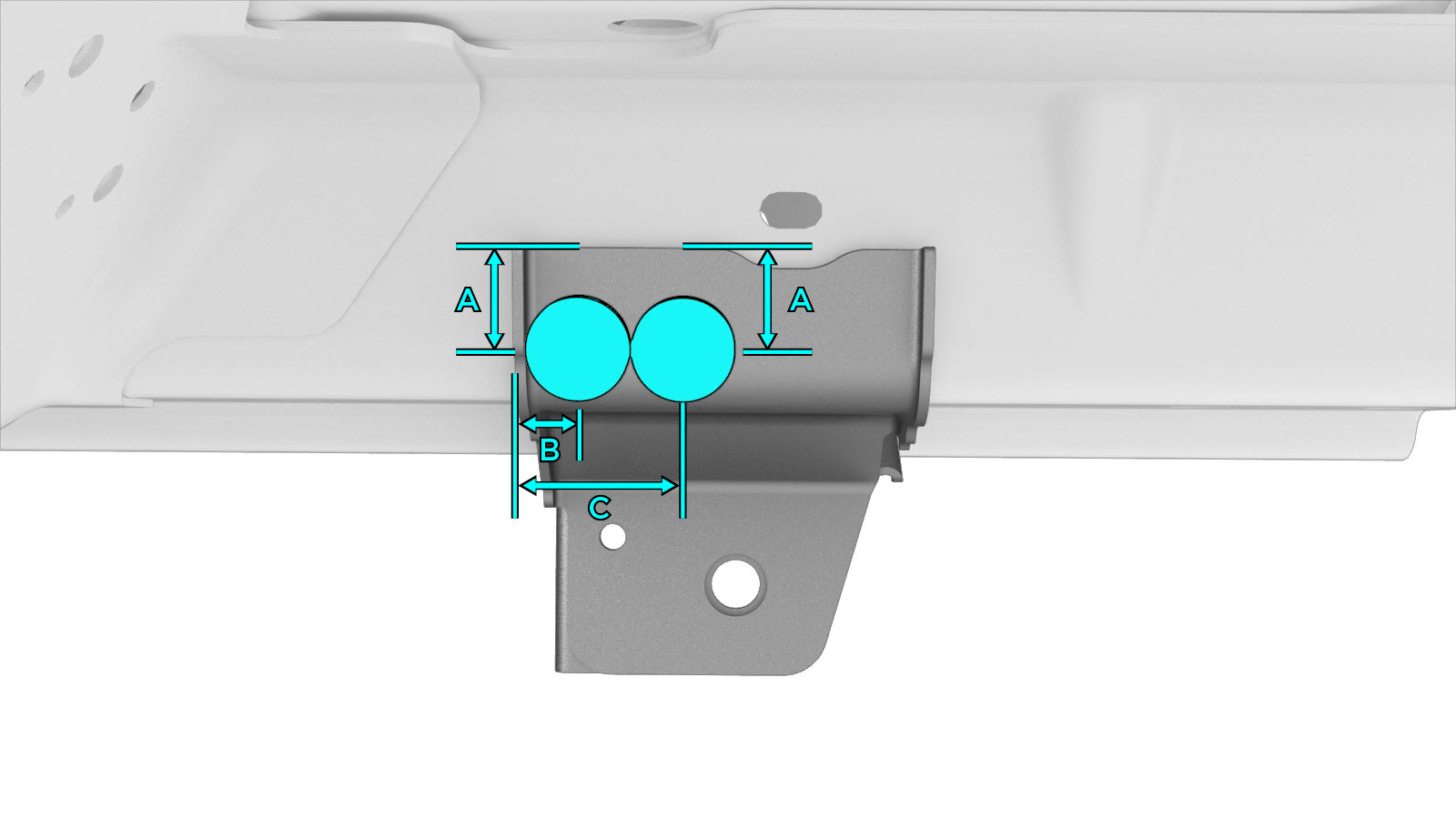

- or High Strength Structural Rivets, 6.5 mm A = 19 mm B = 12 mm C = 32 mm
Prepare for installation.
Note
For each rivet being installed, drill a 6.7 mm hole through the Frame Rail Outer only. Do not drill through the inner Frame Rail Reinforcement.
- Reference Line/Point

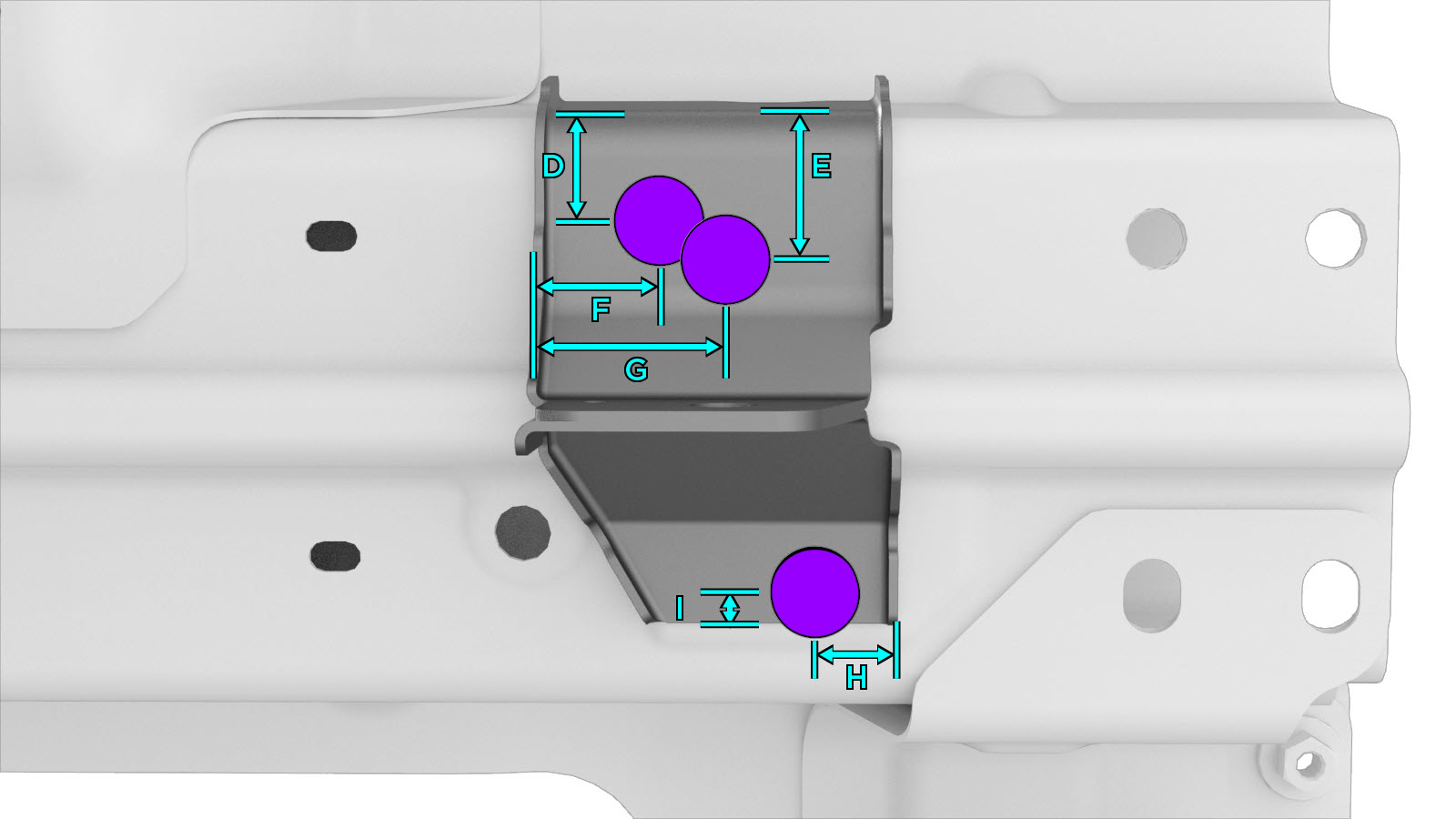

- or High Strength Structural Rivets, 6.5 mm D = 27 mm E = 34 mm F = 26 mm G = 40 mm H = 20 mm I = 7 mm
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
Perform any necessary post-repair operations.
