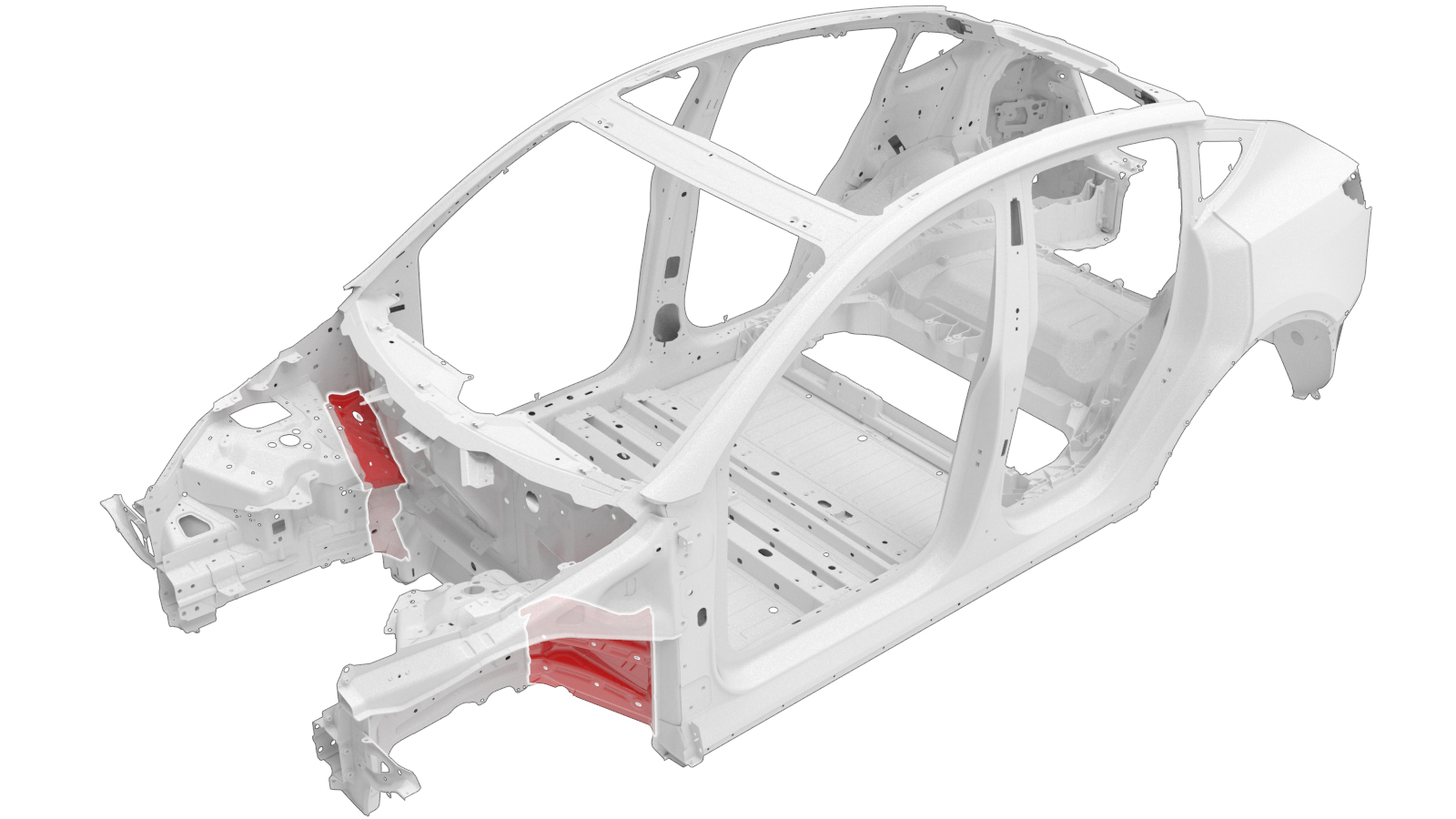

Torque Box
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

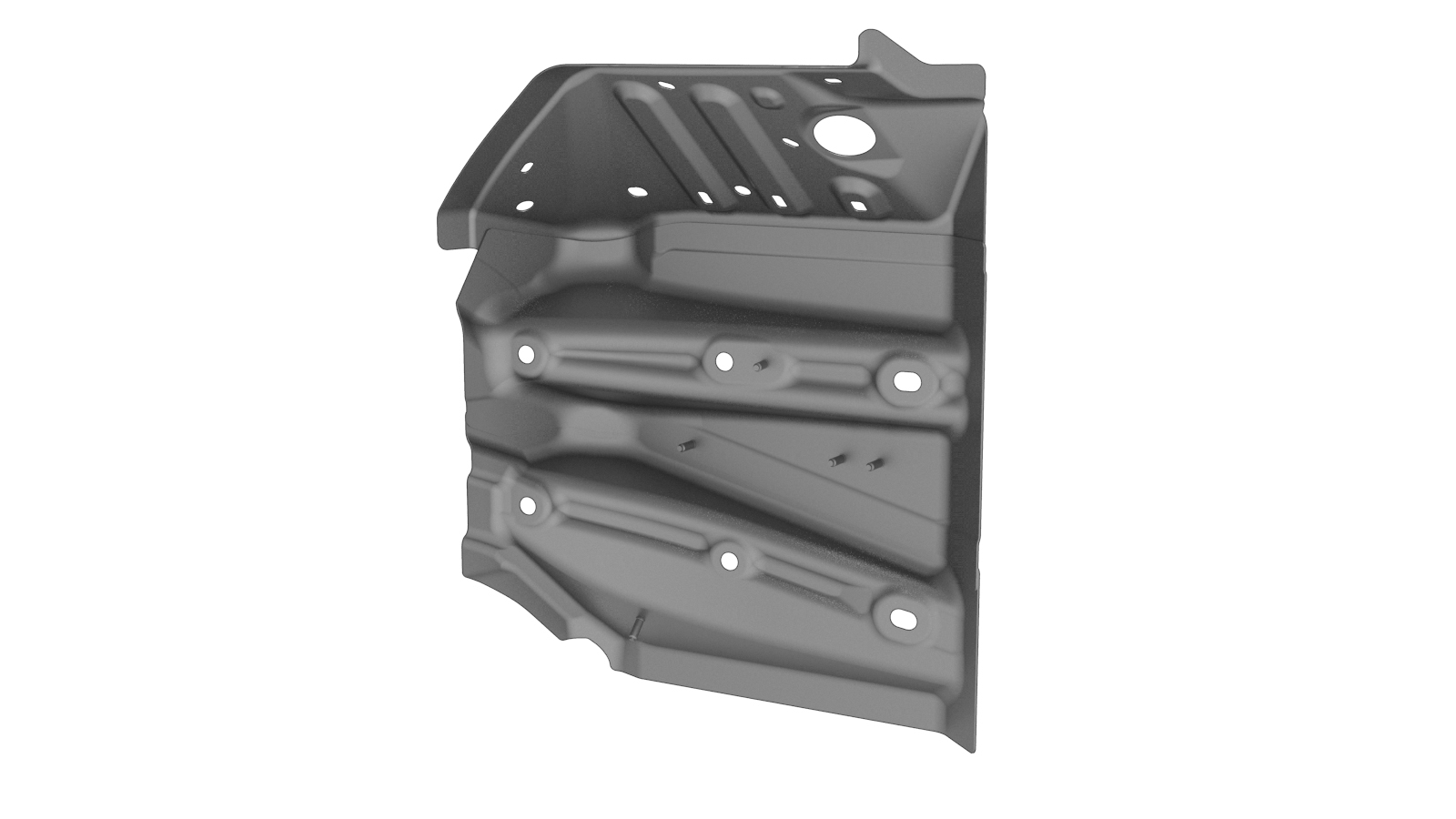

| 1 | ASSEMBLY - TORQUE BOX FRONT (Torque Box) |
|
| 41 |
High Strength Structural Rivet, 6.5 mm
|
|
| 13 |
Structural Bulb Rivet, 6.5 mm
|
|
| 1 |
Bolt
|
Tesla part number 1011818-00-A. |
| 1 |
Nut
|
Tesla part number 1006628-01-A. |
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-
Remove the original component.
-
or

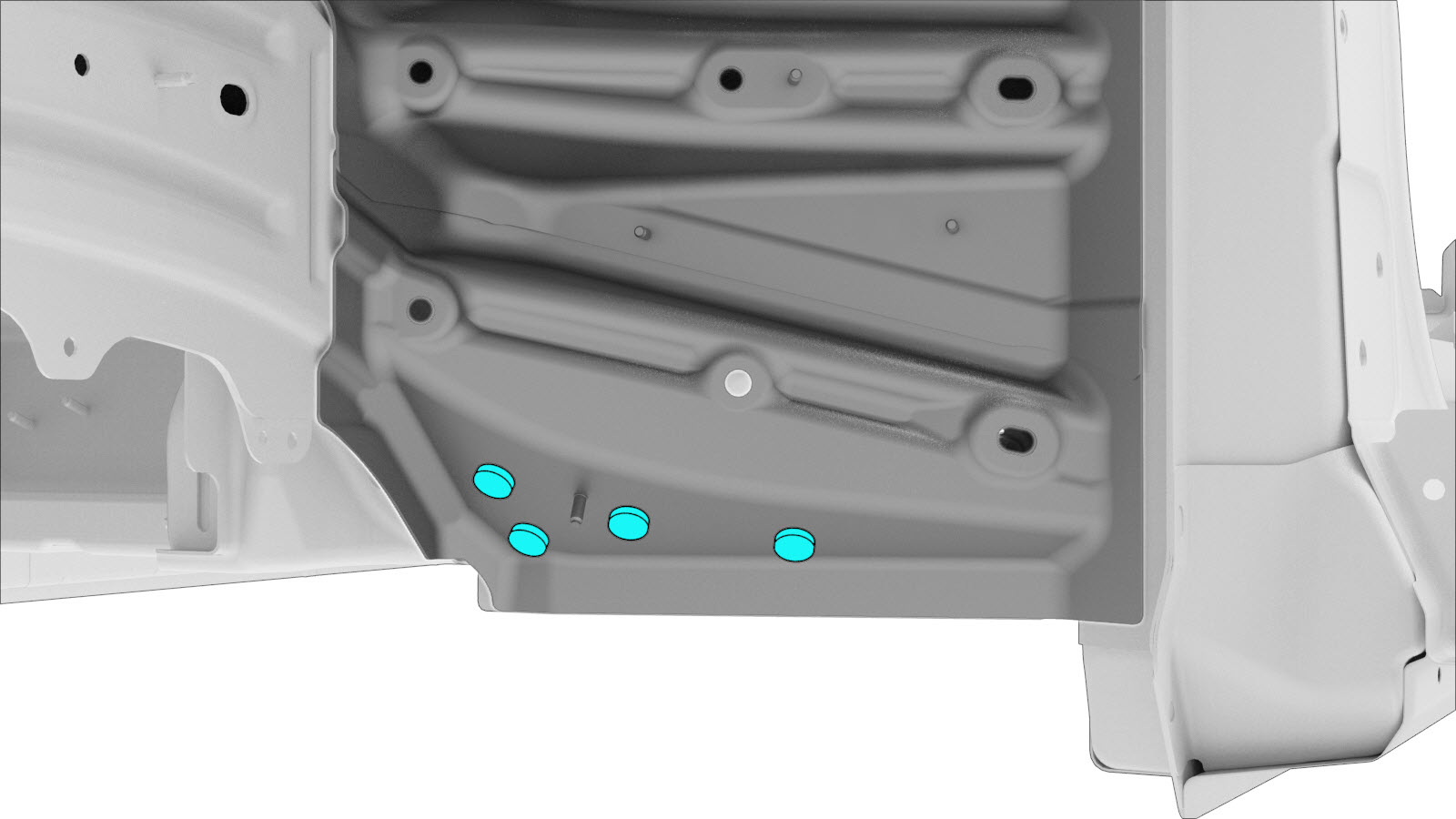

Factory Spot Welds
-
-
Remove the original component.
-
or Factory Spot Welds
-
-
Remove the stud from the ASSEMBLY - TORQUE BOX FRONT service part.

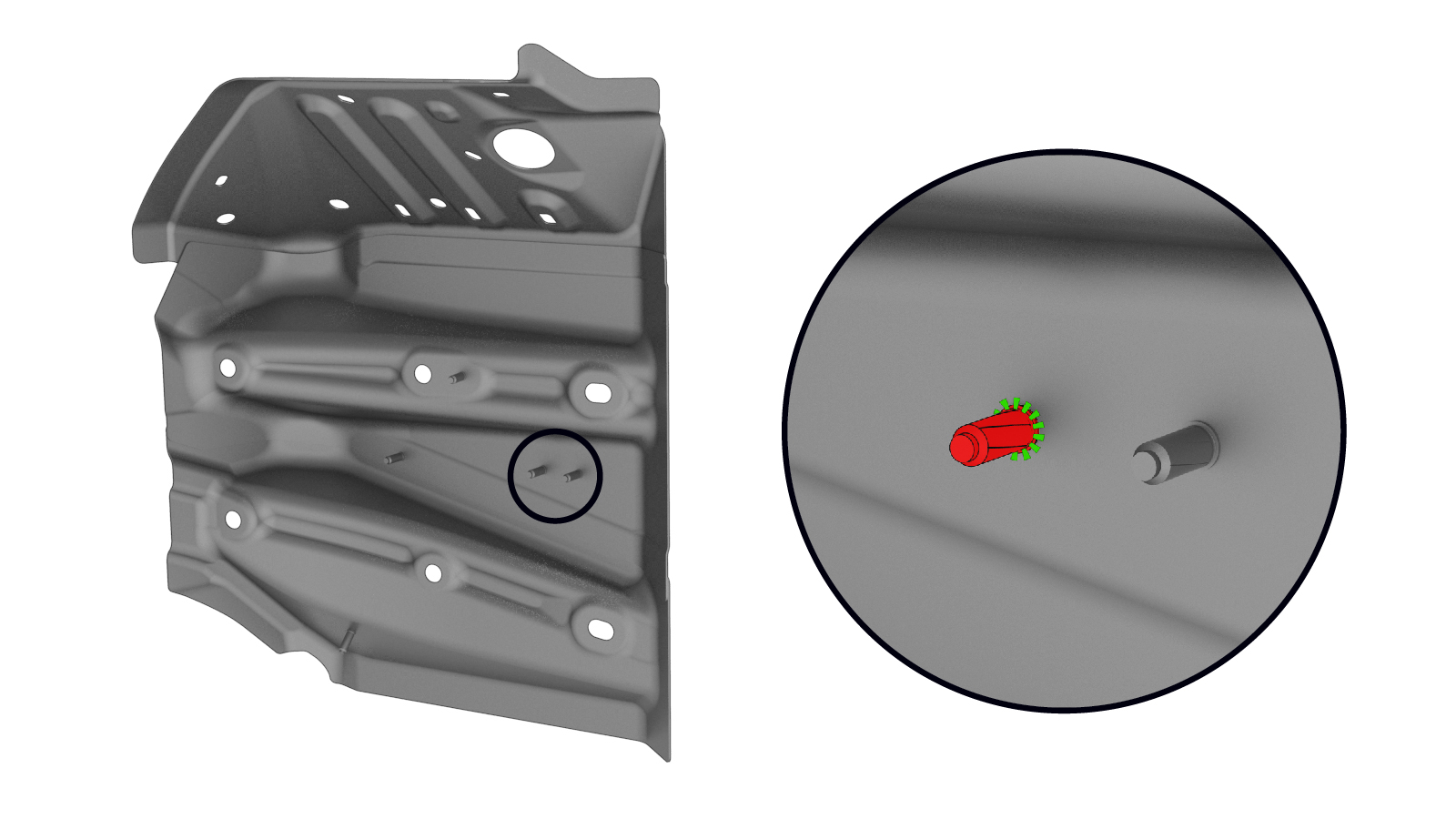

NoteThe indicated stud must be removed due to interference with a brake line.-
Cut Line
NoteApply corrosion protection over the removed stud area. -
-
Prepare for installation.

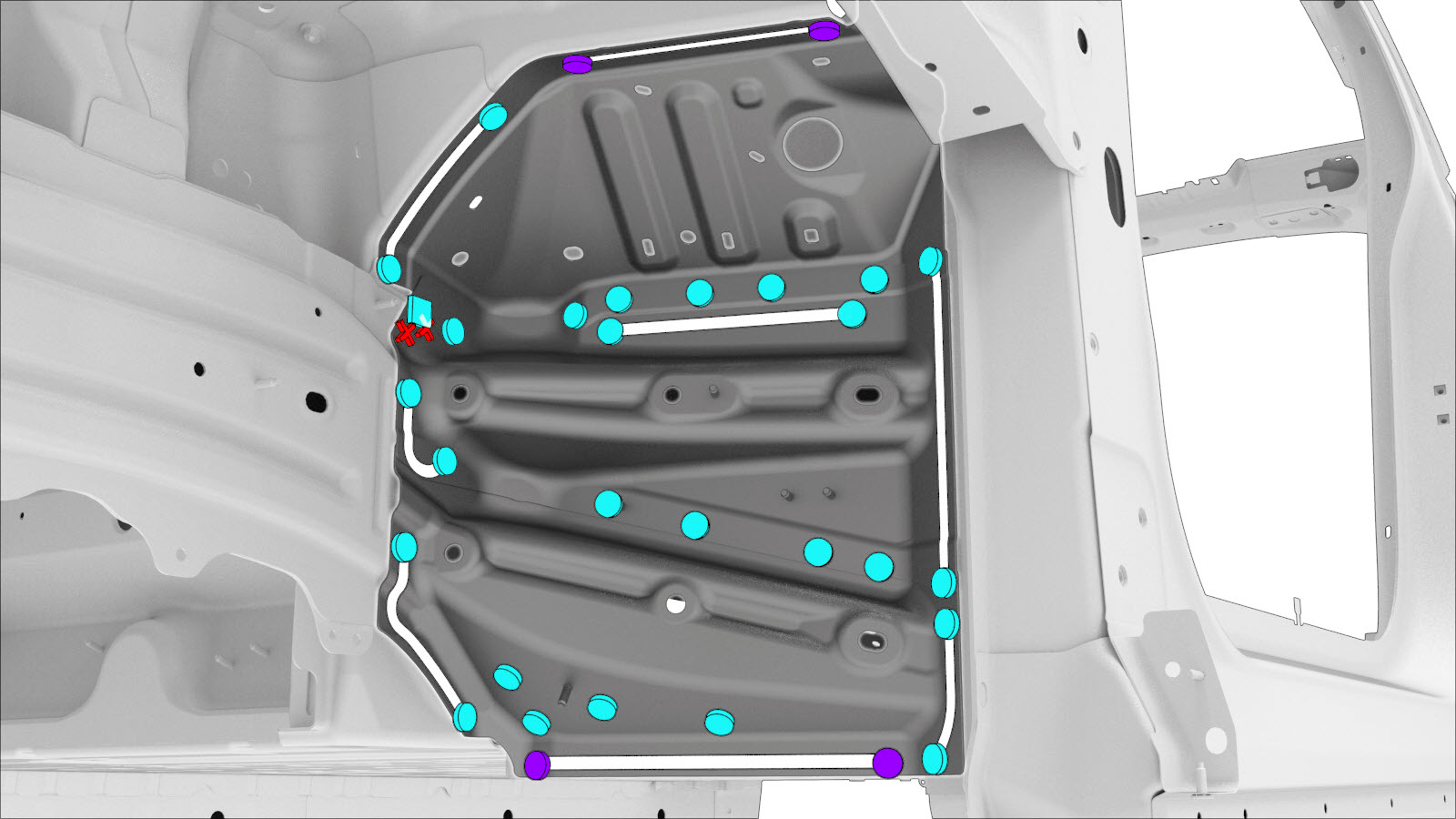

NoteA red X indicates a location where a factory-installed fastener is not being replaced. -
Prepare for installation.
-
Reference
Line/Point
-
or Bolts, hex-head

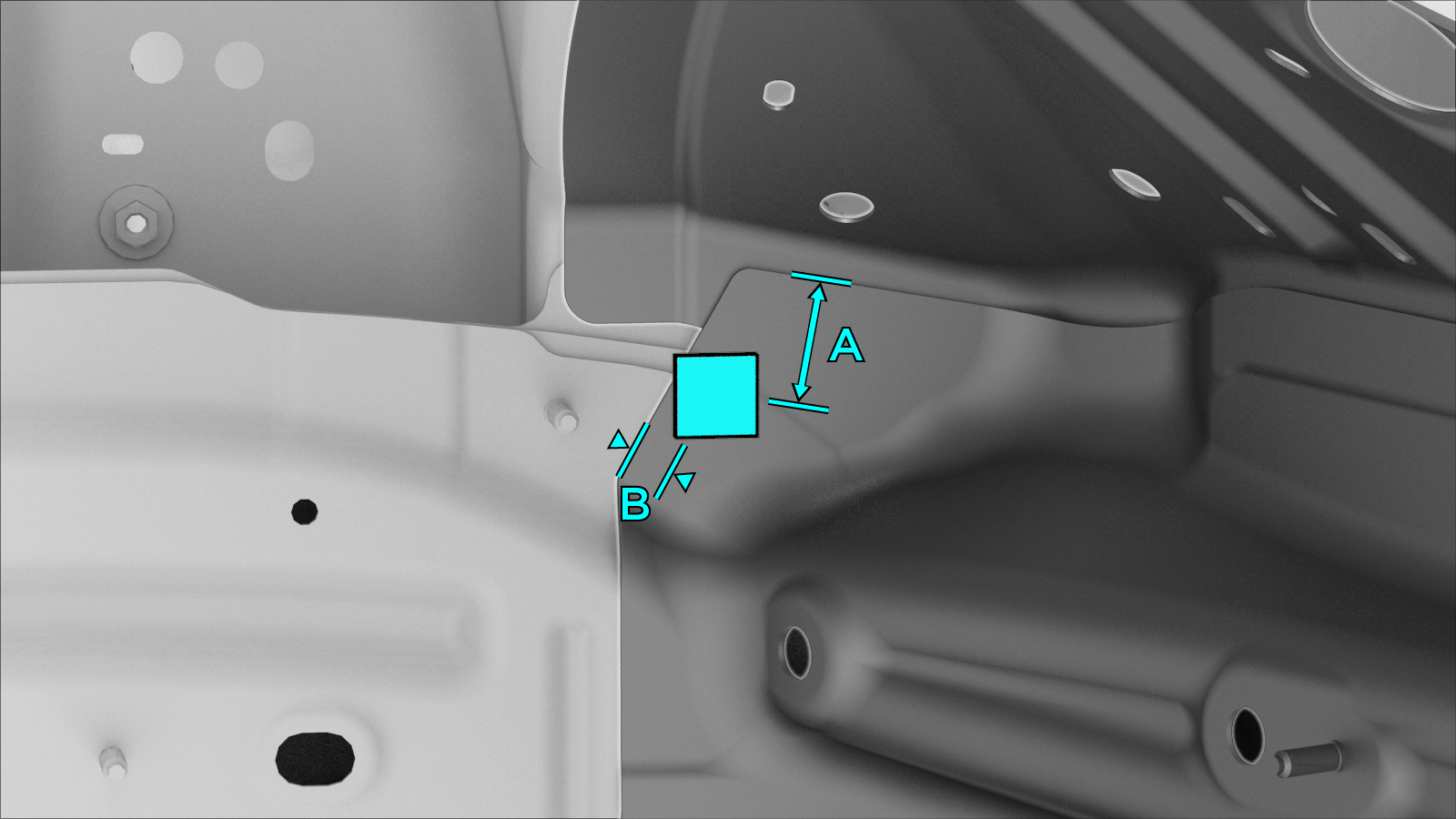

A = 31 mm
B = 8 mm
-

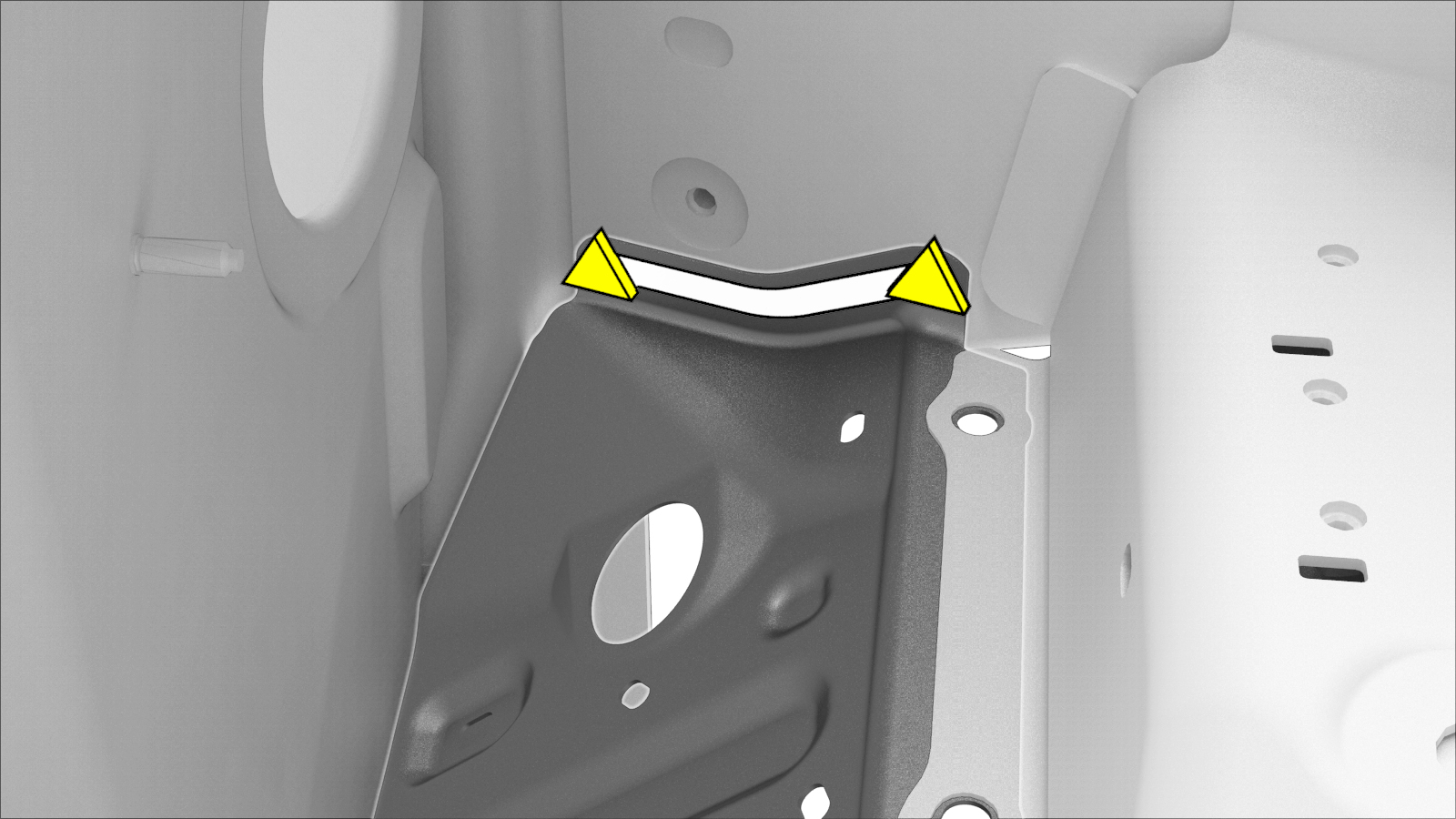

- Prepare for installation.
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
-
Install the new component or components.
Torque the bolt to 22 Nm.
NoteFor rivets installed through the Torque Box Assembly and into the cabin of the vehicle, make sure the rivets do not rub against the under-carpet insulation pad. If necessary, trim the insulation pad slightly to provide clearance. -

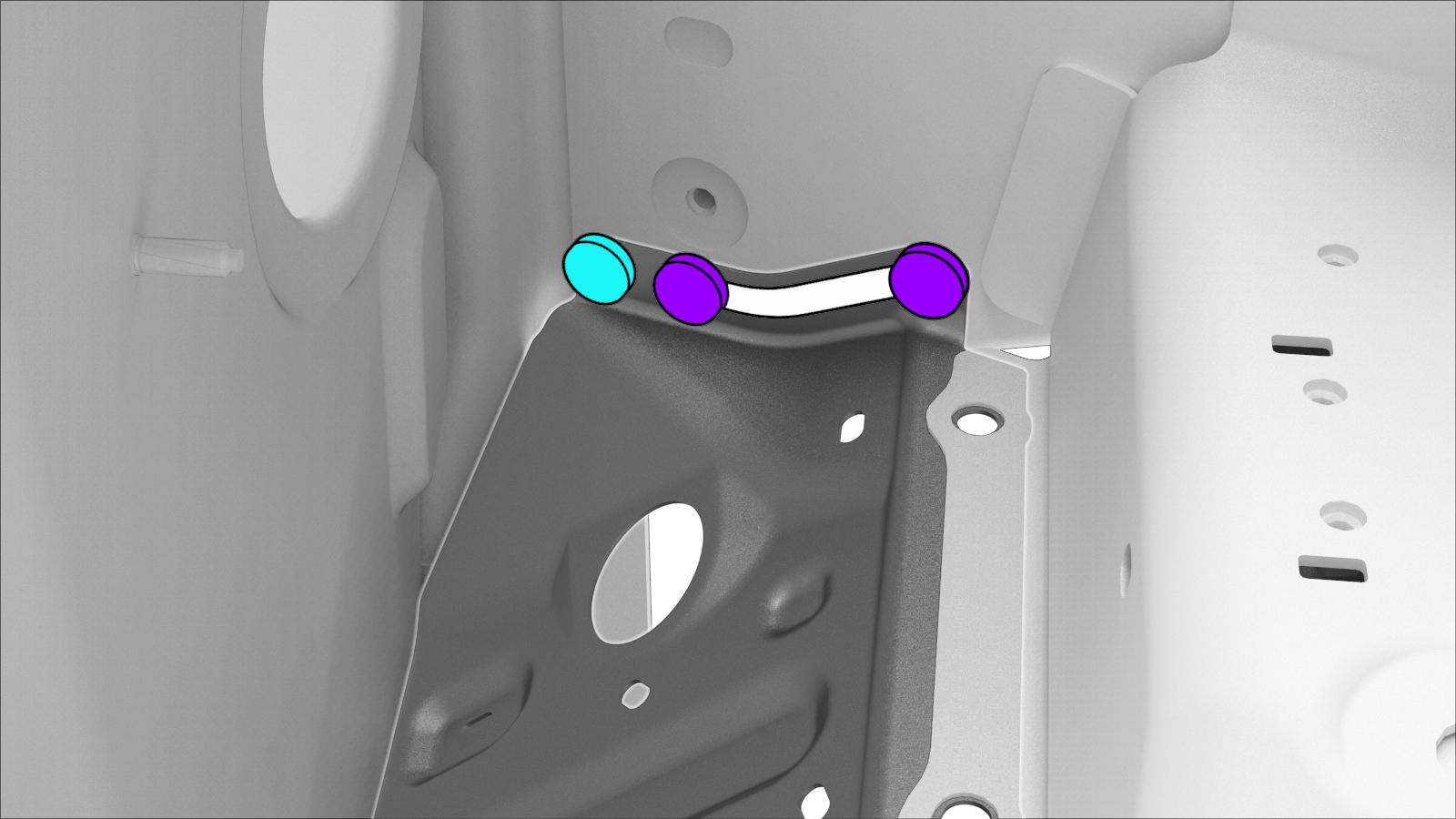

After painting is complete, use a
butyl patch to cover the rivets shown.
NoteUse several small butyl patches if necessary. - Perform any necessary post-repair operations.
